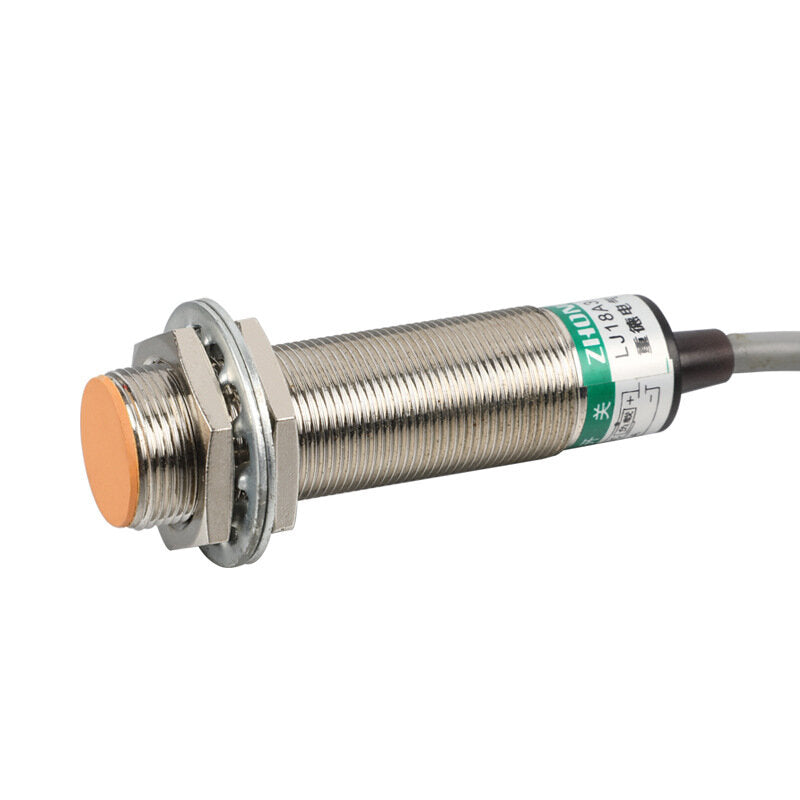

ZJZDDQ LJ18A3-5-Z/BX/BY/AX/AY/EX/DX M18 NPN PNP 5MM DC 6~36V Cylinder Inductive Promixity Sensor Switch
Features:Stable performance, strong conductivity, strong corrosion resistance, firmness and reliability, convenient installation and safe use.Built-in smart sensor chip, strong anti-interference and high sensitivity.Specification:Product name: Inductive proximity switchThread diameter: M18Setting distance:...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Features:
Stable performance, strong conductivity, strong corrosion resistance, firmness and reliability, convenient installation and safe use.
Built-in smart sensor chip, strong anti-interference and high sensitivity.
Specification:
Product name: Inductive proximity switch
Thread diameter: M18
Setting distance: 0~4.8mm
Detection distance: 5mm
Detection object: any dielectric substance
Installation method: buried
Induction method: inductive
Response frequency: 300Hz
Working voltage: DC 6-36V , AC 90-250V
Current output: 200mA
Protection level: IP65
Quiescent current: DC three-wire type Ôëñ2.5mA, AC two-wire type Ôëñ8.5mA
Detection object: 20X20X1 iron
Residual voltage: DC three-wire type: Ôëñ1.5V DC, DC two-wire type: Ôëñ4V DC, AC two-wire type: Ôëñ8V AC
Insulation resistance: ÔëÑ50M╬®/Min (500V DC Mega benchmark)
Withstand voltage: 1500V AC 50/60HZ for one minute
Anti-vibration: 10-55HZ (period per minute) 1mm complex amplitude, 2 hours each in X, Y, and Z directions
Impact resistance: 500M/S┬▓ (50G) 3 times each in X, Y, and Z directions
Working temperature: -30 ~+80Ôäâ (under non-icing state)
Storage temperature: -30~ +80Ôäâ (under non-icing state)
Working humidity: 35 ~95% RH
Indicator: Red LED

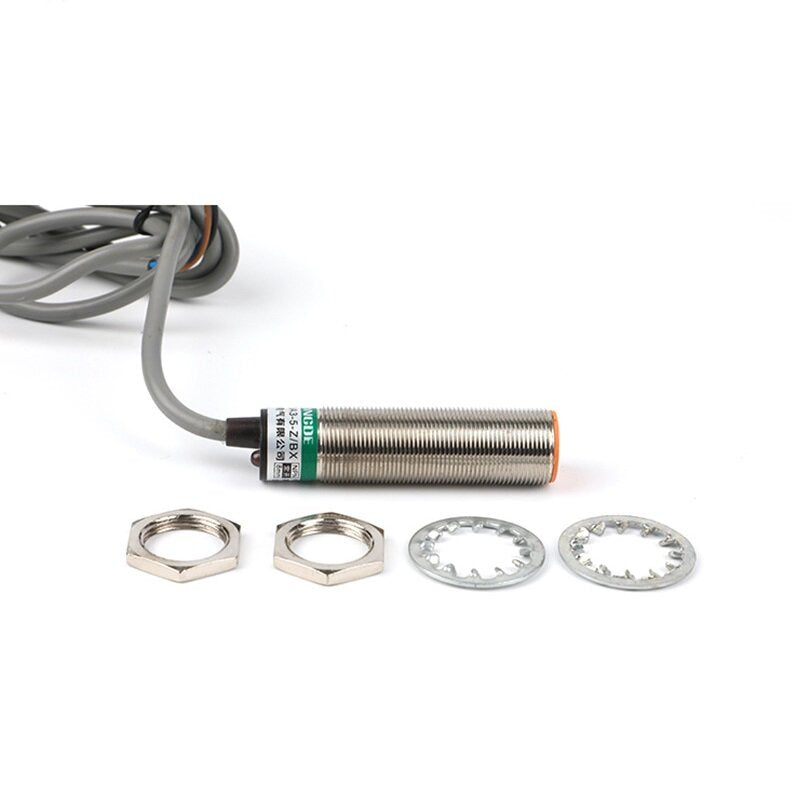

Package Included:
1 x Sensor Switch
