UNO Expansion Board + ATmega328P Nano V3 Improved Version

UNO Expansion Board + ATmega328P Nano V3 Improved Version For

Description:

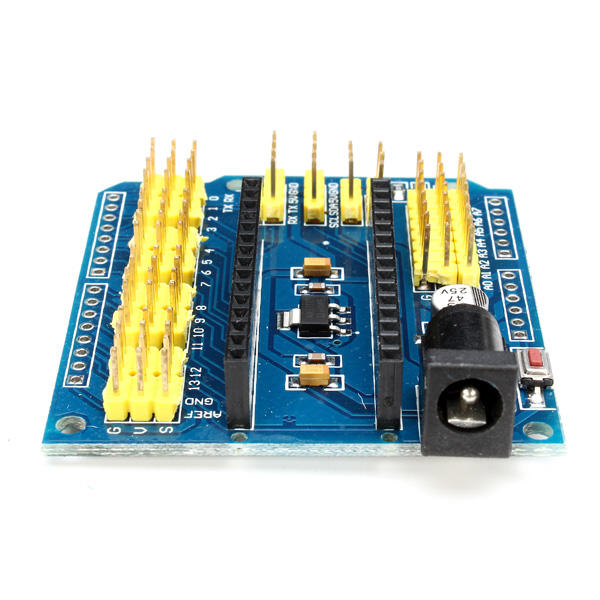

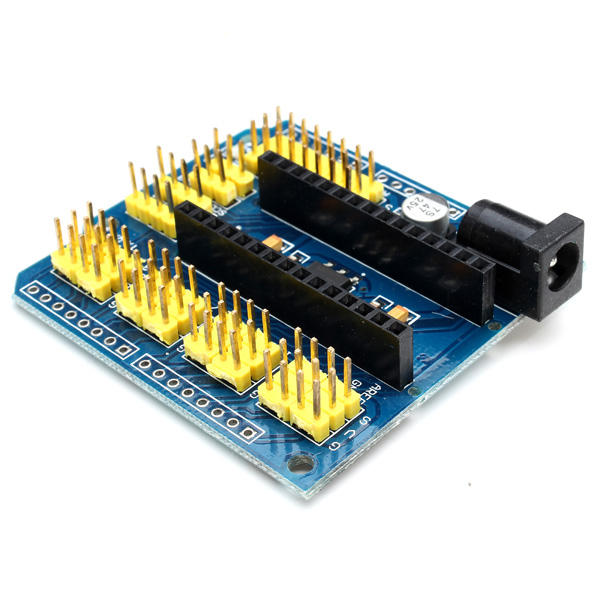

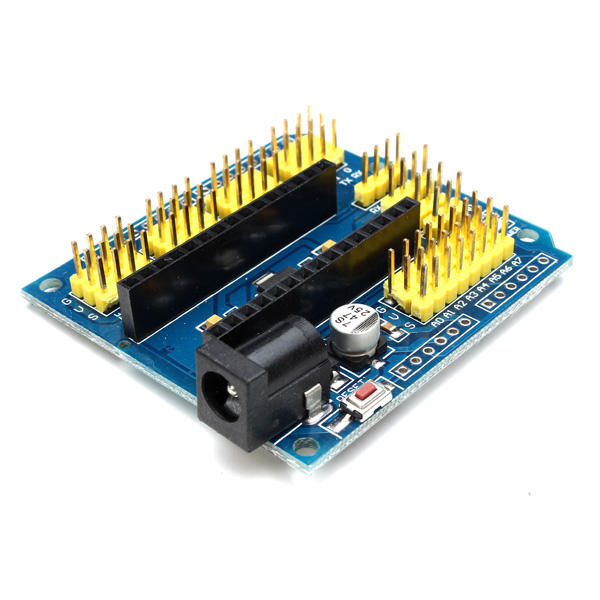

UNO Expansion Board

The extension board specifically for the NANO , welding on two rows of pins, can be used in the duemilanove 2009, UNO R1

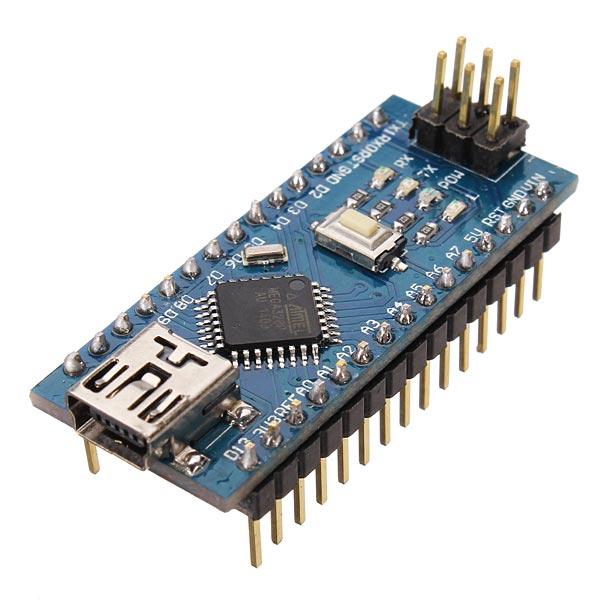

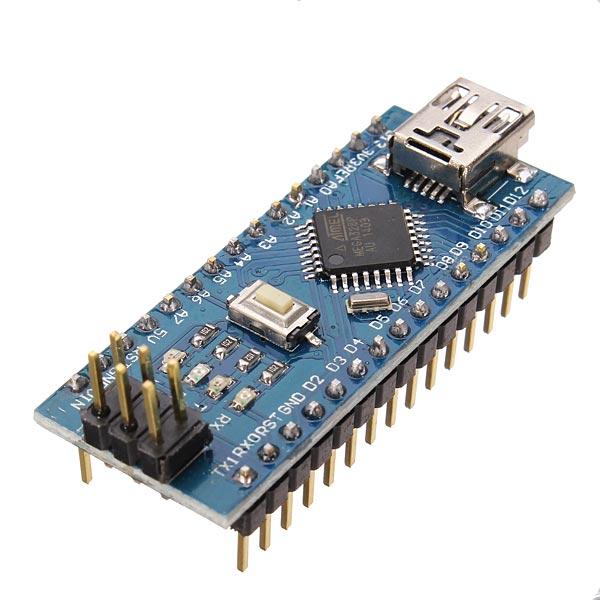

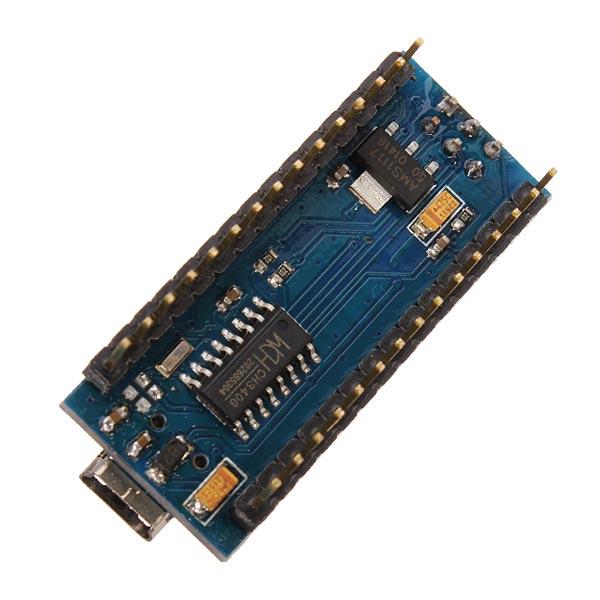

ATmega328P Nano V3 Improved Version

Microcontroller ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz

Note:

This version is not included the USB cable.

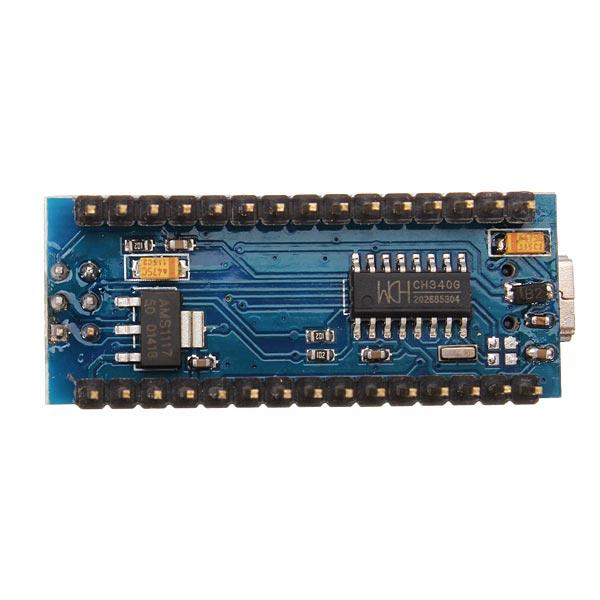

Had change the USB chip, improve the download speed and stability of WIN7/WIN8

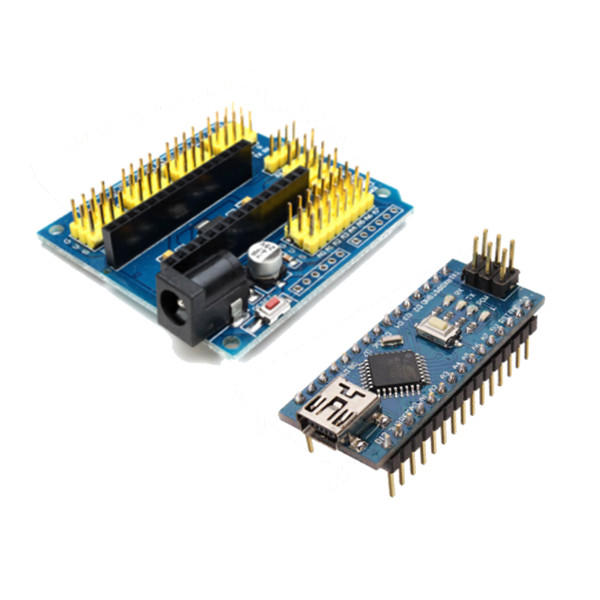

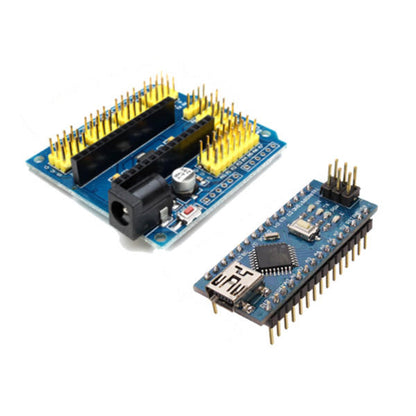

Package included:

1 x 328P Multifunction Expansion Board V3.0
1 x Compatible Improved Version Nano V3.0
