TWO TREES TOTEM S 40W Laser Engraving Machine Frame Kit Laser Engraver Compressed Spot LD+FAC 5W 5.5W Fast High Precision Printer Laser Cutter For Metal Wood Stainless Steel

$447.99 $339.00

Plug: EU Plug

EU Plug
US Plug
UK Plug
AU Plug

TWO TREES® TOTEM S 40W Laser Compressed Spot Engraving MachineNow We supply the new product of TOTEM S for youThe Laser module,bracket and the assembly parts has been upgraded completely(Lifting platform to...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description

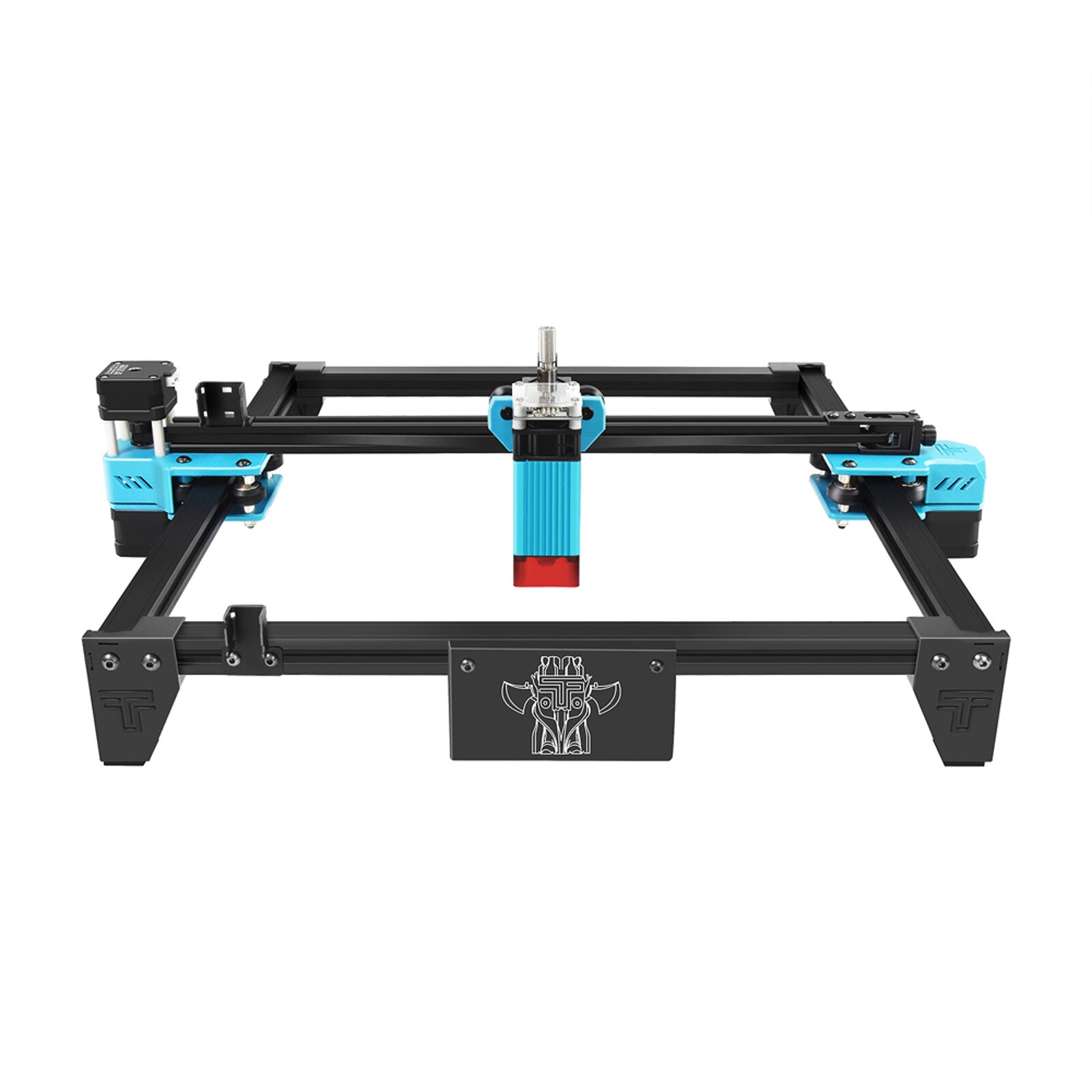

TWO TREES® TOTEM S 40W Laser Compressed Spot Engraving Machine


Now We supply the new product of TOTEM S for you


The Laser module,bracket and the assembly parts has been upgraded completely

(Lifting platform to adjust the laser;Motor integrated drive module;X axis belt adjustment design)


Powerful 40W Laser with the new upgraded ï¼ˆClike Know More)(Upper fixed focus,Infrared cross positioning)

 laser spot(With the same power, the smaller the spot, the more concentrated the energy, which reduces the engraving time)The Laser Life 9000 hours


The Most Advanced Firmware.Totem laser master firmware, smarter, faster, higher precision and easier to use. Specialized Motherboard :LKS mainboard. Support baud rate as high as 115200, more powerful! Engraving speed could be as high as 3000MM/Min. (If do not consider the laser carving result, the movement could be as high as 1000MM/S)


TOTEM P60 Online

TOTEM C30 Online


Specifications:

PRODUCT PARAMETER

Brand:TOTEM

Model:TOTEM S

Control Board:LKS Motherboard

Communication Port:Mirco USB

Input Power:35W-40W

Luminous Power:5000-5500mw

Power Input:AC100-240V

System Support:Win XP/7/8/10,OS,Linux

Material:Aluminum+Plastic Parts

Variable Focus:No

Laser Wavelength:445±5nm

Power Supply:Power Adapter 12V 3A

Engraving Accuracy:0.01mm

Carving Area:30×30cm

Engraving Height Limit:Unlimited

Package Weight:4.80kg

Machine Size:56.8×48.5×5.6cm

Support Format:jpg, bmp, svg, G code


Others:

ØEngraving Mode:photo, text, scan, outline,pixel laser engraving

ØControl Software System:Benbox, GrblController, L1teFire, Laser GRBL,etc.

ØSupport carving materials:wood, plastic, paper, bamboo, leather sponge paper, stainless steel, anodized aluminum, etc.

ØEngraving materials are not supported:metal, stone, glass, reflective or transparent materials

ØFunction:Very suitable for amateur laser engraving to use low-light positioning and free positioning functions

ØIt has a large carving area of 30X30cm and a gantry-shaped design with no restriction on carving height

ØThree stepper motor drivers provide faster movement speed. 5.5W violet laser module with heat sink, high laser engraving


ENGRAVING PARAMETERS

Material

Marking

Sculpture

Cut

Remarks

Gray Paper<0.5mm

√
