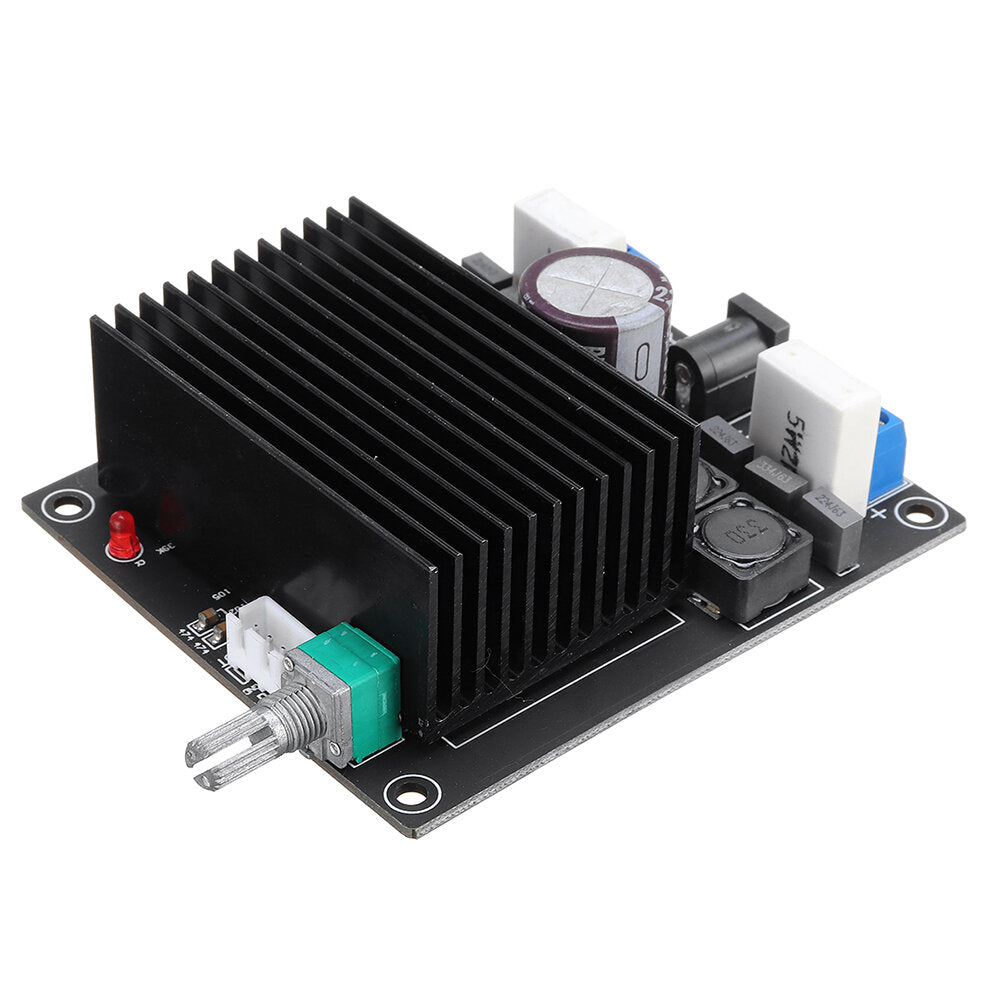

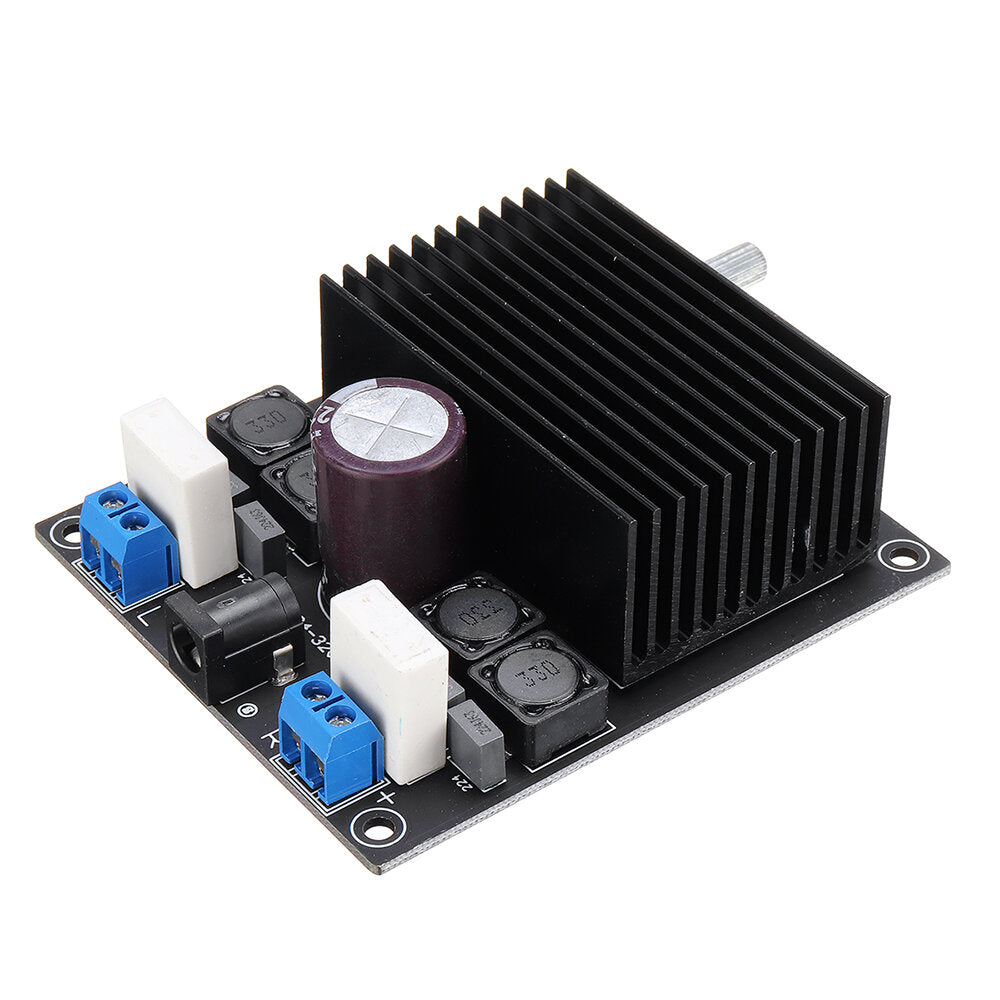

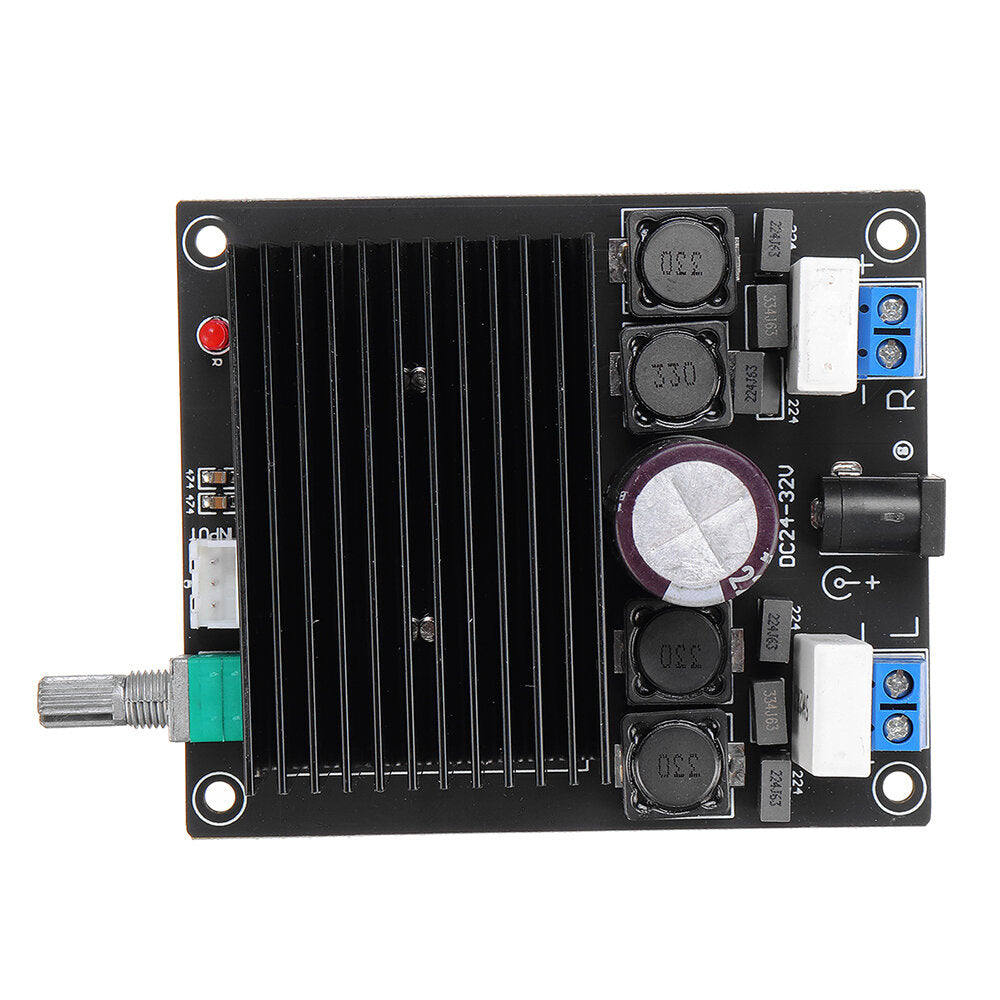

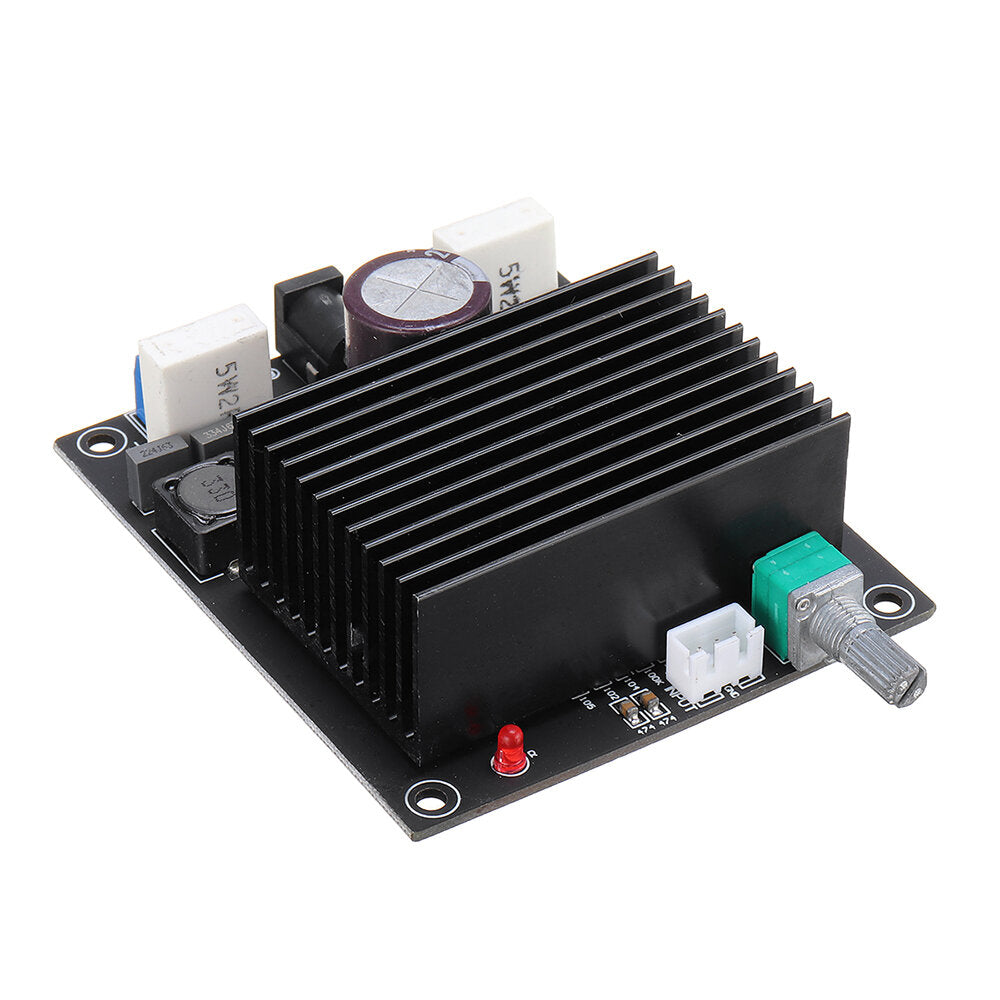

TDA7498 Dual Channel Stereo High Power Digital Power Amplifier Board 2X100W Computer Power Amplifier Class D 100W+100W
Description: TDA7498 is currently the first 100W+100W amplifier on the market. It adopts support for monolithic integration of analog, logic and high-voltage functions. Compared with other Class-D amplification processes to...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Description:
TDA7498 is currently the first 100W+100W amplifier on the market. It adopts support for monolithic integration of analog, logic and high-voltage functions. Compared with other Class-D amplification processes to create a higher chip area energy device, STMicroelectronics BCD6S has an efficiency ratio , While also reducing crosstalk and improving sound quality. In addition, the BCD6S high-power output circuit integrates NMOS and PMOS complementary transistors, eliminating the need for bootstrap capacitors and cathode load diodes required by the old process. The distortion degree (THD+N) of STMicroelectronics TDA7498 is less than 0.01%, which can provide higher quality listening experience.
Features:
Using original TDA7498

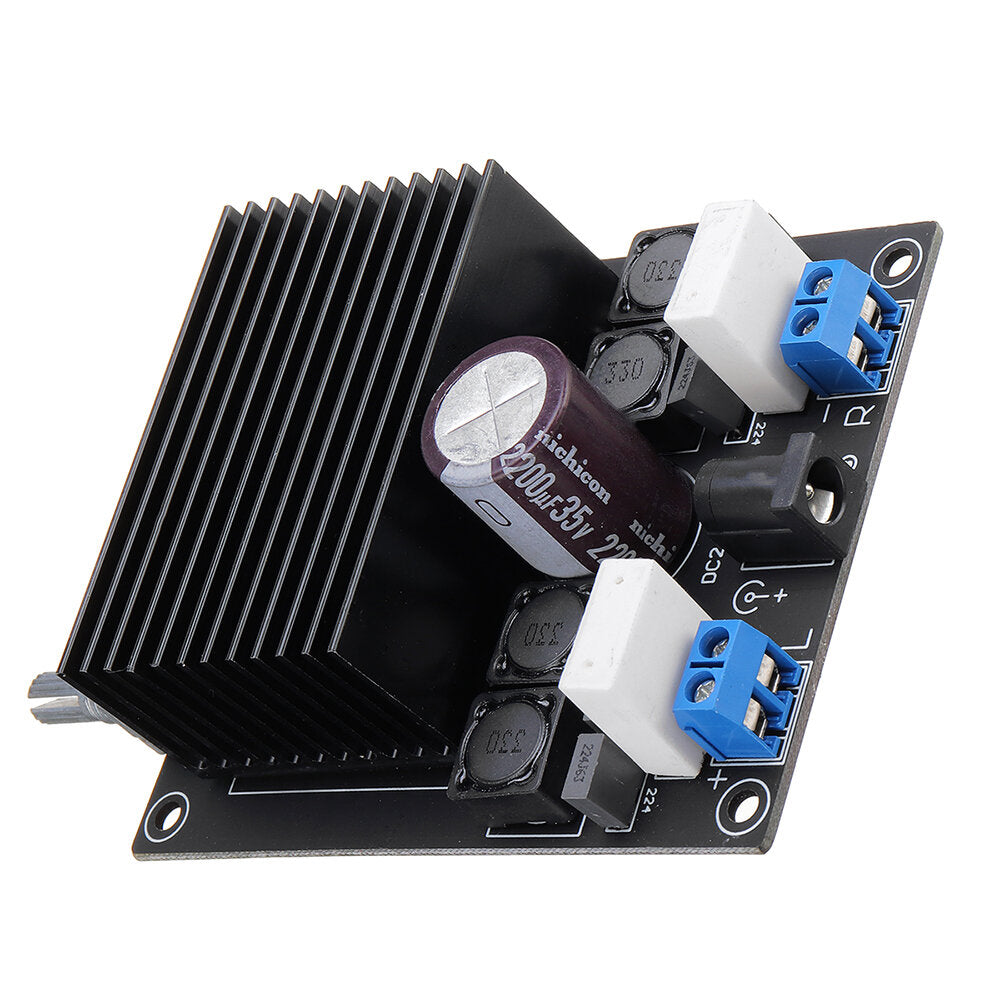

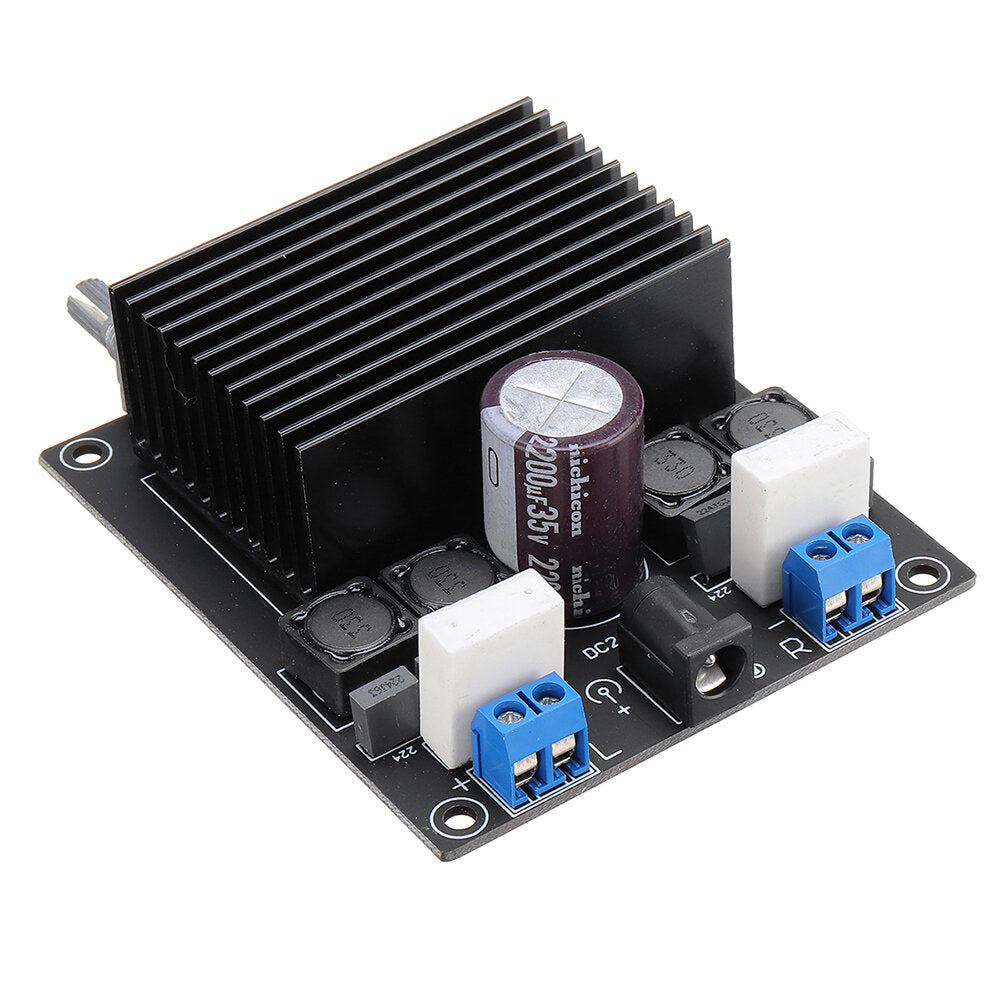

The main filter electrolytic capacitor adopts a famous brand with a capacity of 2200UF, which ensures strong and continuous power support.
The resistance uses high-precision 0805 chip resistors, and the main circuit uses five-ring metal film resistors with an accuracy of ┬▒1%, which ensures a good signal-to-noise ratio of the whole machine.

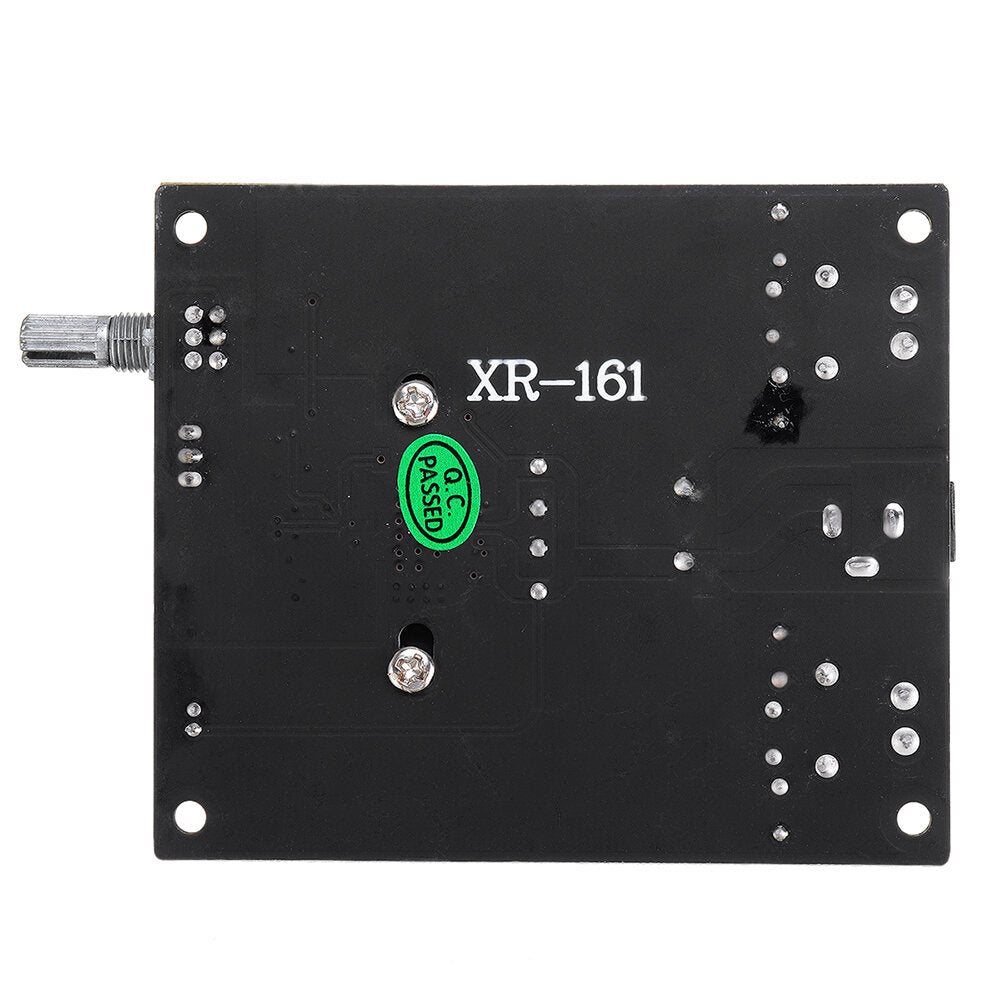

PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents. First-class PCB quality.
Specification:
Working method: Class D
Quiescent current: 50mA
Work efficiency: 90%
Rated output power: 2*100W
Frequency response: 20Hz ~ 20KHz
Working voltage: DC20V ~DC36V
Recommended power supply voltage: DC32V
Maximum output current: 7A

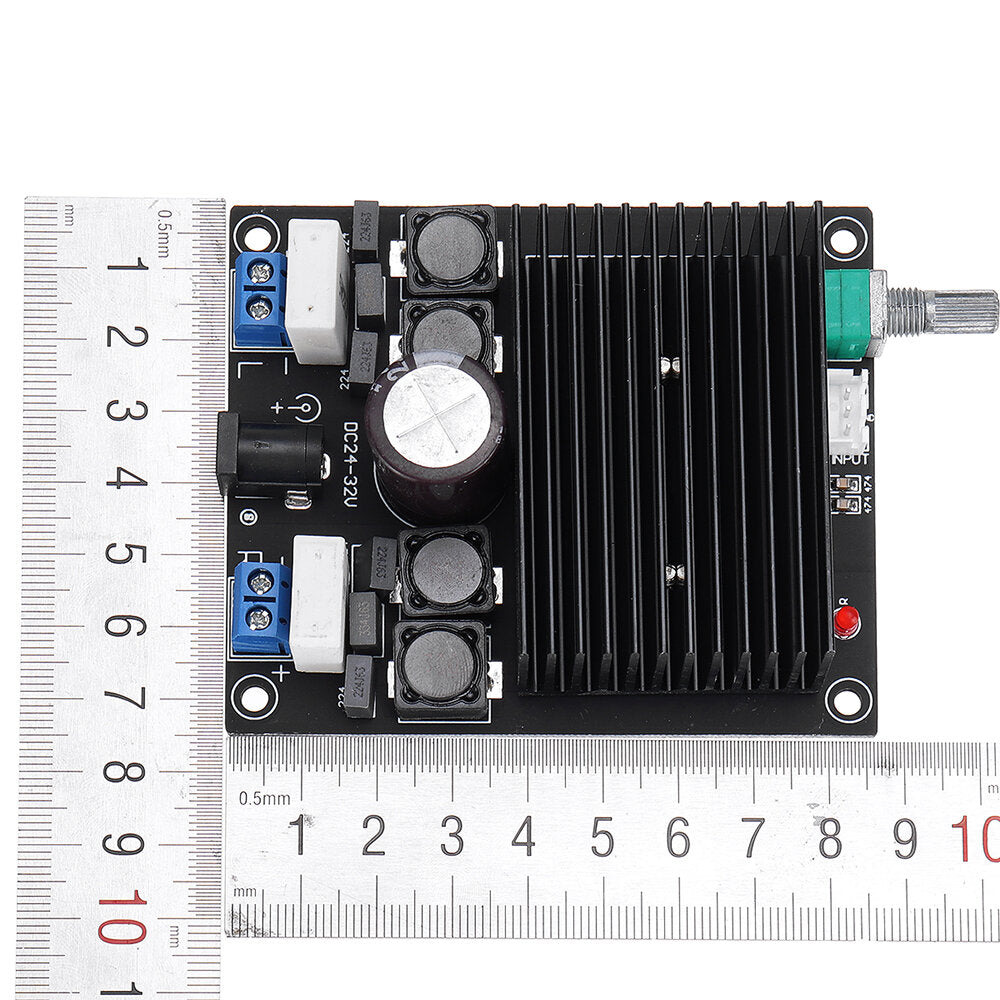

PCB board size: 87mm x 72 mm
Package included:

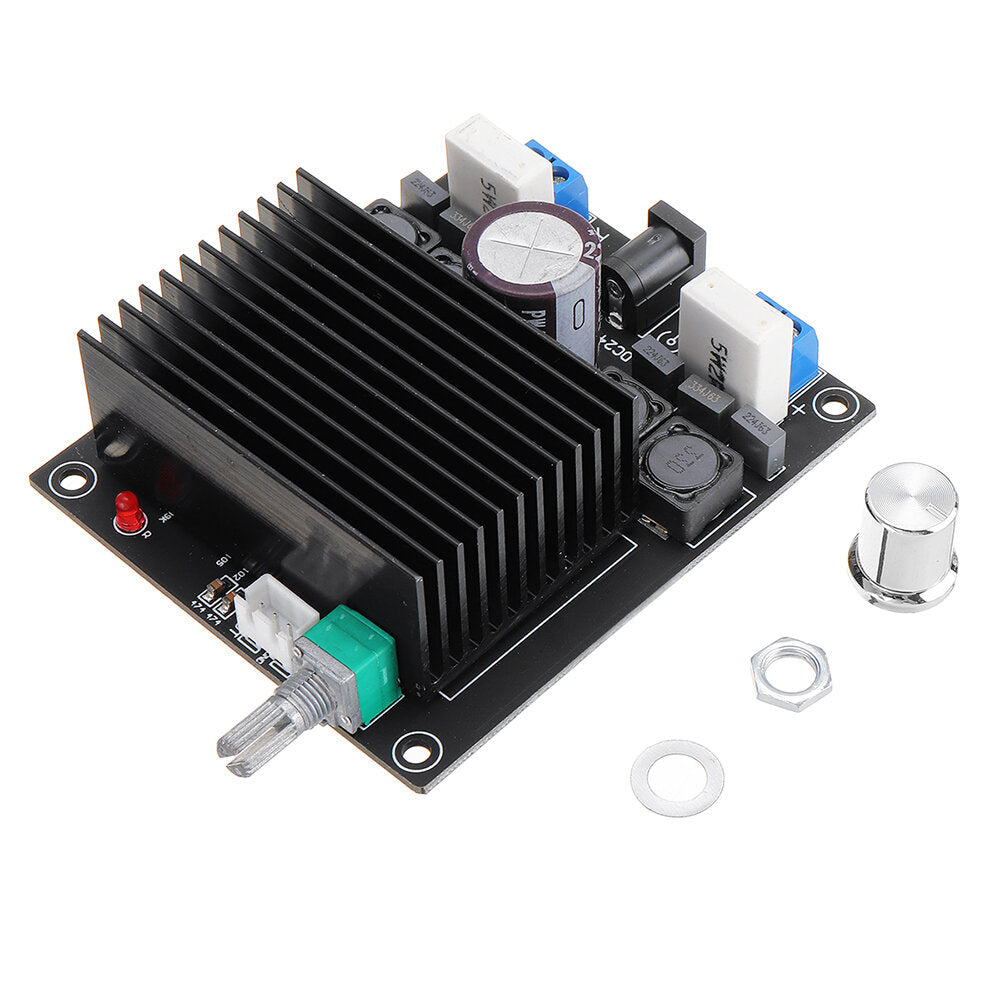

1 x Power Amplifier Board
