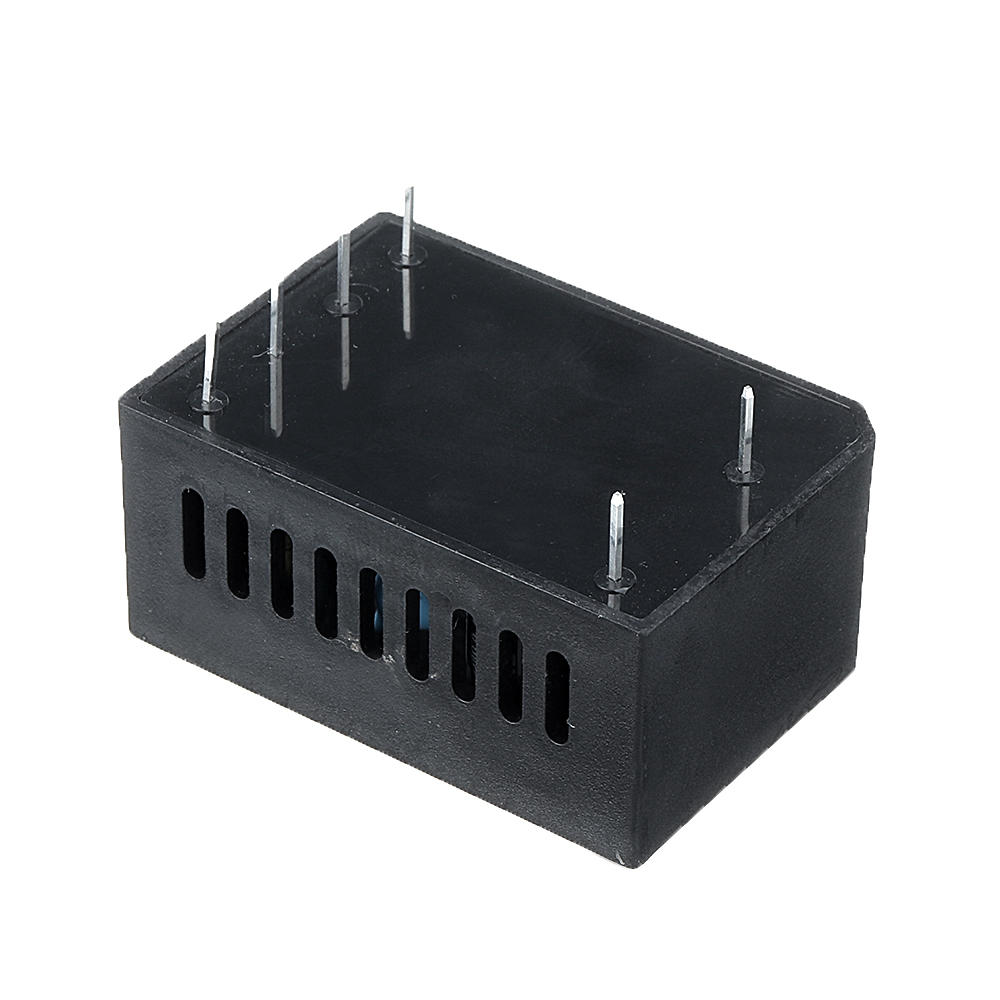

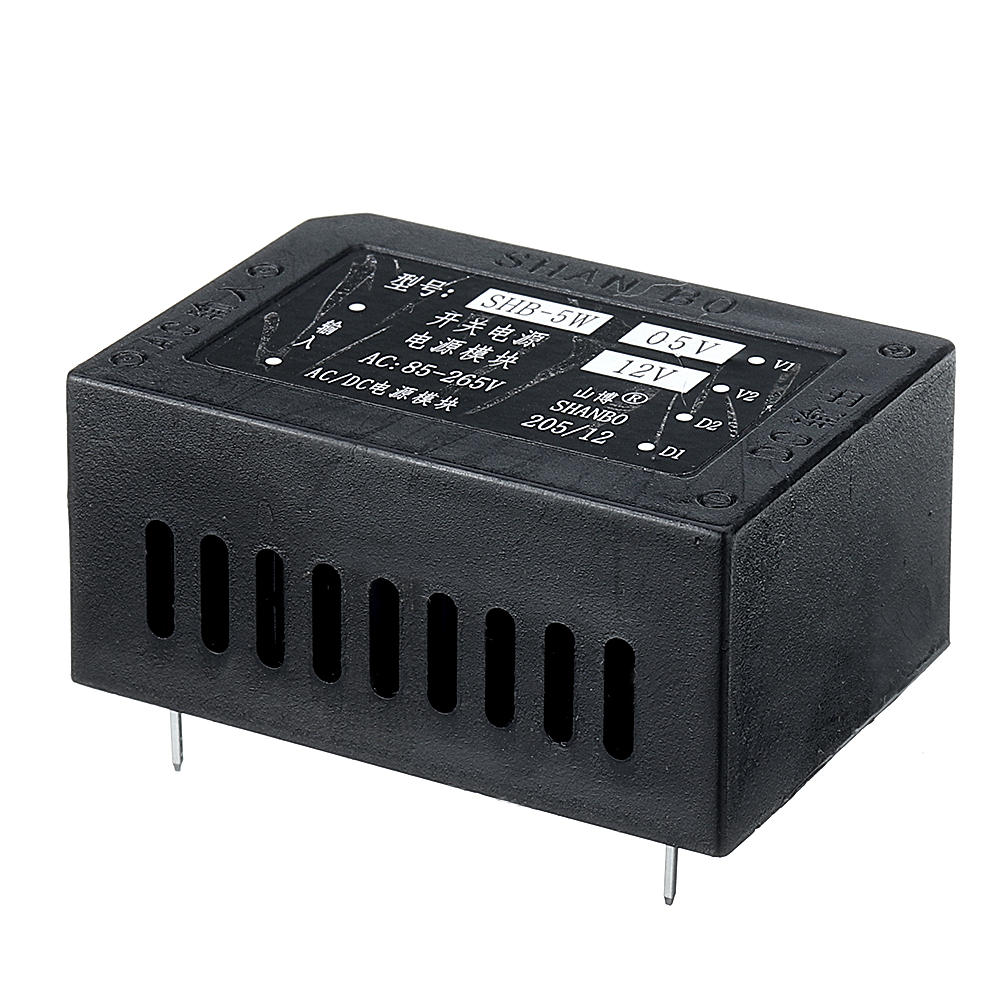

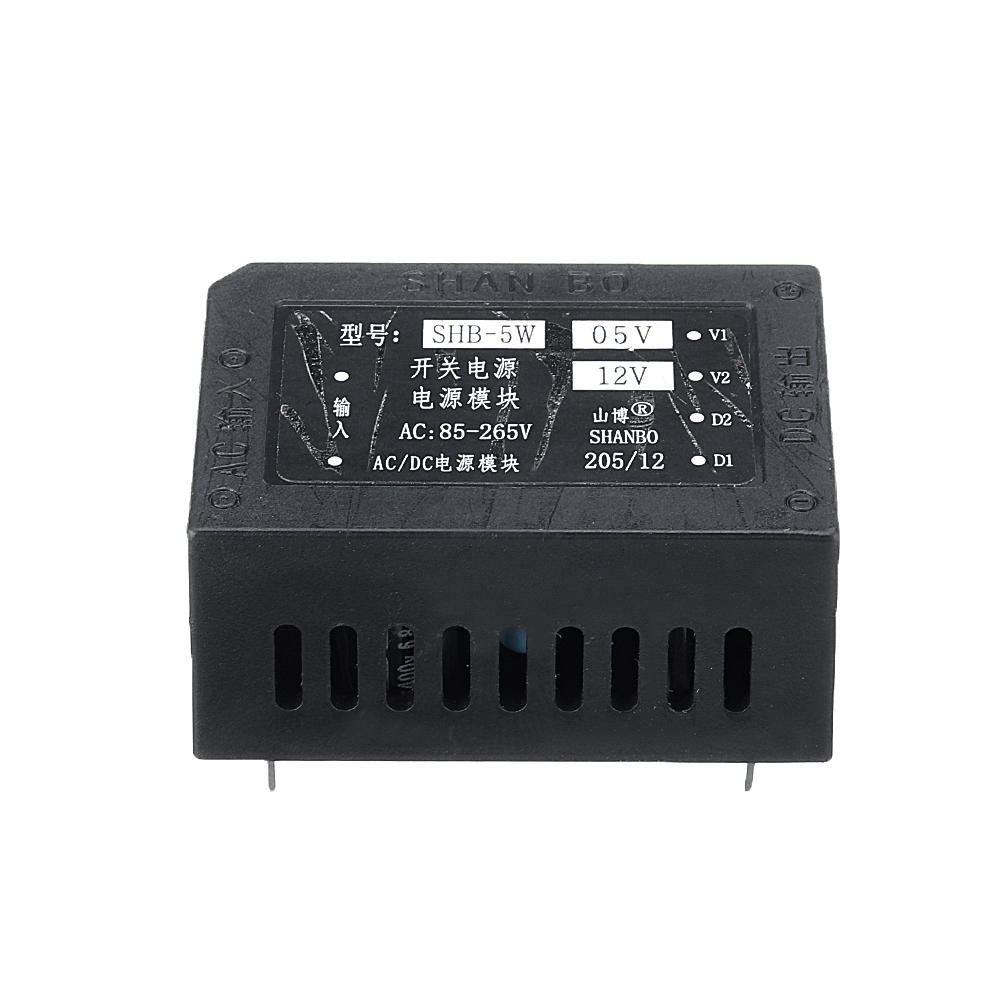

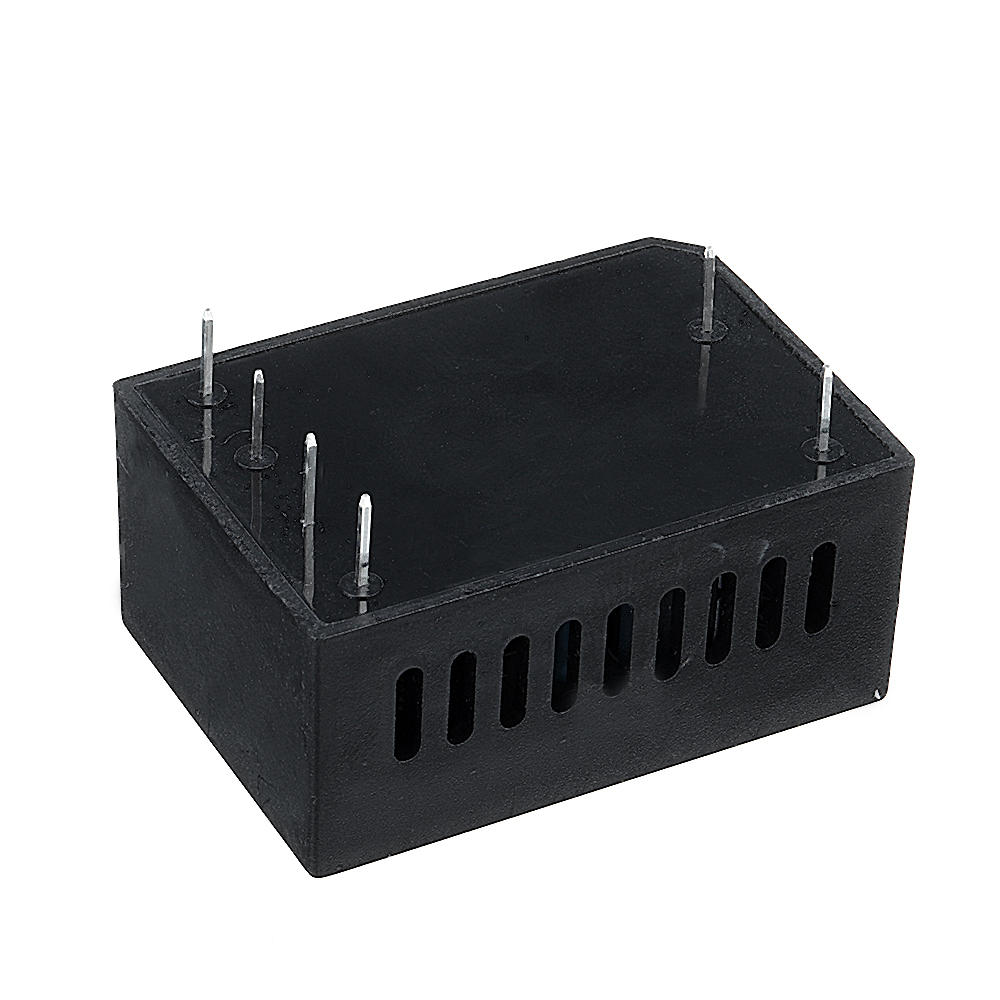

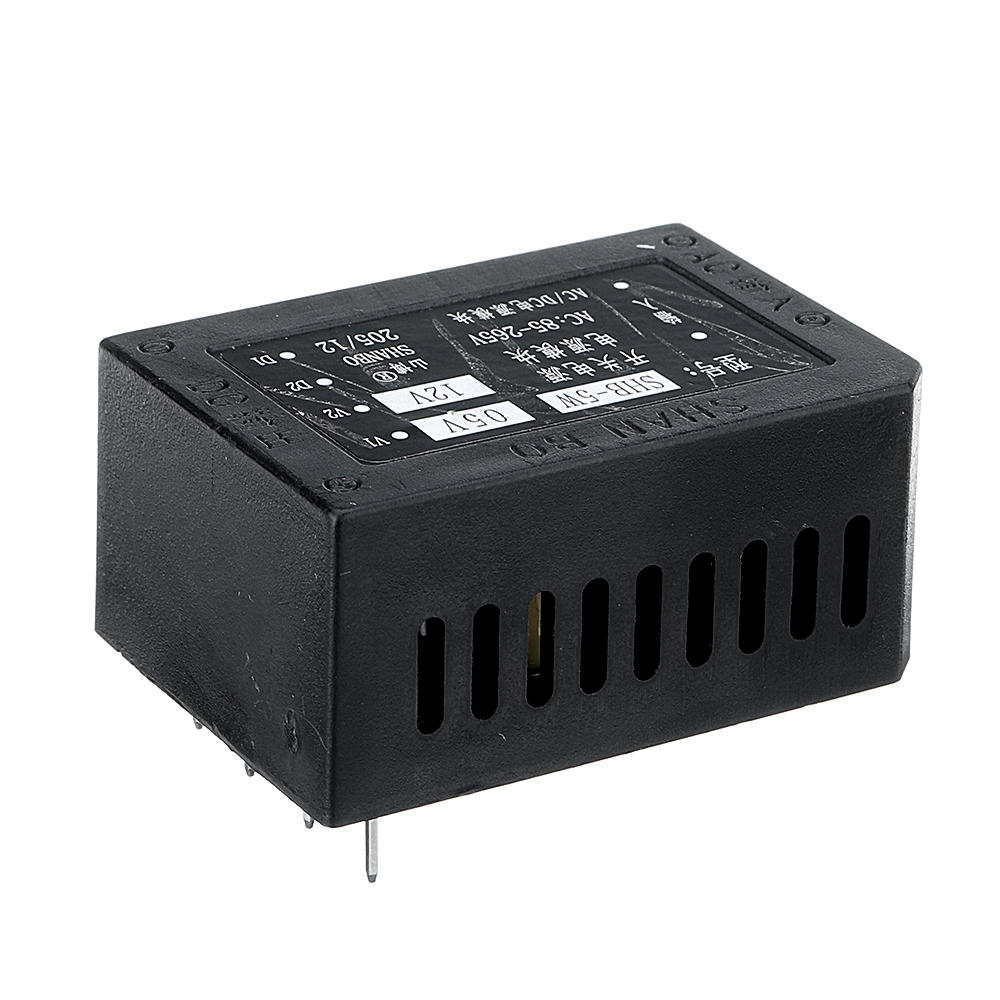

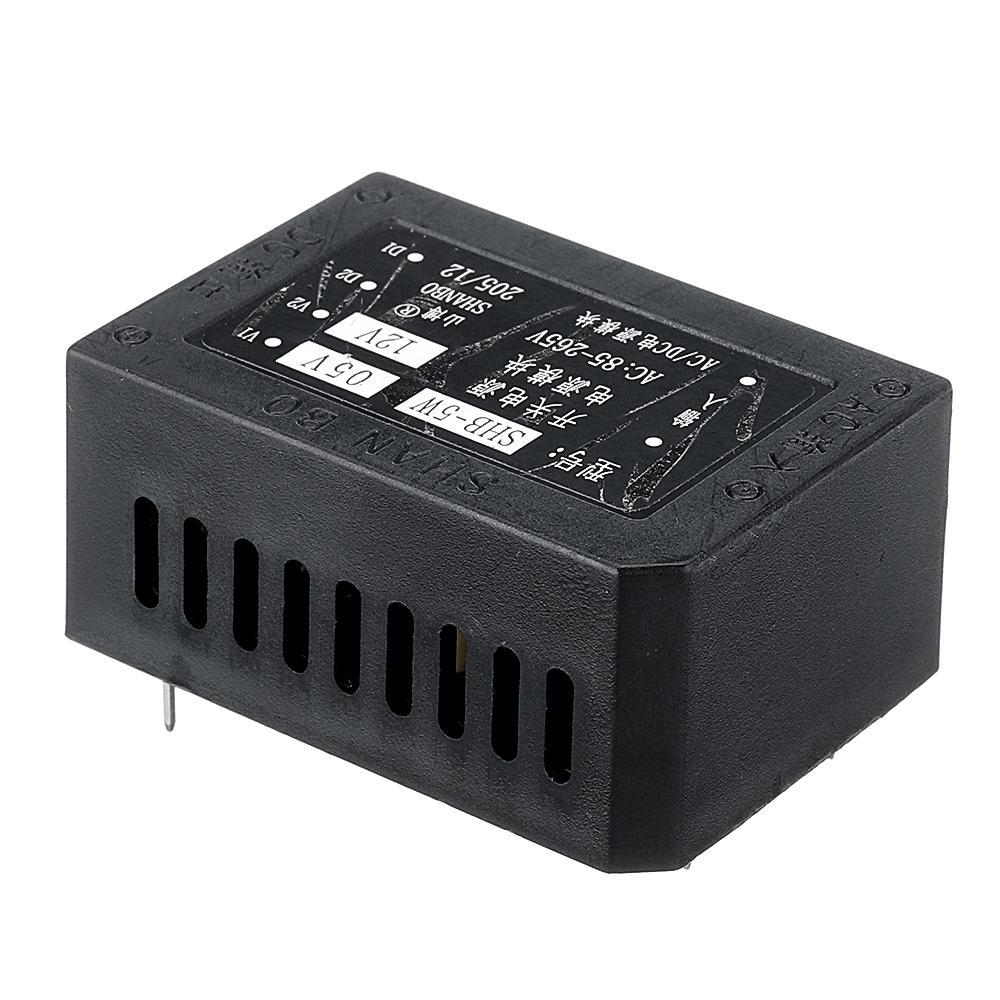

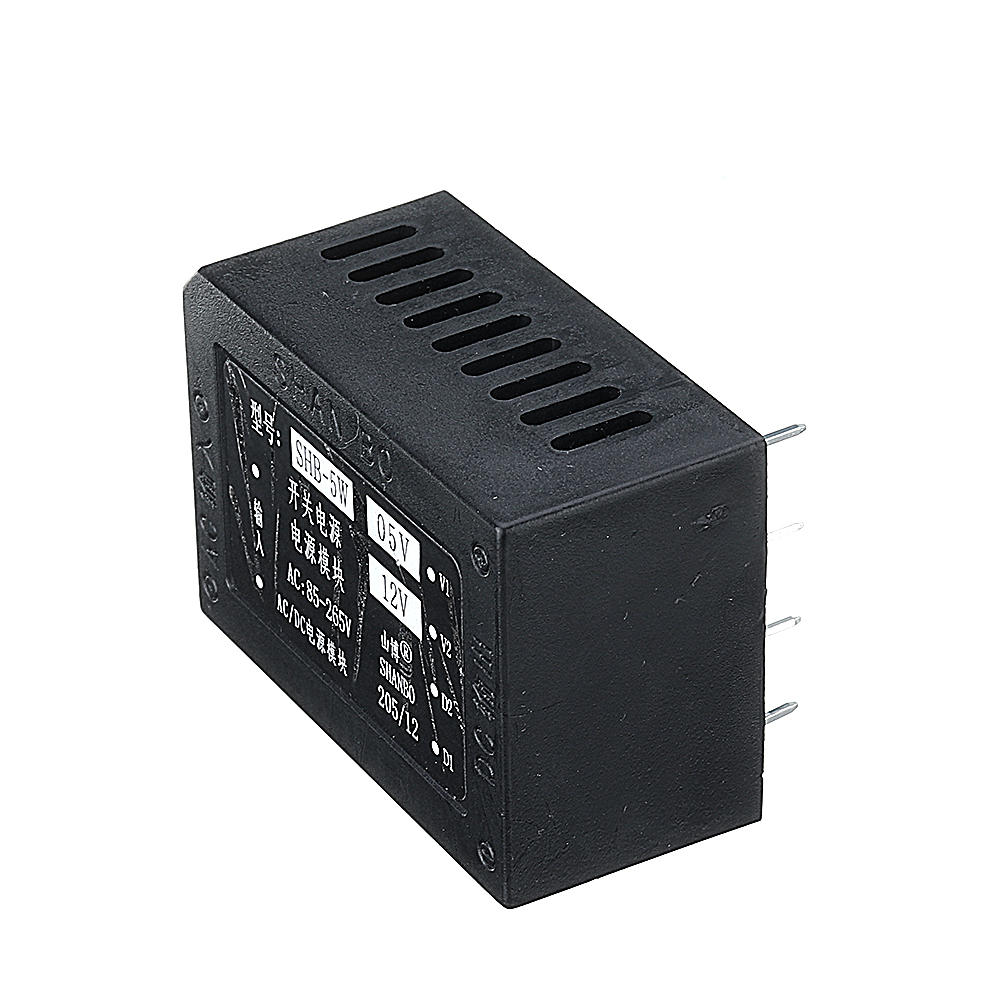

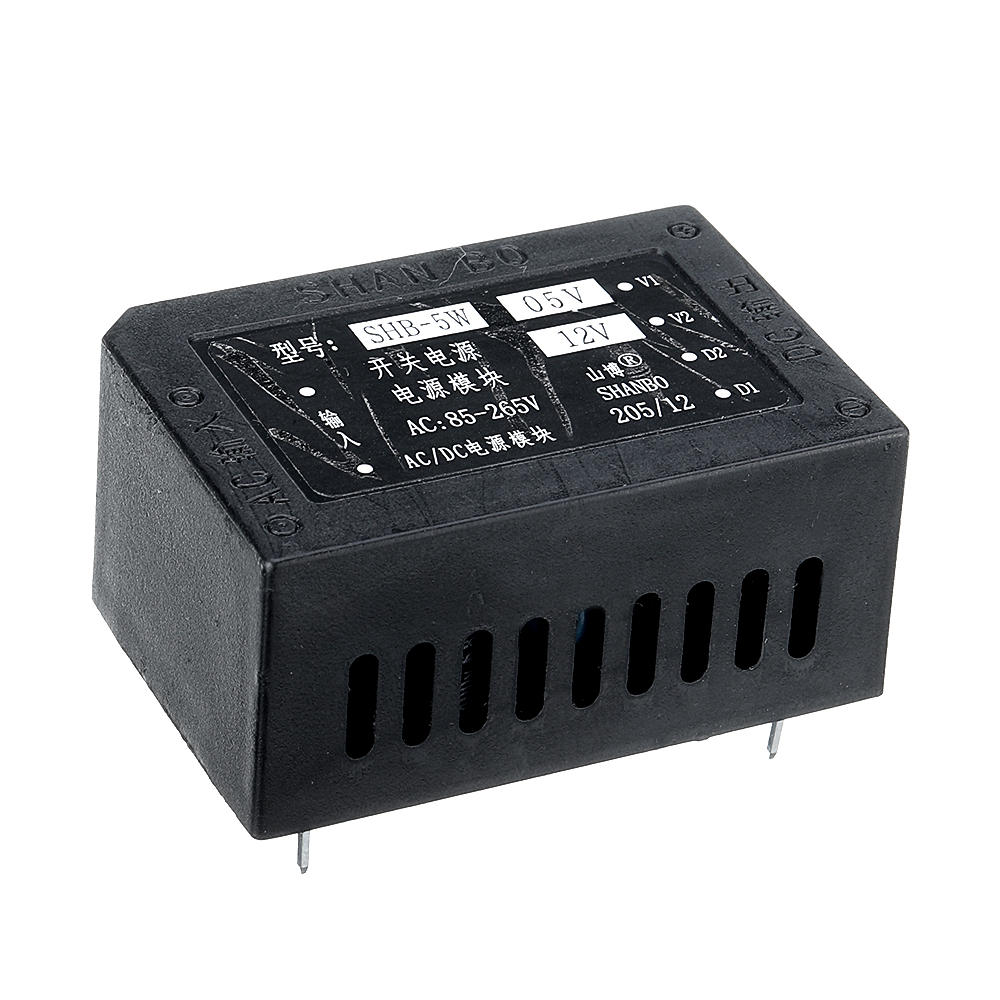

SHB-5W AC 85-265V to DC 12V 5W AC-DC Isolated Switching Power Supply Module Power Step Down Buck Regulator

SHB-5W AC 85-265V to DC 12V 5W AC-DC Isolated Switching Power Supply Module Power Step Down Buck Regulator

$19.99 $17.99

Specifications: Model No. : SHB-5WRated power: 5WV1 voltage: DC 5V+-2% current 100-700MA (main road)V2 voltage: DC 12V+-5% current 0-360MA (secondary)(Note: the sum of the main road power should not be greater...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description
Specifications:

Model No. : SHB-5W
Rated power: 5W
V1 voltage: DC 5V+-2% current 100-700MA (main road)
V2 voltage: DC 12V+-5% current 0-360MA (secondary)
(Note: the sum of the main road power should not be greater than the rated power)
Input voltage: AC 85V-264V
Working efficiency: 75-82%
Ripple voltage: <1% (main road V1)
No-load power consumption: <0.4W
Isolation voltage: >AC2000V
Isolation resistance: >200MR
Voltage regulation rate ≤0.8%
Load regulation rate ≤1%
Opening time: 50MS
Hold time: 20MS
Transient response: 500US
Temperature coefficient: ≤0.05%/°C
Working frequency: 50-150KHZ
Working environment temperature -10/50 °C

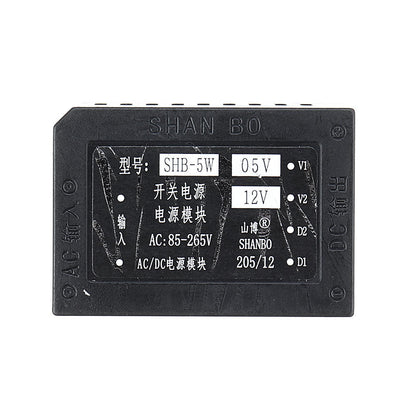

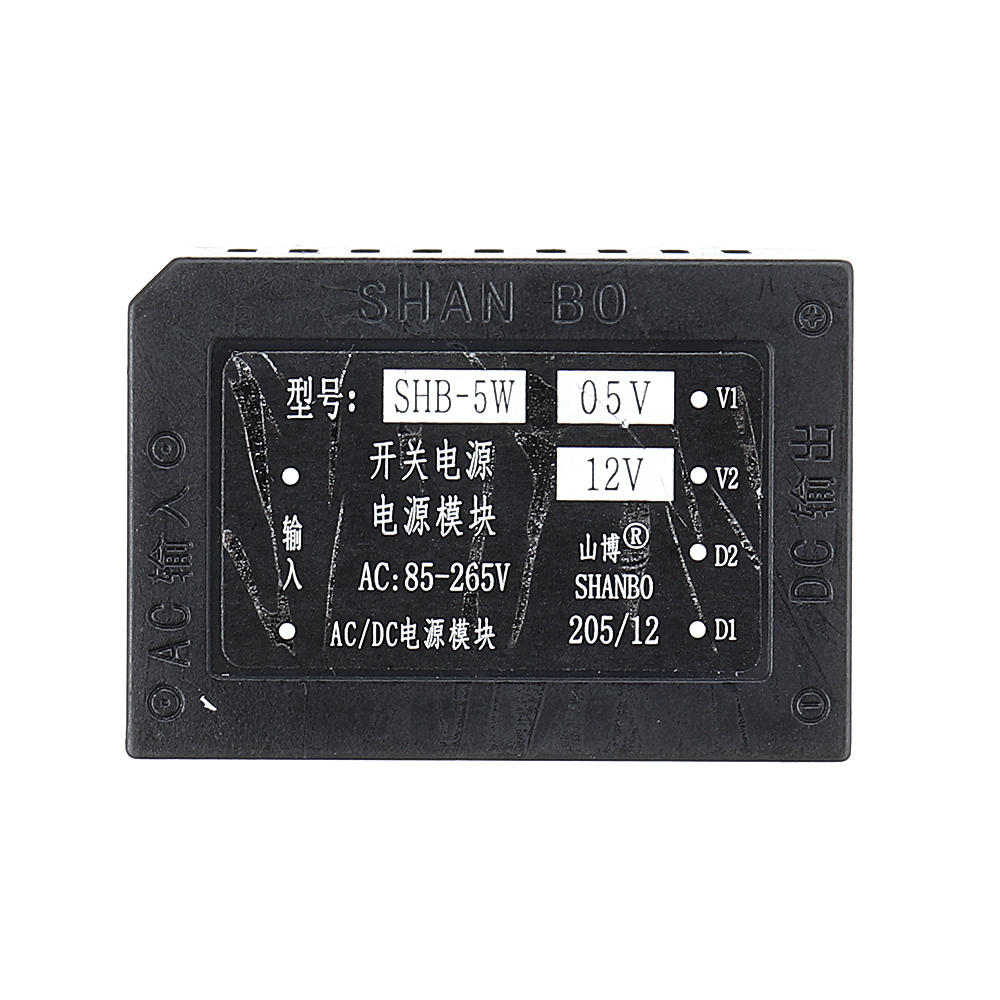

V1--D is the main road 5V (V1 is +)
V2--V3 is the secondary 12v (V2 is +) double group isolation
Over temperature, overcurrent, short circuit protection

Package Included:

1 x SHB-5W AC 85-265V to DC 12V 5W AC-DC Isolated Switching Power Supply Module
