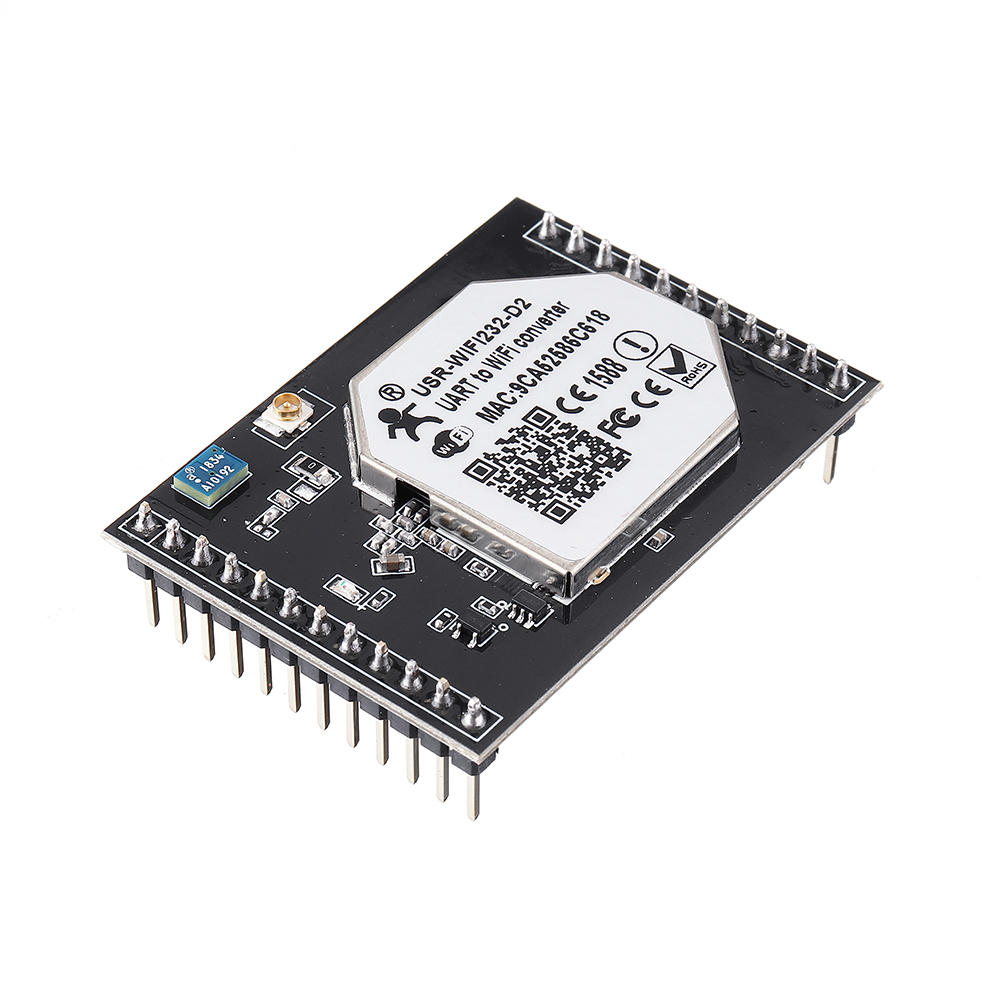

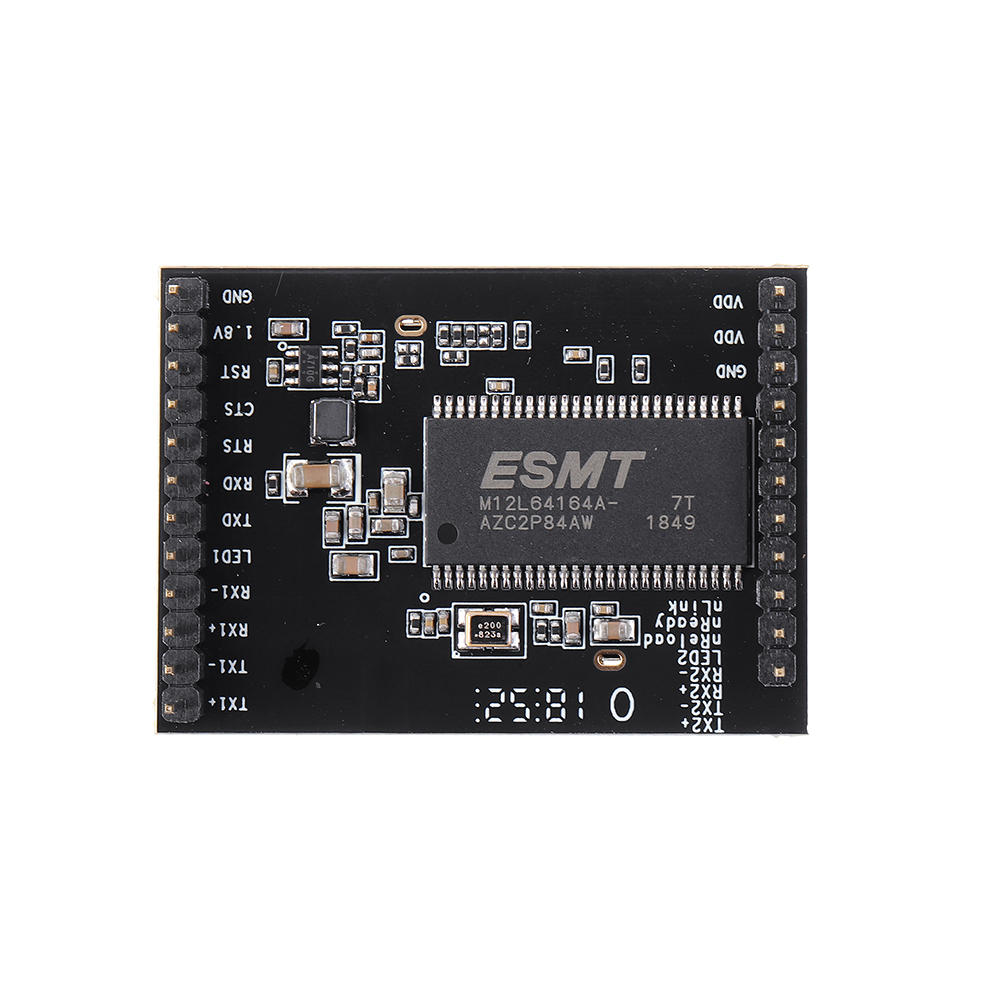

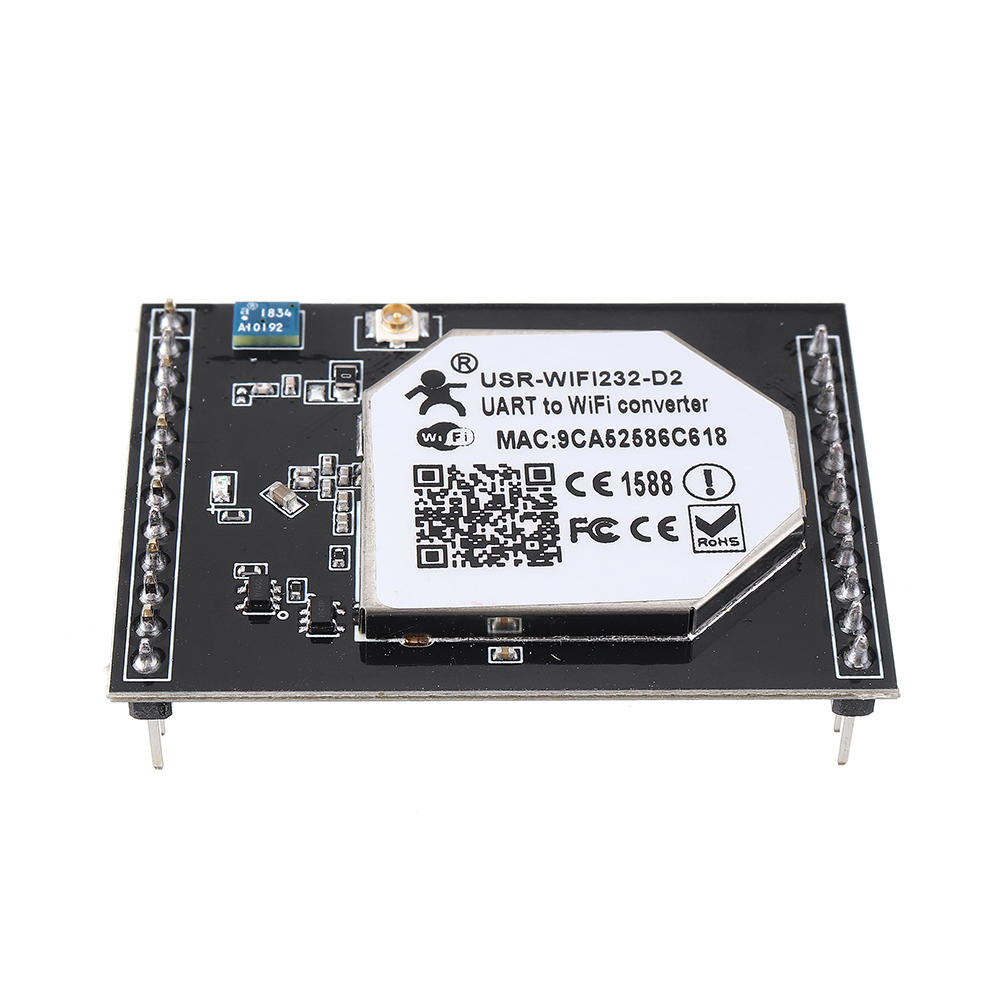

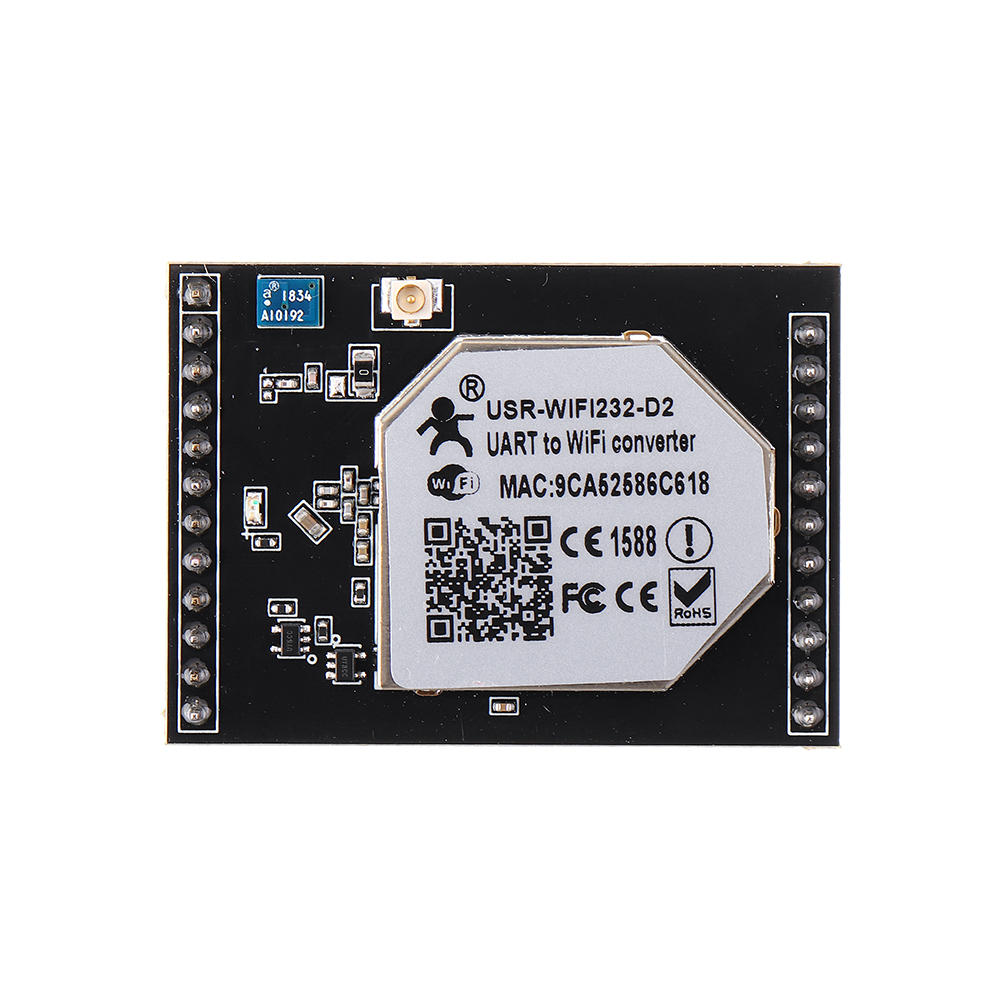

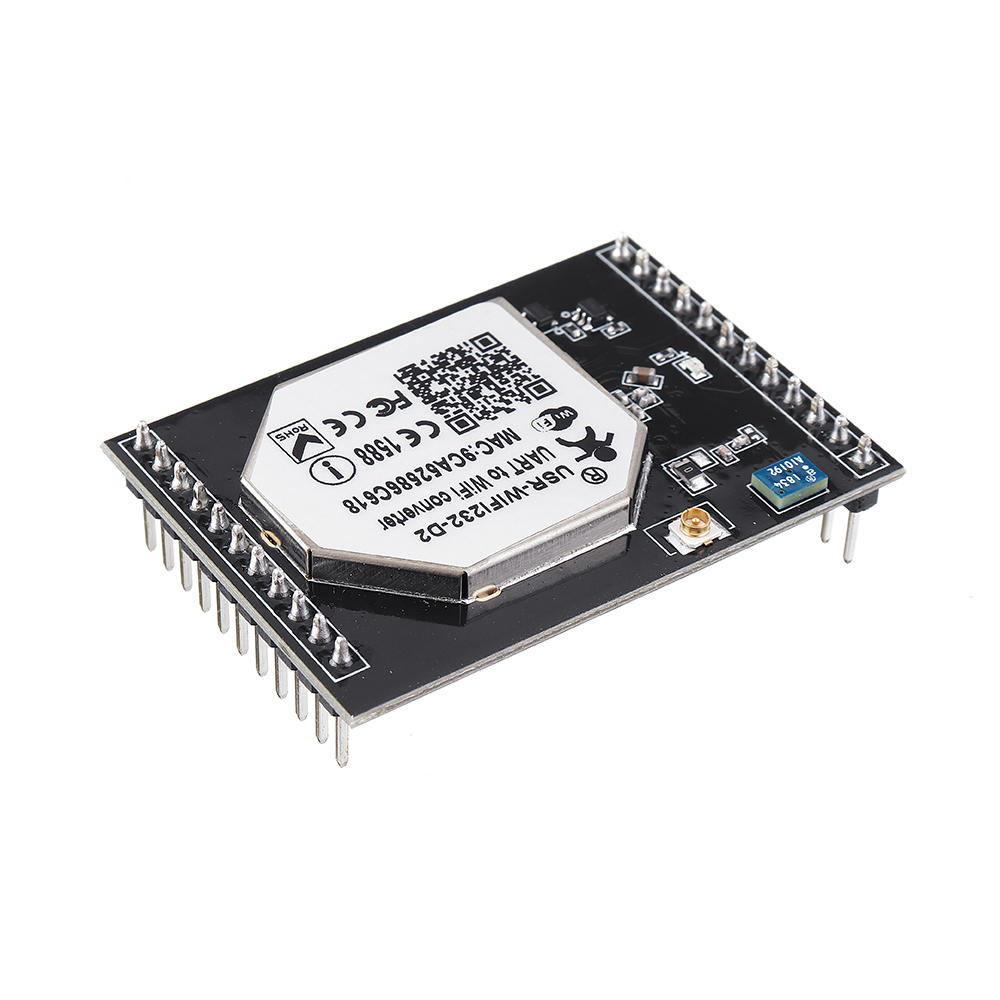

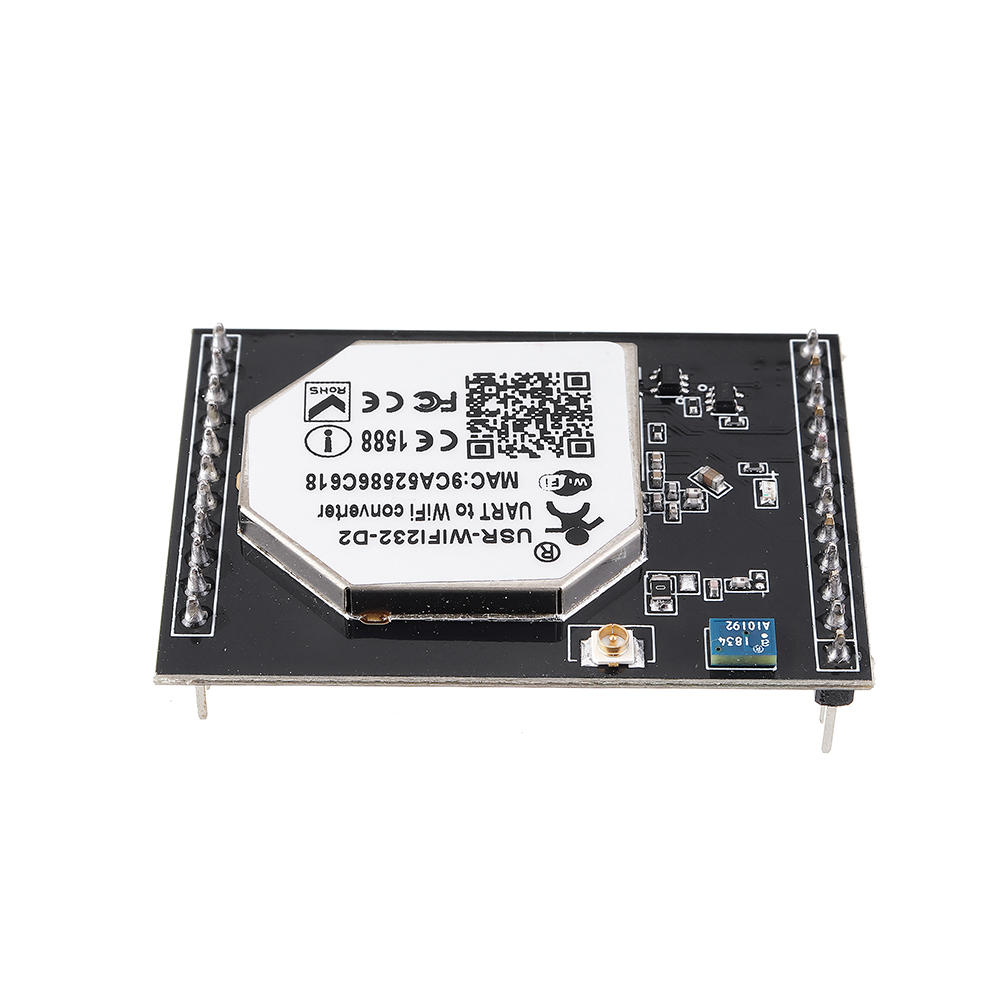

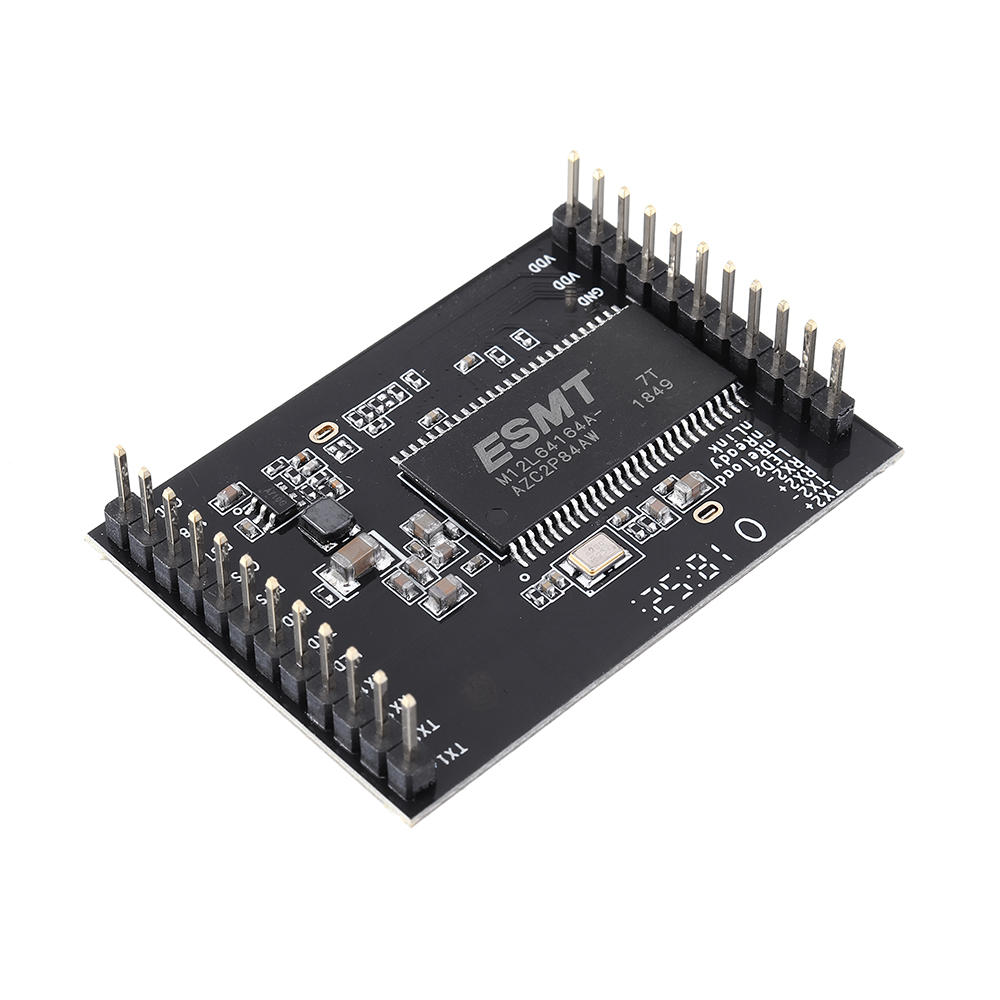

Serial to WiFi Module Embedded Serial-to-Ethernet Dual Port Wireless WiFi 232 D2
Feature: Item Index Description Wireless parameter Standard certification FCC/CE/ROHS/TELEC Wireless standard 802.11 b/g/n Frequency Range 2.412GHZ-2.484GHZ 802.11b: +20dBm (Max.) Transmit power B02.11g: +18dBm (Max.) 802.11n: +15dBm (Max.) B02.11b:-89 dBm Receiving...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Feature:
Package includes:
1 x Module
| Item | Index | Description |
| Wireless parameter | Standard certification | FCC/CE/ROHS/TELEC |
| Wireless standard | 802.11 b/g/n | |
| Frequency Range | 2.412GHZ-2.484GHZ | |
| 802.11b: +20dBm (Max.) | ||
| Transmit power | B02.11g: +18dBm (Max.) | |
| 802.11n: +15dBm (Max.) | ||
| B02.11b:-89 dBm | ||
| Receiving sensitivity | B02.11g:-81dBm | |
| 802.11n:-71dBm | ||
| Antenna | Built-in antenna | |
| UART: 300bps-460800bps | ||
| Hardware parameter | Data interface | Ethernet: 100Mbps |
| GPIOs | ||
| Operating Voltage | 3.3V(+/-5%) | |
| Working current | 170mA ~300mA | |
| Operating temperature | -40°C- 85°C | |
| Storage temperature | -40°C- 125°C | |
| Size | 32mm x 45mm x8mm | |
| Software parameter | Wireless network type | Station/AP mode |
| Security Mechanism | WEP/WPA-PSK/WPA2-PSK | |
| Encryption type | WEP64/WEP128/TKIP/AES | |
| Operating mode | Transparent transmission mode, serial command mode | |
| Setting command | AT+ command structure | |
| Network protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP | |
| Maximum number of TCP connections | 32 | |
| User configuration | Web server + AT command configuration |
Package includes:
1 x Module
Serial to WiFi Module Embedded Serial-to-Ethernet Dual Port Wireless WiFi 232 D2
