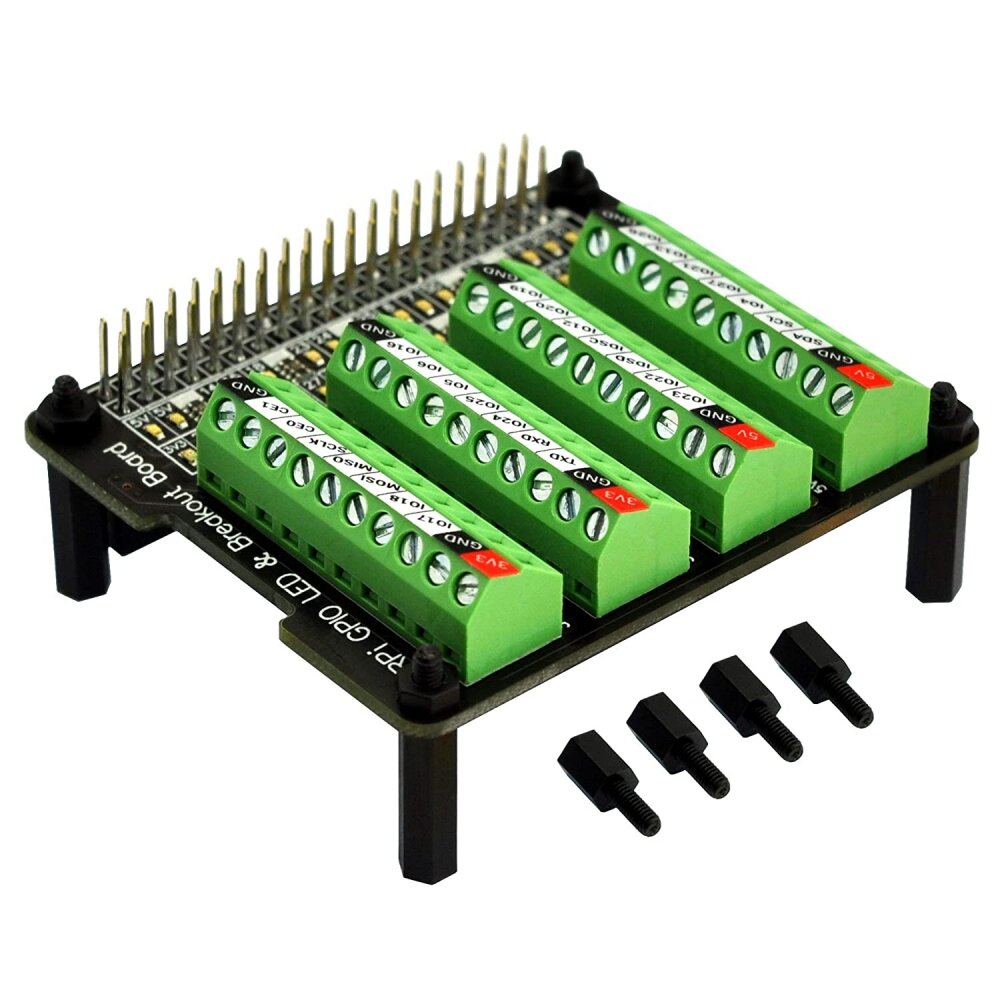

RPi GPIO Status LED and Terminal Block Burst Caps for Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B Terminal Blocks

Product Name: Terminal block hole module

Material: Copper

Rated Current: 3 A

Meter: 26.0

Voltage: 3.3 volts

Product Weight:40g

1. The product is soldered and assembled. For Raspberry Pi A+ 3A+ B+ 2B 3B 3B+ 4B

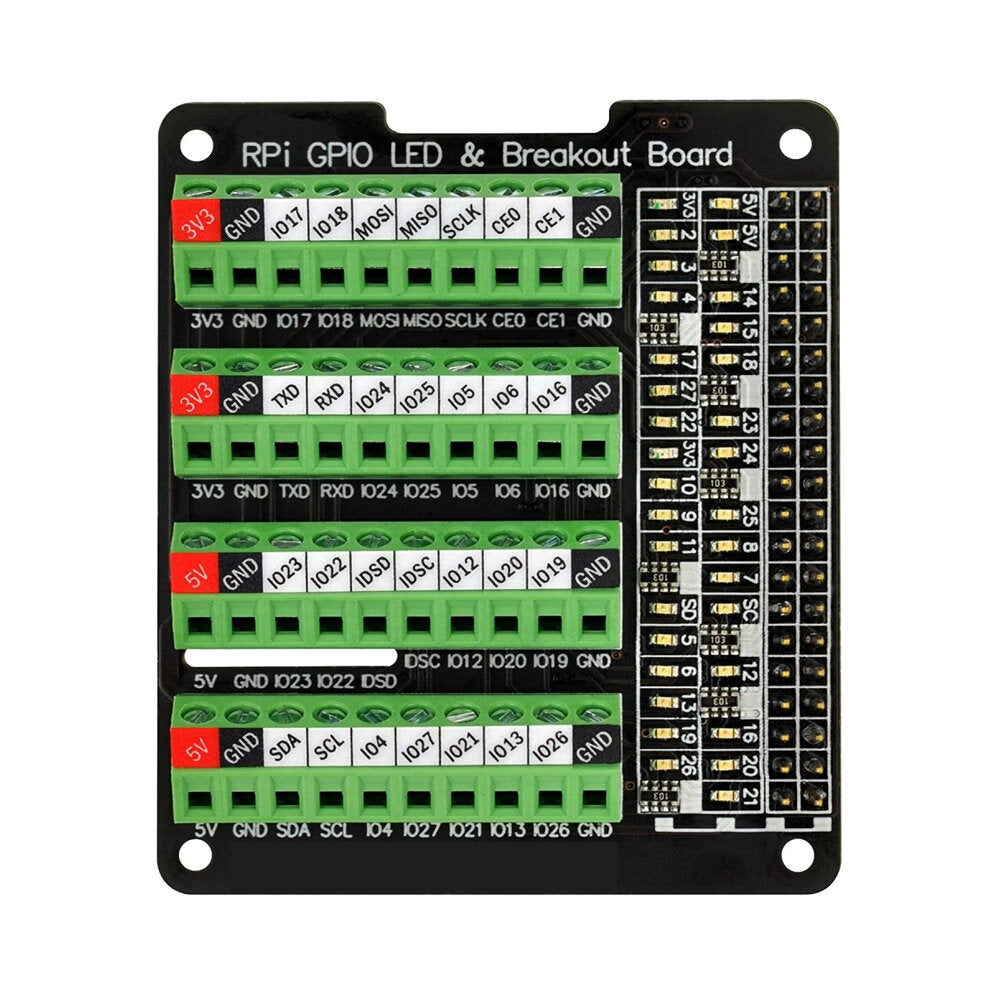

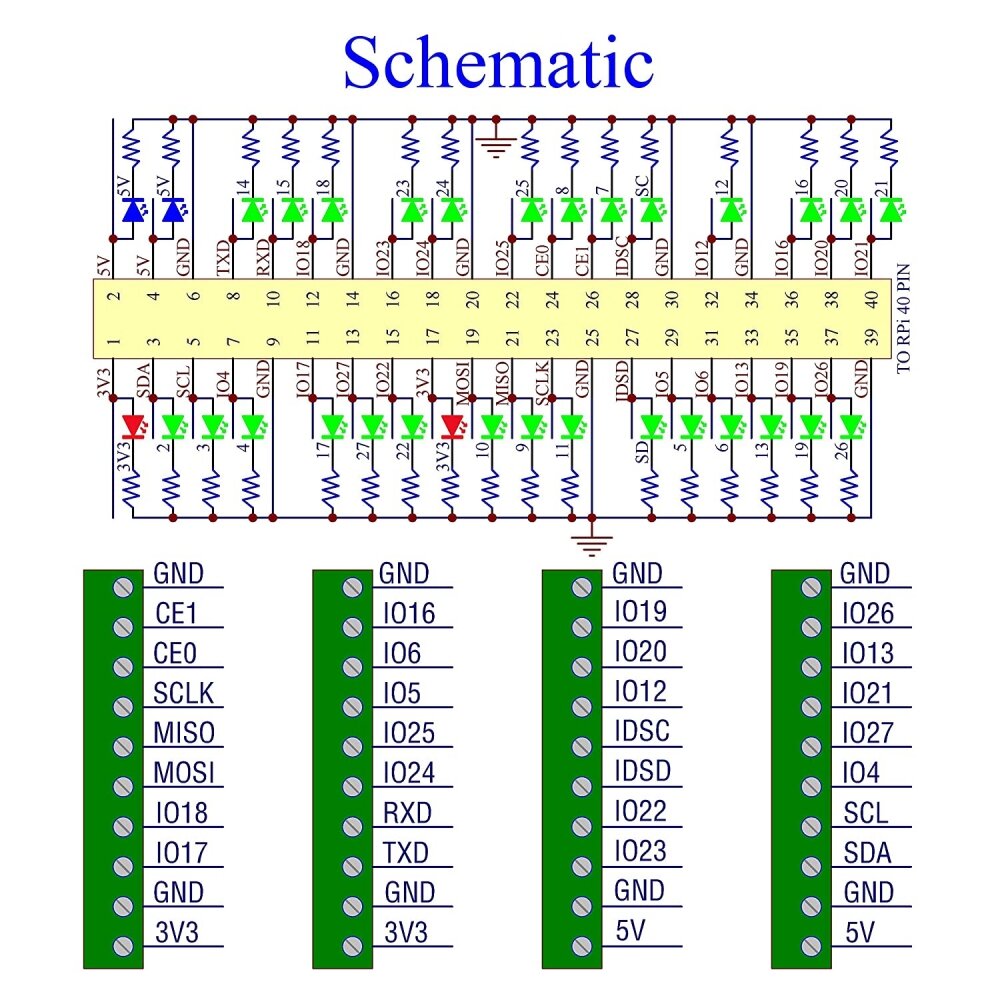

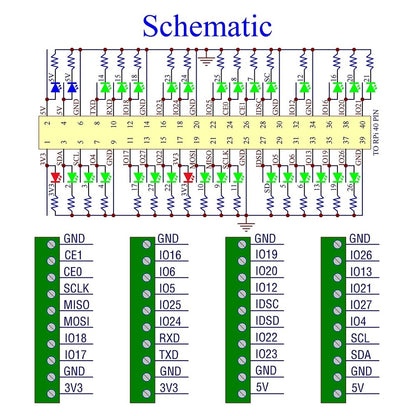

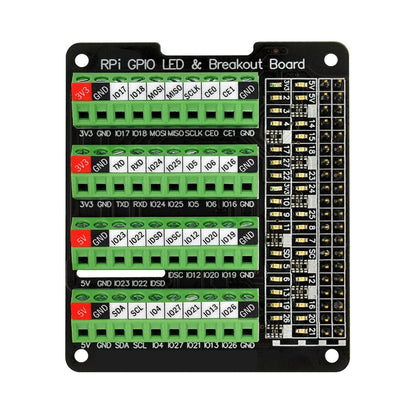

2. GPIO status LED and power 5V/3.3V indication. GPIO output or input level high LED on, output or input level low LED off. 5V blue, 3.3V red, GPIO green. The position of the LED corresponds to the position of the 2x20pin connector of the Raspberry Pi, and the logiclevel of the GPIO can be observed very quickly and intuitively. The drive current for each LED is only 0.1mA, so you don't need to worry about it affecting the read and write status of the GPIO.

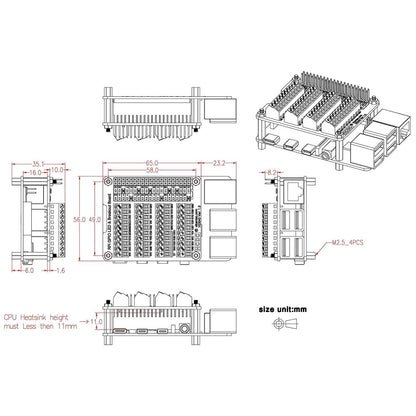

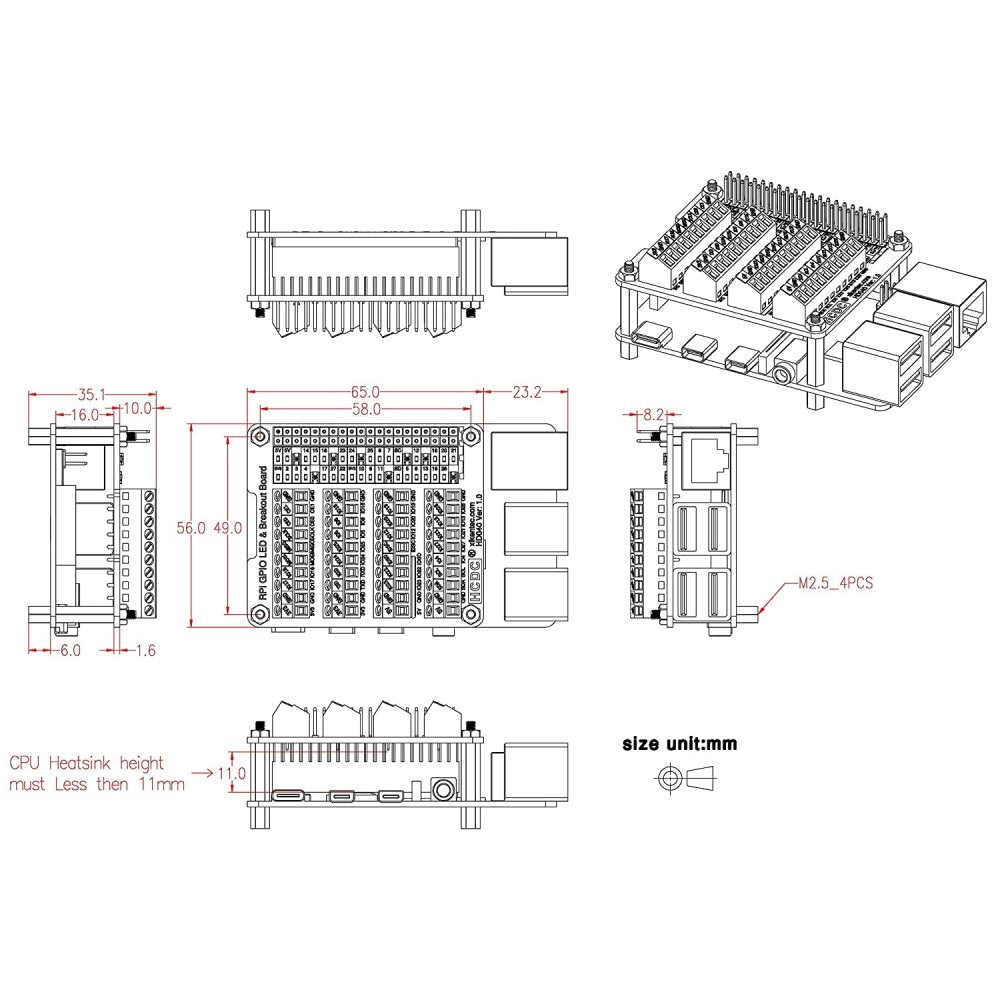

3. Terminal pitch 3.5mm/0.138in, wire size range from 26AWG to 16AWG, strip length 5mm, screw M2 steel, pin and cage copper, 2 x 20 pin extension pins, 8mm/0.32in high.

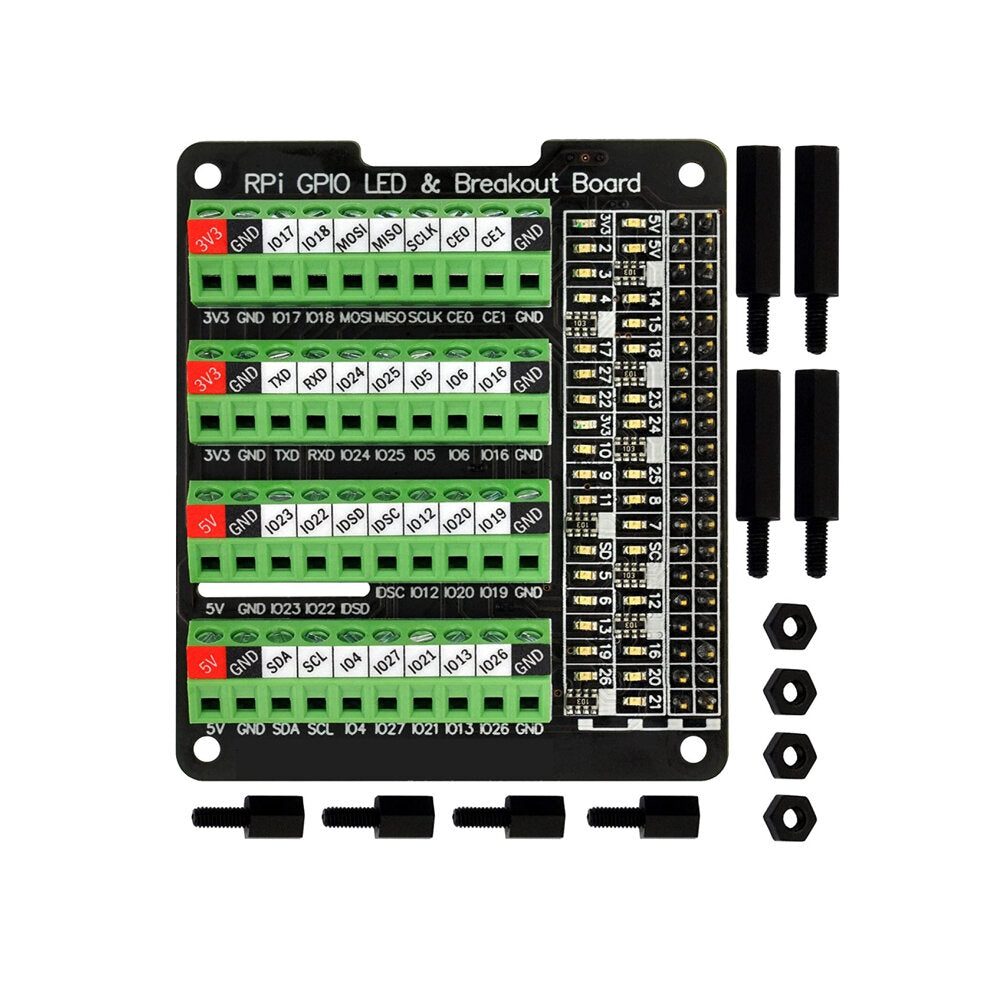

1 x Terminal Block Module

4 x M2.5x16mm nylon brackets

4 x M2.5x6mm nylon brackets

4 x M2.5 nylon nuts

(Note: This product does not include a Raspberry Pi board).
