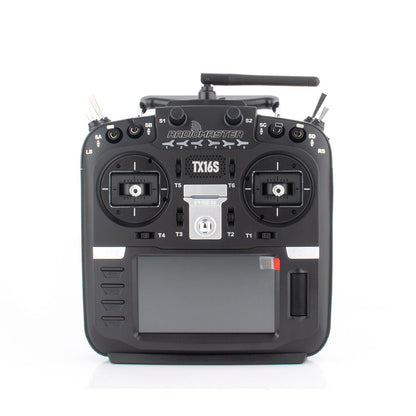

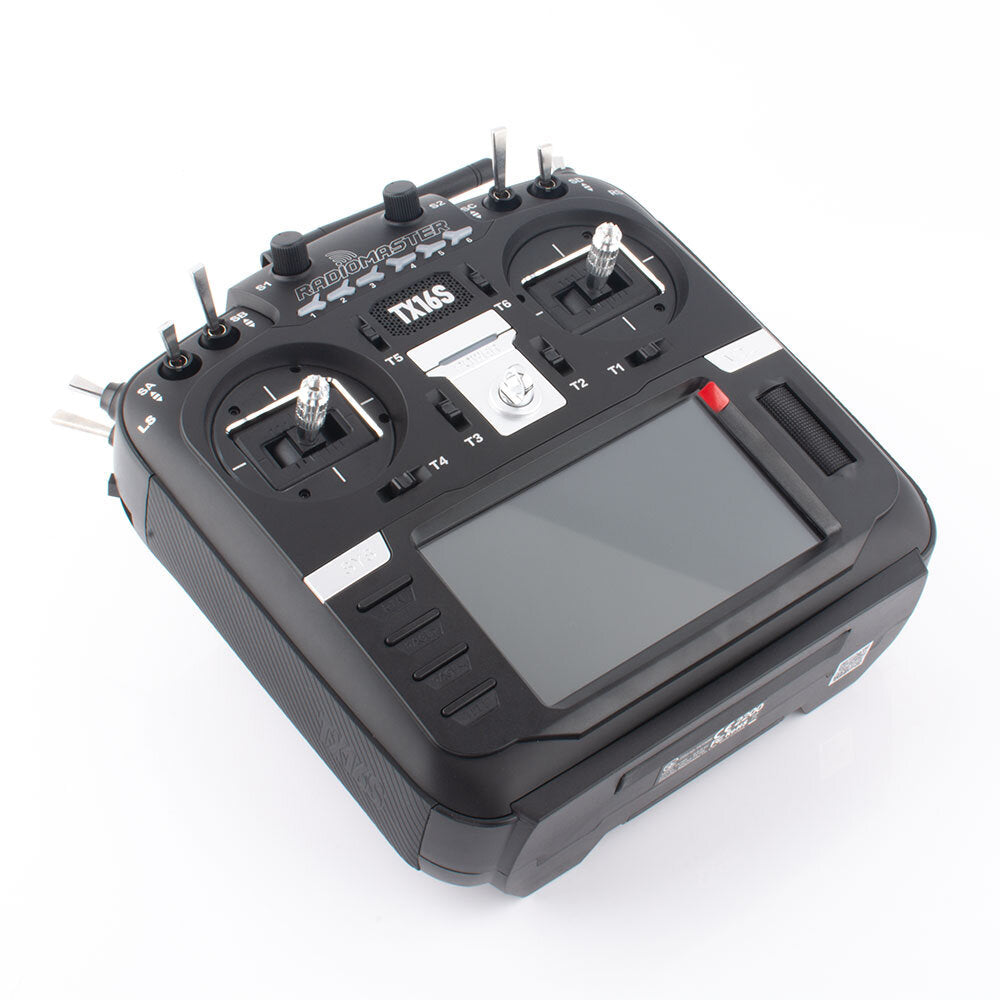

RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Radio Transmitter for RC Drone

$209.99 USD

~~$269.99 USD~~ $209.99 USD

Sale Sold out

Taxes included.

Mode Mode 2 (Left Hand Throttle) Mode 1 (Right Hand Throttle)

Version TX16S With TBS Micro TX V2

Quantity

100 in stock

RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Radio Transmitter for RC Drone

Metal Roller and TP Update.

Open TX Radio Firmware Click Here

Multi-Module Firmware Click Here

Note:

Now some new stock joystick heads are black, and will be replaced with silver in the future

The new stocks rocker panel has been replaced with a rocker panel with four screw holes, just like Eachine TX16S. (Some Local Warehouse still have old rocker panel,please note)

Did you know RadioMaster has warranty support agents in the USA, Netherlands, the UK and Australia? Our agents are also able to help with non warranty repairs if you happen to have a mishap. Choose the brand with real support, choose RADIOMASTER!

https://www.radiomasterrc.com/support#a04

Description: (User Manual)

Brand Name: RadioMaster
Item Name: TX16S Transmitter

Channel: 16CH
Mode: Mode2

Size: 183*212*66 mm

Weight: 736g (without battery)

Voltage: DC7-8.4V

Battery Compartment: 25*52*97mm

Battery: 2 x18650 (tray included) , 21700 7.4v 2s Pack or 7.4v 2s Lipoly (Batteries not included)

Current: 400mah (excluding external module)

External Micro SD slot: Card Included

2 x External UART Expansion Ports

Touch Panel Ready (requires OpenTX 2.4)

Features:

STM32F429BIT6 MCU

Industrial grade 4.3 inch 480*272 outdoor readable color touchs panel screen

Compatible with OpenTX

Wheel menu button

Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias

Internal Multi-protocol RF System

Full Speed Native TBS Crossfires support (400K)

Supports Telemetry (Protocol and Receiver dependent)

Memory 16M (can be expanded by Micro SD card)

Voice function

Vibration reminder function

Improved JR module slot

6-Flight Mode Buttons (Pixhawk and more!)

Three-color LED status display

USB-C Charging port.

USB-C Simulator and PC connection port

External UART ports to expand the capabilities of your radio.

Internal Multi-protocol RF System

Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo

Texas Instruments CC2500: FrSky, Futabas SFHSS

Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan

Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

RF Chip Data

The TX16S internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of todayÔÇÖs prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. No complicated update procedures.

Recommended Parts:

Main Board, Breakouts Board, Roller Assembly, Rear Grips, Side Grips,

Battery Cover, Antenna Mount, TX Antenna, System Button Assembly, Side Scroller Set,

SC + SD Switch Assembly, SF + SE Switch Assembly, SH + SG Switch Assembly, SA + SB Switch Assembly, S1 & S2 Dail Assembly,

Top USB Assembly, Satin Black Switch Nuts Short, Satin Black Switch Nuts Tall, Button Set, Power Button Front Plate,

Front Case, Mid Case, Rear Case, Touch Panel Update Set, LCD and Touch Pannel,

TX Handle, Internal 4IN1 Module, Hall Sensor Gimbals, Rear Case Speaker B, Foam LED Spacer,

Neck Belt, Front LCD Panel Cover, Module Bay Cover, USB-C Data Cable, Gimbal Lever Spring and Tension Bar Set,

Soft Tension Spring Set, Hard Tension Spring Set,

Package included:
1 x TX16S/TX16S with TBS Crossfires Micro TX V2 (Optional)

1 x USB-C Cable
1 x 18650 Tray
1 x Throttle Return Springs
