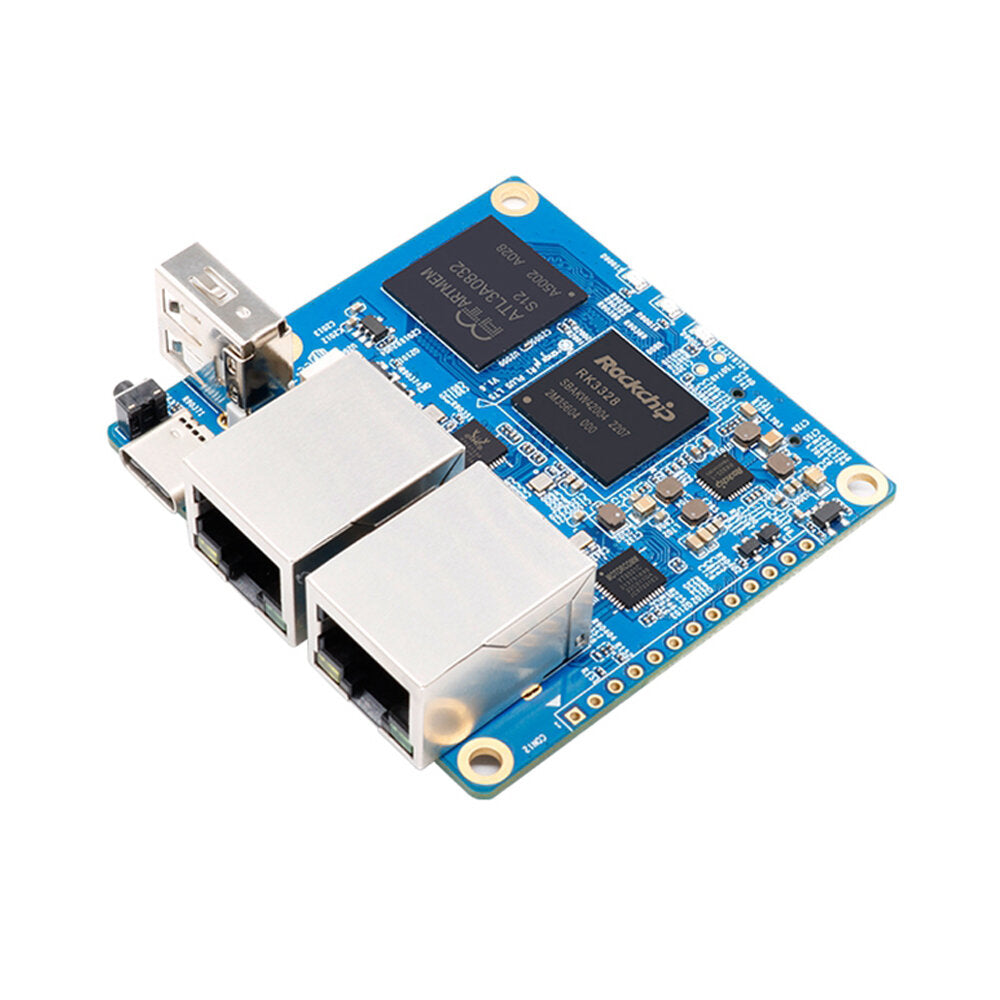

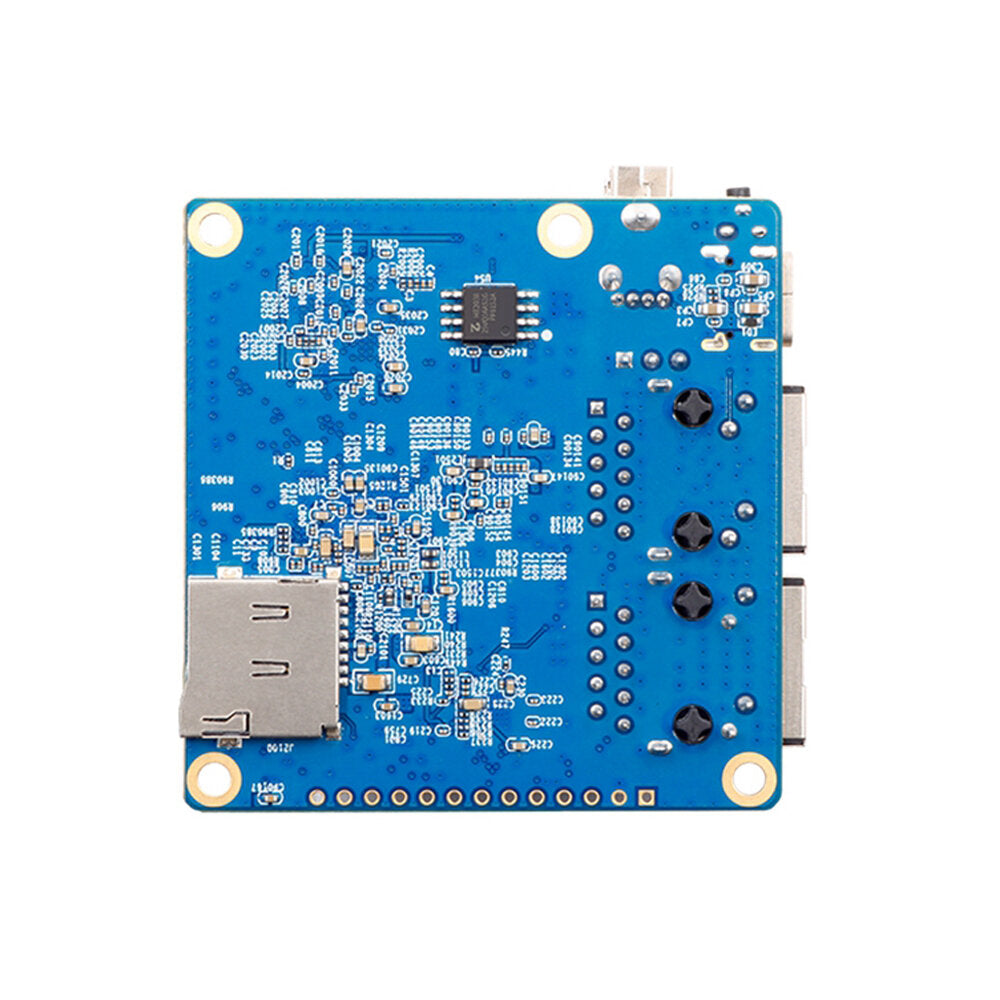

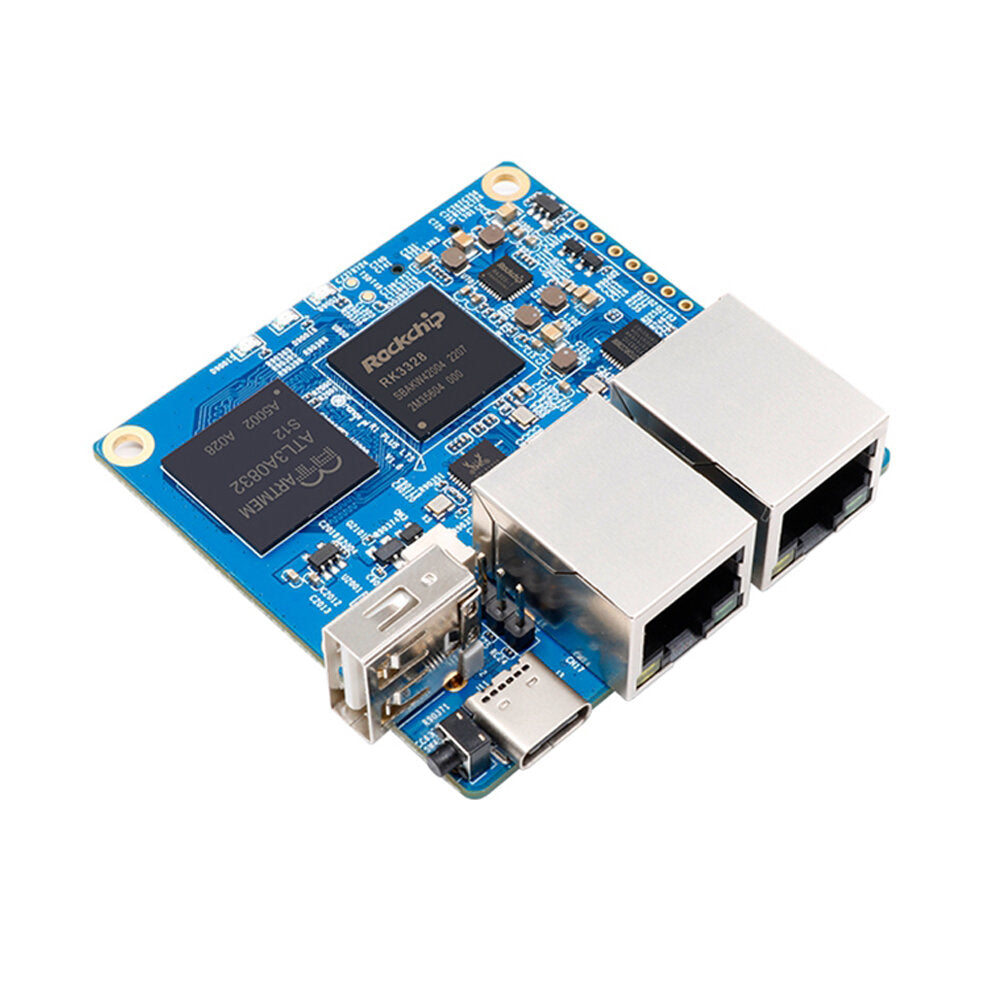

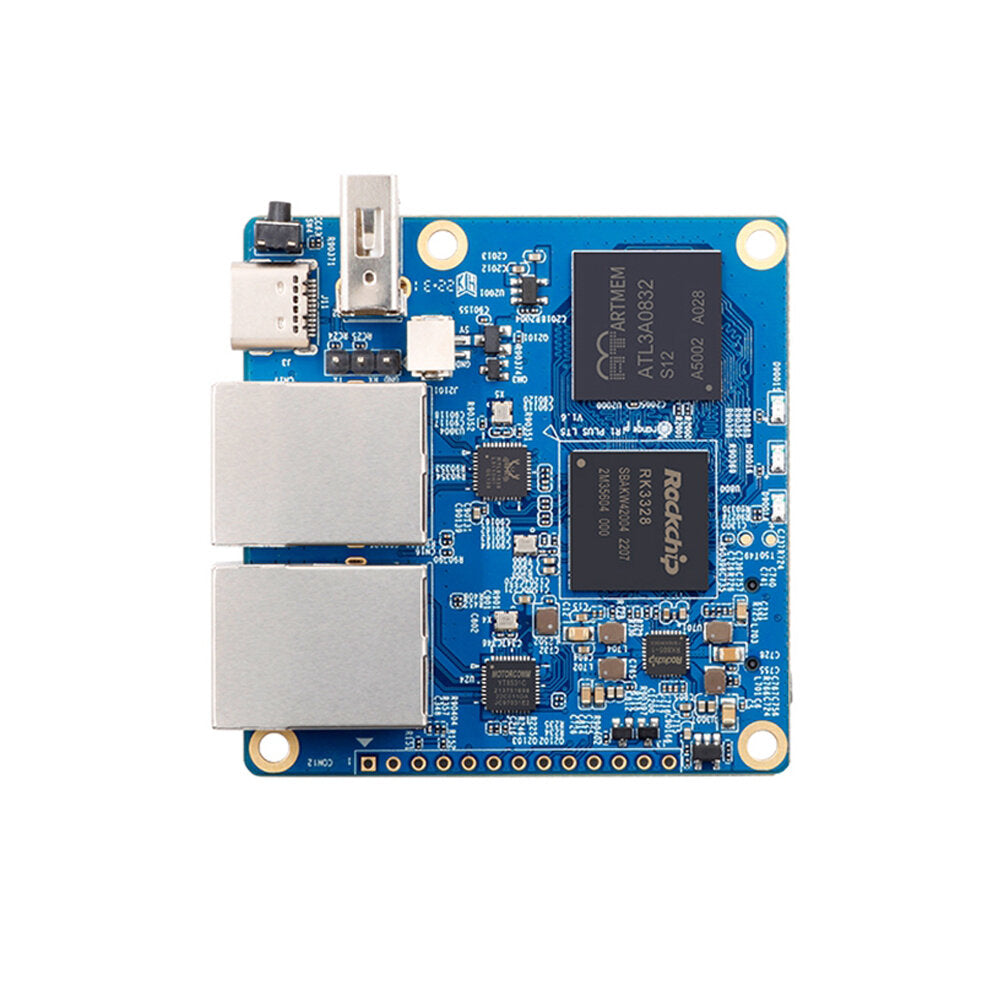

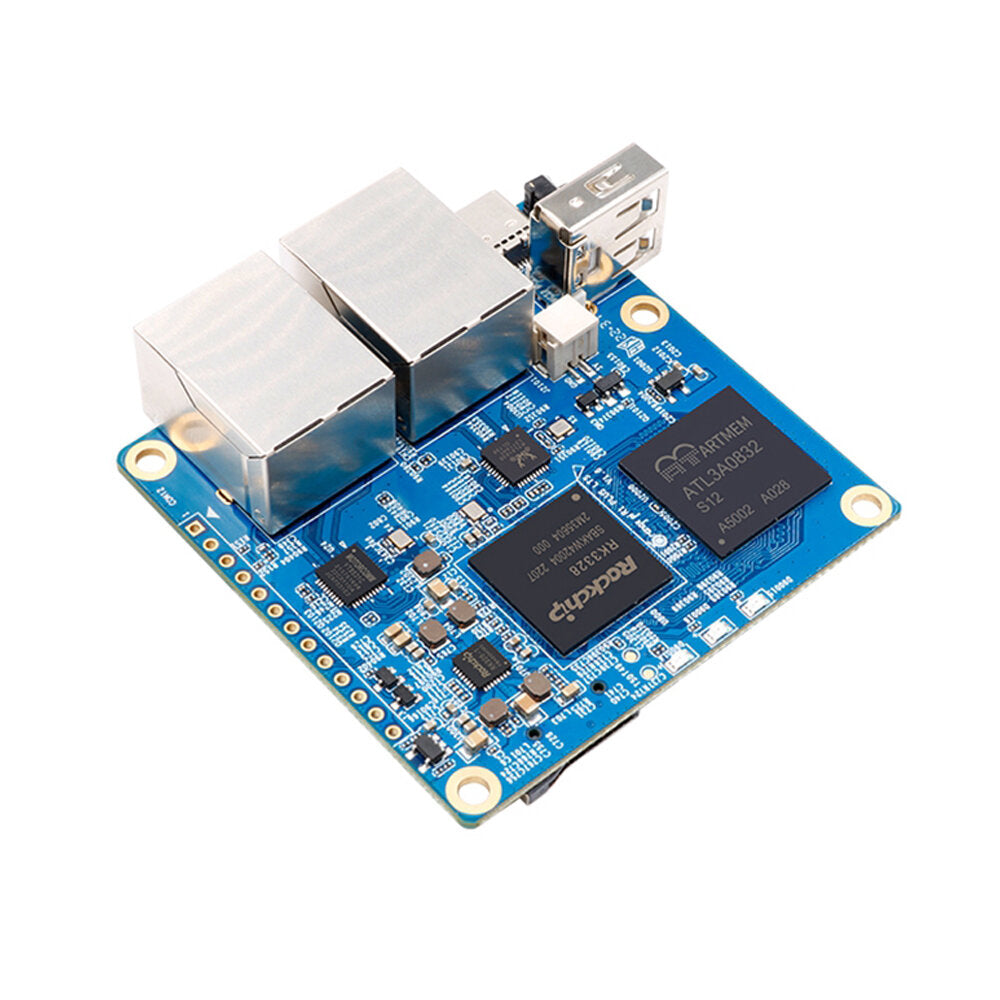

Orange Pi R1 Plus LTS 1GB RAM Rockchip RK3328 Open Source Single Board Computer Android 9 Ubuntu Debian OS Development Board
Feature: Hardware specification CPU Rockchip RK3328 Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz GPU Mali-450MP2 Supports OpenGL ES 1.0/2.0 Power Management Chip RK805 Memory(SDRAM) 1GB LPDDR3...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Feature:
| Hardware specification | |
| CPU | Rockchip RK3328 Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz |
| GPU | Mali-450MP2 Supports OpenGL ES 1.0/2.0 |
| Power Management Chip | RK805 |
| Memory(SDRAM) | 1GB LPDDR3 |
| Onboard Storage | - MicroSD Card Slot - 16MB SPI Flash |
| Onboard Network | 10M/100M/1000M Ethernet (YT8531C) 10M/100M/1000M USB Ethernet (RTL8153B) |
| Video Output | TV CVBS Output (Via 13Pin Interface Board) |
| Audio Output | 3.5mm Audio Port (Via 13Pin Interface Board) |
| Power Source | USB Type-C Interface 5V2A Input |
| USB | 1*USB 2.0 HOST |
| Low-Level Peripherals | 13pin connector with UART, I2C, IR pin, Tv-out, AUDIO (no MIC), 2*USB2.0 (not supported) and 1 GPIO port Note: 13Pin Headers Will Not Be Welded |
| Debug Serial Port | UART-TX, UART-RX & GND |
| Button | 1*Reset Button |
| Fan Interface | 1*Cooling Fan Interface (5V) |
| LED | Power LED & Status LED |
| Supported OS | Android 9, Ubuntu, Debian, OpenWRT |
| Appearance specification introduction | |
| Dimension | 56mm x 57mm |
| Weight | 29.5g |
Package includes:
1 x Orange Pi R1 Plus LTS
1 x 13pin headers
Orange Pi R1 Plus LTS 1GB RAM Rockchip RK3328 Open Source Single Board Computer Android 9 Ubuntu Debian OS Development Board
$59.99
