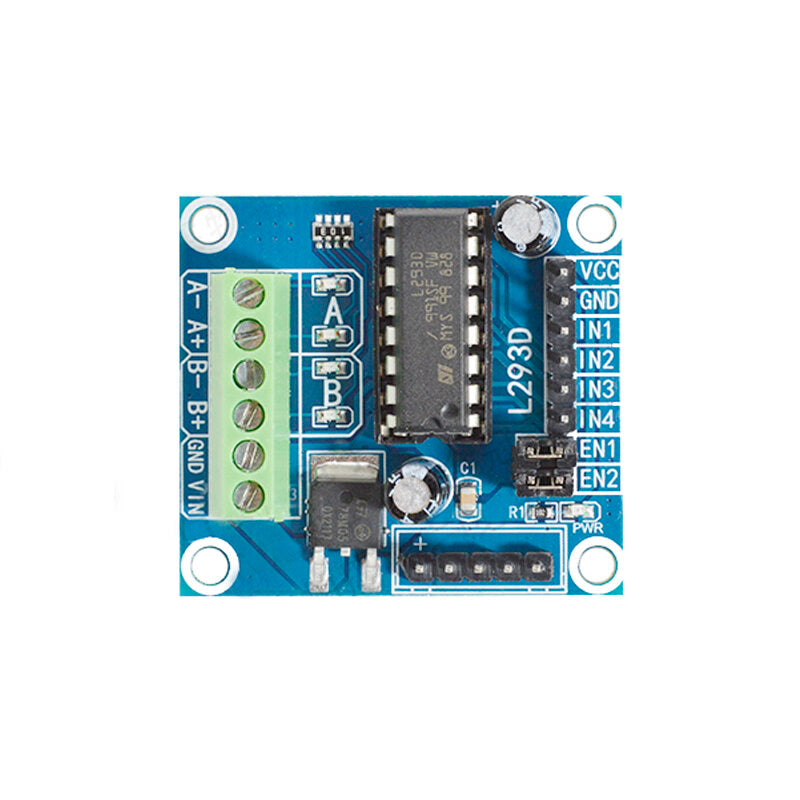

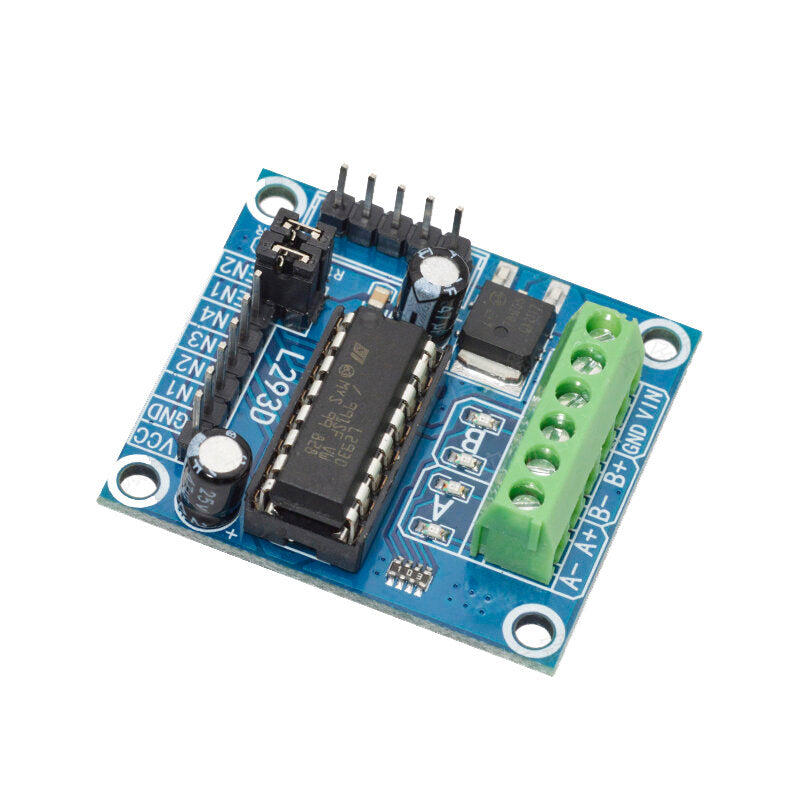

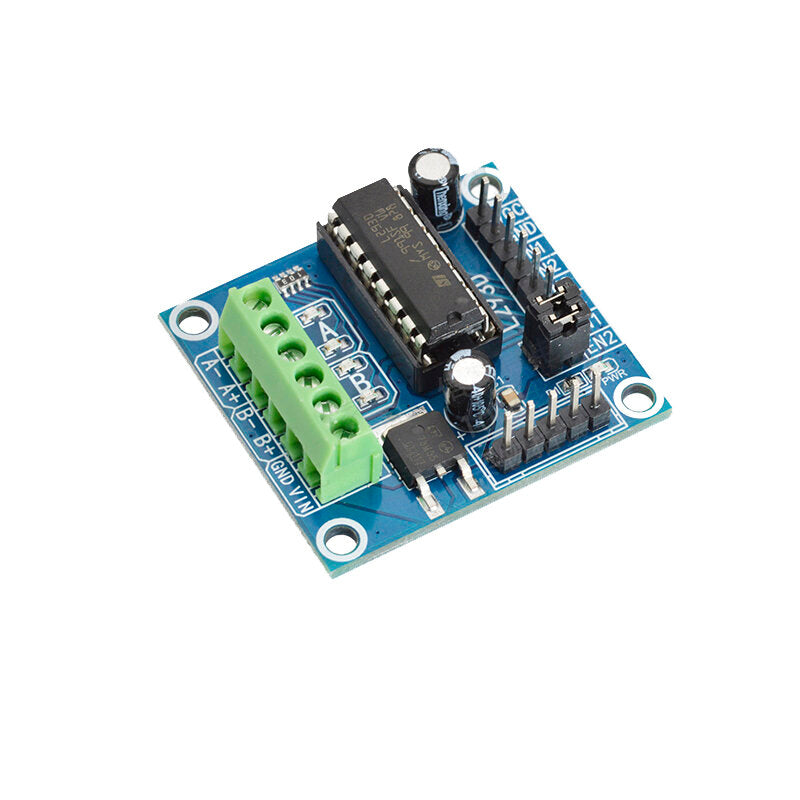

Mini L293D Motor Driver Expansion Board Internal Diodes Overtemperature Protection

Mini L293D Motor Driver Expansion Board Internal Diodes Overtemperature Protection

$12.99

>>>Manual: Click here to open<<<Feature:*L293D motor shield, the input voltage DC4.5-25V,*600mA output current capability per channel*1.2A peak output current (non repetitive) per channel*Enable facility*Overtemperature protection*Logical '0' input voltage up to...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description

>>>Manual: Click here to open<<<


Feature:


*L293D motor shield, the input voltage DC4.5-25V,

*600mA output current capability per channel

*1.2A peak output current (non repetitive) per channel

*Enable facility

*Overtemperature protection

*Logical '0' input voltage up to 1.5V (High noise immunity)

*Internal clamp diodes


Description:


The Device is a monolithic integrated high voltage,high current four channel driver designed to accept standard DTL or TTL levels and drive inductive loads (such as relays solenoides, DC

and stepping motors) and switching power transistors .To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the L0GIC, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.


Package includes:


1 x L293D Motor Driver Expansion Board
