Mini HD Video Capture 180P Video Grabber Record Box for PS4 Game DVD Camcorder HD Camera Recording

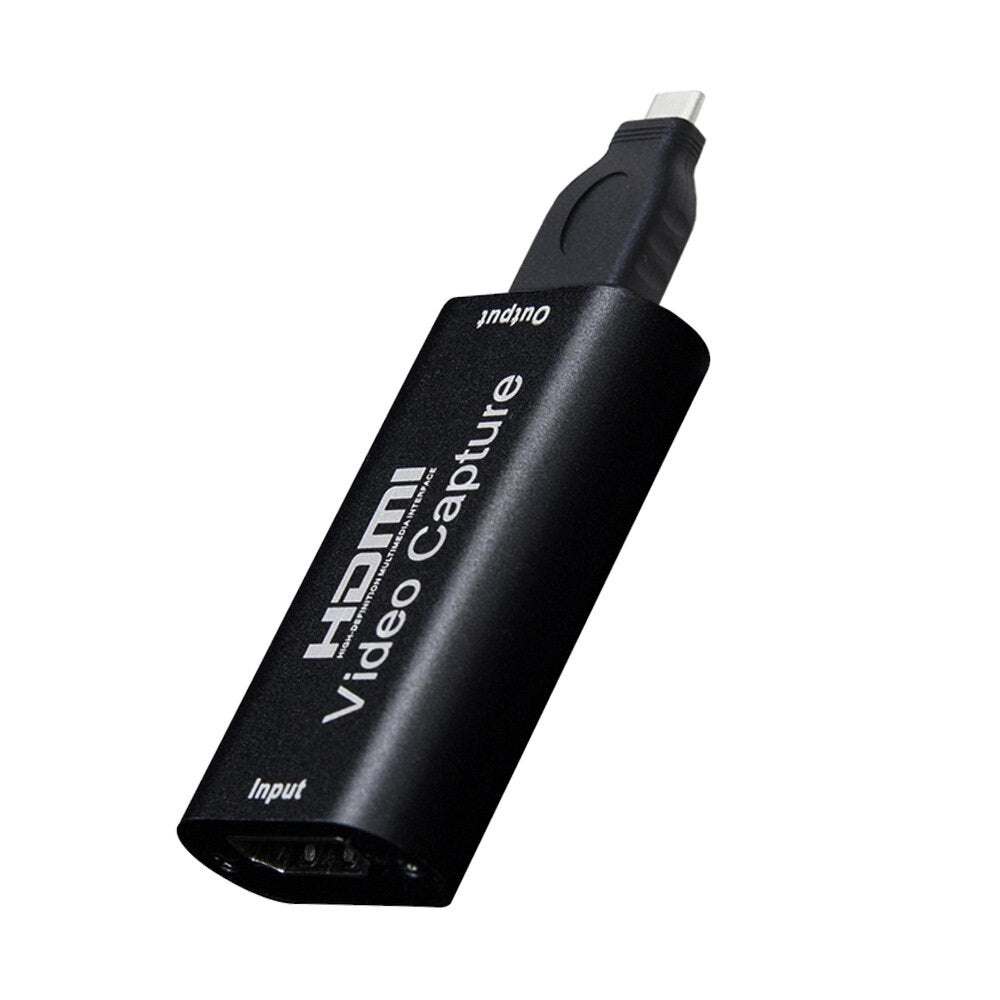

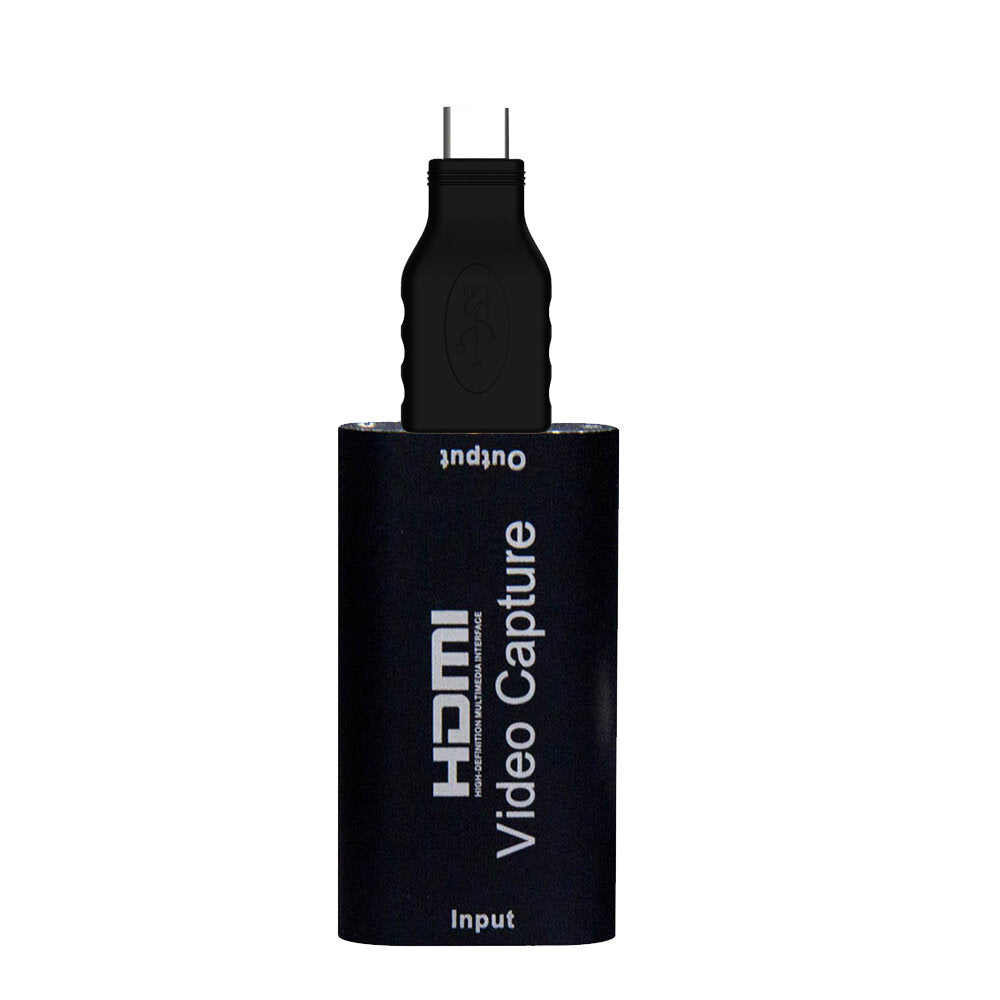

This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Ôùå Support maximum input resolution up to 4K;

Ôùå Support maximum output resolution up to 1080P;

Ôùå Support 8/10/12 bit color depth;

Ôùå When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);

Ôùå Support most acquisition software, such as VLC, OBS, Amcap, etc .;

Ôùå Support Windows, Android and Mac;

Ôùå Comply with USB video UVC specifications;

Ôùå Conforms to USB audio UAC specifications;

Ôùå No external power supply is required, compact and easy to carry.

HD Resolution: Max input can support 3840×2160@30Hz / 4K

Video Output Resolution: Max output can be 1920×1080@30Hz

Video Input Format: 8 / 10 / 12-bit Deep Color

Video Output Mode: YUV / JPEG

Support Audio Format: L-PCM

Support AWG26 HDMI Standard Cable: input Ôëñ15 meters, AWG26 HDMI standard cable.

Maximum Working Current: 0.4A / 5VDC

Operating temperature range: (-10 to + 55 Ôäâ)

Dimension (L x W x H): 64x28x13 (mm)

Weight: 21.4g

1 * Audio Video Capture Card

1 * User Manual
