Millivolt to Voltage 70mV to Voltage 0-5V 0-10V Linear Conversion Transmitter Module

Feature:

1. Working voltage: 9V ~ 24V

2. Input current: (4.00MA ~ 20.00MA/0.00mA ´¢Ş 20.00mA)

3. Output voltage: (0.00V ´¢Ş 5.00V/0.00V ´¢Ş 10.00V).

4. Control mode: 4.00MA (milliampere) ~ 20.00MA (milliampere) input is converted to corresponding (0.00V ´¢Ş 5.00V/0.00V ´¢Ş 10.00V).

5. Output mode:

5.1. J1 pad on the circuit board: open circuit (input 4.00mA, ~ 20.00mA); short circuit (input 0.00mA ~ 20.00mA), the default is open circuit

5.2. The J2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.

6. Application range: current signal to voltage signal; remote data acquisition and control equipment;

7. Size: (length) 26mm * (width) 23mm * (height) 10mm

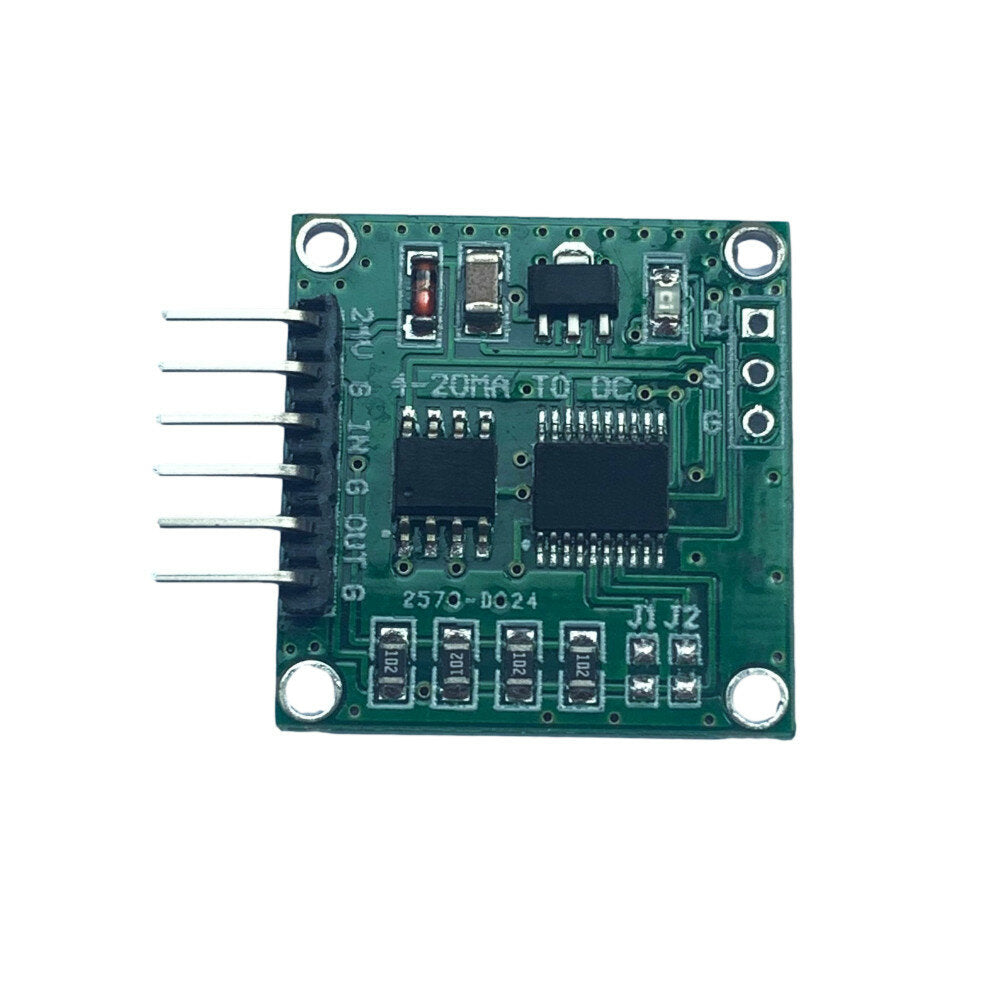

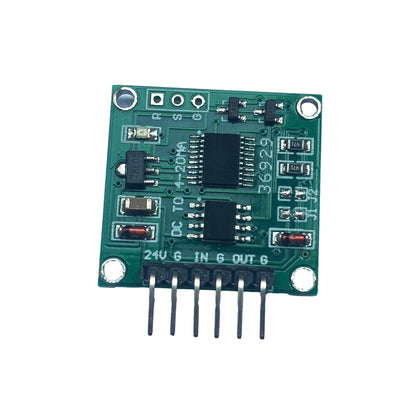

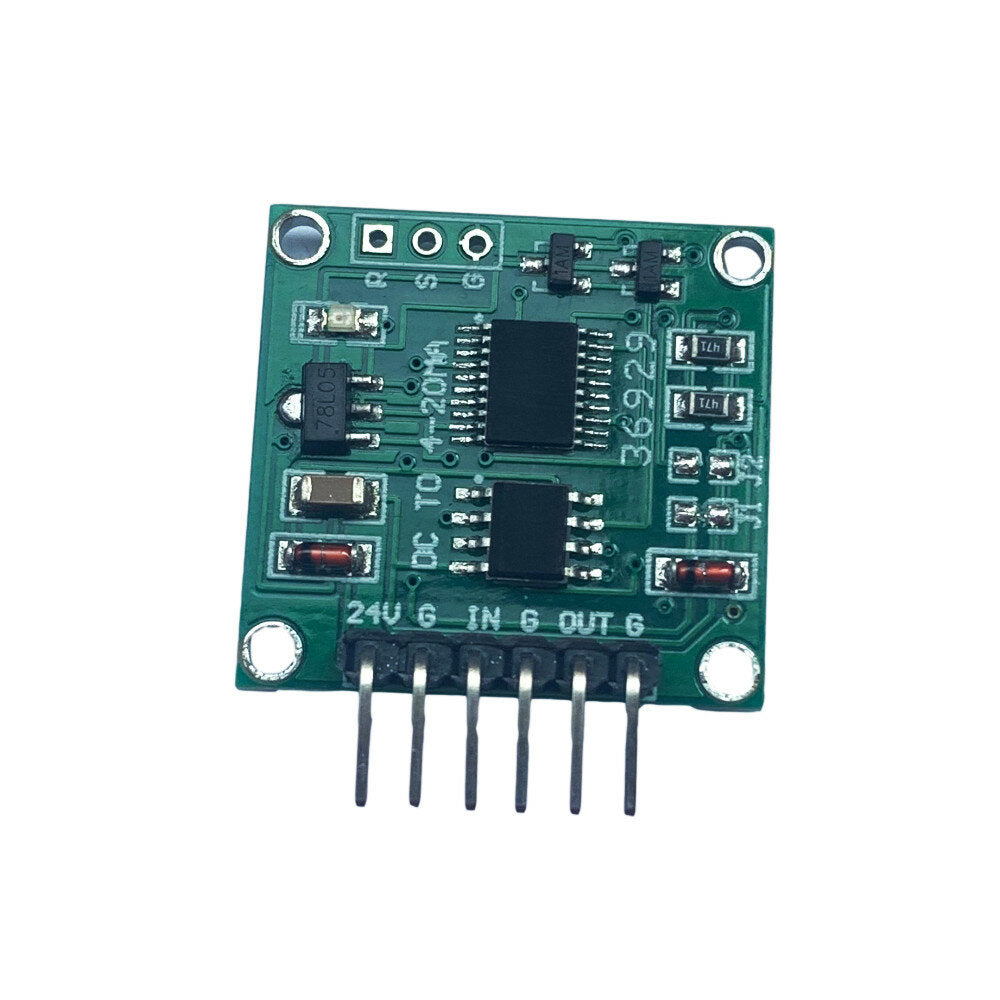

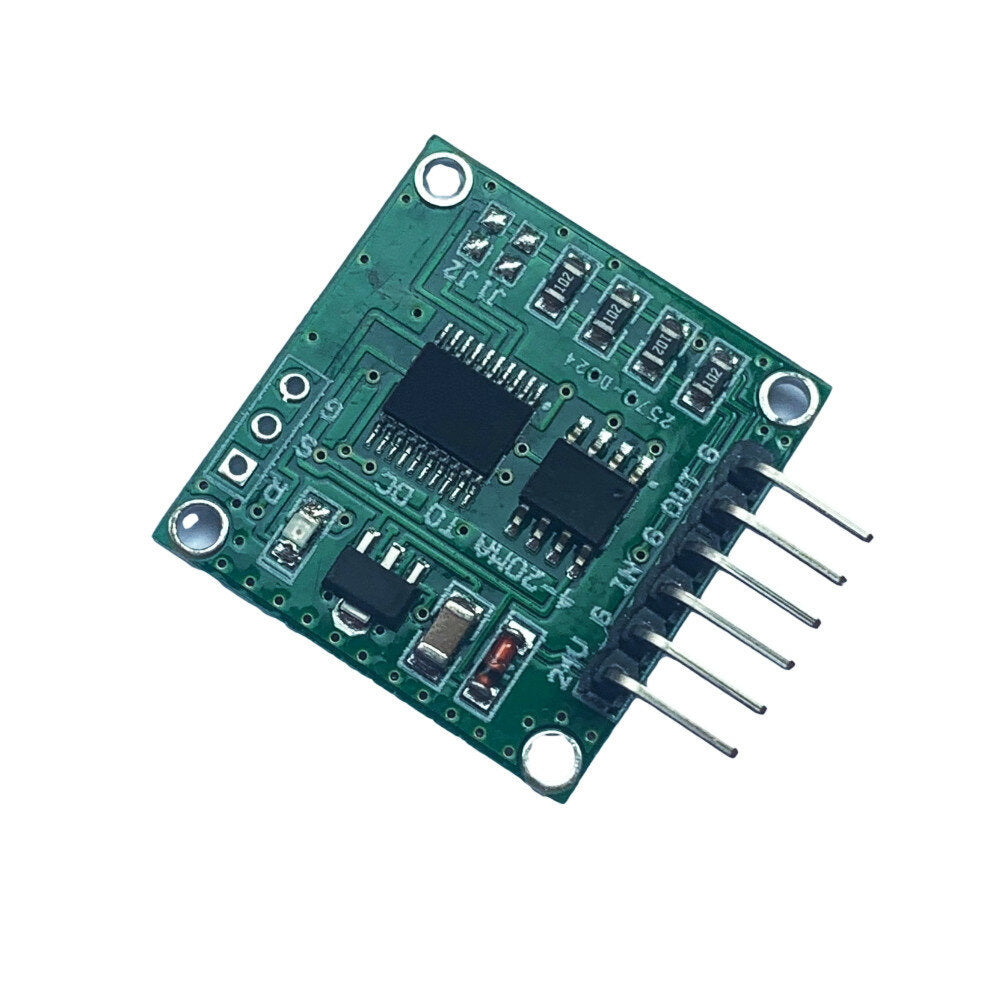

8. Module interface:

24V: Power supply positive port (9V ~ 24V).

G: Power ground interface.

IN: Signal input interface (4.00MA ~ 20.00MA/0.00MA ~ 20.00MA).

G: Power ground interface.

OUT: Signal output interface (0.00V ´¢Ş 5.00V/0.00V ´¢Ş 10.00V).

G: Power ground interface.

Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V.

Package includes:

1 x Transmitter Module
