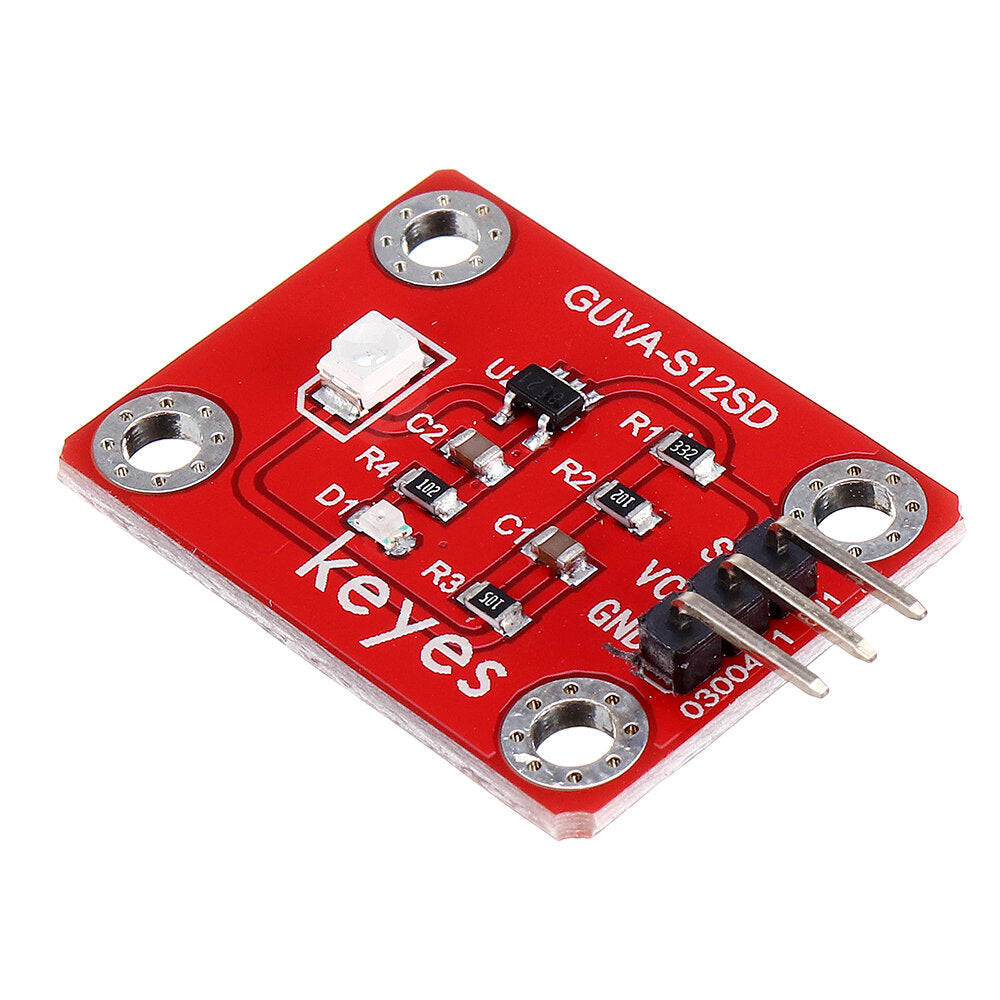

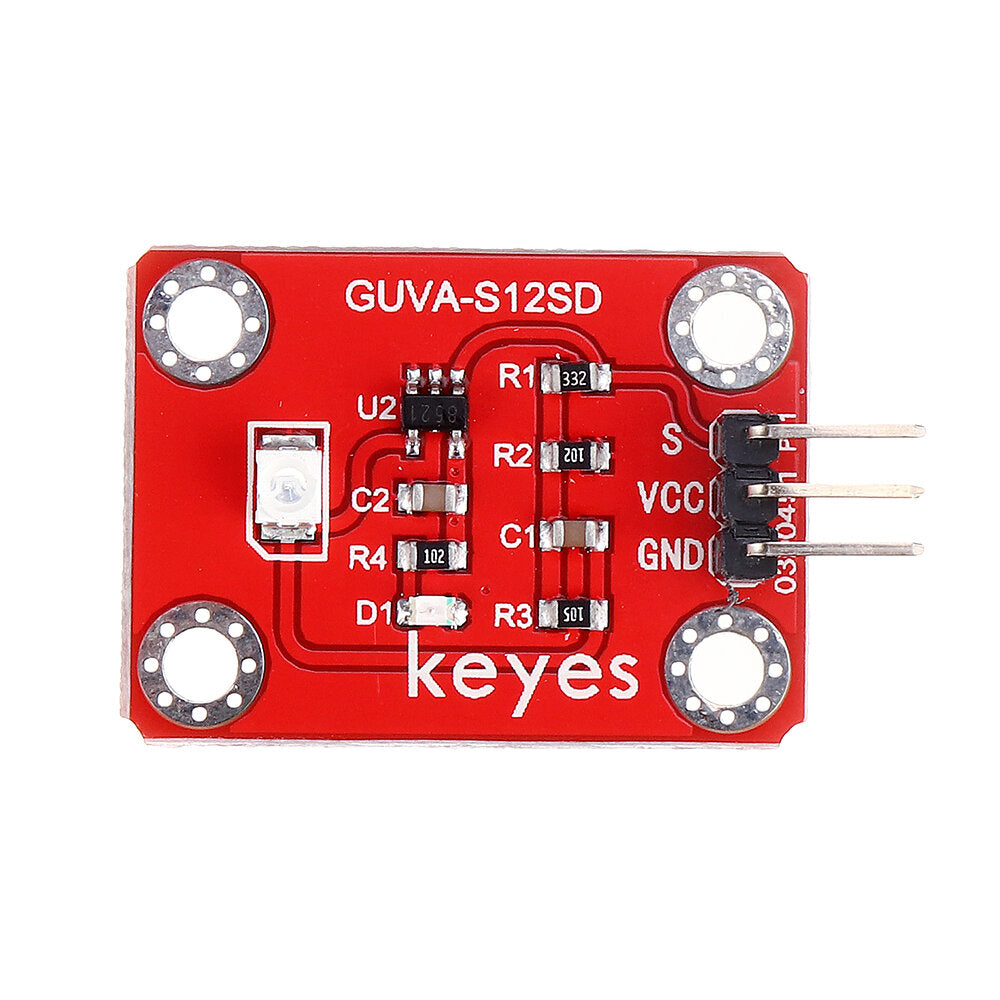

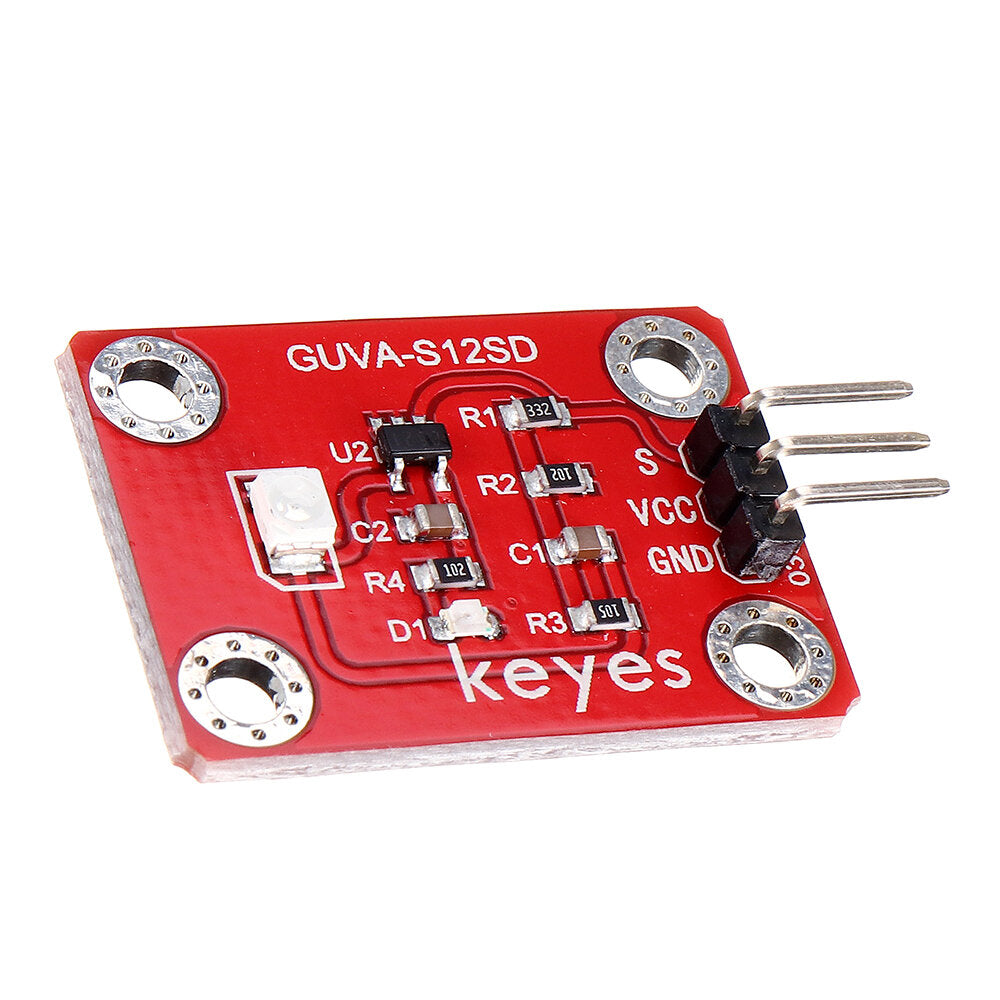

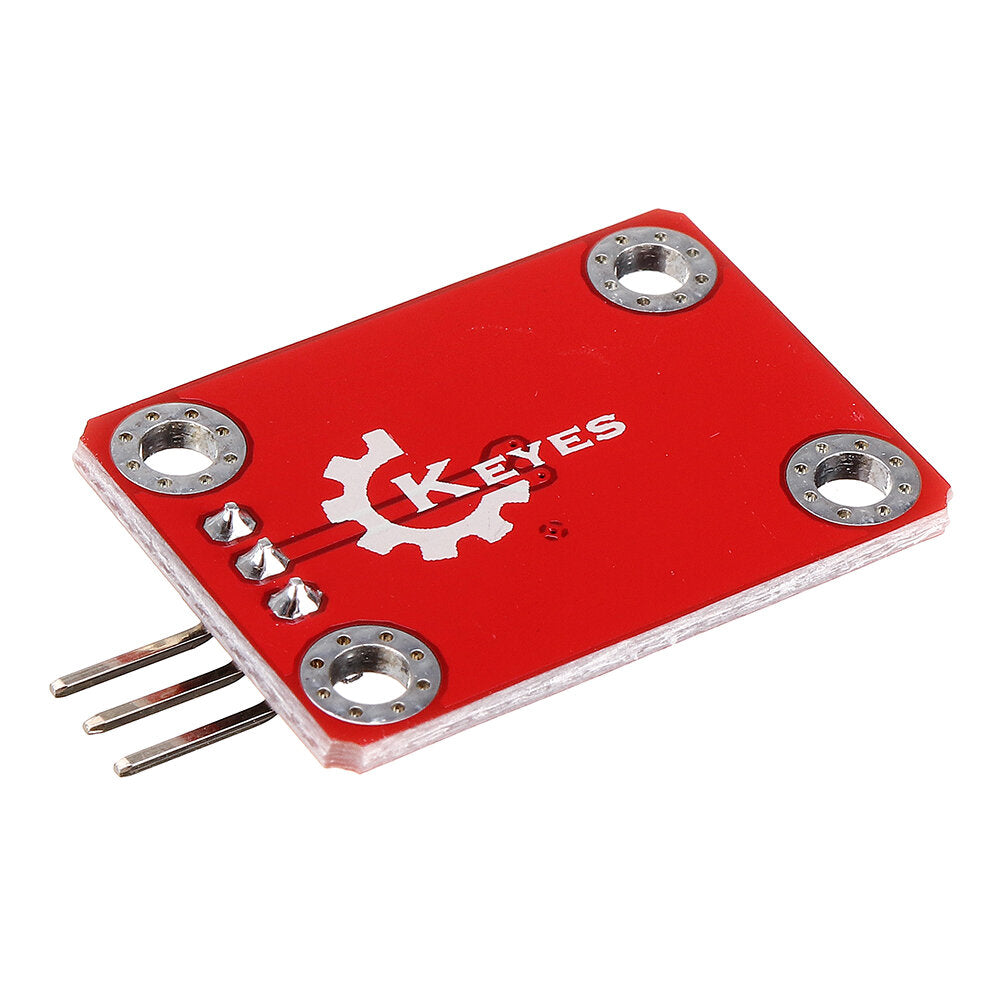

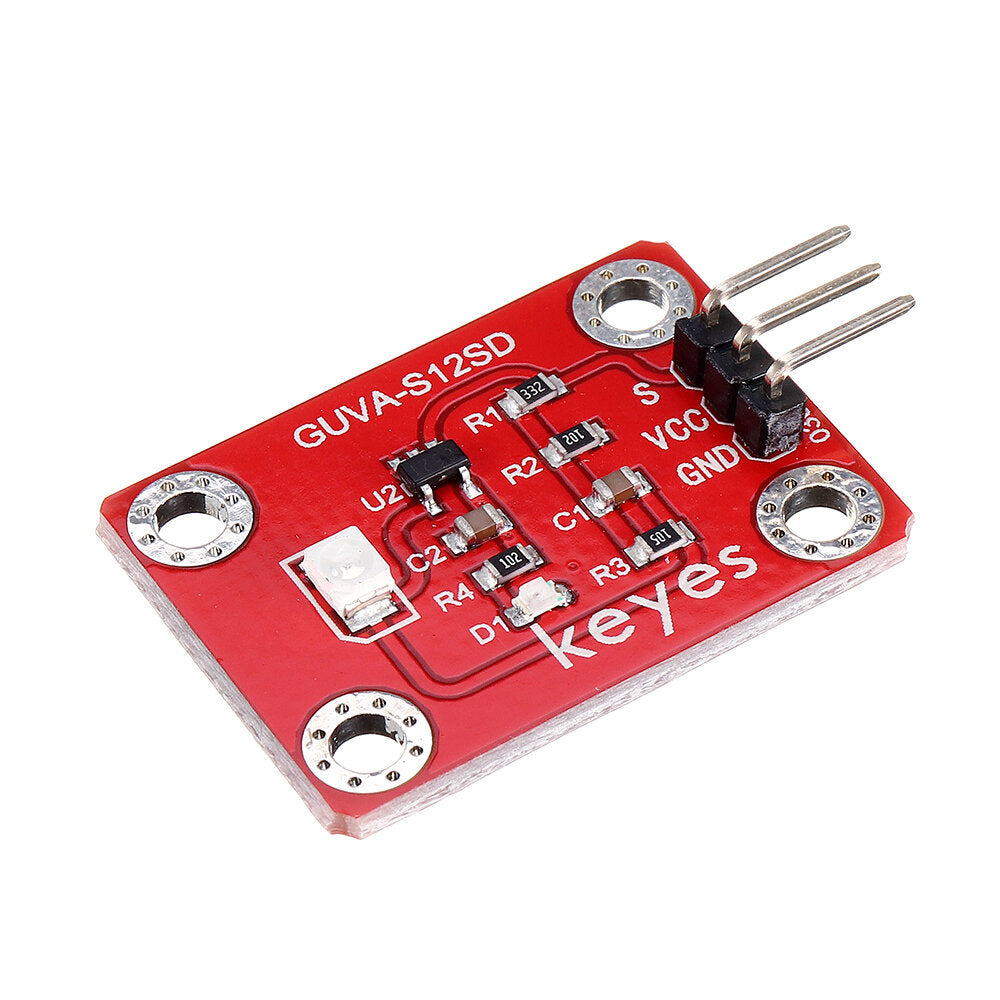

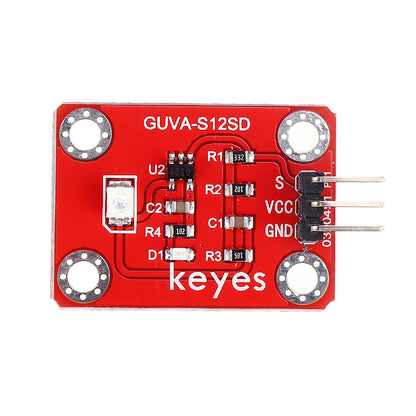

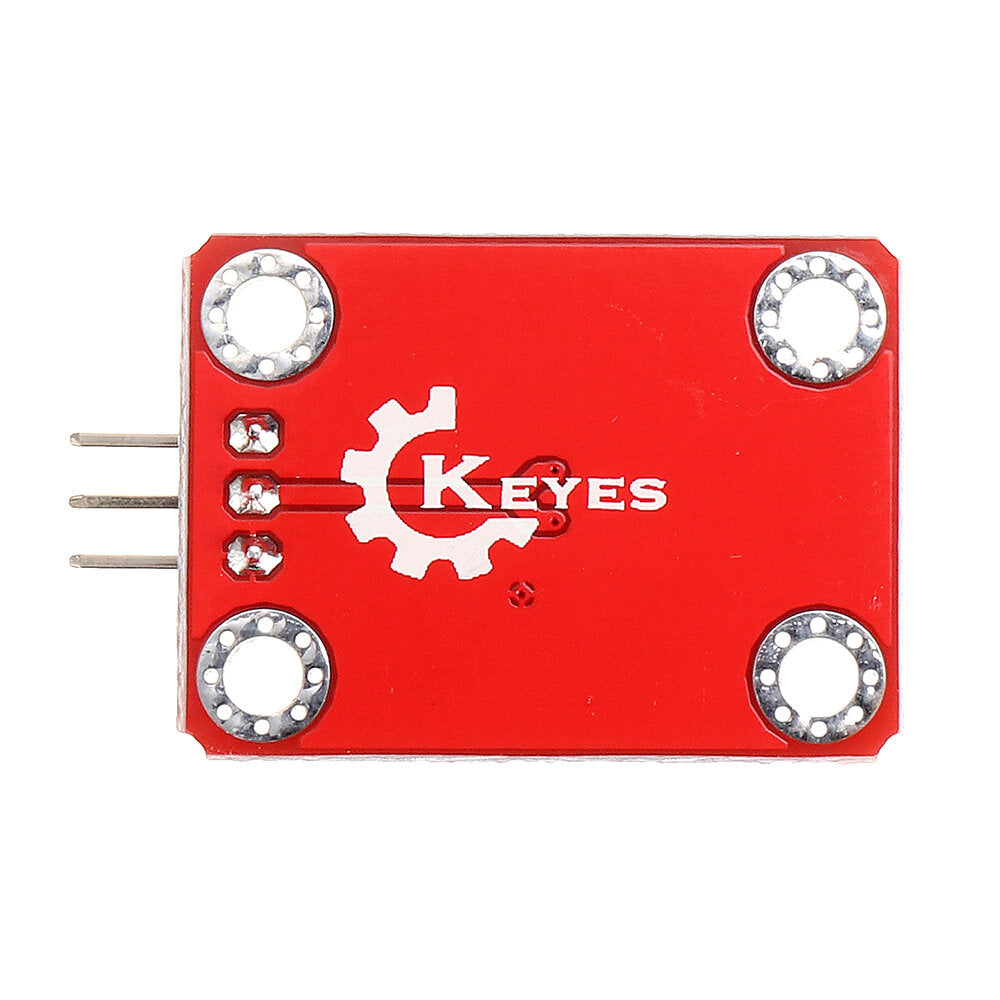

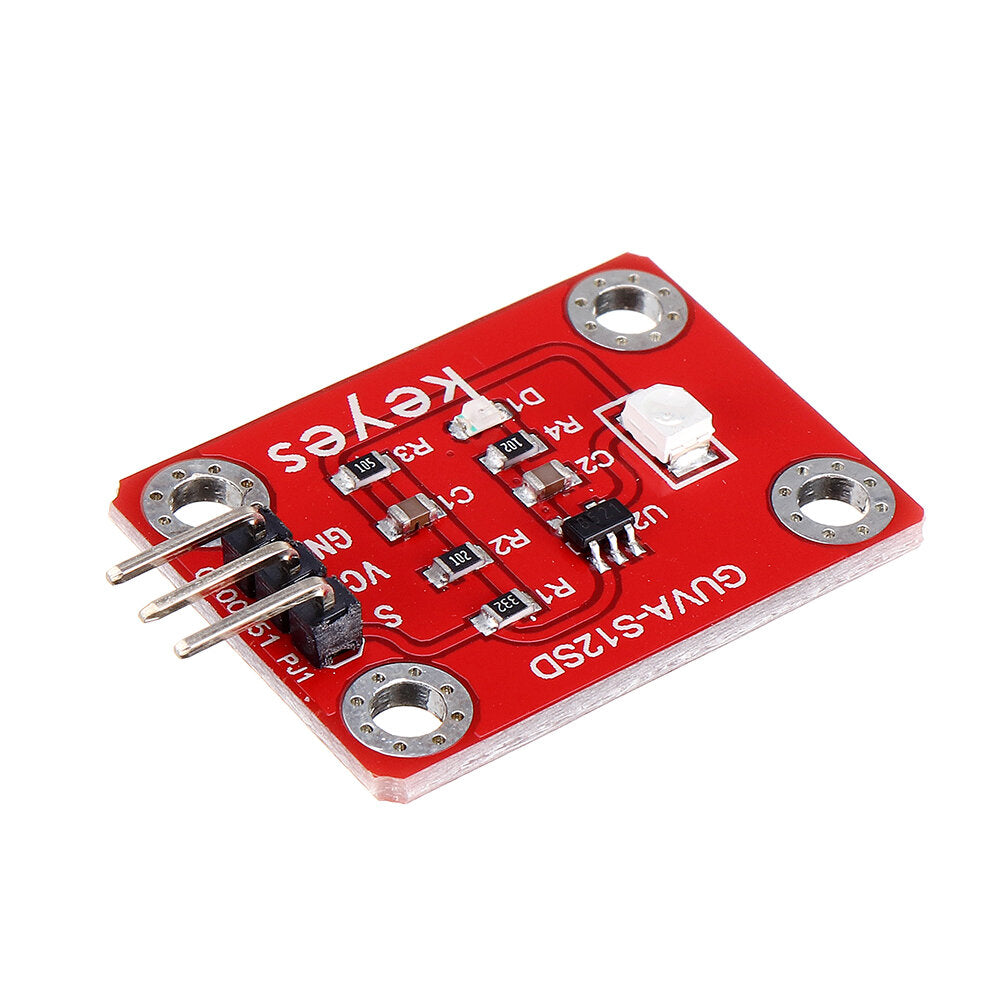

Keyes Brick GUVA-S12SD 3528 Ultraviolet Sensor(Pad hole) with Pin Header Module Analog Signal 240-370nm
Description:GUVA-S12SD 3528 UV Sensor its connection port is compatible for Arduin sensor shield. It is a UV sensor containing the GUVA-S12SD, which can be widely used for intelligent indexing of...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Description:

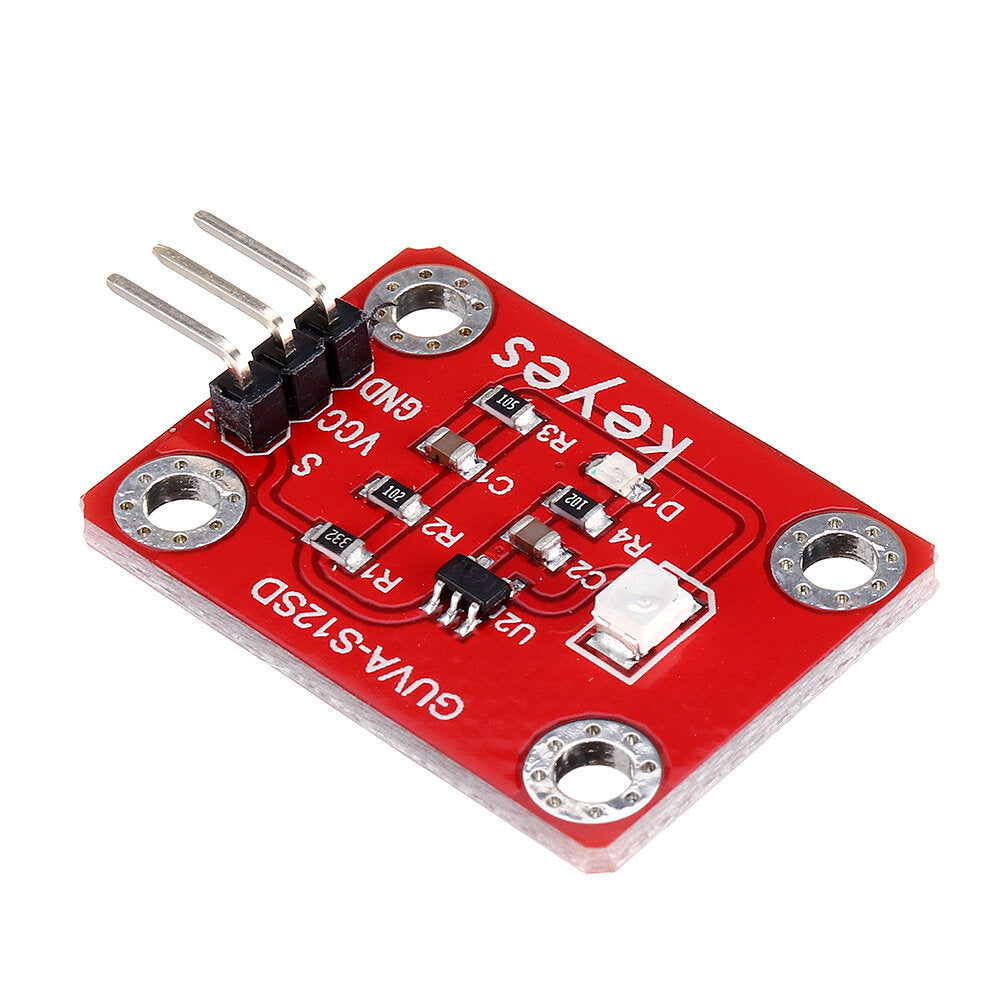

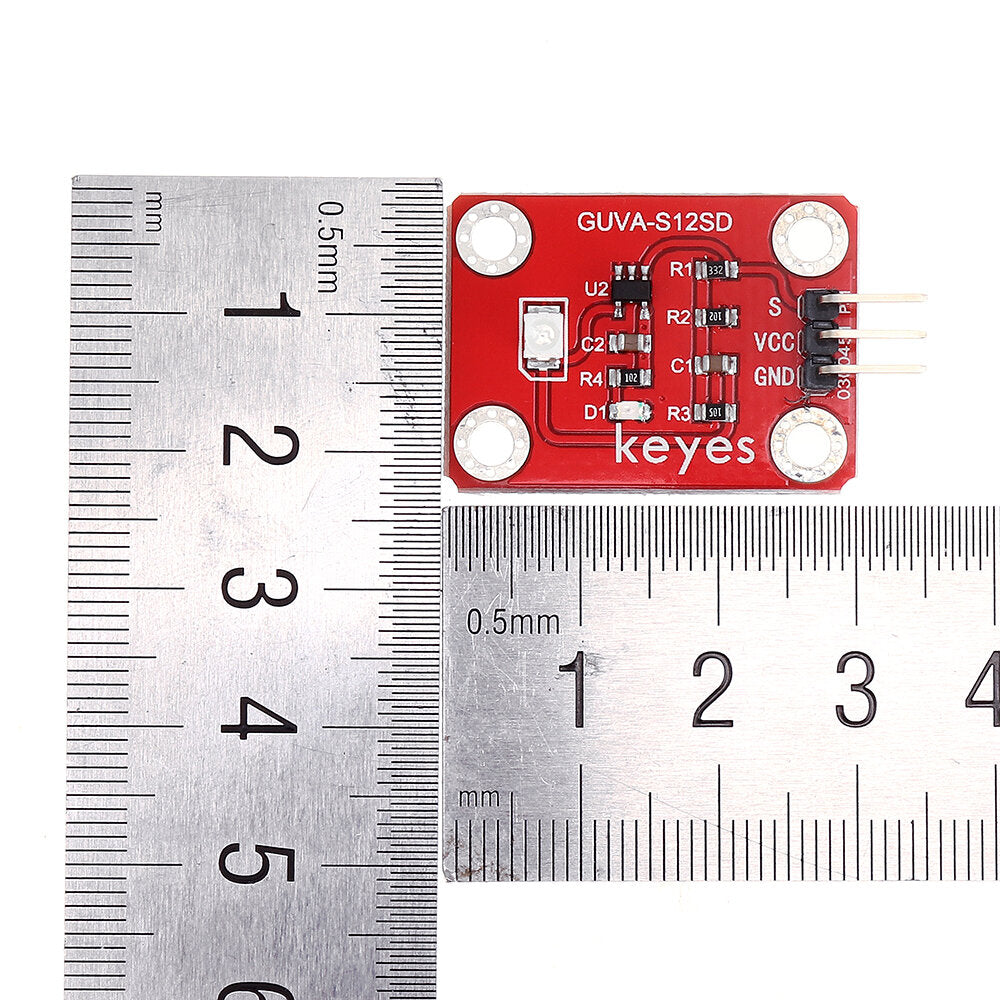

GUVA-S12SD 3528 UV Sensor its connection port is compatible for Arduin sensor shield. It is a UV sensor containing the GUVA-S12SD, which can be widely used for intelligent indexing of UV devices, such as watches with UV exponential detection, smart phones with UV index detection, outdoor UV detection equipment, etc. It can also be used to monitor UV intensity, UV flame when UV disinfection. The sensor comes with four positioning holes that allow you to secure the sensor to other devices.
Specification:
Operating voltage: 3.3-5V (DC)
Interface: 3PIN interface
Input signal: analog signal
Spectral detection range: 240-370nm
Active area: 0.076mm2
Response: 0.14A / W
Dark current: 1nA
Light current: 101 to 125 nA UVA, 1 mW / cm2
Weight: 2.5g
Package included:
1 x GUVA-S12SD 3528 UV Sensor Module
(the other items are not includes)
