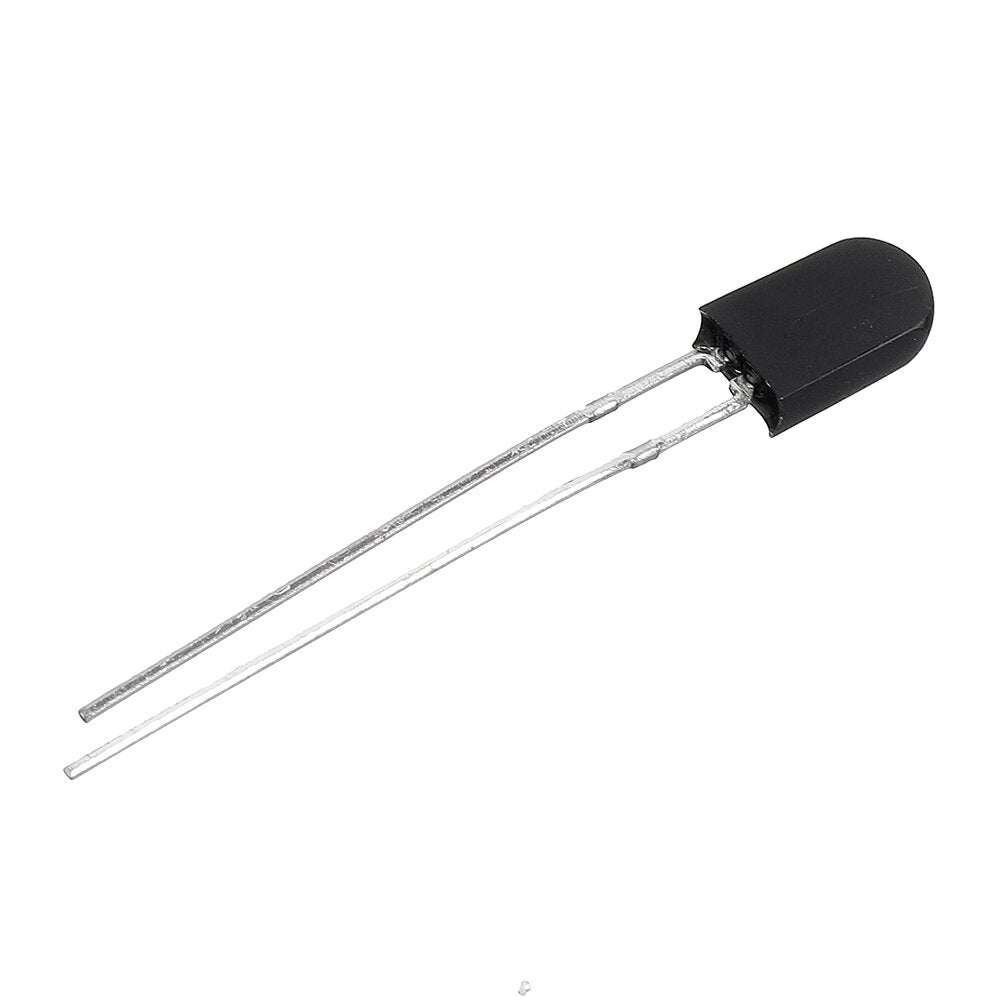

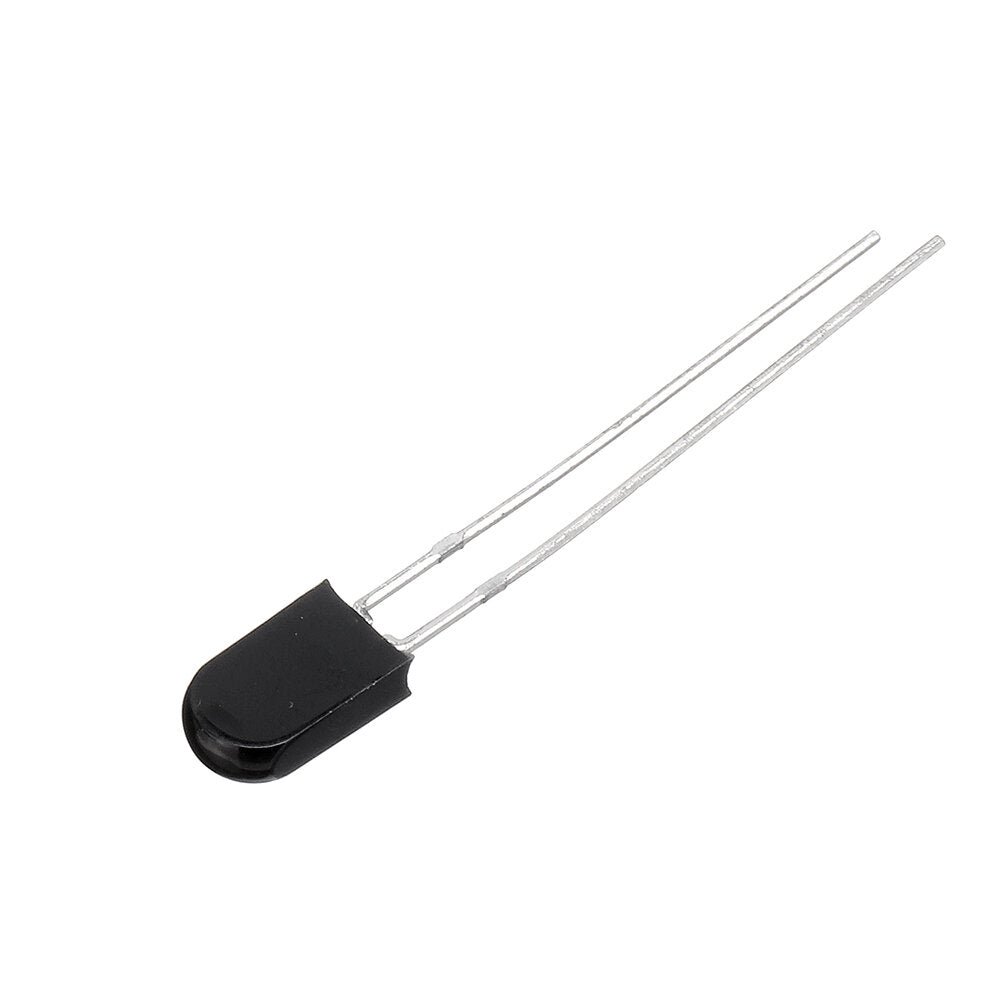

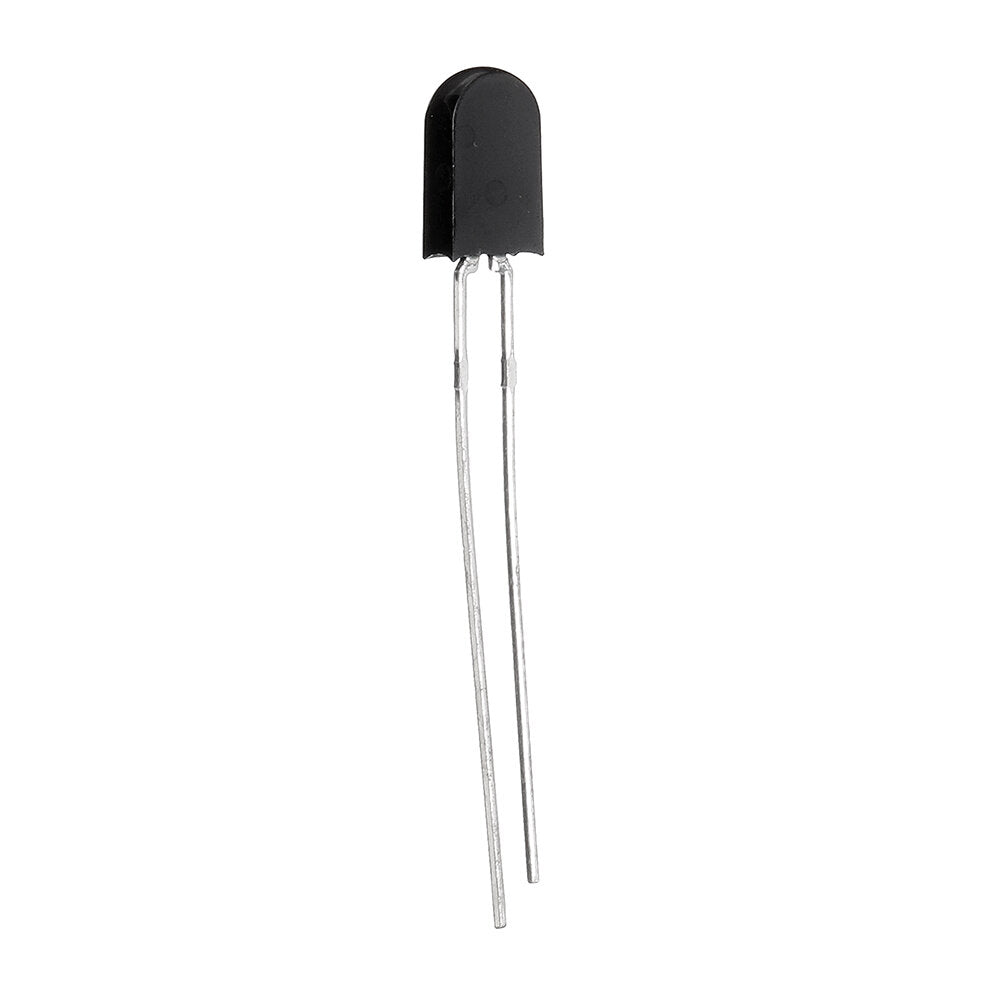

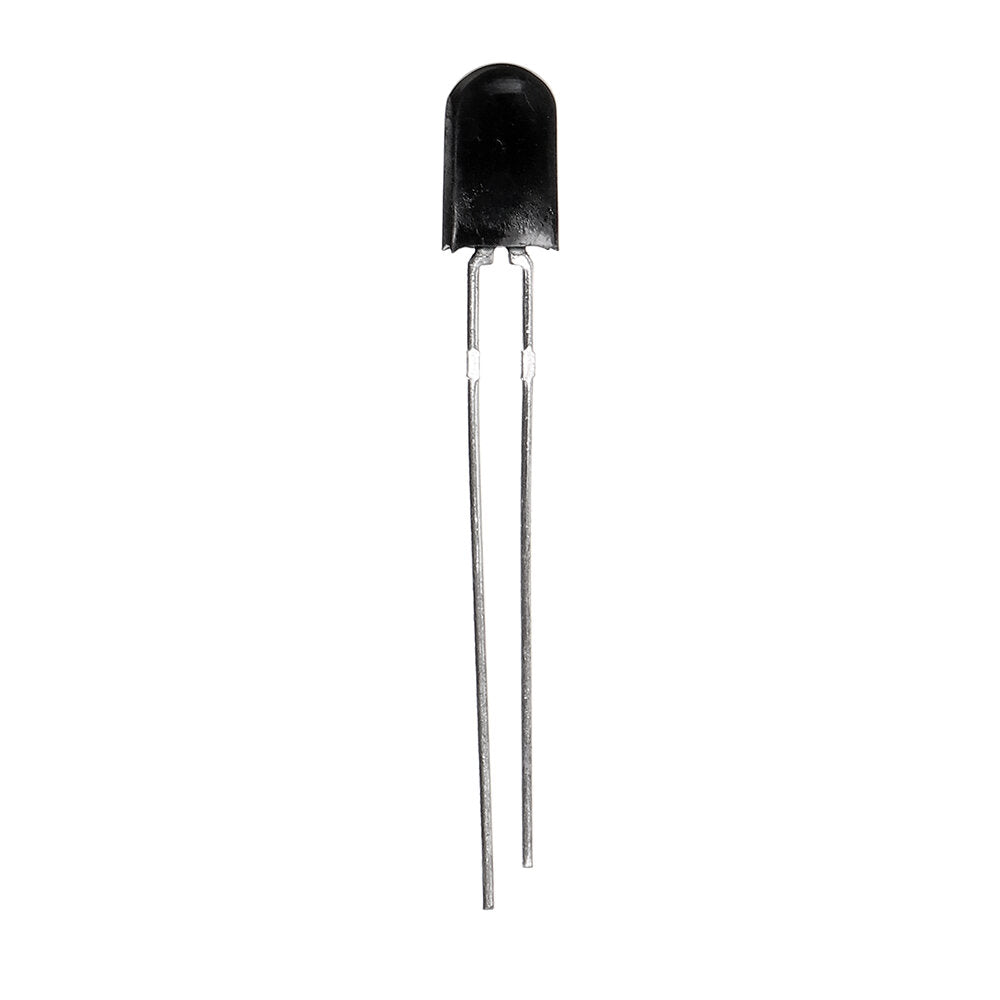

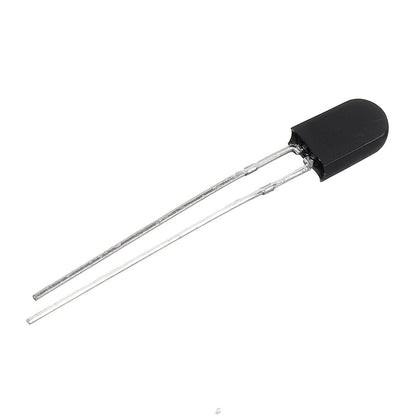

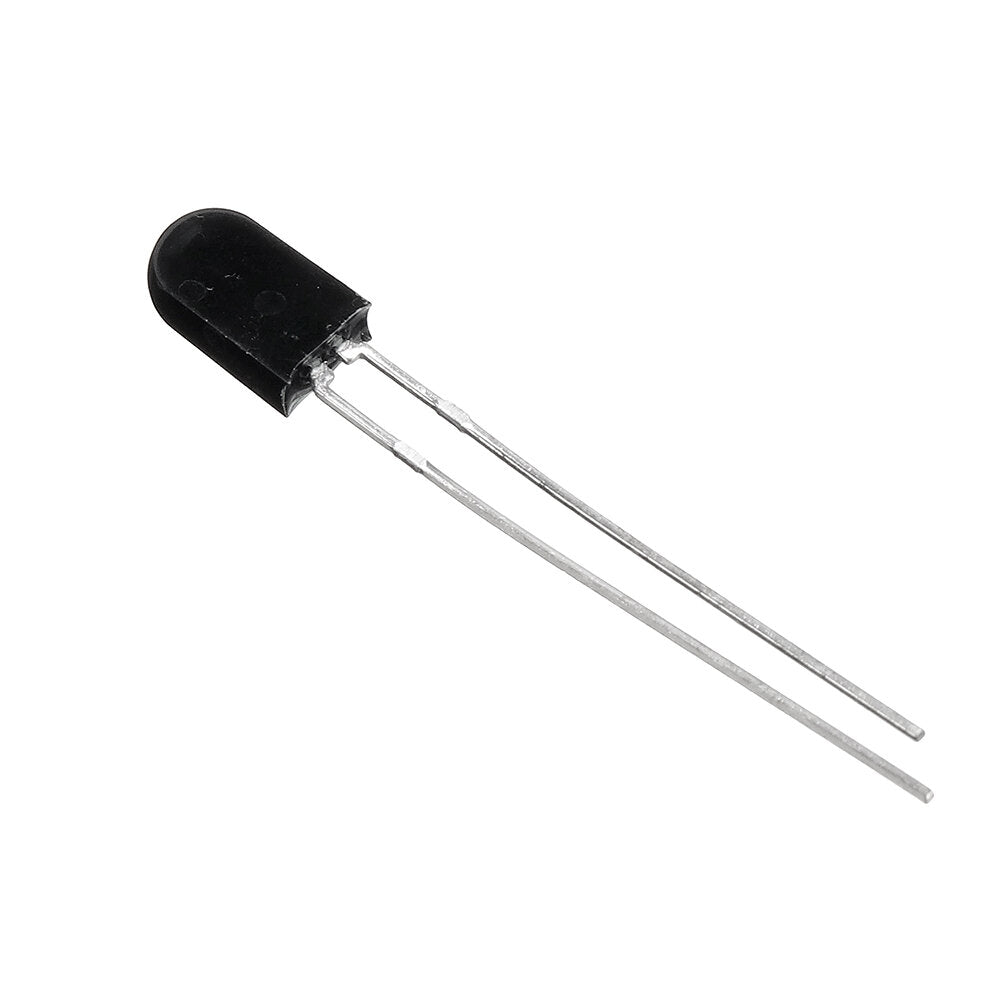

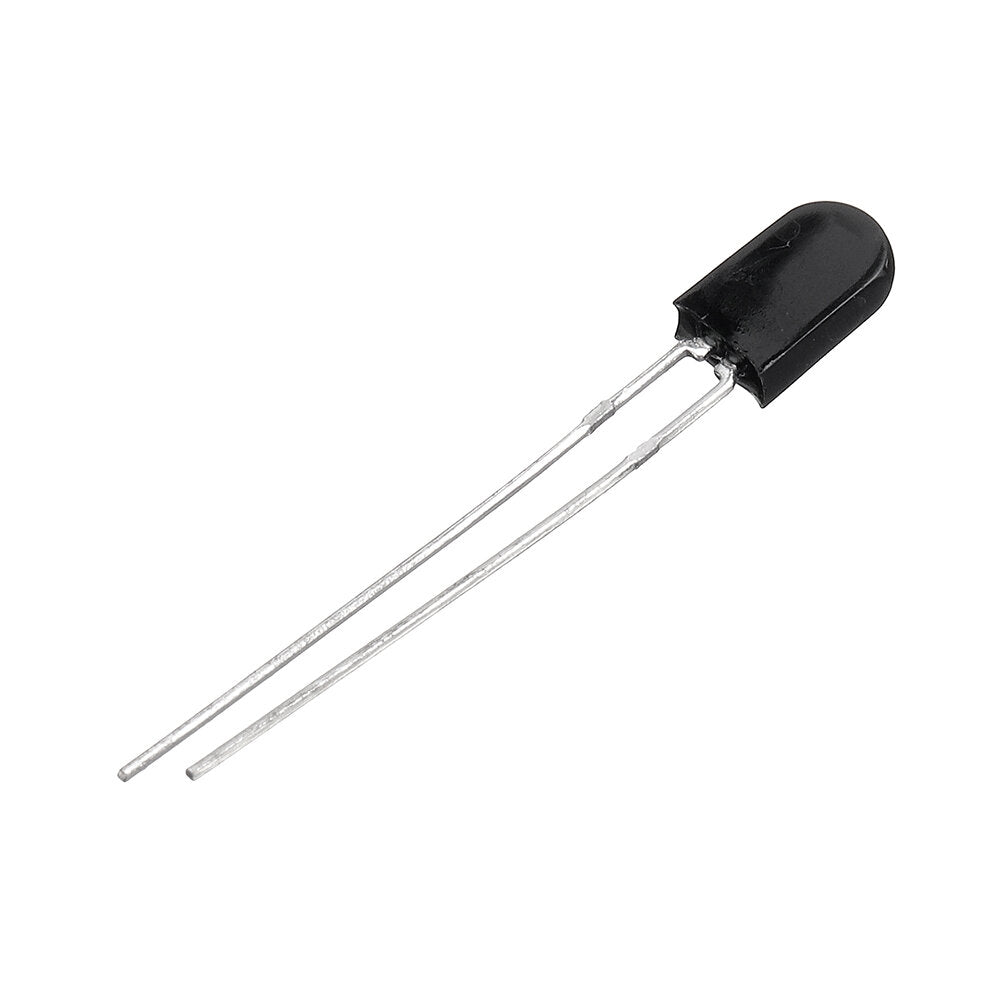

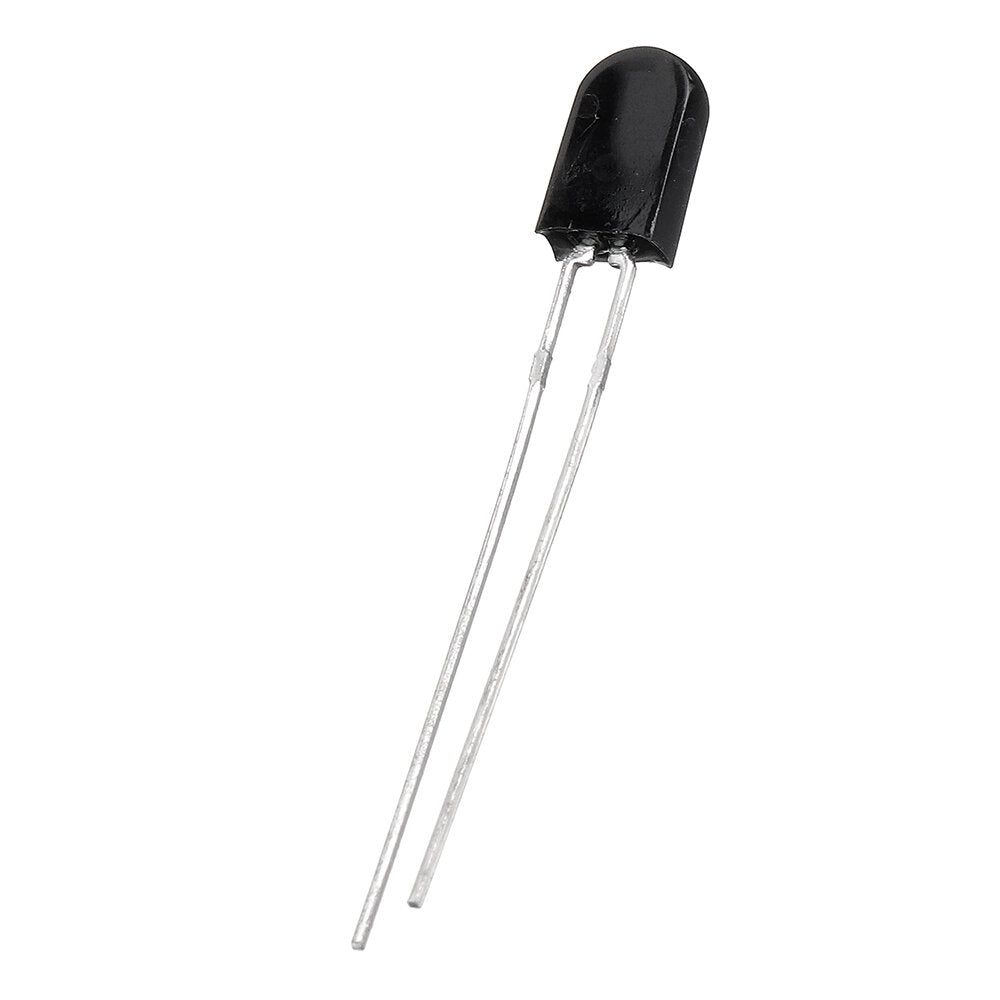

IR533C PT534-6B Flat 5mm Wavelength 940nm Top-view Infrared Transmitter and Receiver
IR533C:Feature:ÔÇóHigh reliabilityÔÇóHigh radiant intensityÔÇóPeak wavelength A p*940nmÔÇó2.54mm Lead spacingÔÇóLow forward voltageÔÇóPb FreeDescriptions: ÔÇóEVERLIGHT's Infrared Emiting Diode (1R533C) is ahigh intensity diode , molded in a blue plastic package.ÔÇóThe device is spectrally...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
IR533C:
Feature:
ÔÇóHigh reliability
ÔÇóHigh radiant intensity
ÔÇóPeak wavelength A p*940nm
ÔÇó2.54mm Lead spacing
ÔÇóLow forward voltage
ÔÇóPb Free
Descriptions:
ÔÇóEVERLIGHT's Infrared Emiting Diode (1R533C) is a
high intensity diode , molded in a blue plastic package.
ÔÇóThe device is spectrally matched with phototransistor , photodiode
and infrared receiver module.
Applications:
ÔÇóFree air transmission system
ÔÇóInfrared remote control units with high power requirement
ÔÇóSmoke meter
ÔÇóInfrared applied system
PT534-6B:
Feature:
High photo sensitivity
Bp Free
The product itself will remain within RoHS complaint version.
Description:
PT534-6B is a high speed and high sensitive NPN silicon phototransistor molded in a standard 5 mm package.
Due to its black epoxy the device is sensitive to visible and near infrared radiation..
Applications:
ÔÇóInfrared applied system
ÔÇóCamera
ÔÇóPrinter
ÔÇóCockroach catcher
Package included:
1 x PT534-6B Silicon Phototransistor
1 x IR533C Phototransistor
IR533C PT534-6B Flat 5mm Wavelength 940nm Top-view Infrared Transmitter and Receiver
