iFlight XING-E Pro 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor for RC Drone FPV Racing
iFlight XING-E Pro 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor for RC Drone FPV Racing
Regular price
$29.99 USD
Regular price
$33.99 USD
Sale price
$29.99 USD
Unit price
per
Taxes included.
100 in stock
Couldn't load pickup availability
Notice:
Have updated in new black color version ( Designed in Integrated rotor).
Will send with this new version in CN Warehouse.
ES, CZ warehouse still comes with old blue color version.
June 16th, 2021.
Specification:
Brand Name: iFlight
Model: XING-E Pro 2306
Item Name: 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor
KV: 1700KV / 2450KV ( Optional)
Input Voltage: 2-4S Lipo@2450KV ; 3-6S@1700KV
Version: CW Screw Thread
Quantity: 1 PC
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 6mm
Shaft Diameter: 5mm
Motor Dimension: 29.5x18.7mm (Dia*Len)

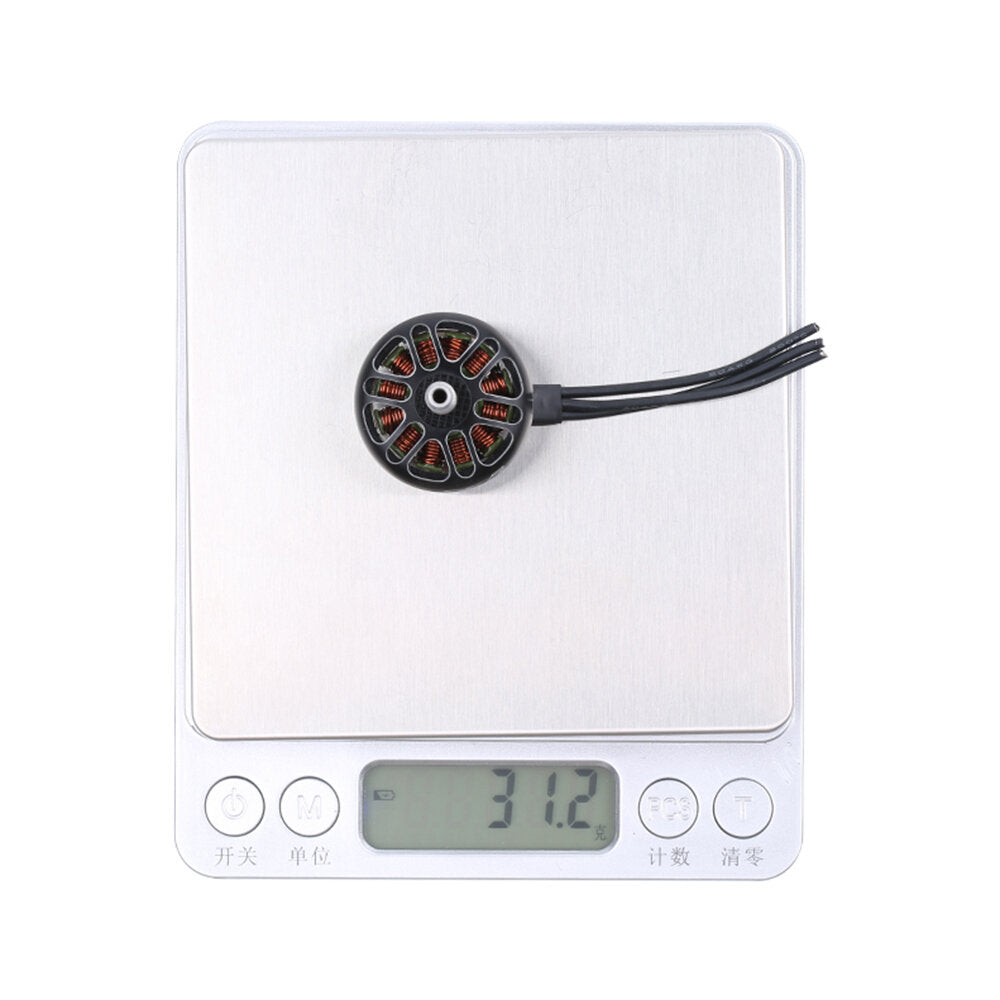

Weight: 33.1g
Idle Current(10) @10V: less than 1A@1700KV; less than 2A@2450KV;
Max. Con. Power (180S): 893W@1700KV; 748.8W@2450KV;
Internal Resistance: 76.4m╬®@1700KV; 47.3m╬®@2450KV;
Max. Current (180S): 37.2A@1700KV; 44.57A@@2450KV;

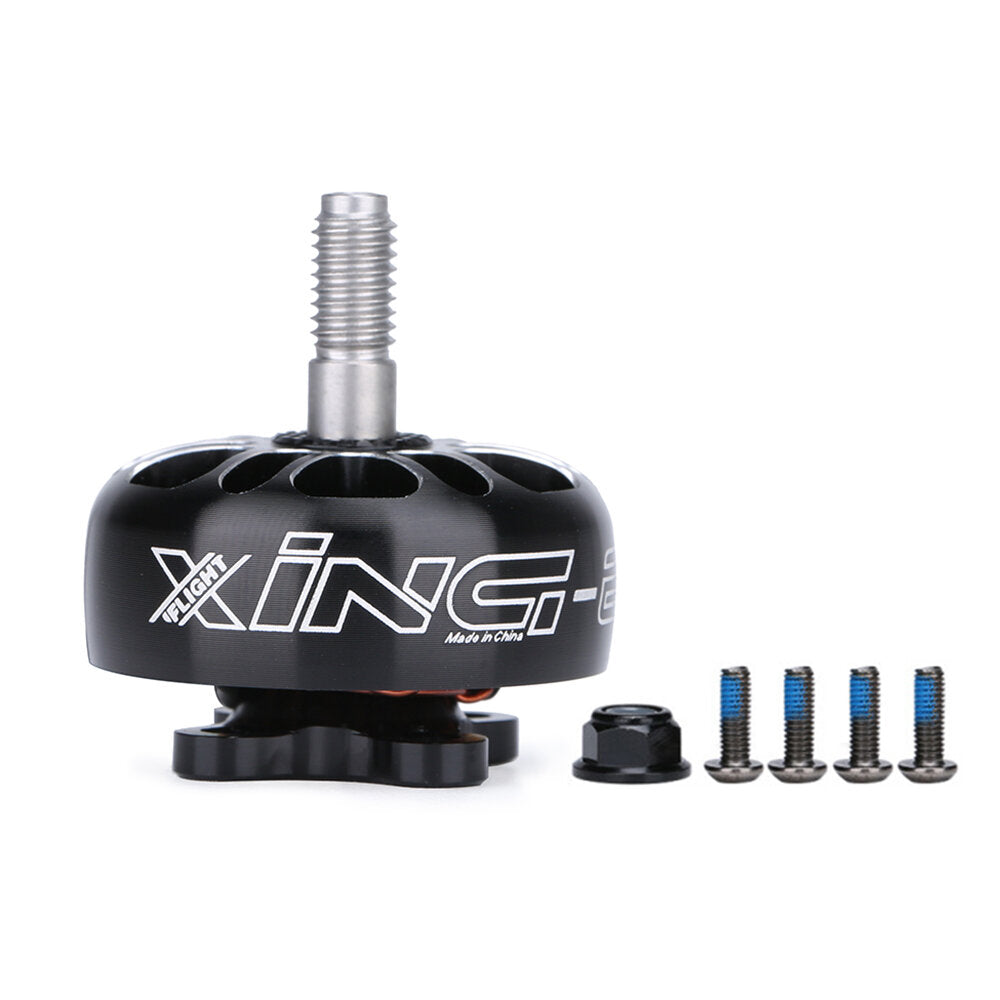

Package Included:
1x iFlight XING-E 2306 Motor
1x Motor Nut
4x Screws
