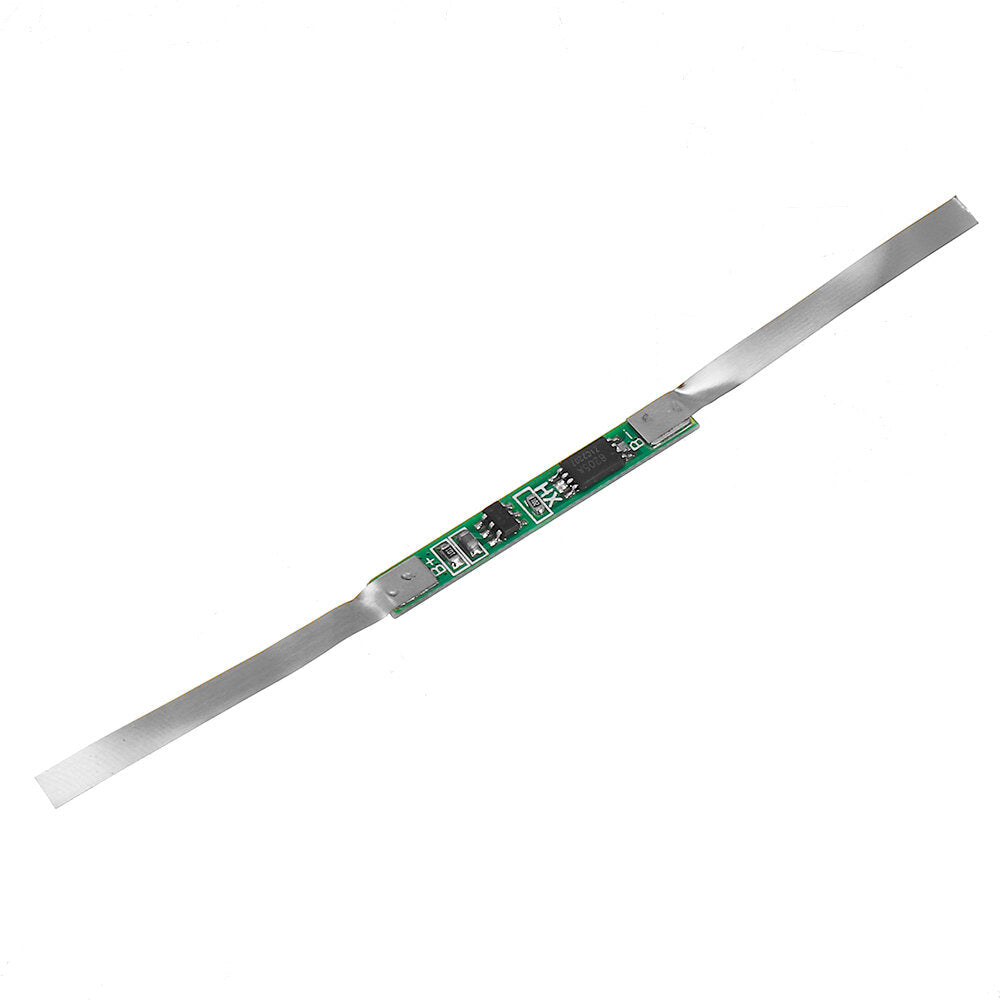

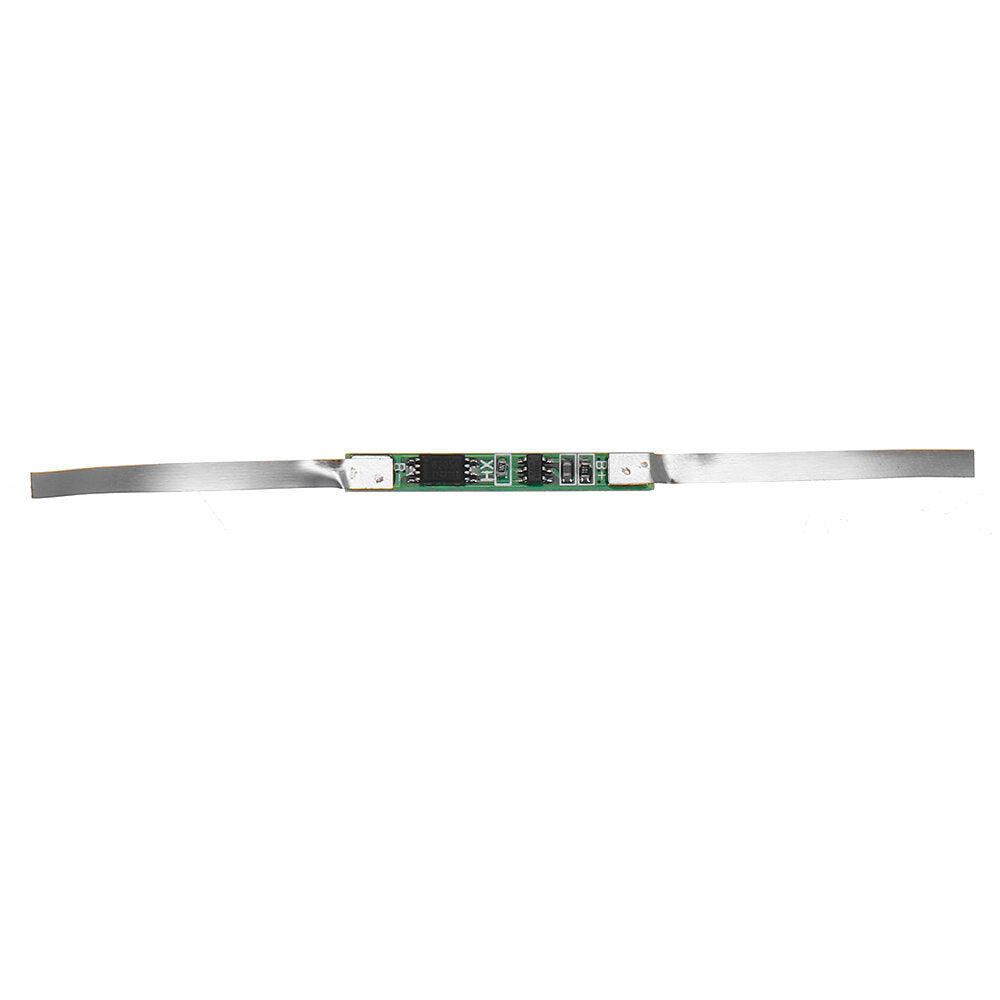

HX-1S-3038 3A 3.7V 18650 Lithium Battery Protection Board Overcharge and Overdischarge Protection
Specification:Overcharge detection voltage: 4.25┬▒0.05VOvercharge release voltage: 4.20┬▒0.05VOver-discharge detection voltage: 2.54┬▒0.1VOvercurrent detection current: 2-3AWith overcharge, overdischarge, overcurrent, short-circuit protection functionsWiring instructions:B+: battery positiveB-: battery negativeP+: Battery pack output and input positiveP-:...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specification:
Overcharge detection voltage: 4.25┬▒0.05V
Overcharge release voltage: 4.20┬▒0.05V
Over-discharge detection voltage: 2.54┬▒0.1V
Overcurrent detection current: 2-3A
With overcharge, overdischarge, overcurrent, short-circuit protection functions

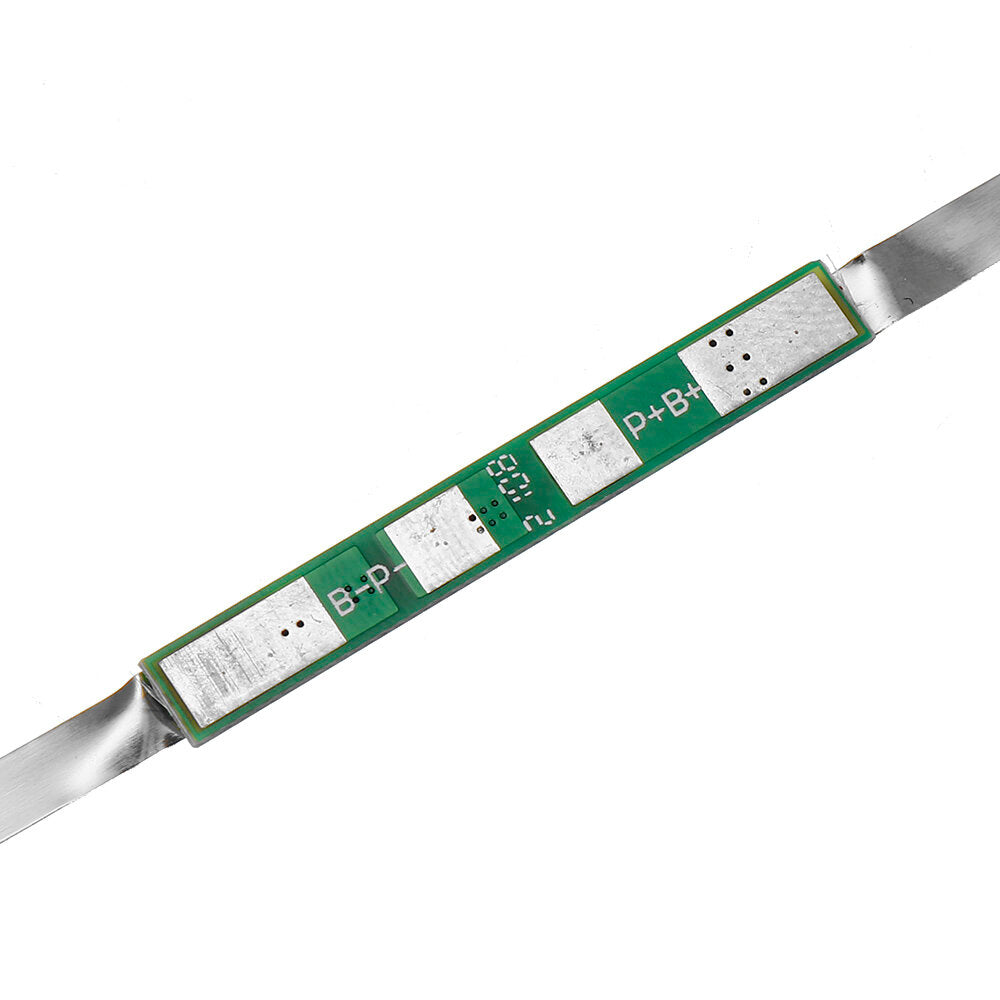

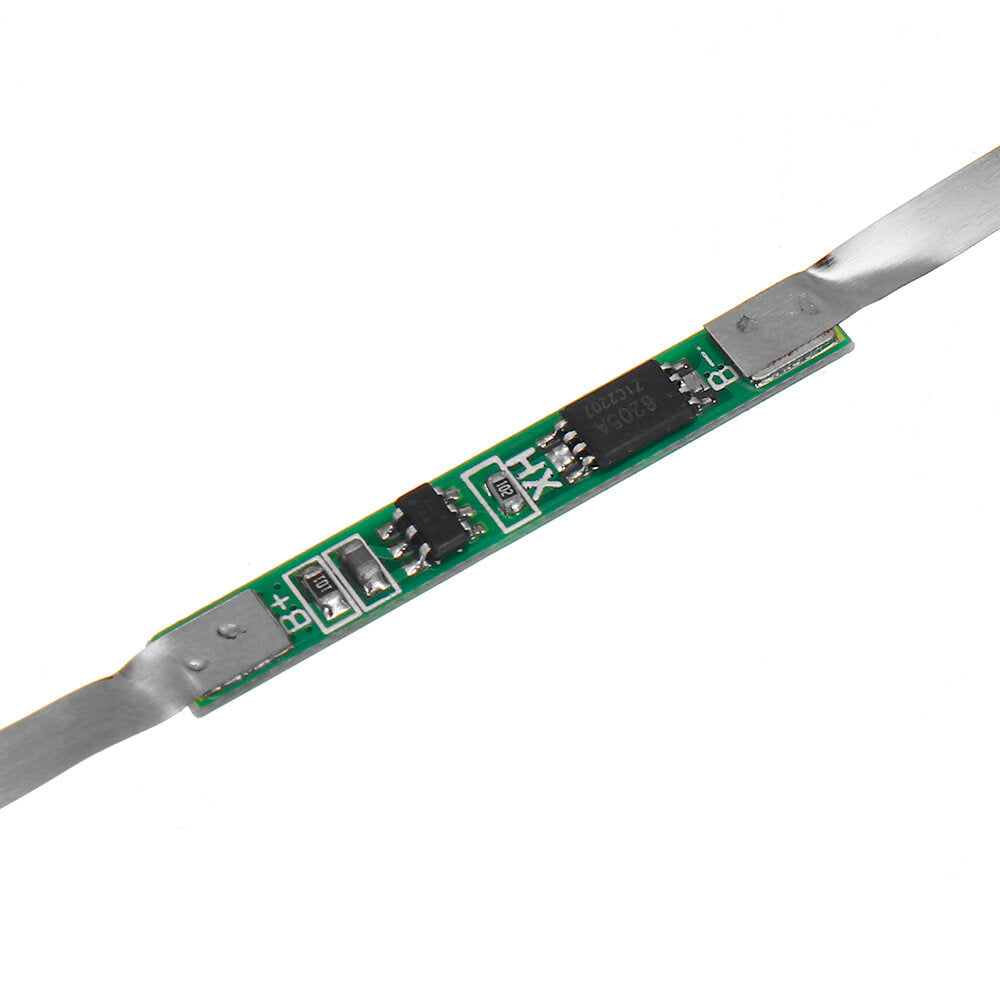

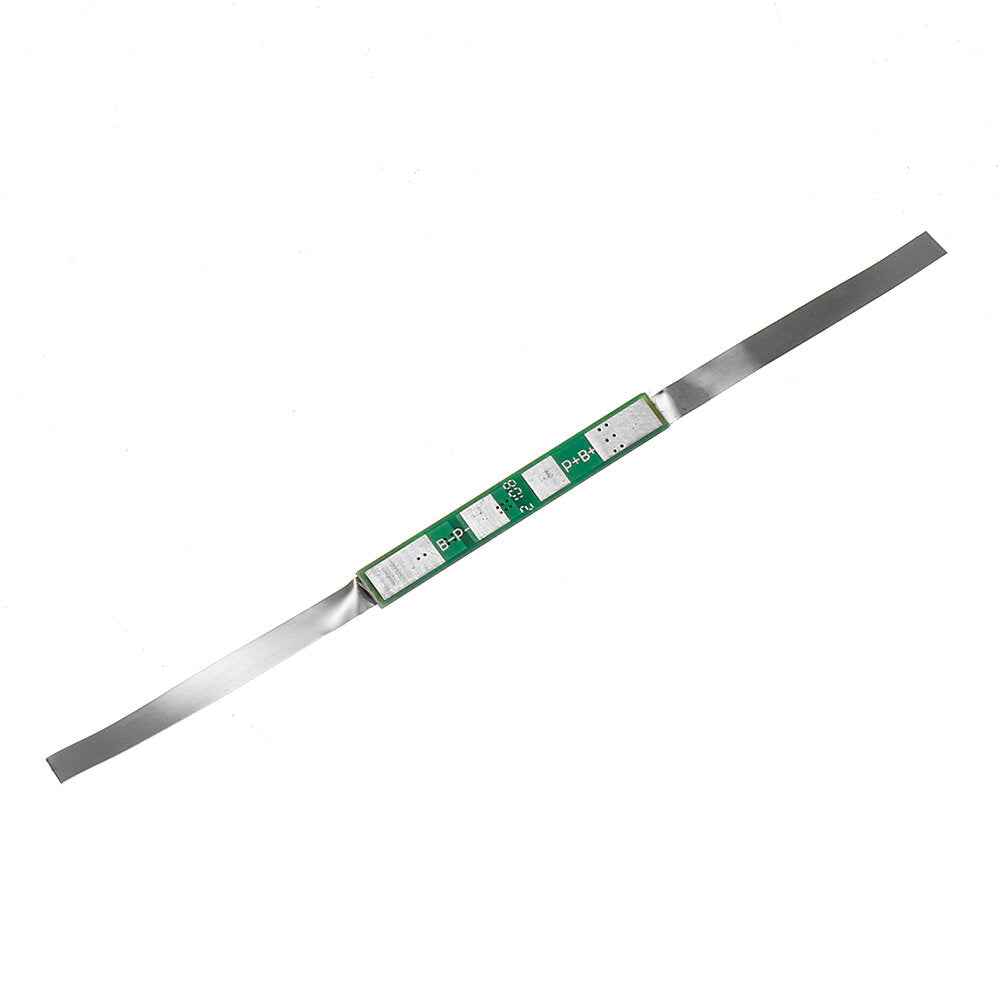

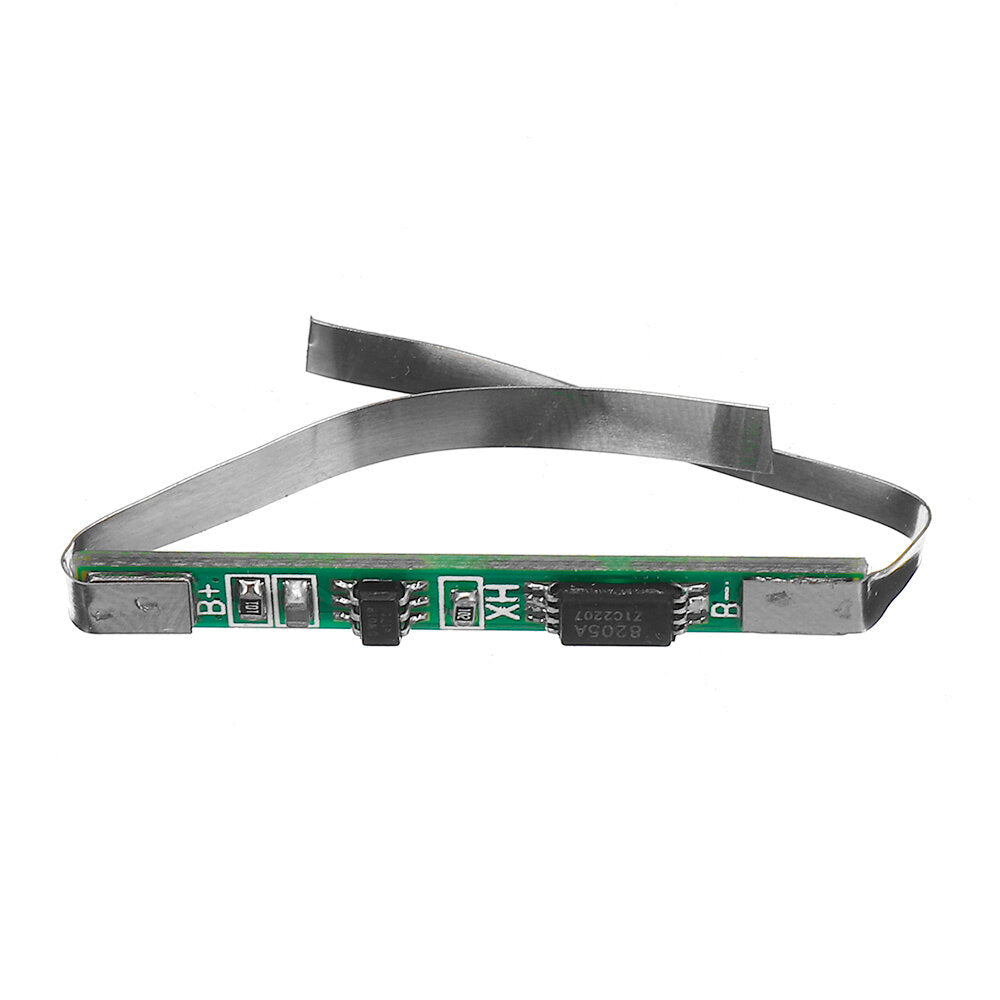

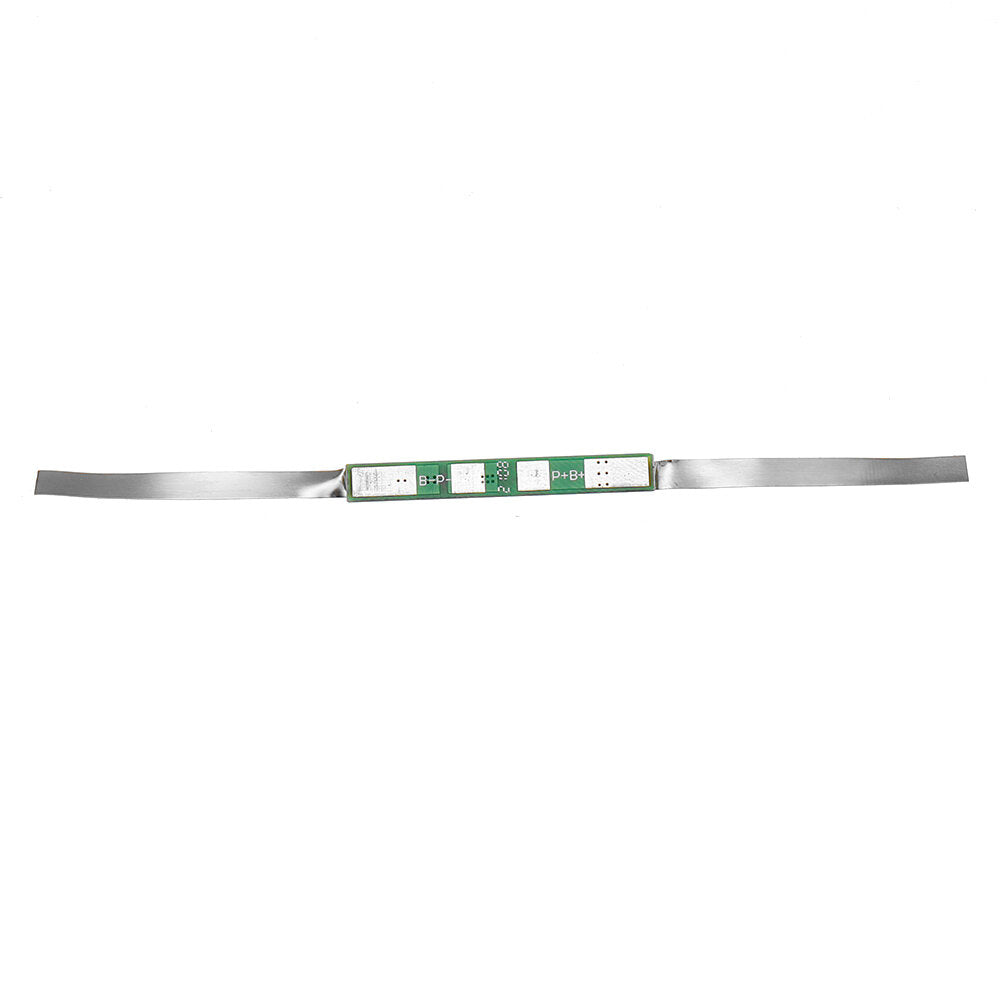

Wiring instructions:

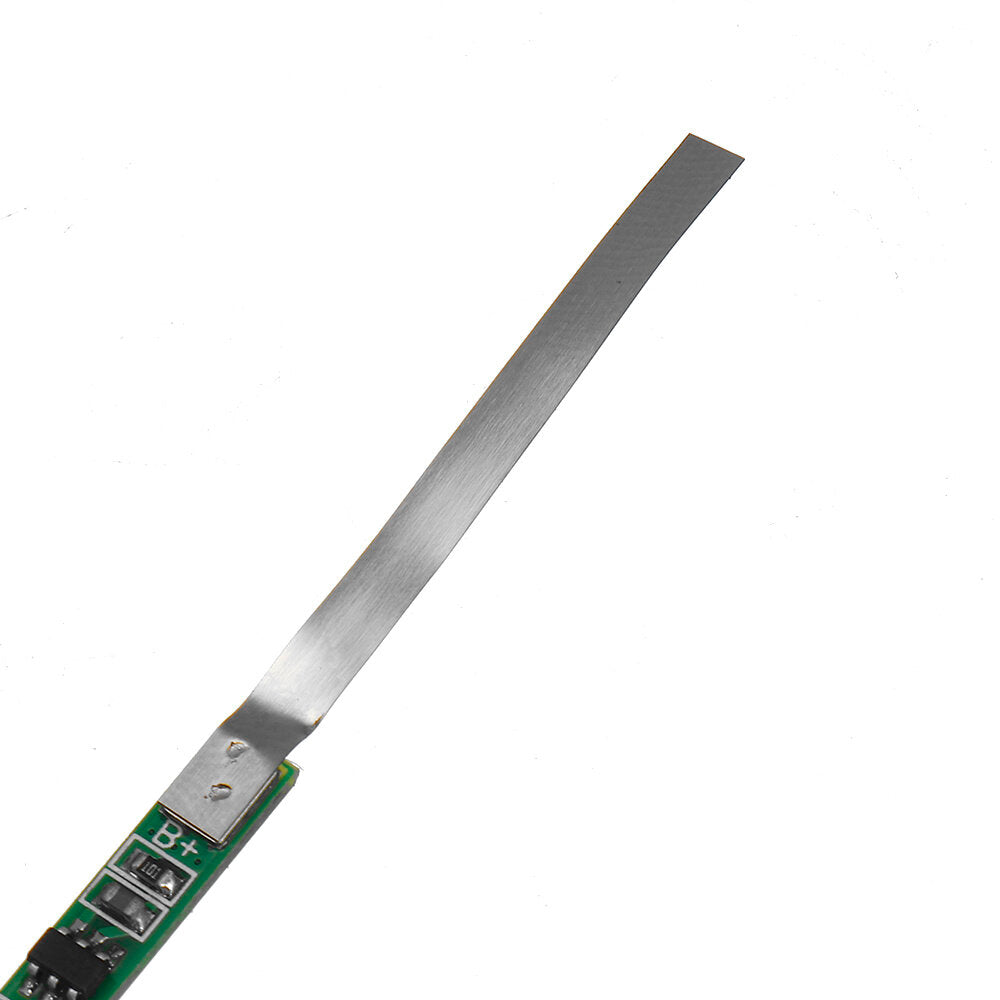

B+: battery positive
B-: battery negative
P+: Battery pack output and input positive
P-: Battery pack output and input negative
Package included:
1 x Lithium Battery Protection Board
HX-1S-3038 3A 3.7V 18650 Lithium Battery Protection Board Overcharge and Overdischarge Protection
