Description

Specification:

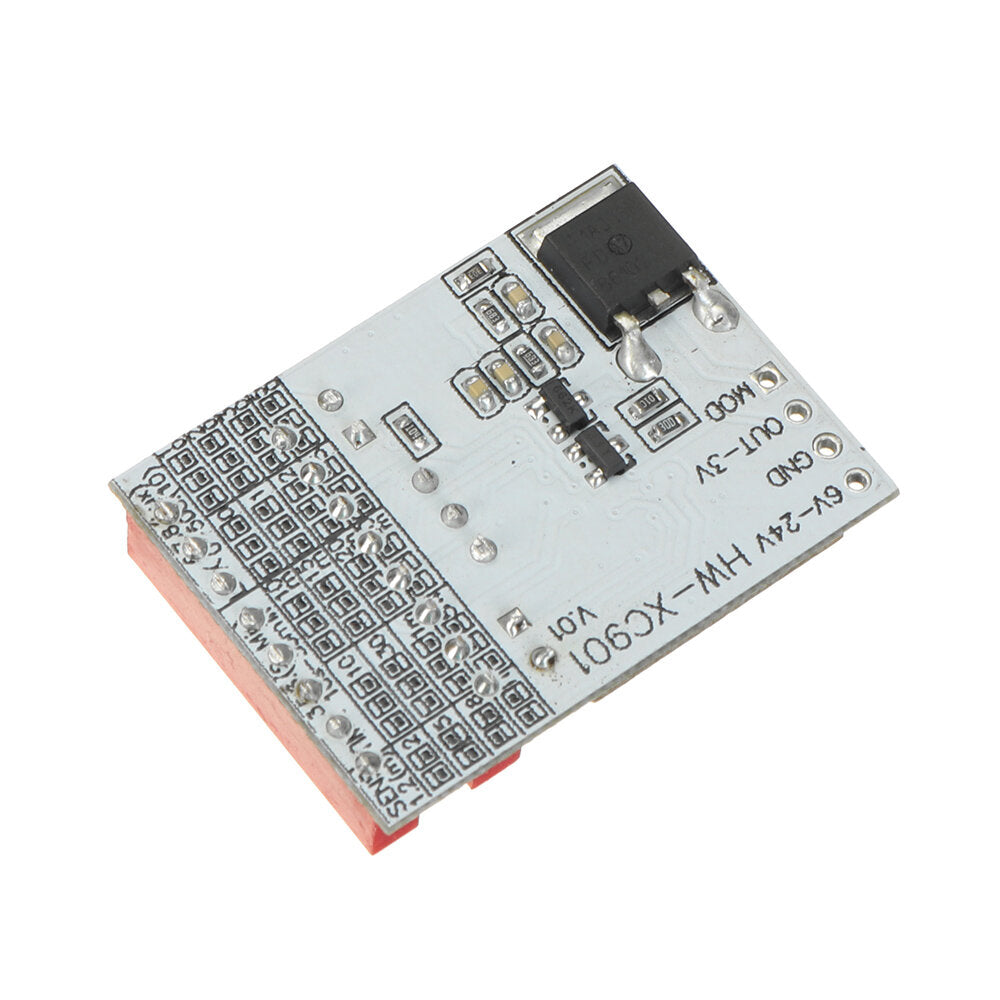

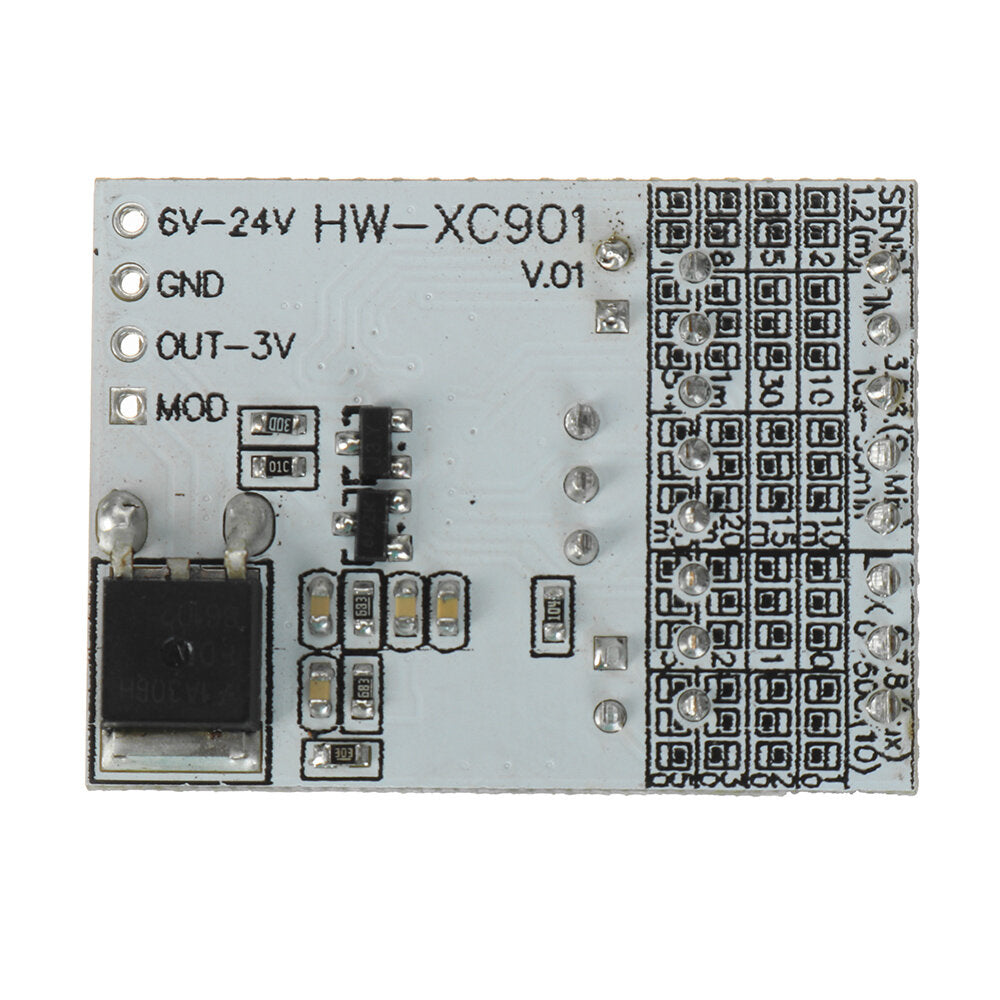

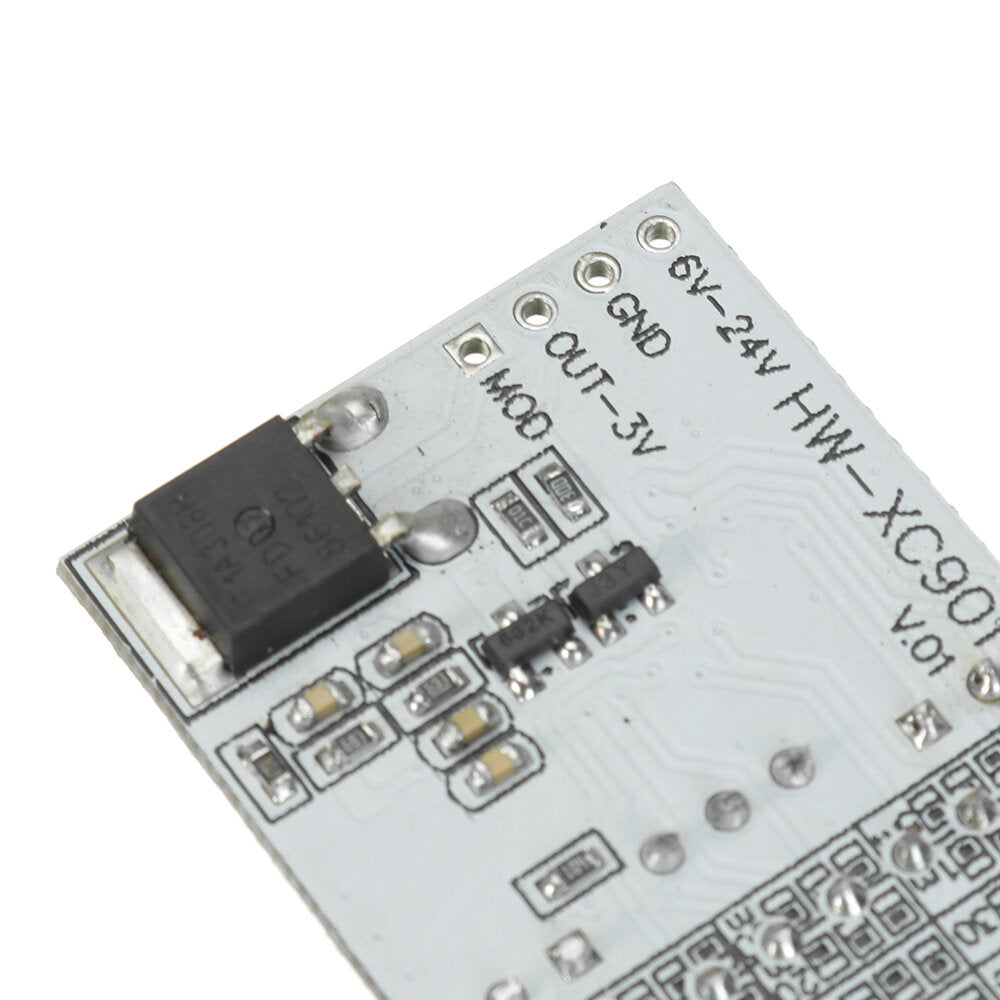

Product model: HW-XC901
Working voltage: 6-24V (Built-in 7550, need constant power supply, minimum drive 6V300mA ┬▒ 100mV)
Static power consumption: <15mA
Output mode: 3. 3/0V, 3.3V with induction, 0V without induction (the output voltage can be adjusted to 5V at most)
Transmitting frequency: 5.8GHZ┬▒75MHZ

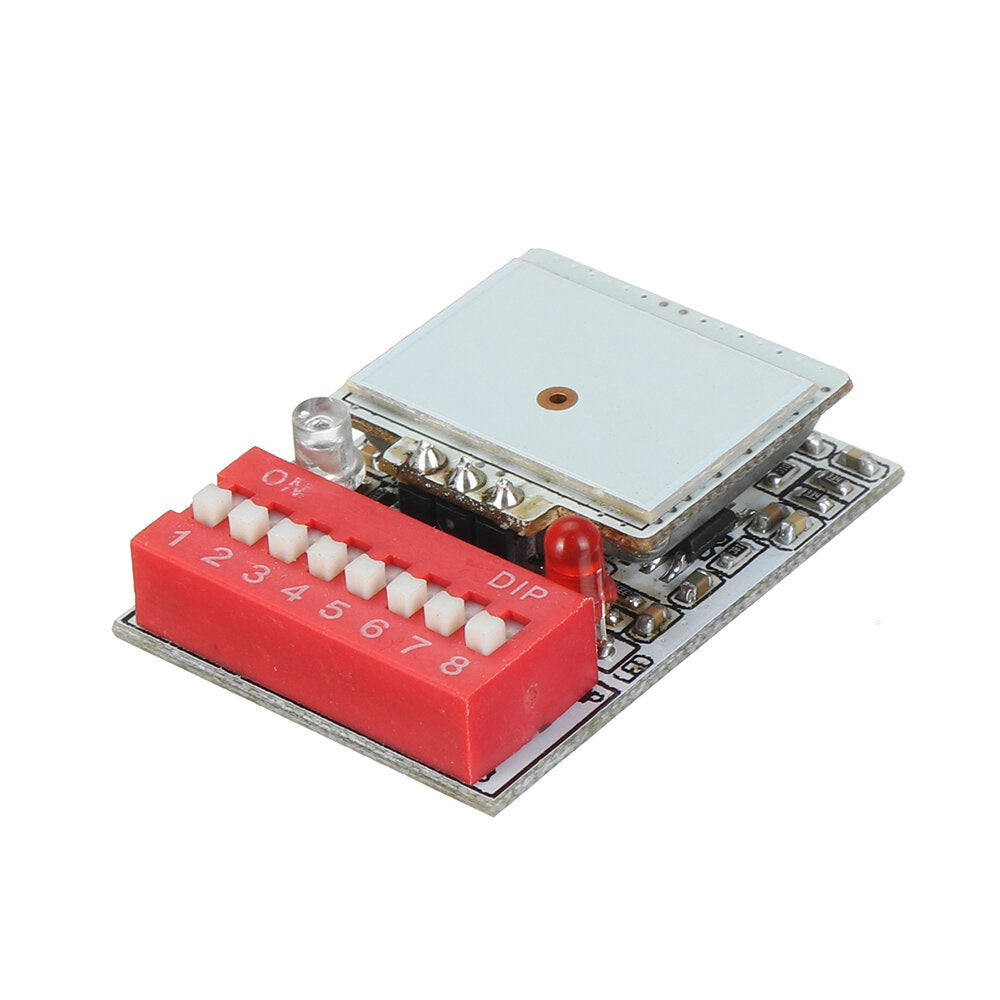

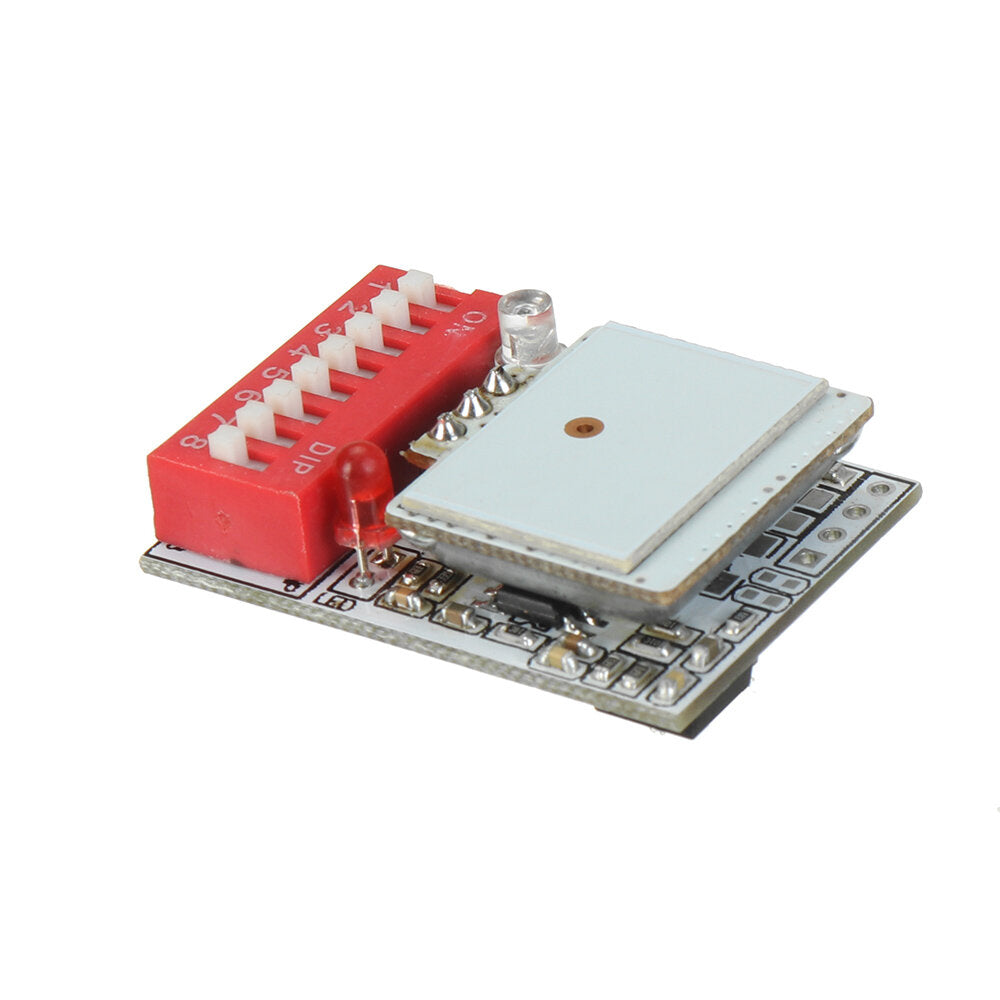

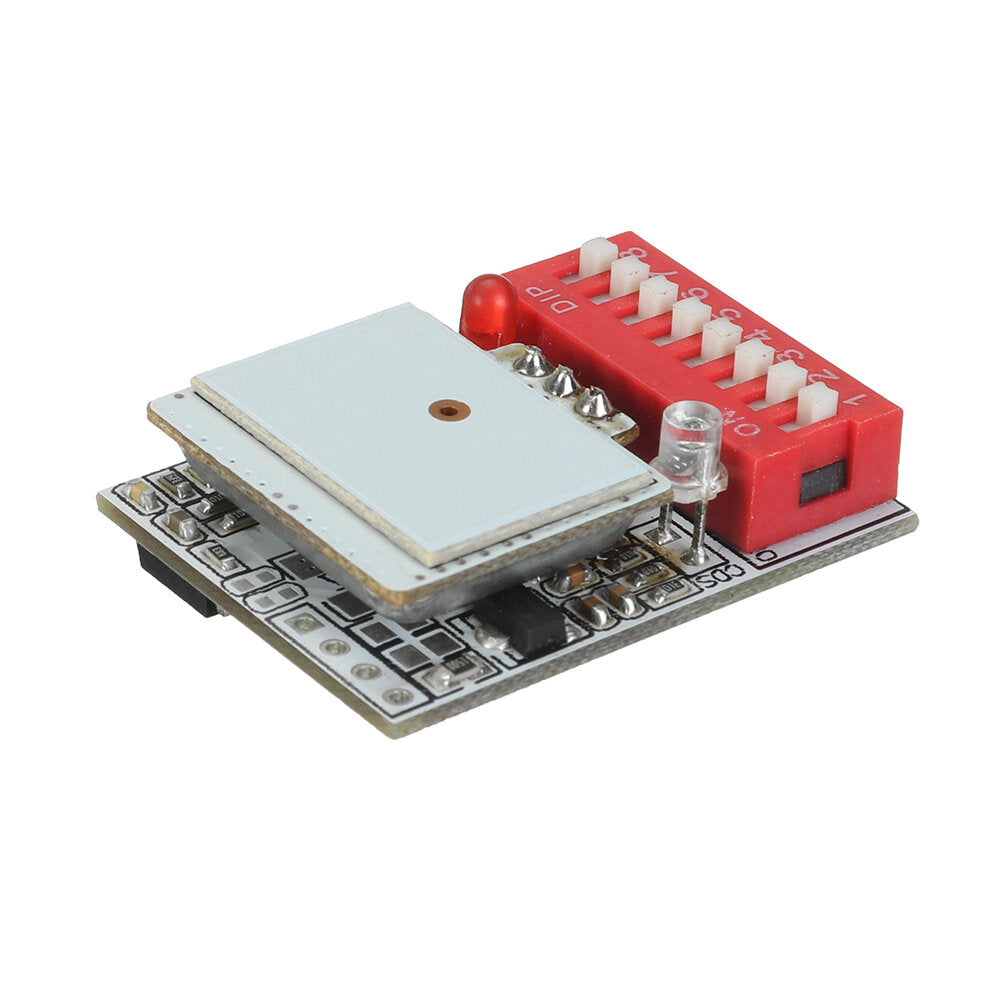

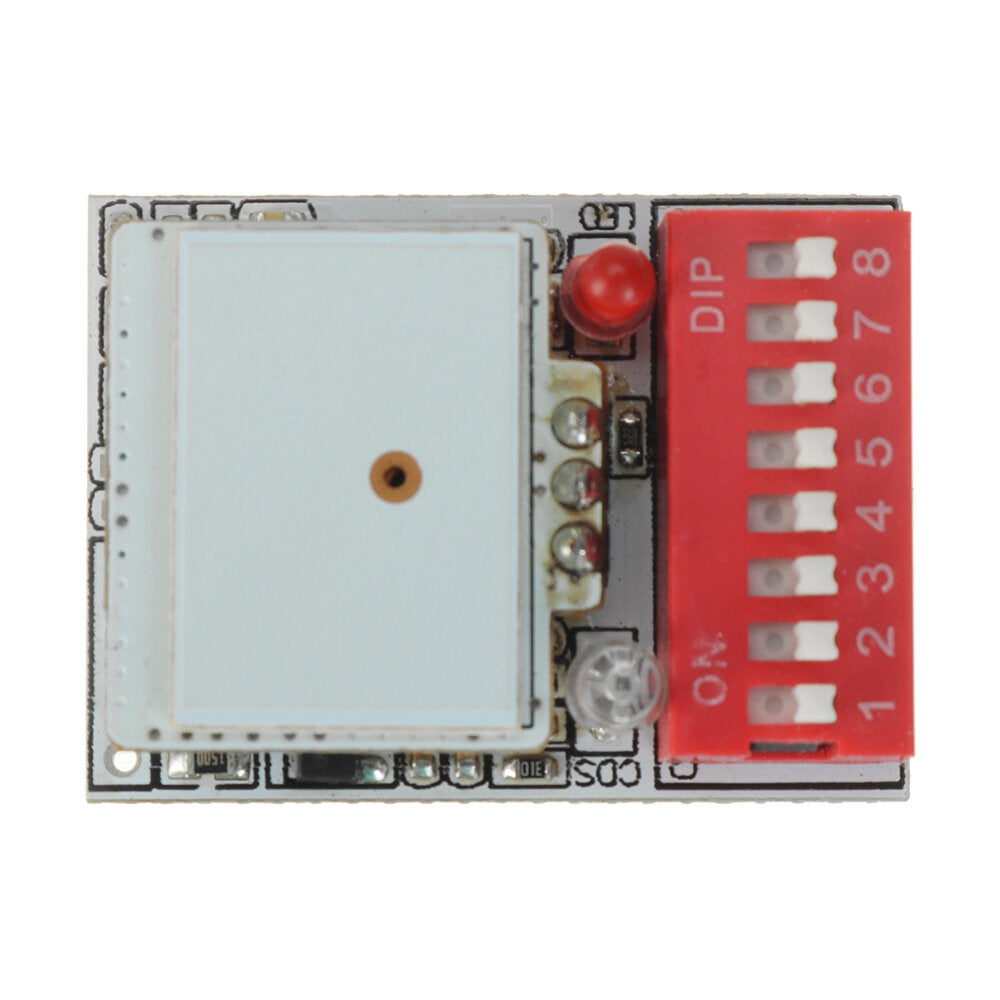

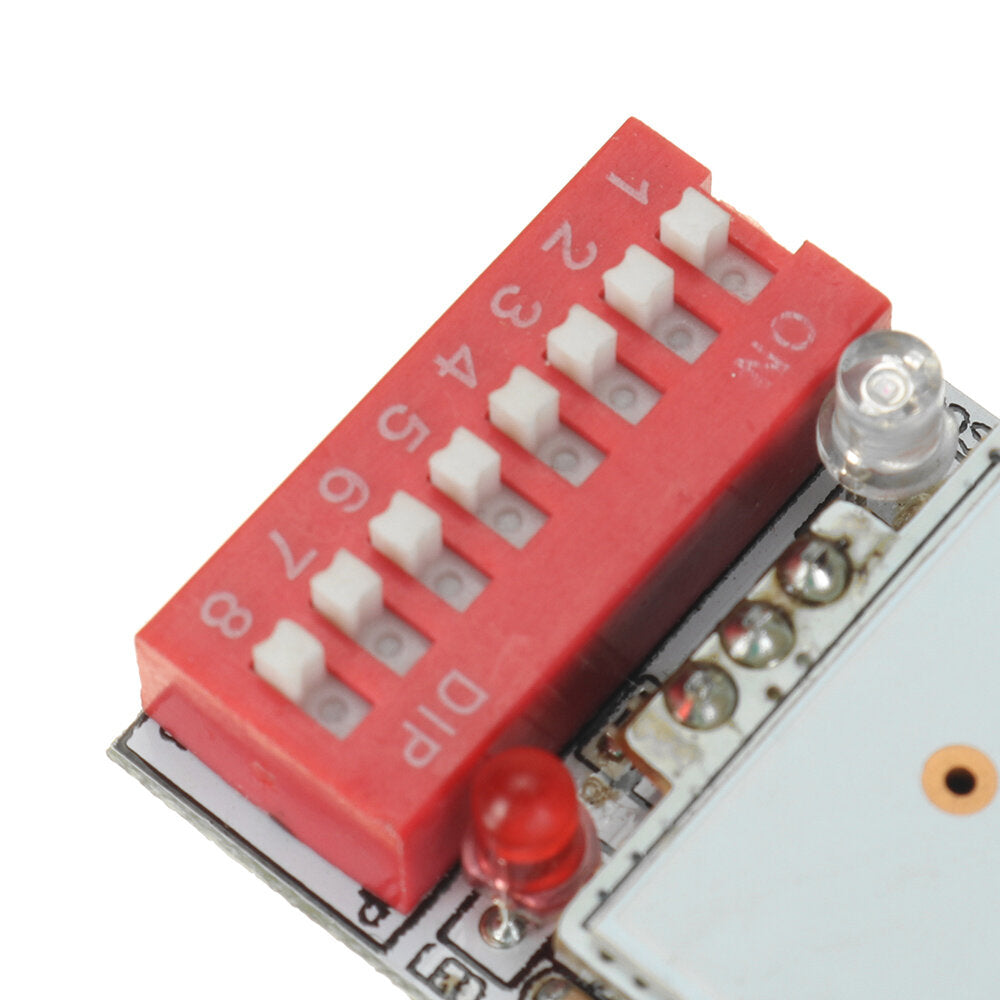

Induction distance: 2-11m, adjustable (Dip switch 1, 2)
Delay time: 10-1800S, adjustable (Dip switch 3, 4, 5)
Photosensitive switch: 10lux-500lux, adjustable (Dip switch 6, 7, 8)
Working temperature: -20Ôäâ ~ 80Ôäâ

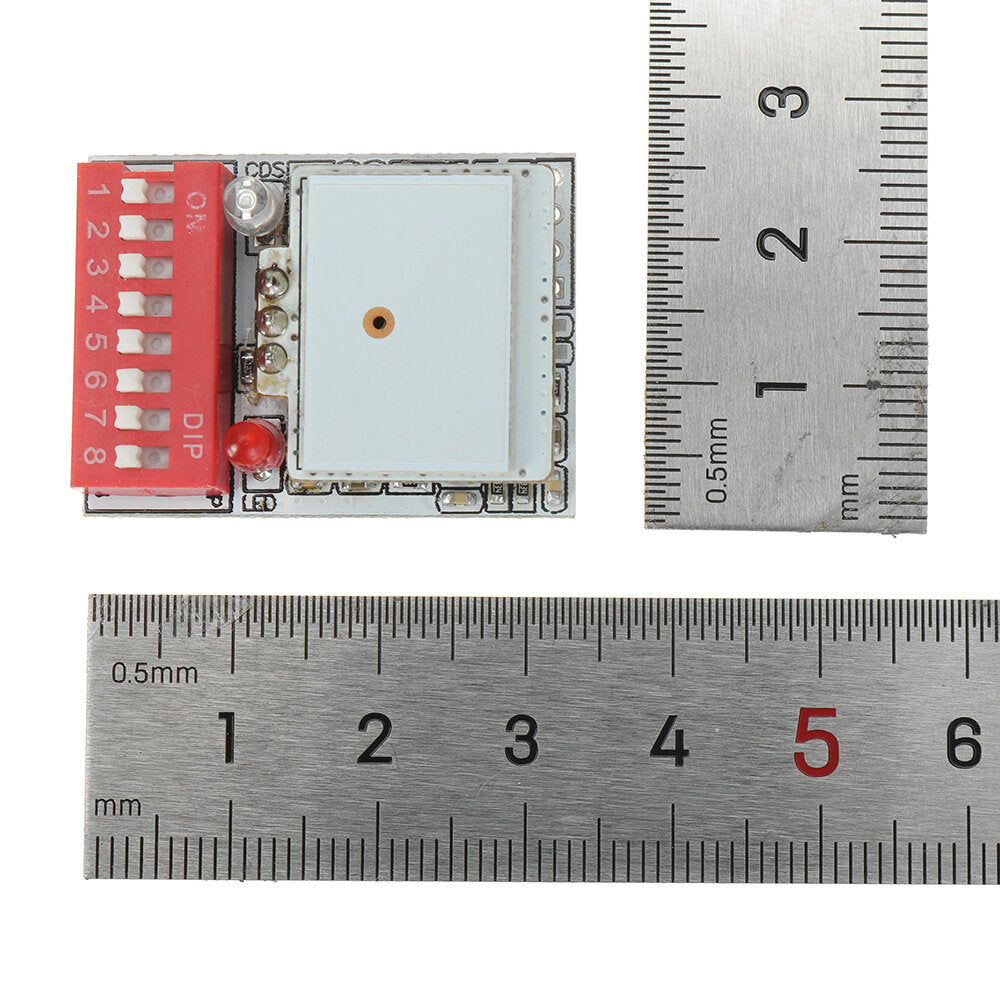

Dimensions: 33.5*25*9mm
Trigger mode: Repeatable trigger

Repeat trigger:
After the first trigger, when the sensing area is triggered again, the module delay time will be superimposed again when the first trigger time has not stopped. (For example: the module delay is 10S, the induction signal is received again within 10S, and then superimposed for 10S, the uninterrupted trigger within 10S, there will always be an output signal)
Delay time: refers to the duration of high-voltage signal output. It has nothing to do with the delay, the delay is in the order of milliseconds and can be ignored.

Package included:

1 x Radar Sensor Module
