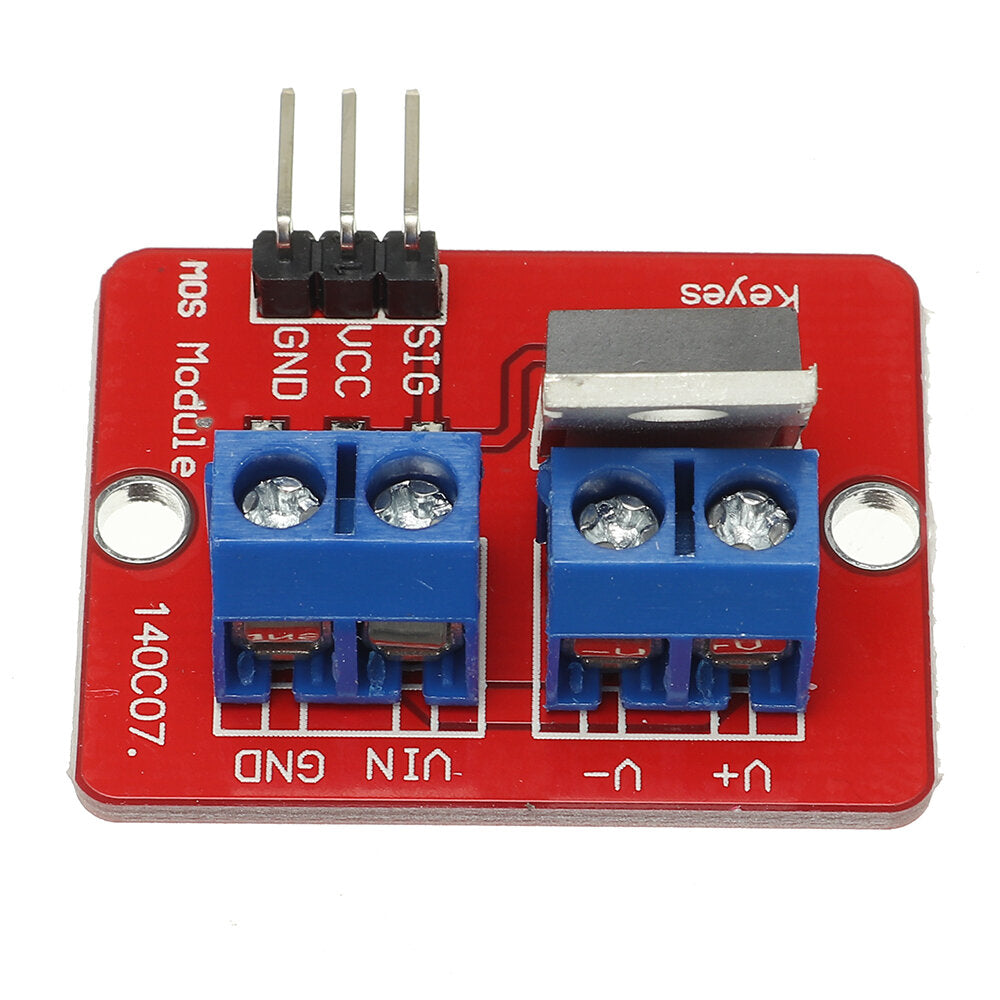

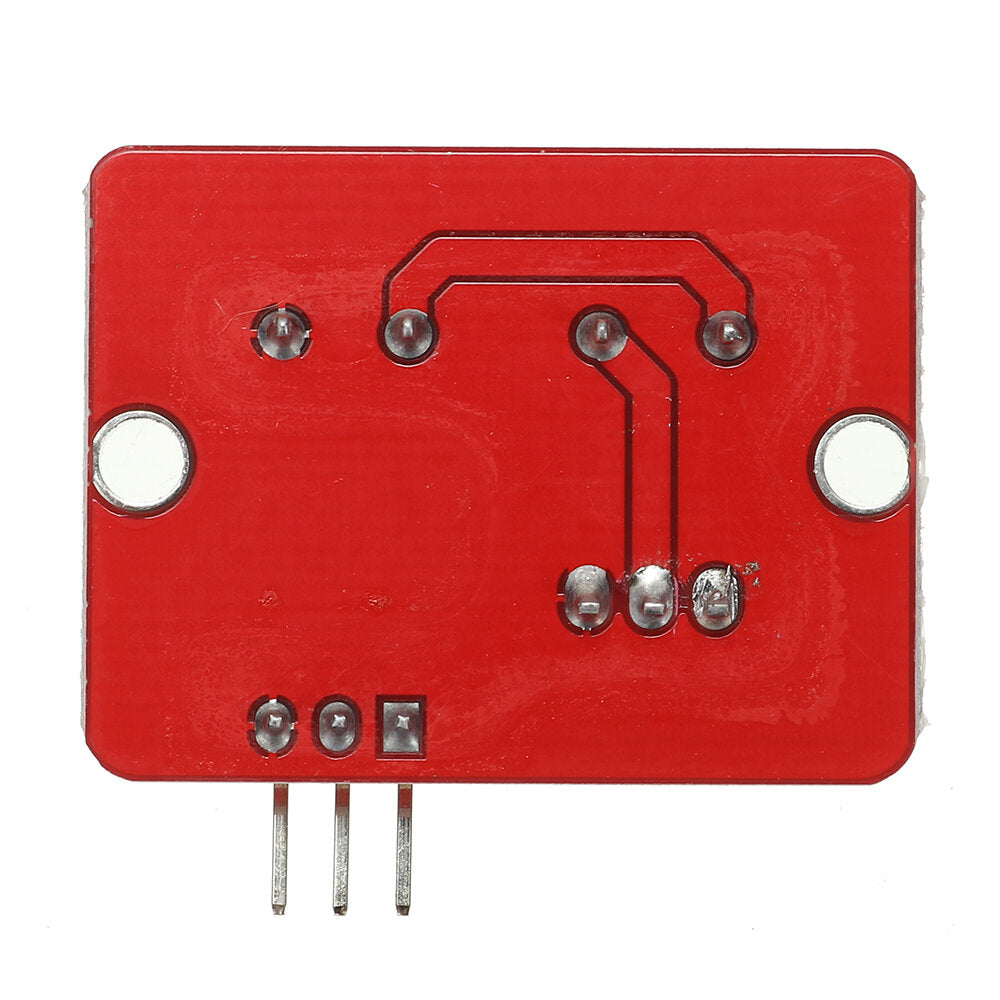

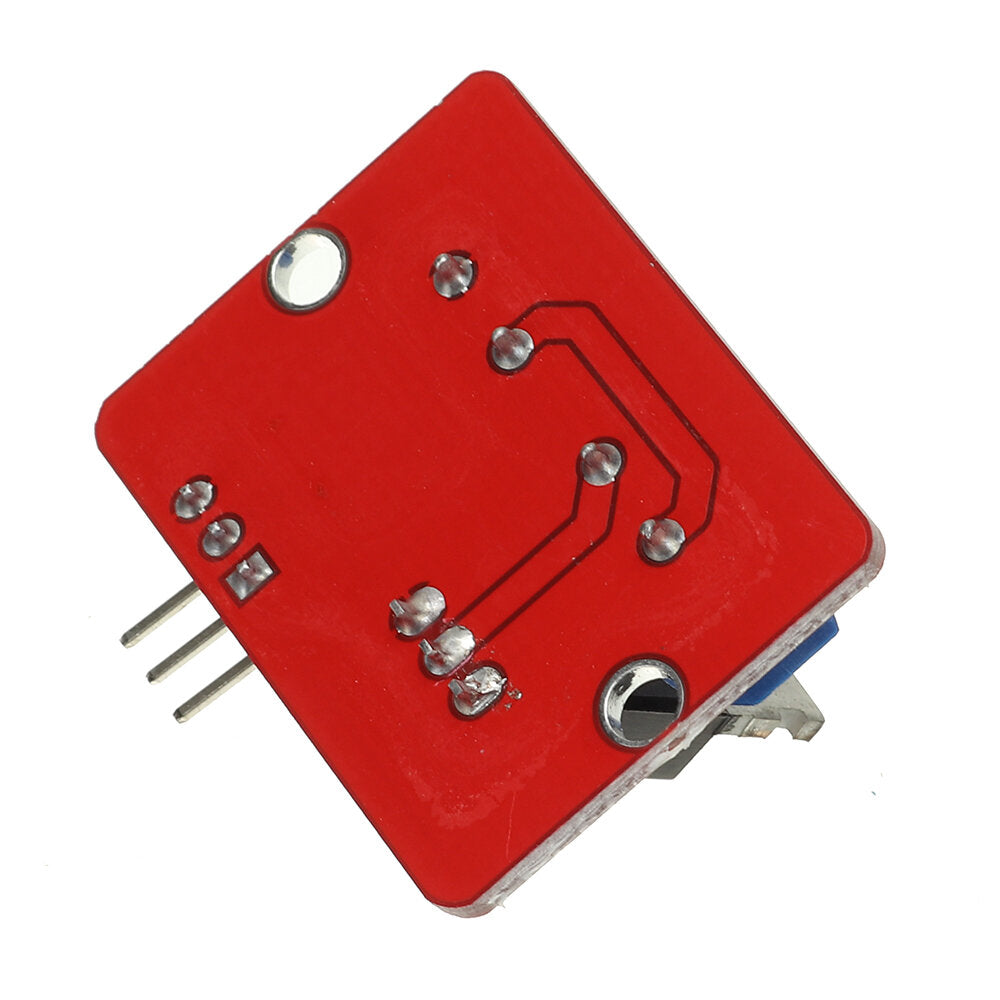

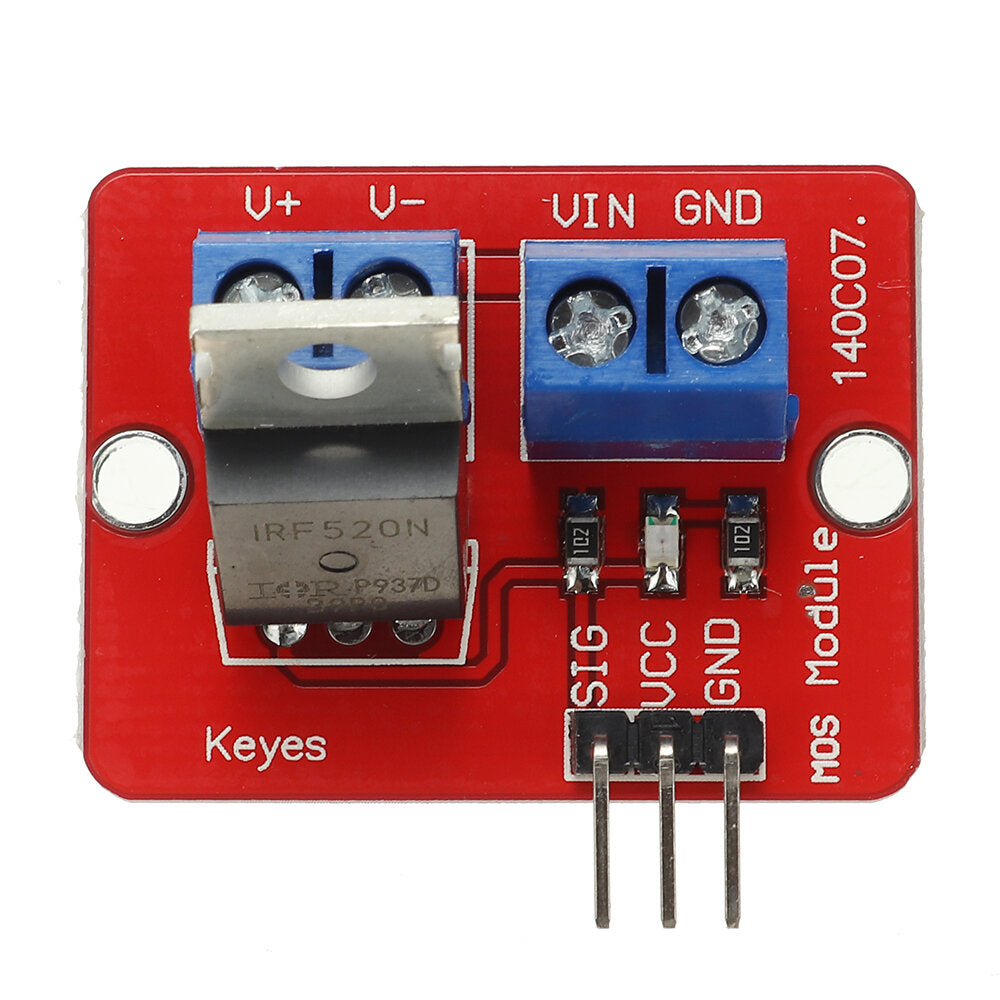

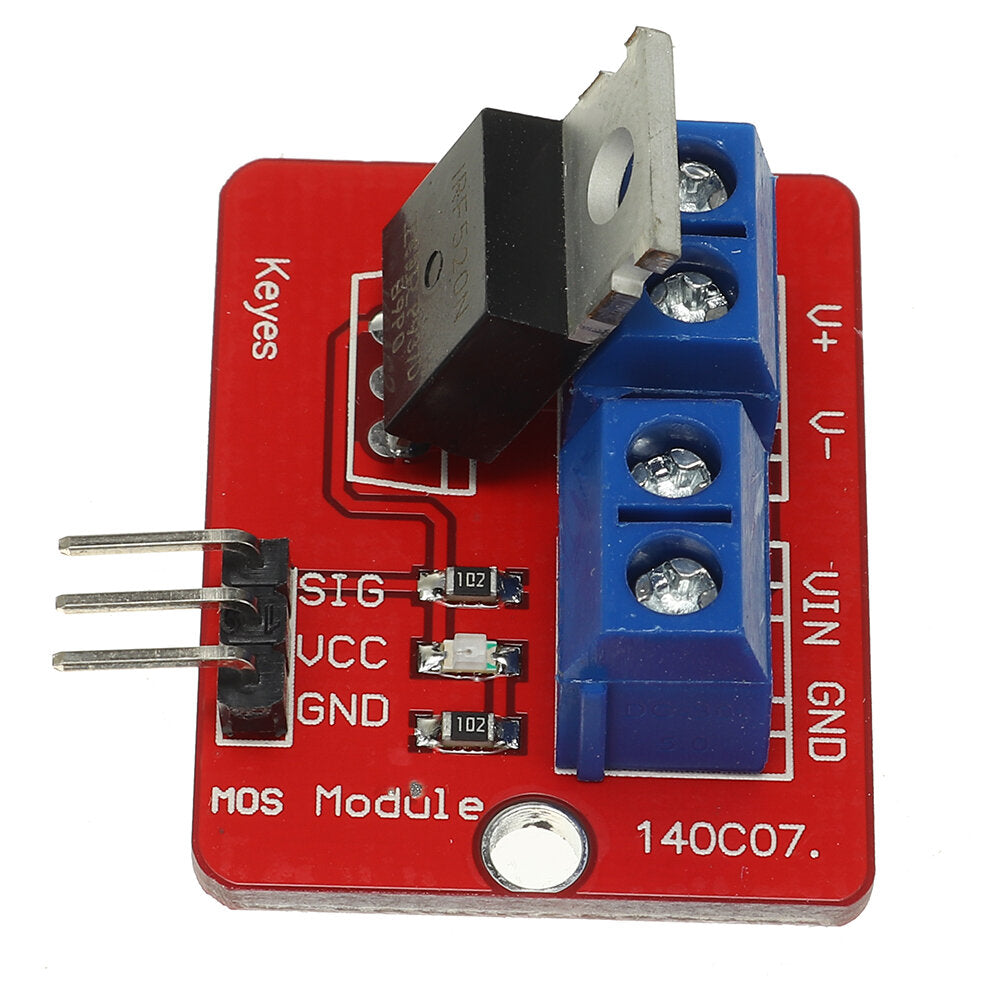

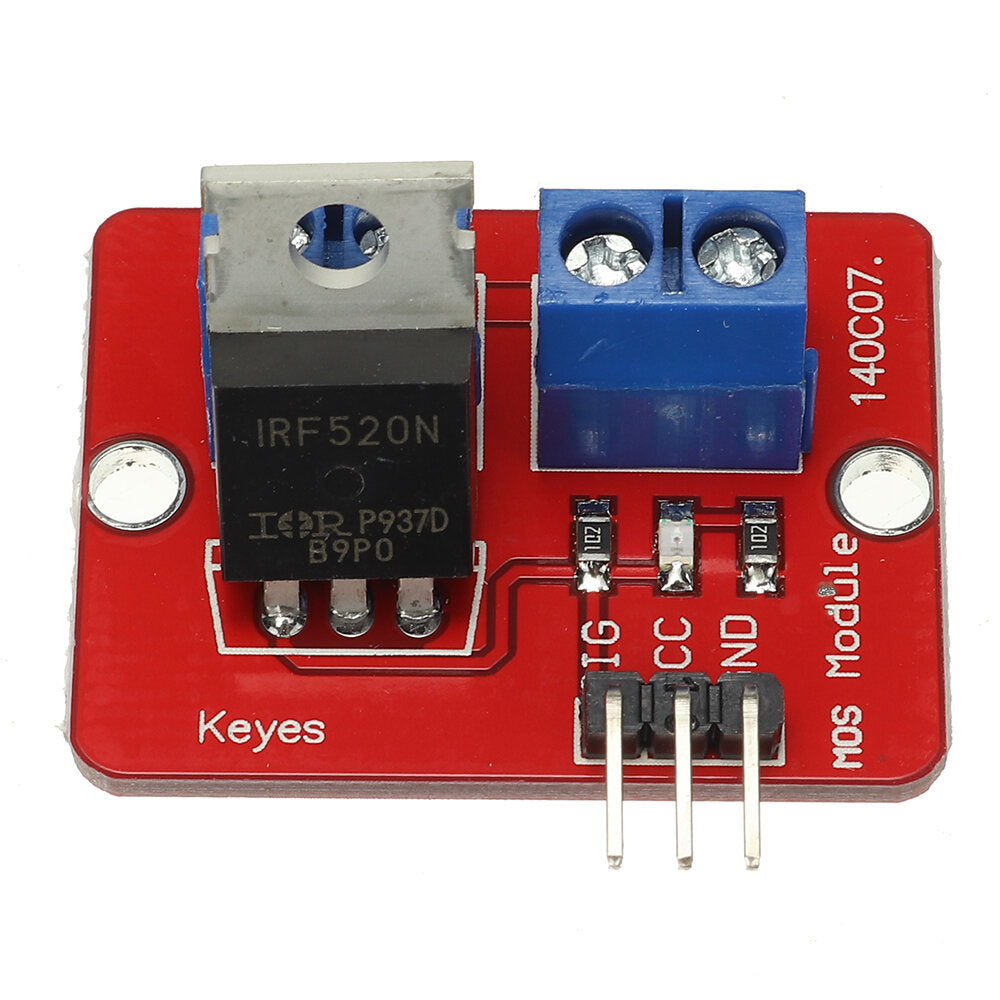

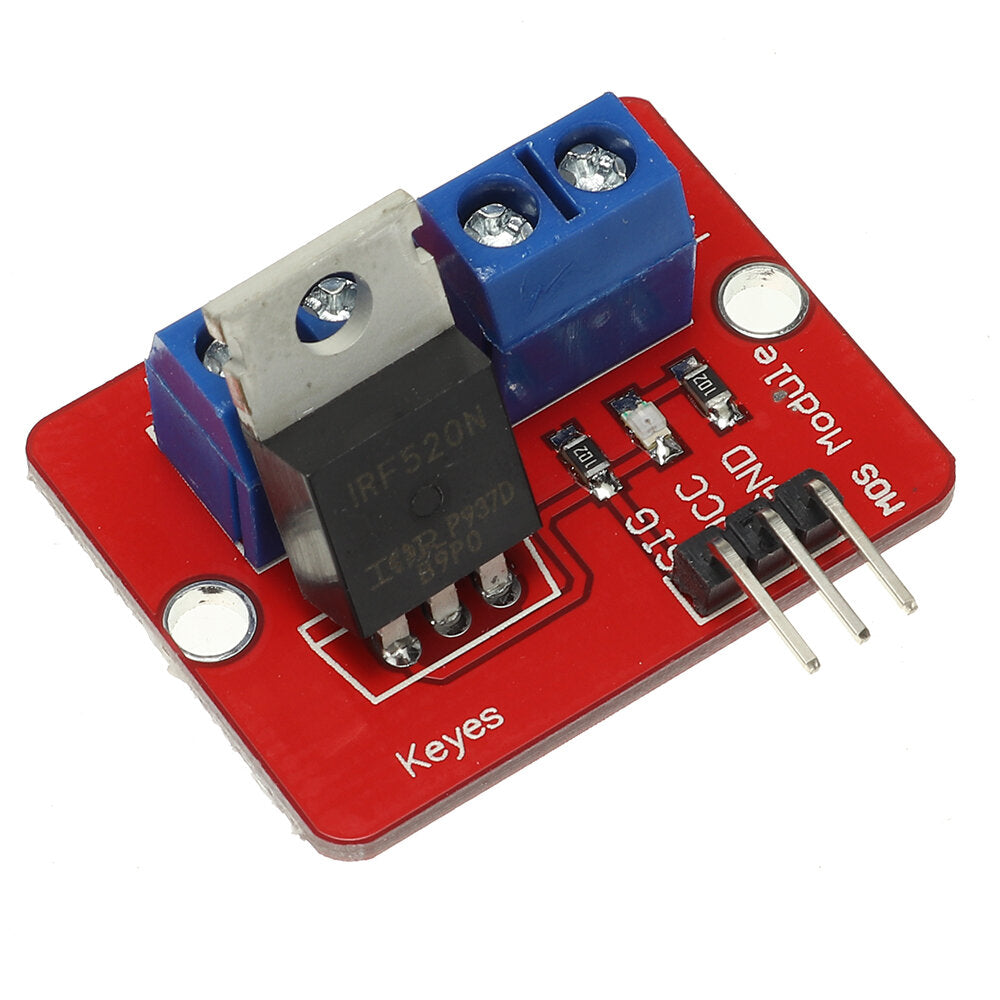

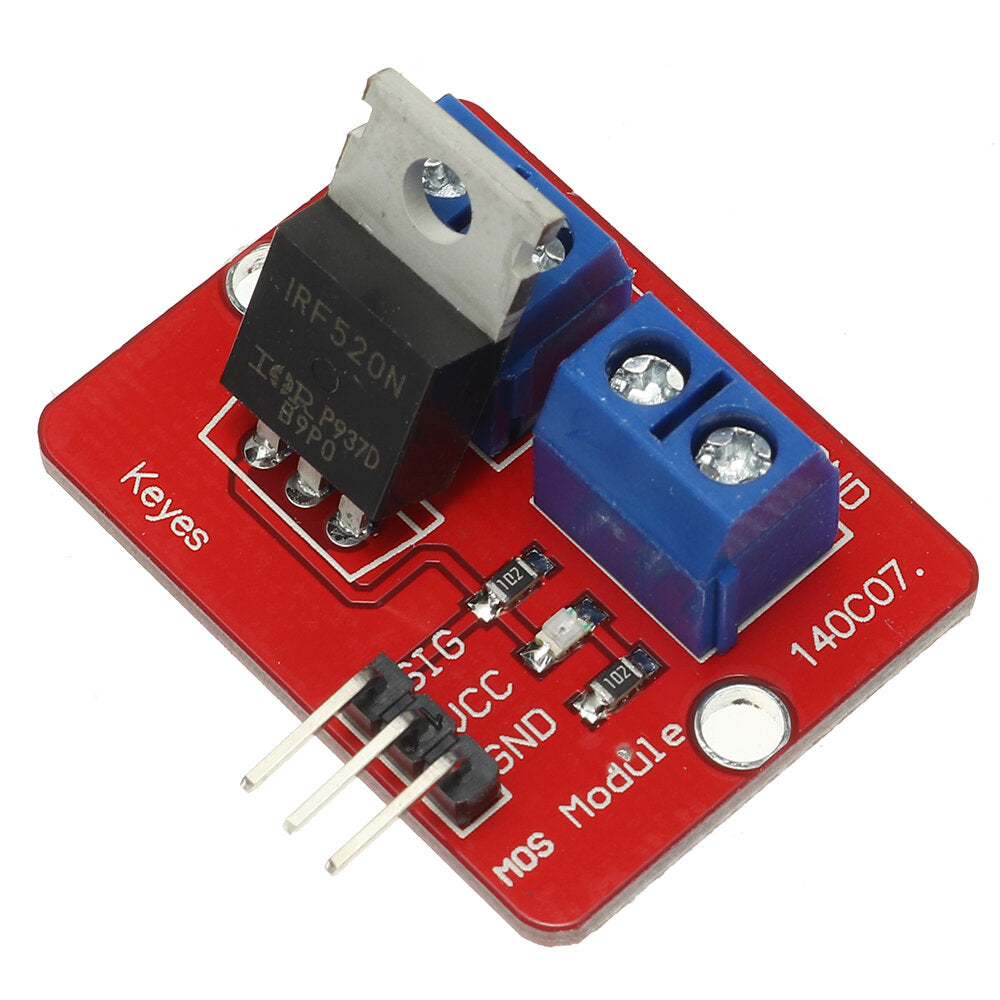

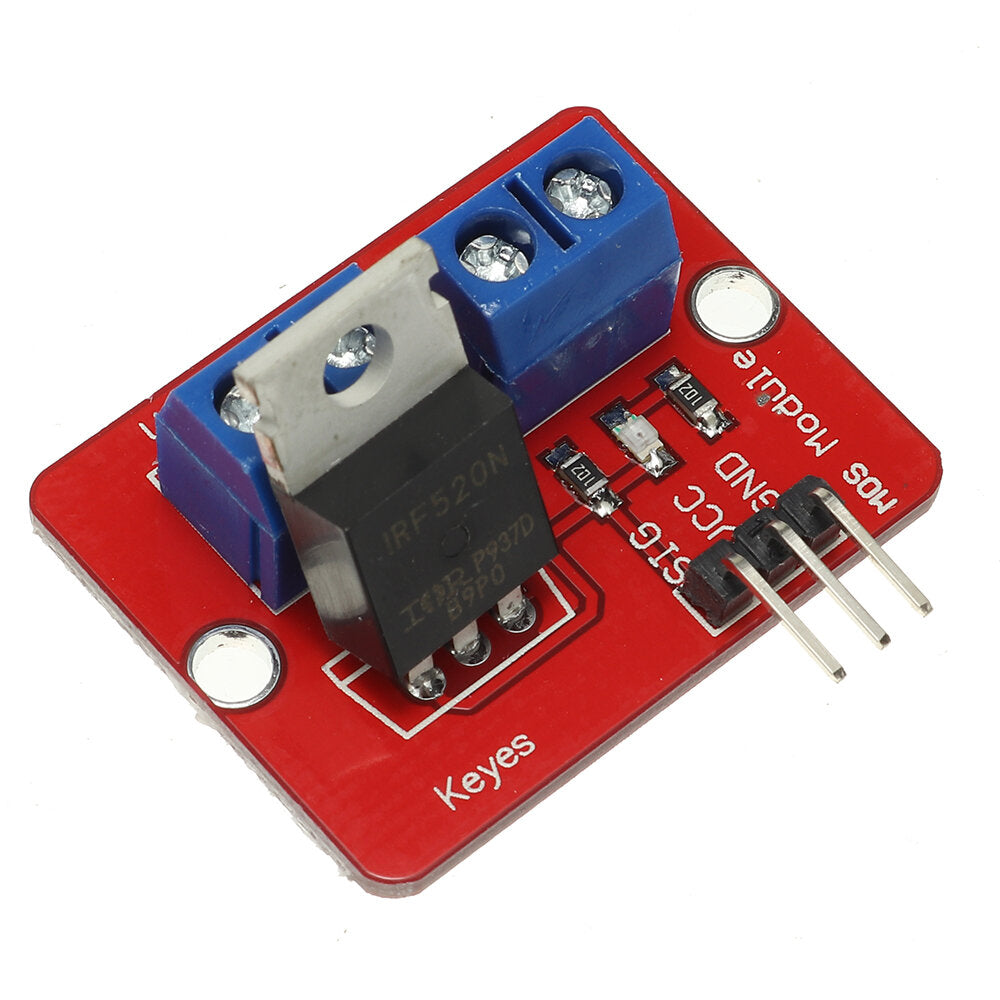

HW-042 0-24V IRF520 MOS Driver Module Board for MCU ARM Raspberry Pi

HW-042 0-24V IRF520 MOS Driver Module Board for MCU ARM Raspberry Pi

$12.99

🟢 In Stock

Features:Using original IRF520 power MOS tube, can adjust PWM outputCan let the Arduin0 drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valveBy...

✔️ WORLDWIDE FREE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description
Features:

Using original IRF520 power MOS tube, can adjust PWM output
Can let the Arduin0 drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valve
By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation

The product instructions:

PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V):
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V):
V + and V - between 0, work lights out, don't work load

Parameters:

Size: 33.4 x 25.6MM
Weight: 10g
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0~24V
The output load current: < 5A (more than 1A need to add heat sink)
Platform: for Arduino, MCU, ARM, raspberry pi

Package included:

1 x MOS Driver Module
