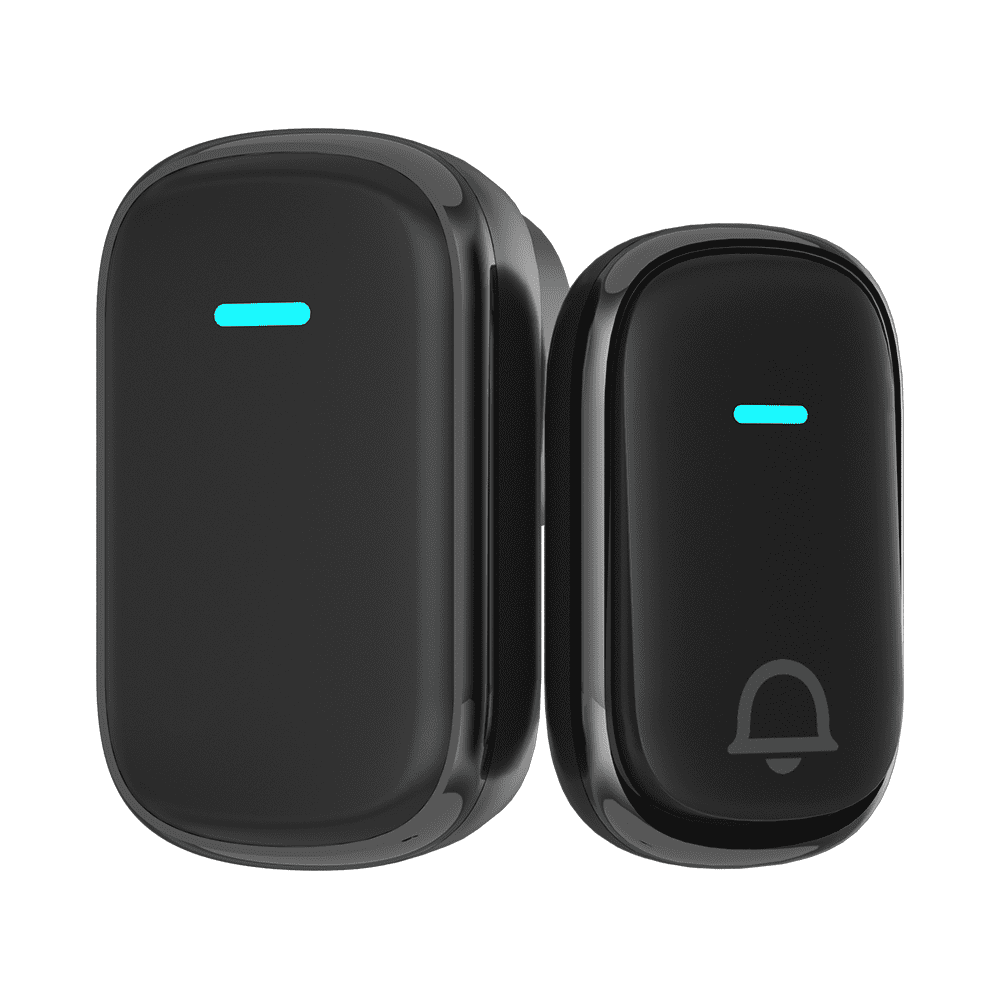

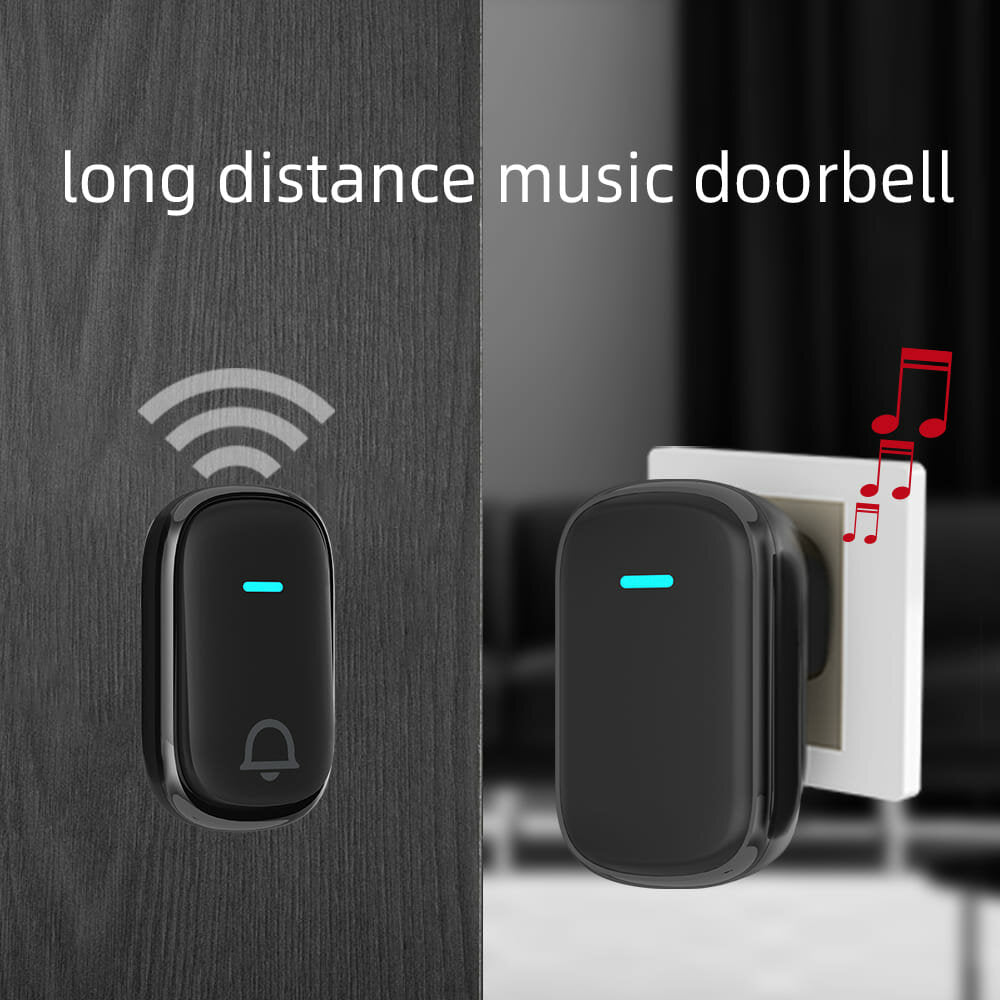

GUUDGO HD15 433Mhz LED Indicator Wireless Doorbell Waterproof Music Door Bell Home 38 Songs Door Ring AC 110V-230V
Description: Product features: Adopting extremely low power consumption design with imported advanced batteries, no wiring, simple installation, and environmental protection. The appearance adopts the fluid design that Asians prefer, colorful colors, practical and beautiful overall,...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Description:
Product features: Adopting extremely low power consumption design with imported advanced batteries, no wiring, simple installation, and environmental protection. The appearance adopts the fluid design that Asians prefer, colorful colors, practical and beautiful overall, simple yet high-grade, suitable for a variety of occasions. HD15 can easily
achieve single control, dual control, multi-control and mutual control.
Specification:
Product name: Wireless doorbell
Model: HD15
Power supply:
Receiver: AC 110V~230V-50/60Hz

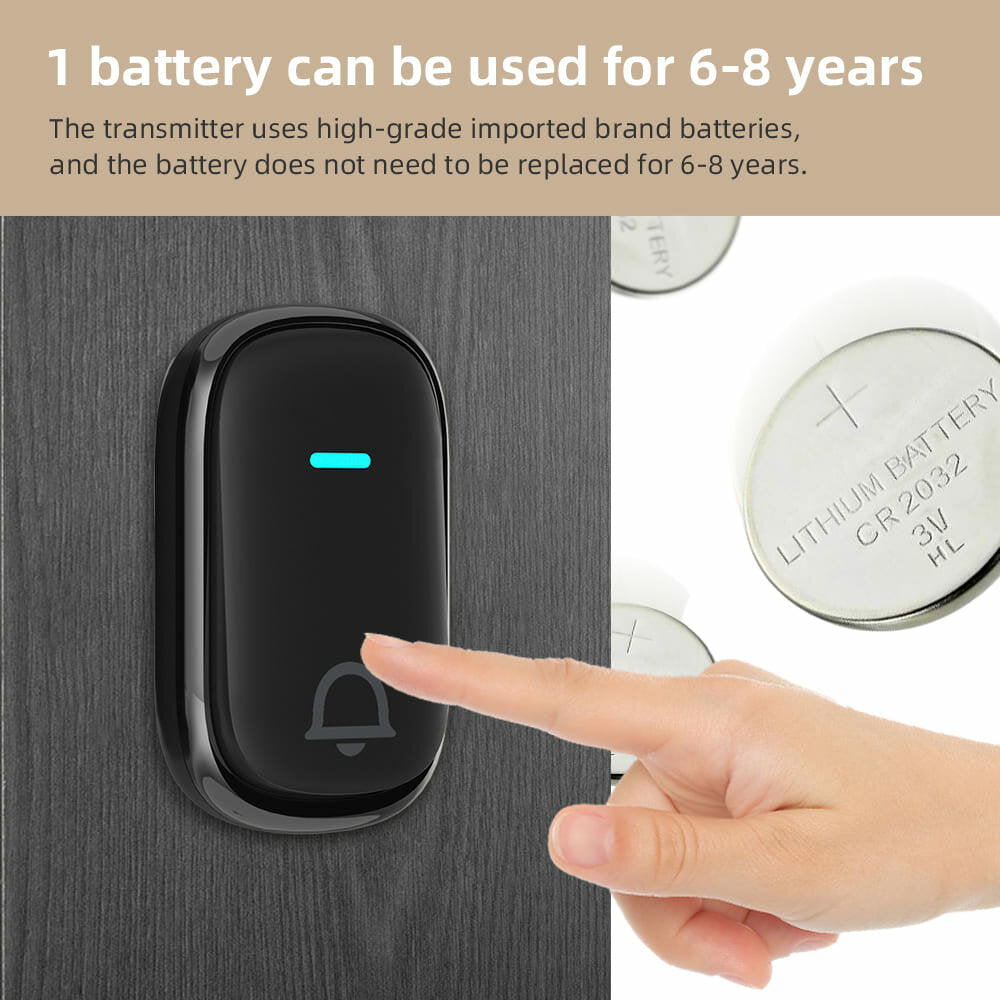

Transmitter: Battery CR2032 DC-3V
Power consumption: 0.25W
Ringtones : 38 songs / 5 levels of volume adjustment
Transmission distance: 150M (in open space)
Signal frequency: 433Mhz
Ringtones: 0-110dB
Material: ABS
Waterproof level: IP44
Receiver size: 85 x 53 x 37mm
Transmitter Size: 74 x 44 x 23mm

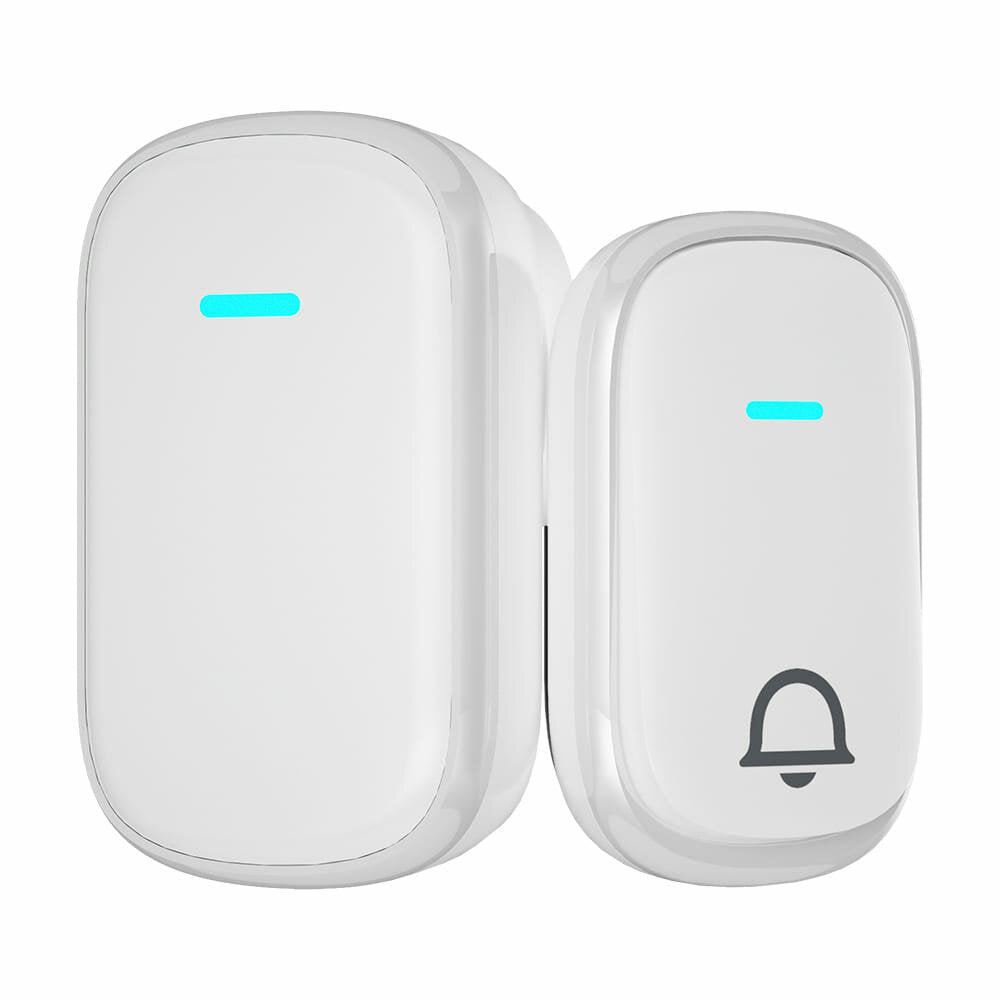

Color: White/Black
Package size: 115 x 95 x 65mm
Gross weight: 145g
Installation method:
The HD15 transmitter can be moved at will, or it can be fixed to its favorite position. Before fixing, please try it in the required fixing position, and it will not affect normal use before fixing. The fixing method is as follows:
1. Method 1 (Double faced adhesive tape): use a double-sided sticker to stick the bottom of the switch on one side, and the other side can be feel free to stick where you like.
2. Method 2 (Screw installation): Put it on the desired fixed position and try to draw the positioning point normally, and then use professional tools fix the bracket board to the wall with screws and install rubber plugs on
the wall, and slide the transmitter in place.
Instructions:
1.Pairing: (1.) After plugging in, first select the ringtone you like by pressing the up and down button, press and hold the volume button for 5 seconds, and enter the code pairing mode after hearing a 'Di' sound, the LED
indicator will be off;

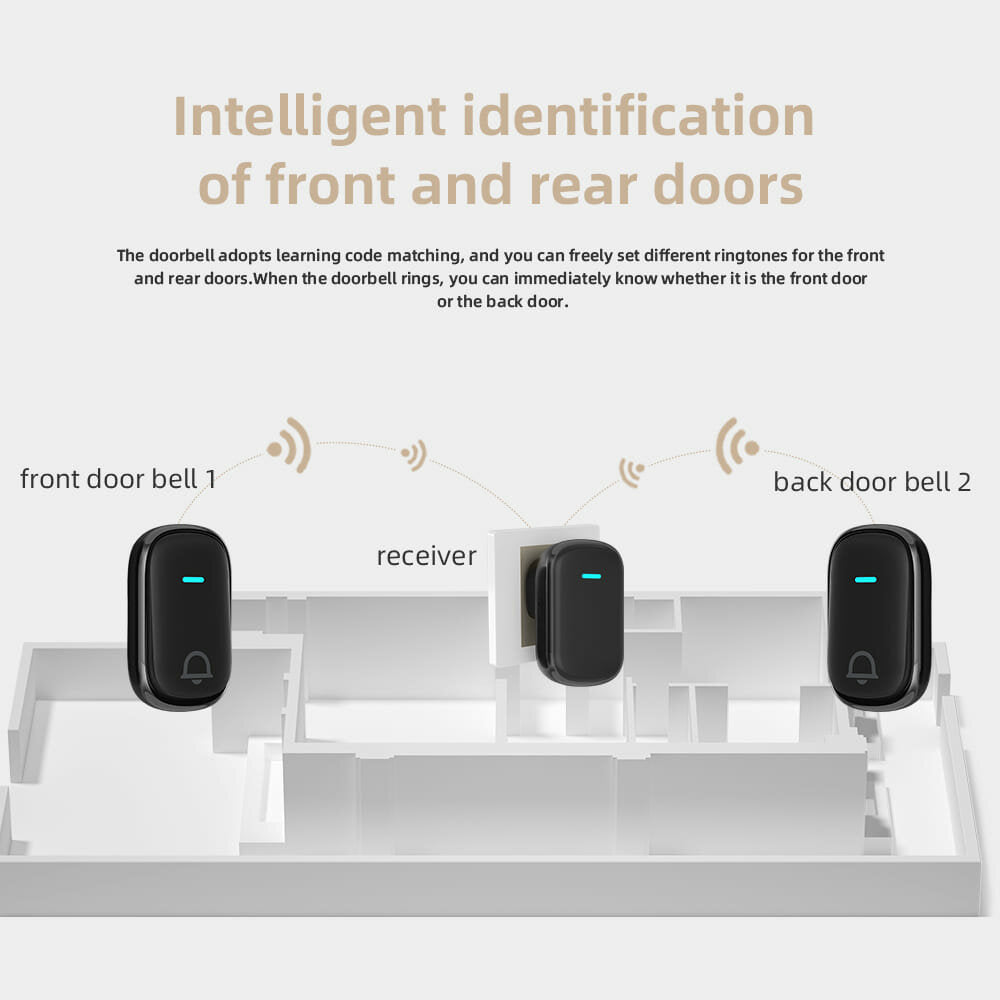

(2.) Press the transmitter, the doorbell ringing means that the code is successful; (Different ring music can be set according to the front and rear doors)
3.Code clearing: Press and hold the up and down volume button for 10 seconds, until the code is cleared after three beeps.
4. Return to the first song: Press and hold the up / down button for 5 seconds, and you will return to the first song
after you hear the 'Jingle'
5.Volume adjustment: short press the volume button once, you can adjust the volume.
Package included:
1 x Transmitter (Battery CR2032 included)
1 x Receiver
1 x Double Sided Adhesive
2 x screws
1 x User manual
