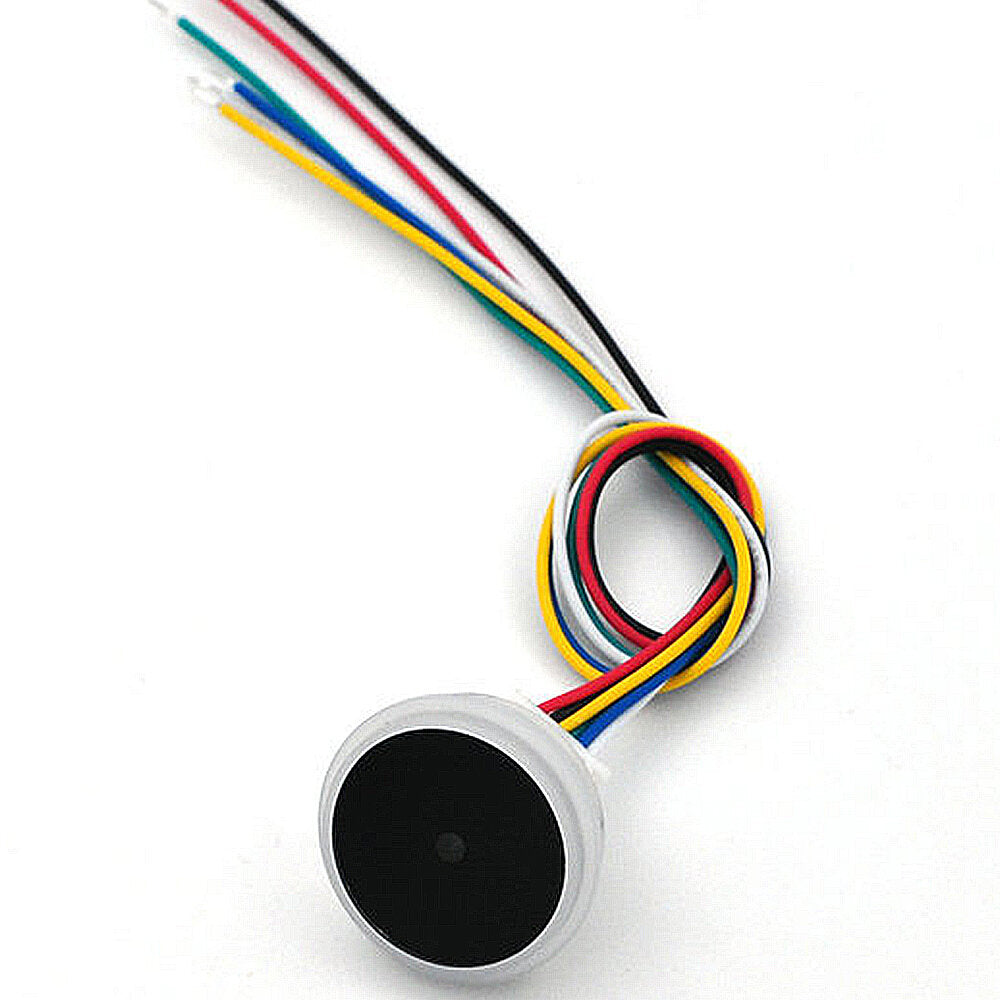

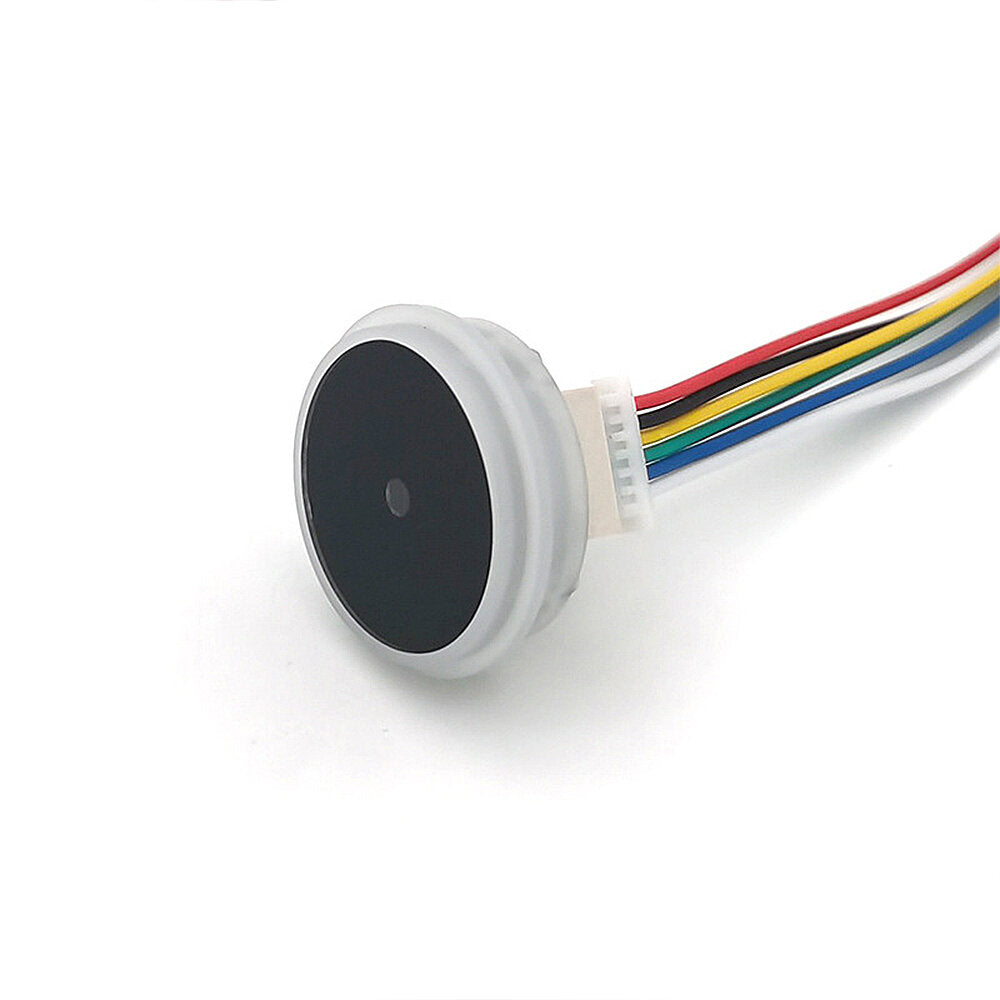

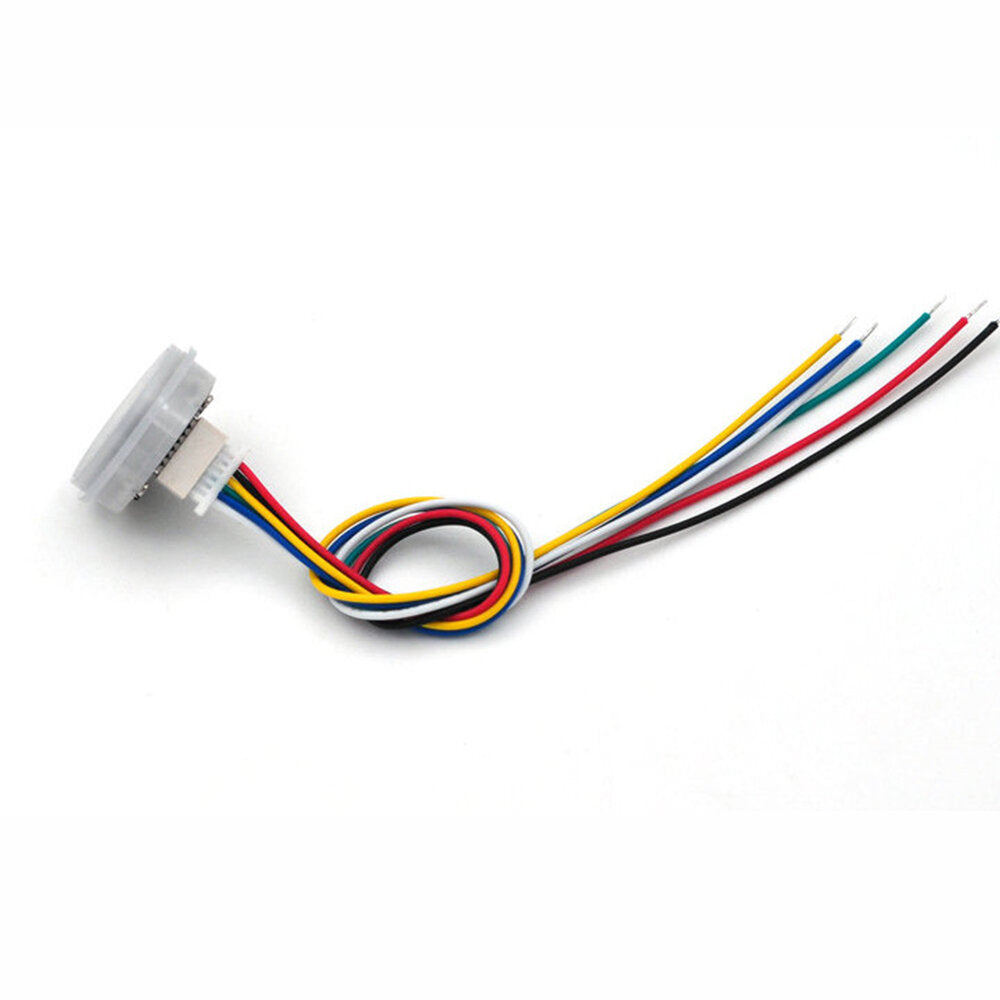

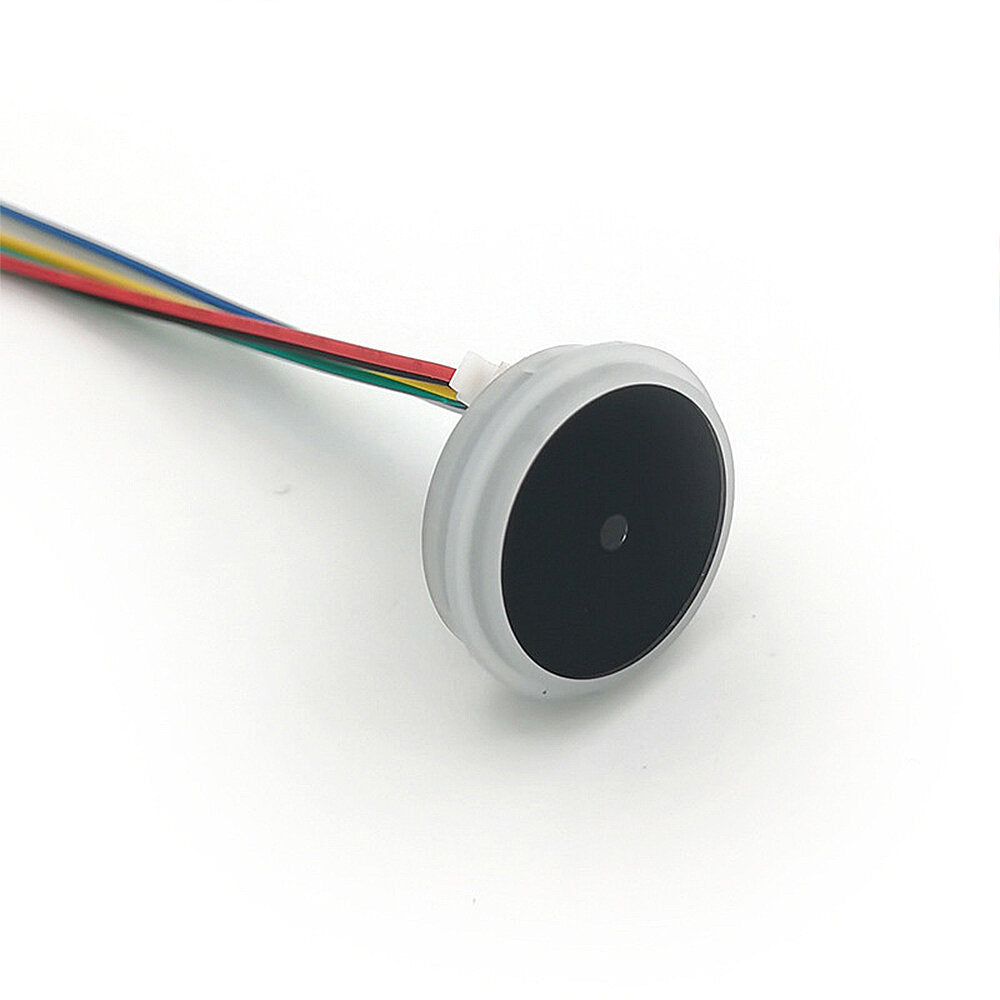

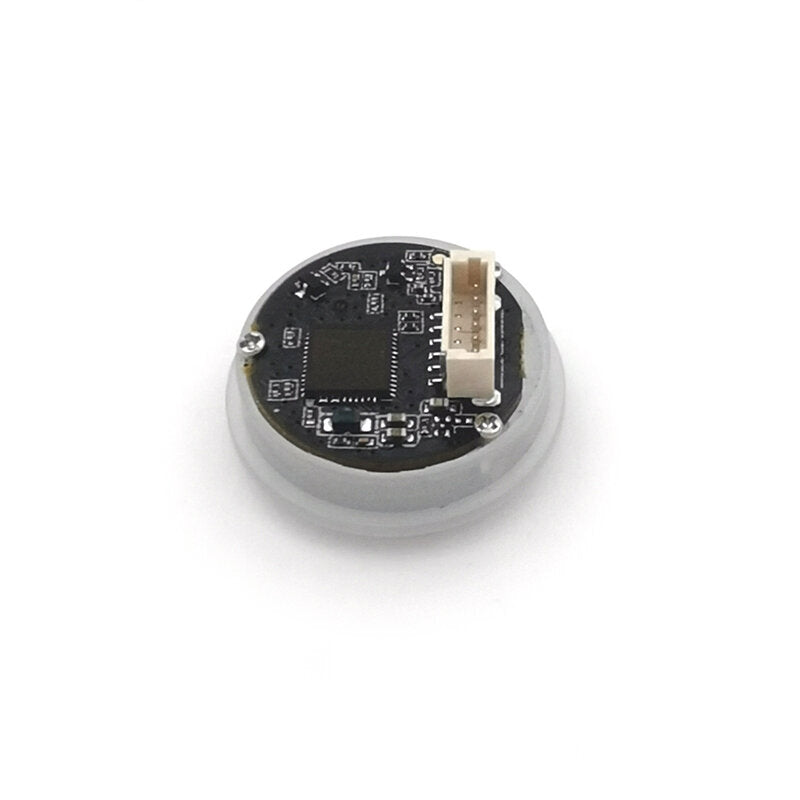

GM861S Embedded Barcode QR Code Scanning and Recognition Module 1D/2D Code Reader with LED Indicator Light

GM861S Embedded Barcode QR Code Scanning and Recognition Module 1D/2D Code Reader with LED Indicator Light

$30.99 $25.99

🟢 In Stock

Specifications: Parameters                               Performance Image Sensor  CMOS Pixel  640*480 Fill light  It is recommended to use white...

✔️ WORLDWIDE FREE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description

Specifications:


Parameters                               Performance

Image Sensor

 CMOS

Pixel

 640*480

Fill light
 It is recommended to use white light as fill light, which needs to be uniform and soft.

Warning light

 Green light indicates successful reading

Code system

 1D:

 EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6,   Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, GS1-Databar   (RSS)

 2D: QR Code, Data Matrix, PDF417

Symbol Contrast*

 >25%

Reading angle**

 Rotate 360┬░, Yaw 65┬░, Tilt 65┬░

Scan angle
 67┬░(horizontal), 53┬░(vertical)
Reading Accuracy*
 ÔëÑ10mil

Electrical Characteristics

Communication Interface

 TTL-232, USB

Appearance size (mm)

 Diameter 20.85├ùheight 6.15mm

Weight

 2g

Tips
 Buzzer, LED indication
Operating Voltage
 3.3V
Working current
 <70mA
Sleep current
 Ôëñ6mA (typ)
Start Time
 Ôëñ250ms (typ.)

Environmental parameters

Operating temperature

 -20┬░C~60┬░C

Storage temperature

 -40┬░C~+100┬░C

Relative humidity

 5% to 95% (non-condensing)
Ambient lighting
 Direct sunlight from normal indoor light sources
Fall
 Withstands a 1.2-meter drop from a concrete floor (50 repeated 1.2-meter drops to a concrete floor)

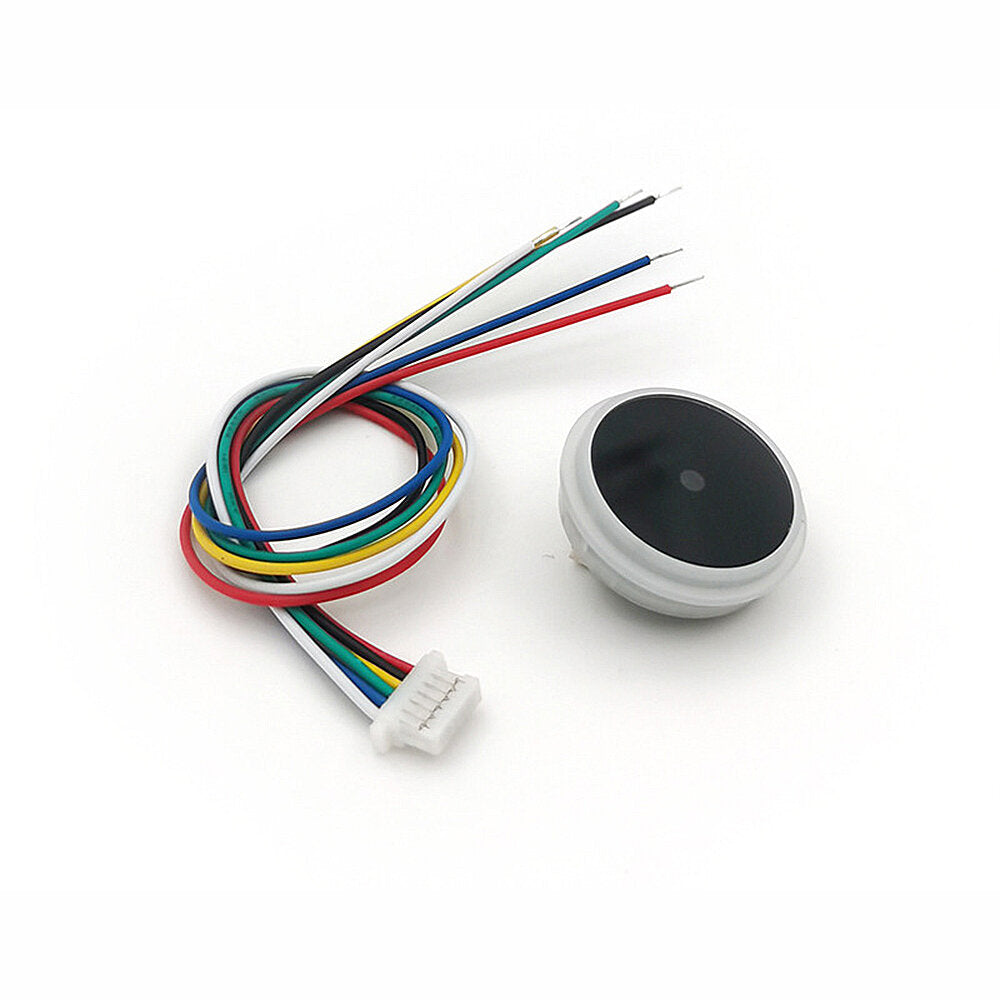

Package Include:

1*GM861S Barcode QR Code Scanning Module
