Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Button+2ch 6bit 30pins LVDS Cable+1 Lamp Inverter

Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Button+2ch 6bit 30pins LVDS Cable+1 Lamp Inverter

$37.99 $32.99

Manual: Click here to open Firmware: Click here to open Note: M3663.03B is not support Dolby Audio AC3 function.Feature:1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description

Note: M3663.03B is not support Dolby Audio AC3 function.

Feature:

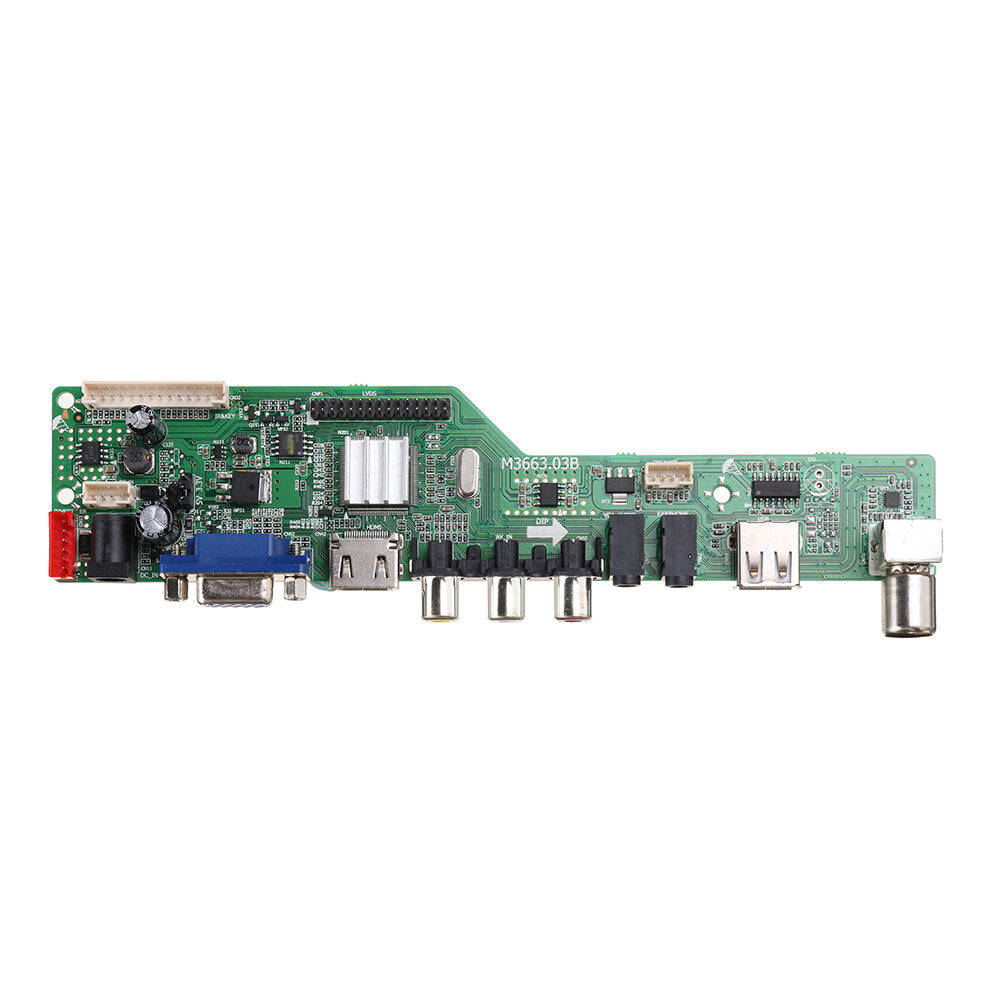

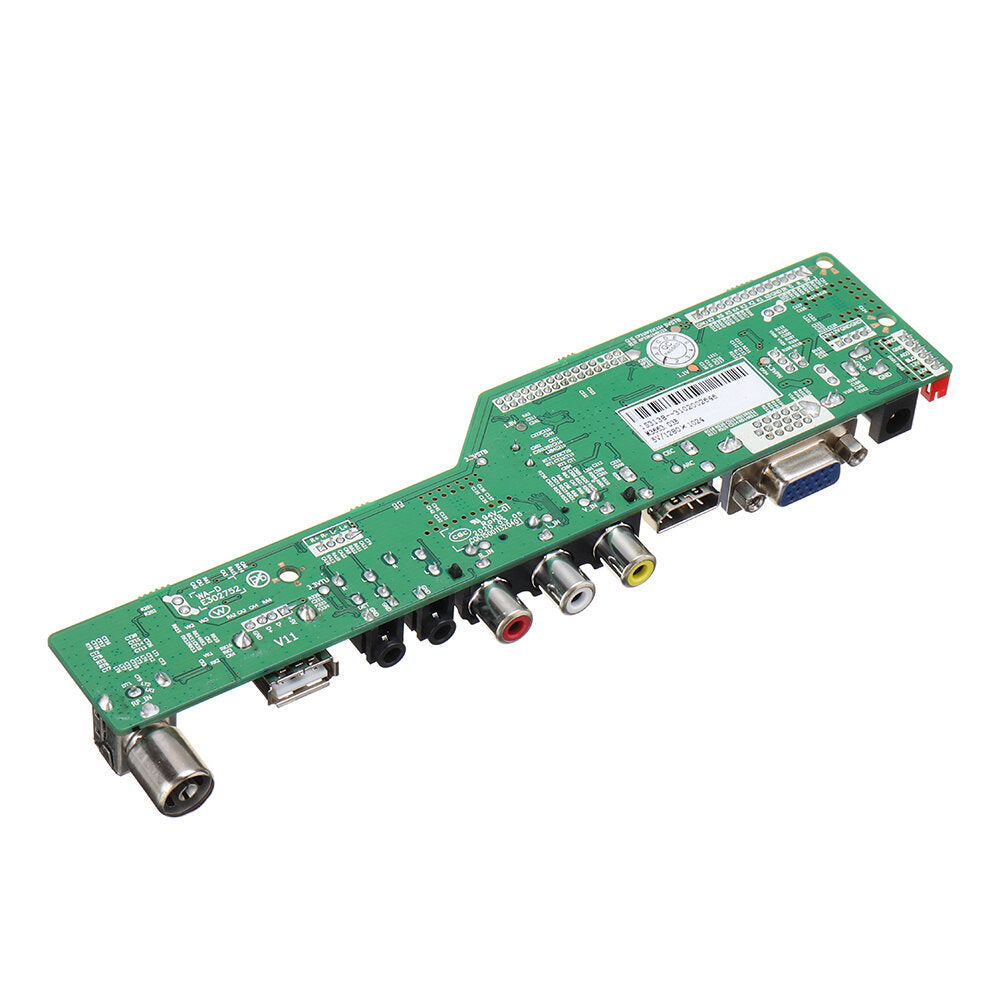

1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit LVDS interface, the resolution of LCDTV panel is up to 1920*1080.
2. M3663.03B supports DVB-T2/DVB-T/DVB-C and analog TV front-end (PAL/SECAM/NTSC) demodulator. HDMI, USB , PC-RGB, Earphone output, AV1 video and audio input an audio class D amplifier which supports 2x3W (4ohm) outputs is built in.
3. M3663.03B Software upgrade and multimedia playback function are applicable with the USB slot.
4. M3663.03B power supports DC12V input. It fits for 28ÒÇŞpanel.

The following resolutions can be supported:

1024x600
1024x768
1280x800
1280x1024
1366x768
1400x1050
1600x1200
1920x1200
1440x900
1680x1050
1920x1080
1600x900

Specification:

LCD Panel: TFT-LCD, LED backlight LCD
Resolution: up to 1920*1080
Interface: single/dual 8bit LVDS
Panel power: 12V/5V/3.3V
OSD Language: English/French/Spanish/Russian/German/Italian/Turkish/Portuguese
Relative Humidity: Ôëñ80%
Storage Temperature: -10´¢Ş+60Ôäâ
Operation Temperature: 0´¢Ş+40Ôäâ

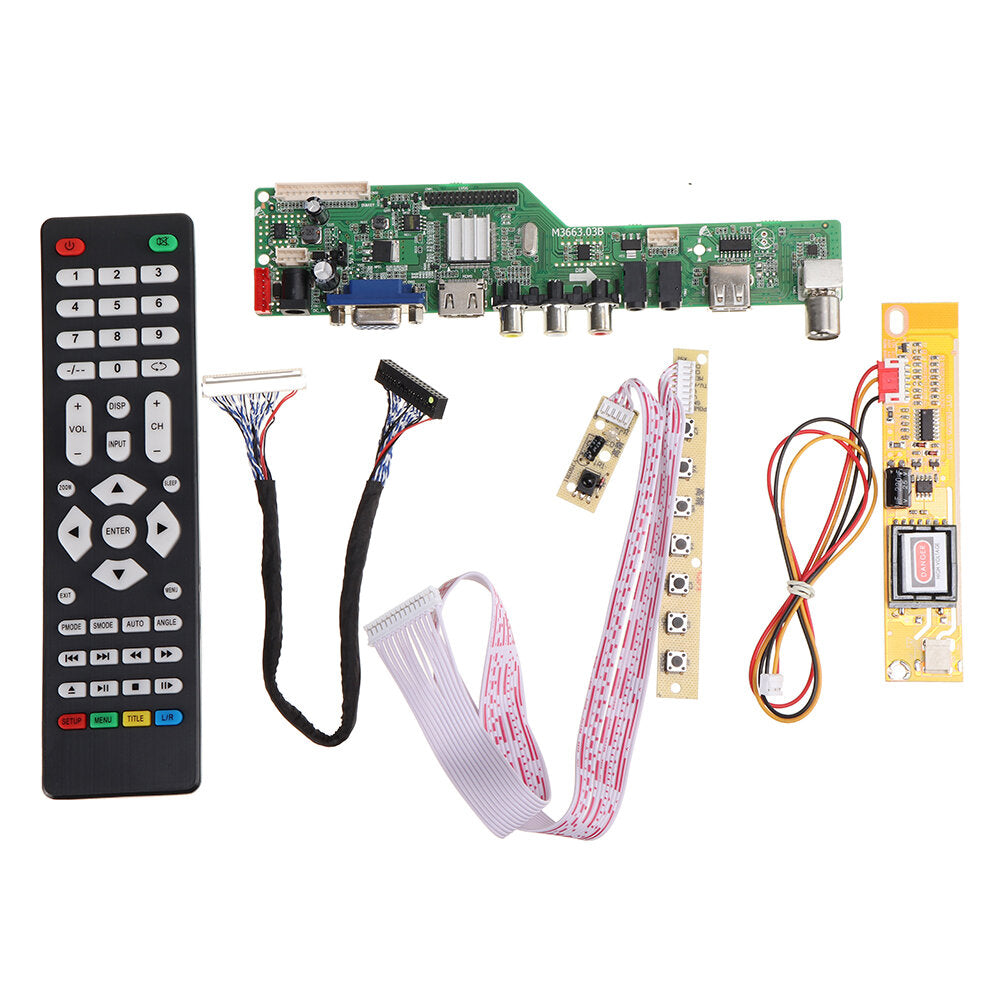

Package includes:

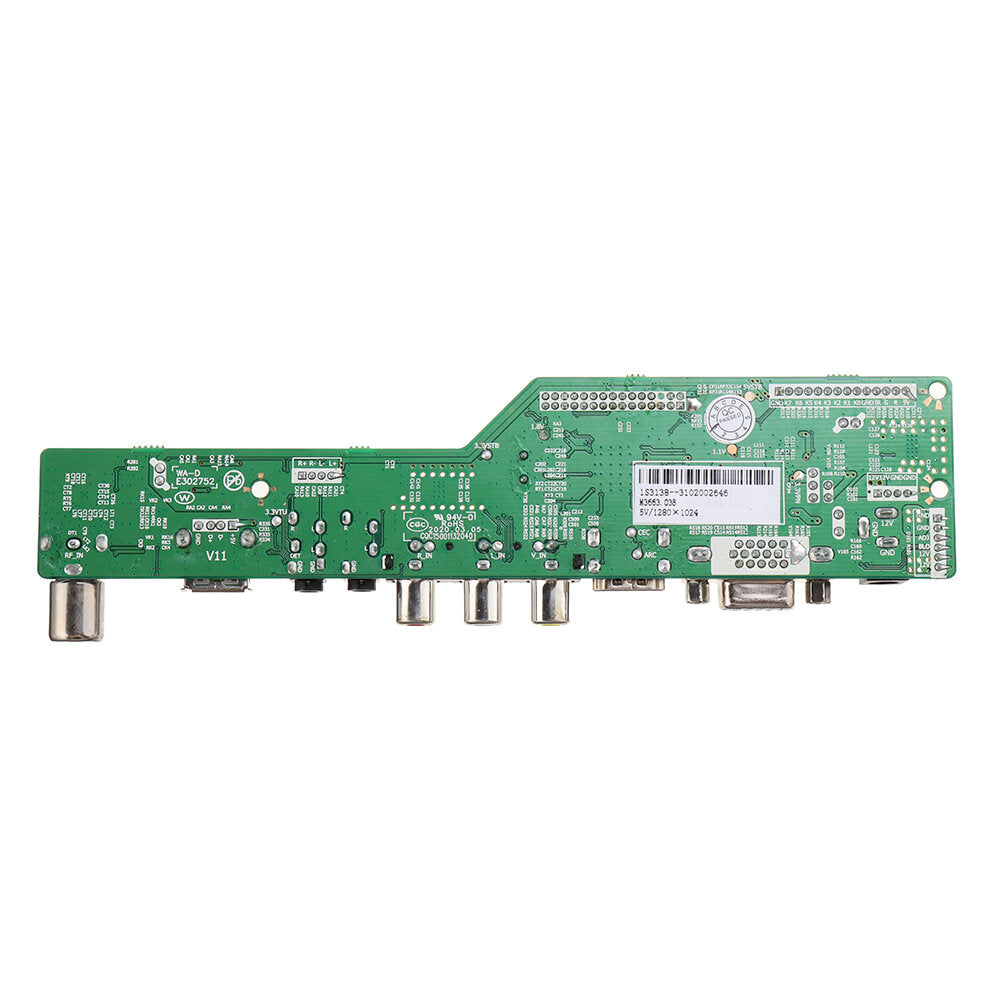

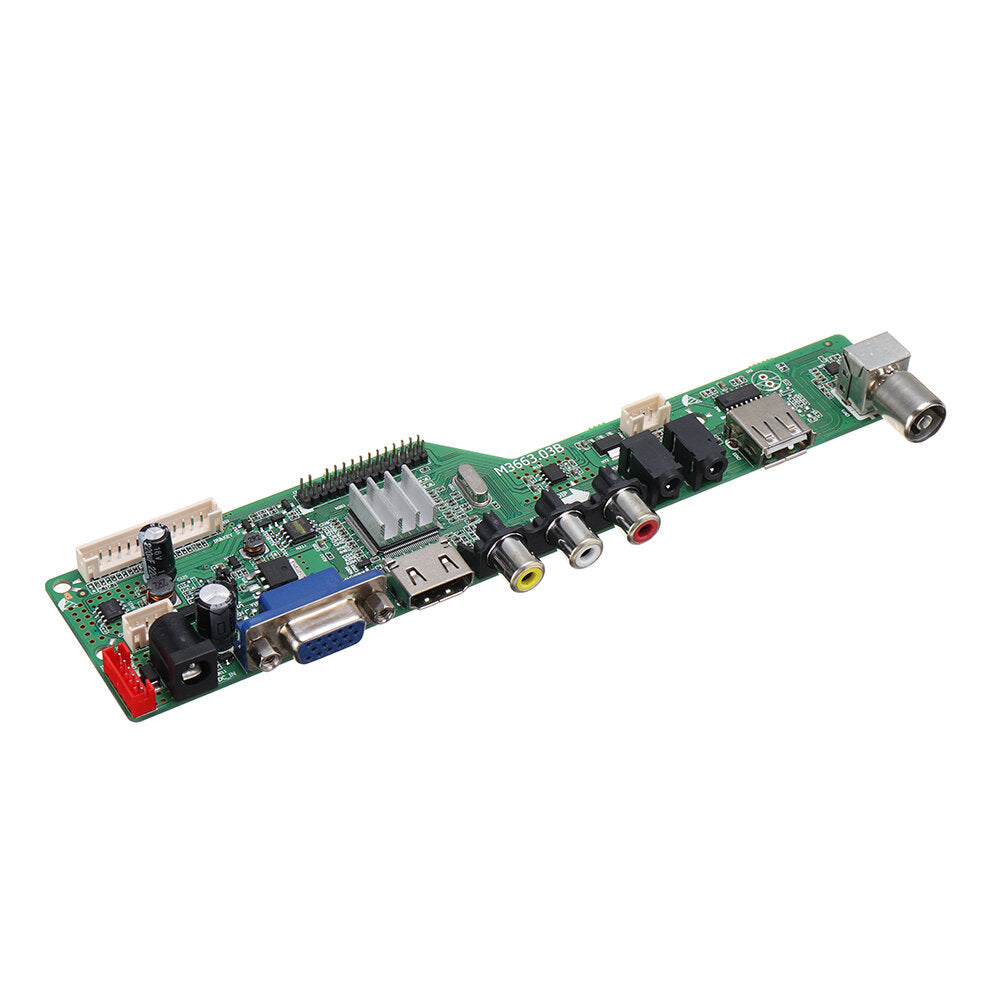

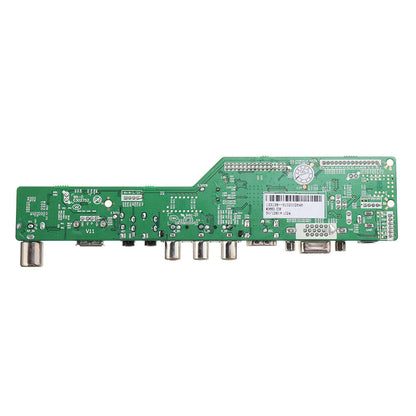

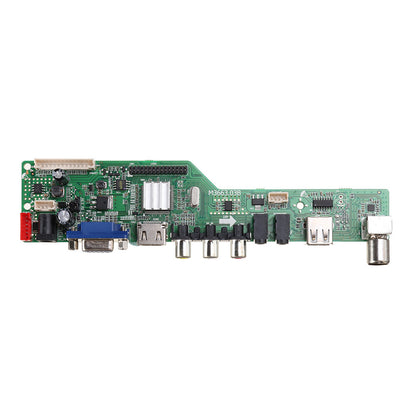

1 x Driver board

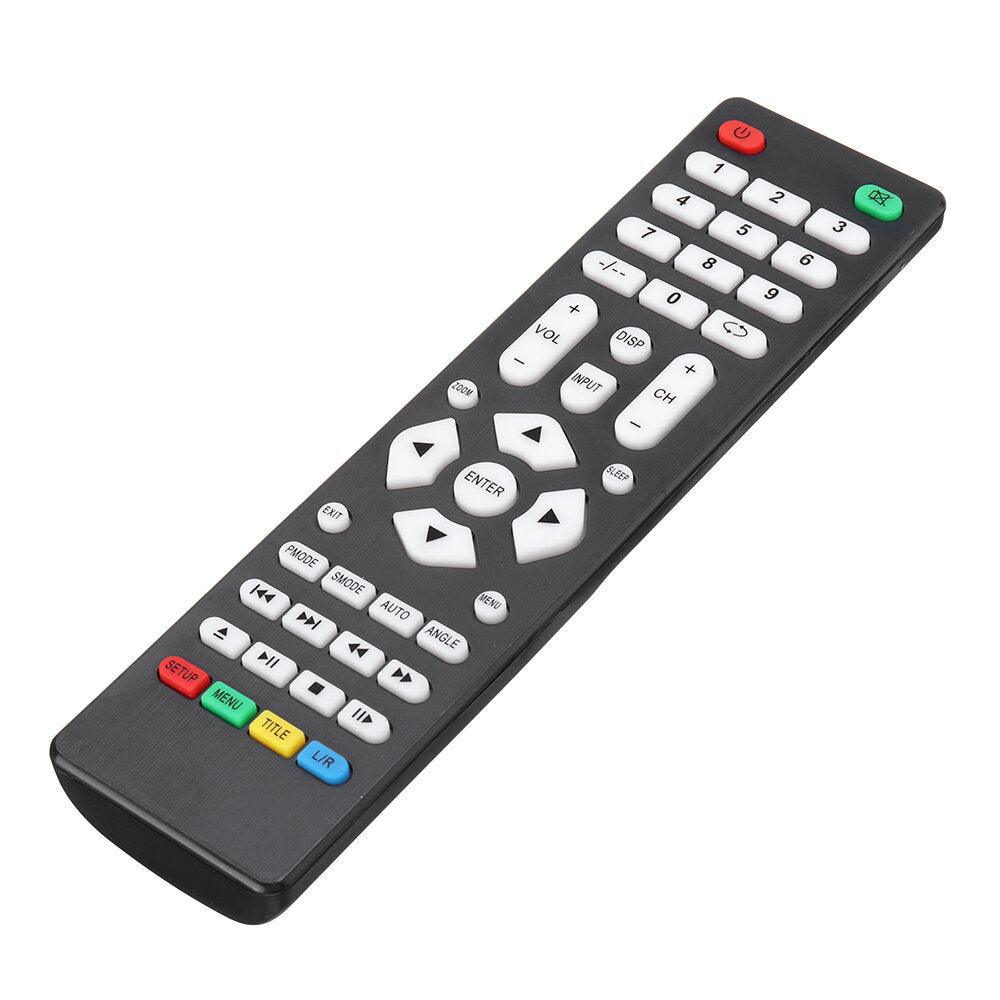

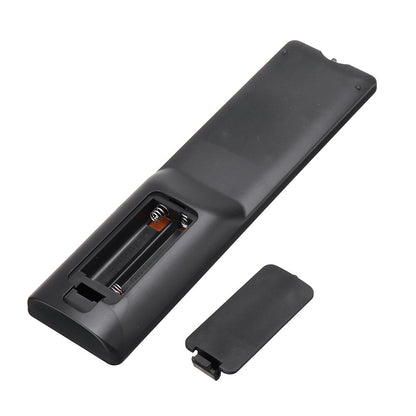

1 x English Remote control (battery not includes)

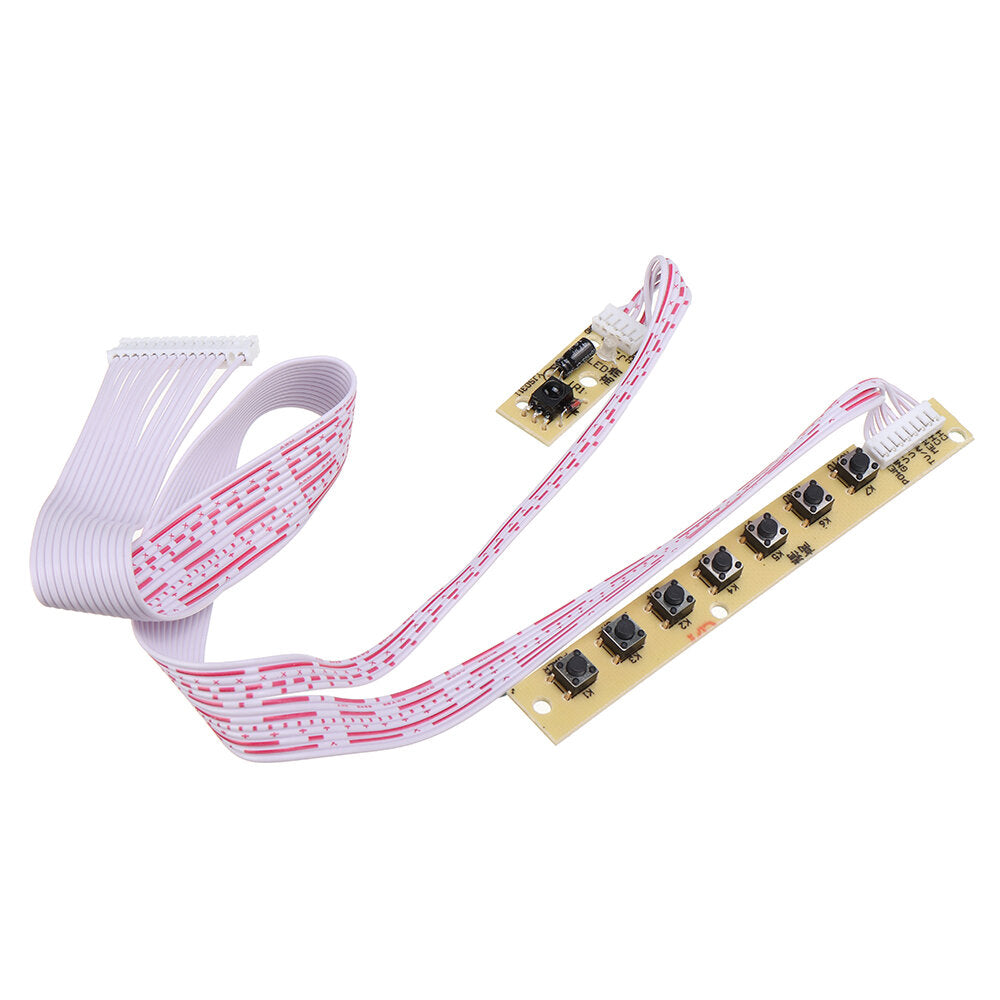

1 x 7 key button
1 x 2ch 6bit 30pins lvds cable 250mm length (You can search for the screen cable you need on banggood, for example: 2ch 6-bit, categories select 'Module Board'.)

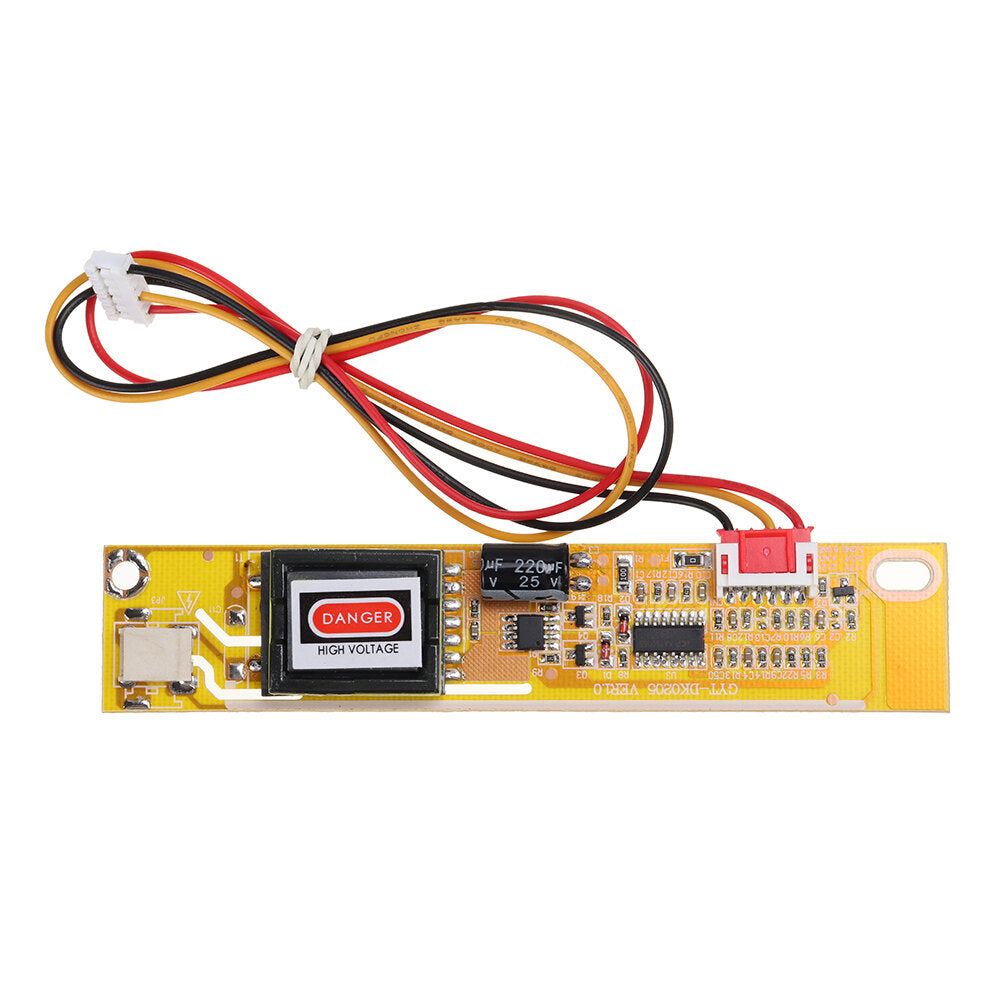

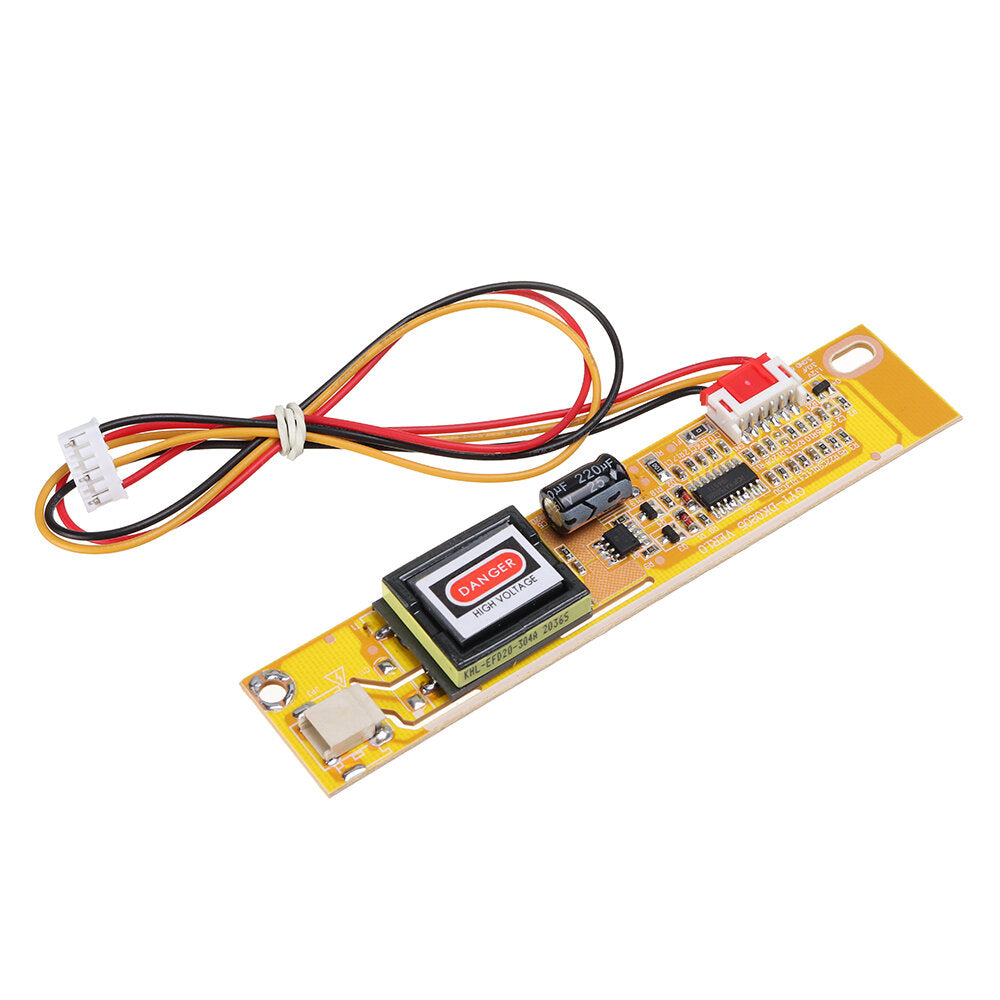

1 x 1pcs CCFL inverter with 3.5mm pin pitch
