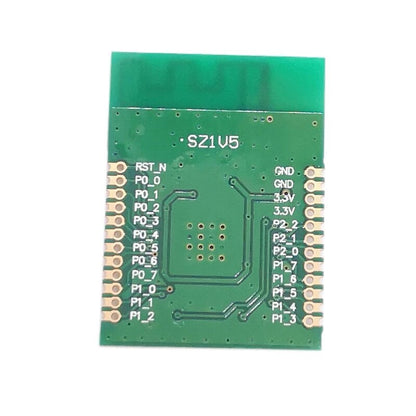

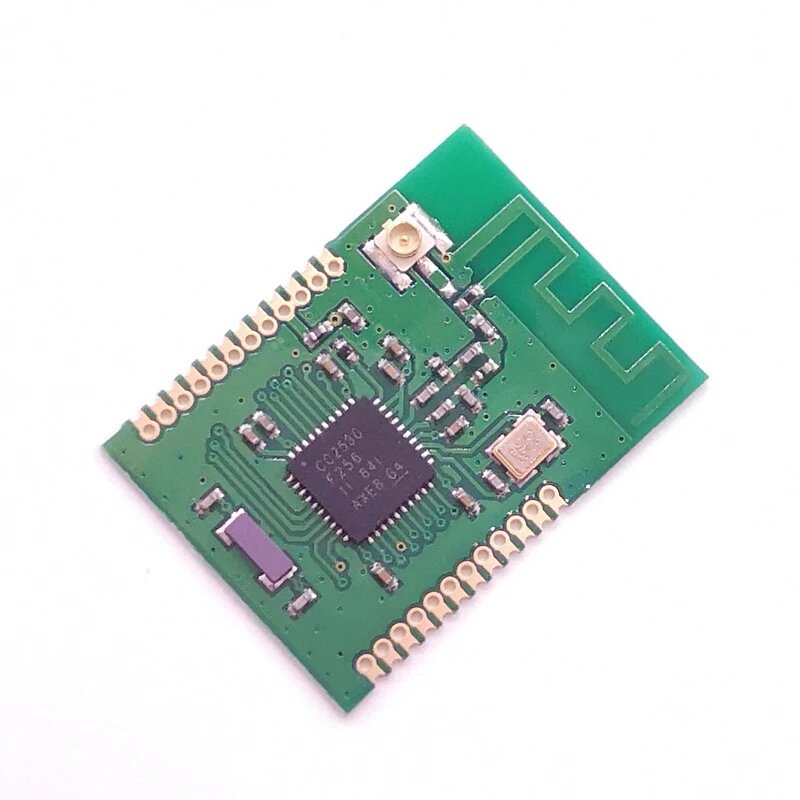

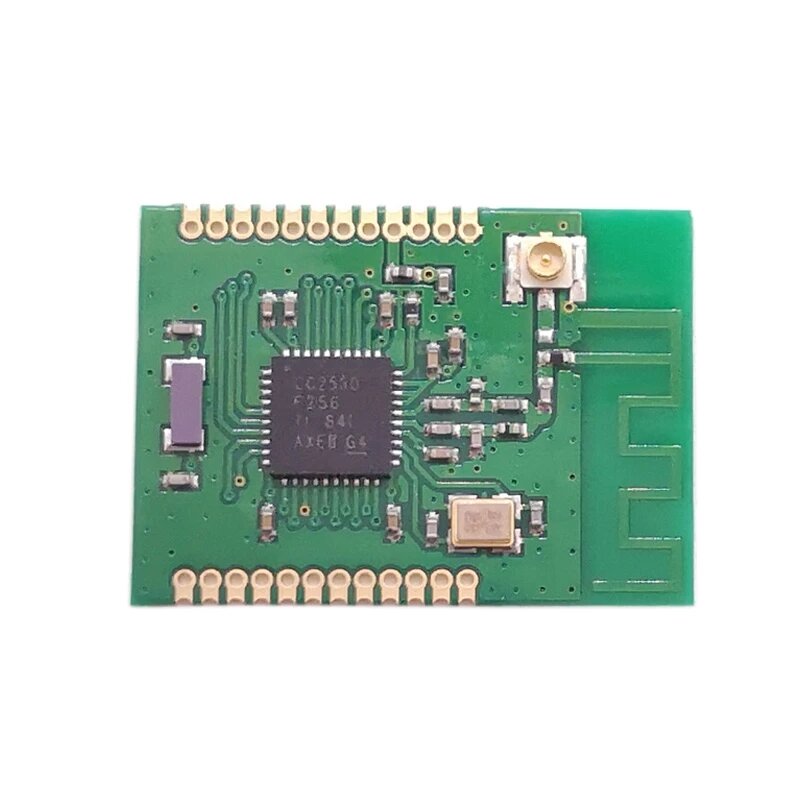

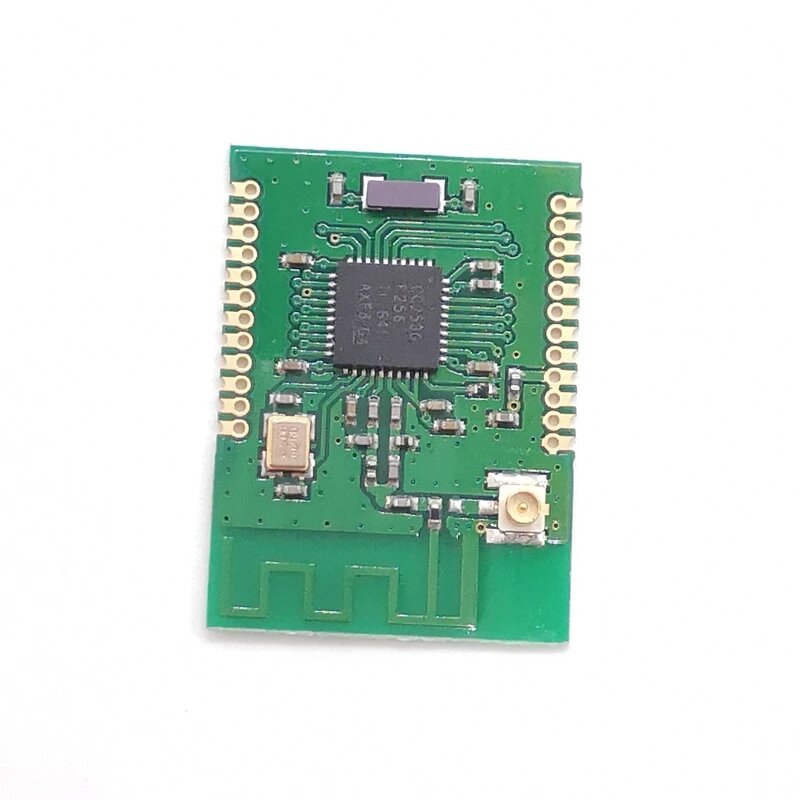

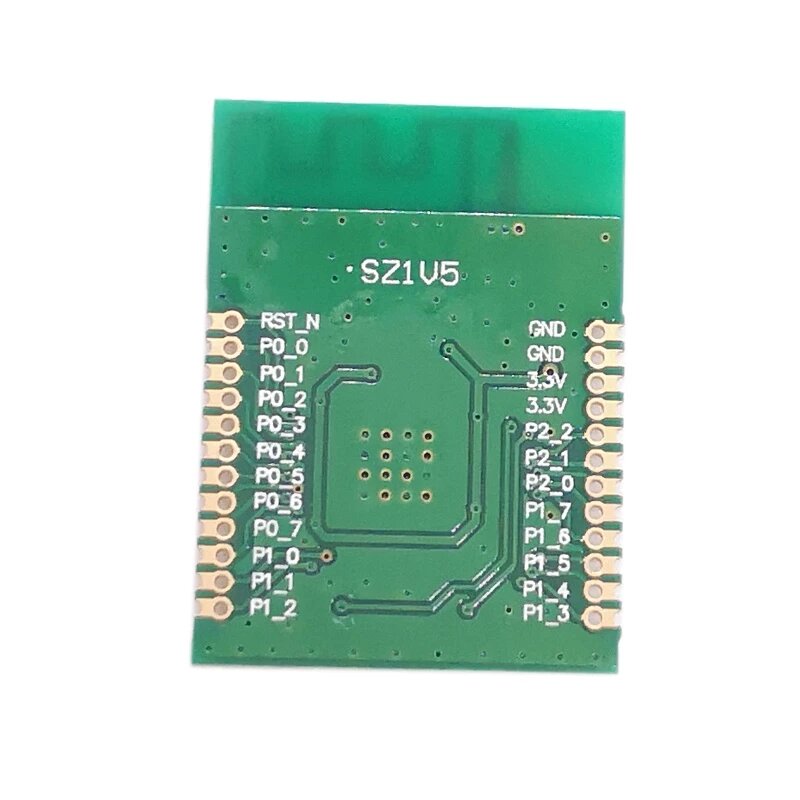

CC2530 3.0-3.6V 2.405-2.485GHz Wireless Module ZB Networking IPEX Antenna Module

CC2530 3.0-3.6V 2.405-2.485GHz Wireless Module ZB Networking IPEX Antenna Module

$21.21 $16.40

Description:Power supply voltage: 3.0-3.6VEmission current: 36 -40mAReceiving current: 25 -27mADormancy current: 0.4uAOperating frequency: 2.405-2.485GHzPower: 3.8 -4.2dBmReceiving sensitivity: -97dBmWireless transmission rate: 250KbpsOperating temperature: -30Ôäâ~80ÔäâDimensions: 30 x 20 x 4 mmPackage included:1...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description
Description:

Power supply voltage: 3.0-3.6V
Emission current: 36 -40mA
Receiving current: 25 -27mA
Dormancy current: 0.4uA
Operating frequency: 2.405-2.485GHz
Power: 3.8 -4.2dBm
Receiving sensitivity: -97dBm
Wireless transmission rate: 250Kbps
Operating temperature: -30Ôäâ~80Ôäâ
Dimensions: 30 x 20 x 4 mm

Package included:

1 x CC2530 wireless module
