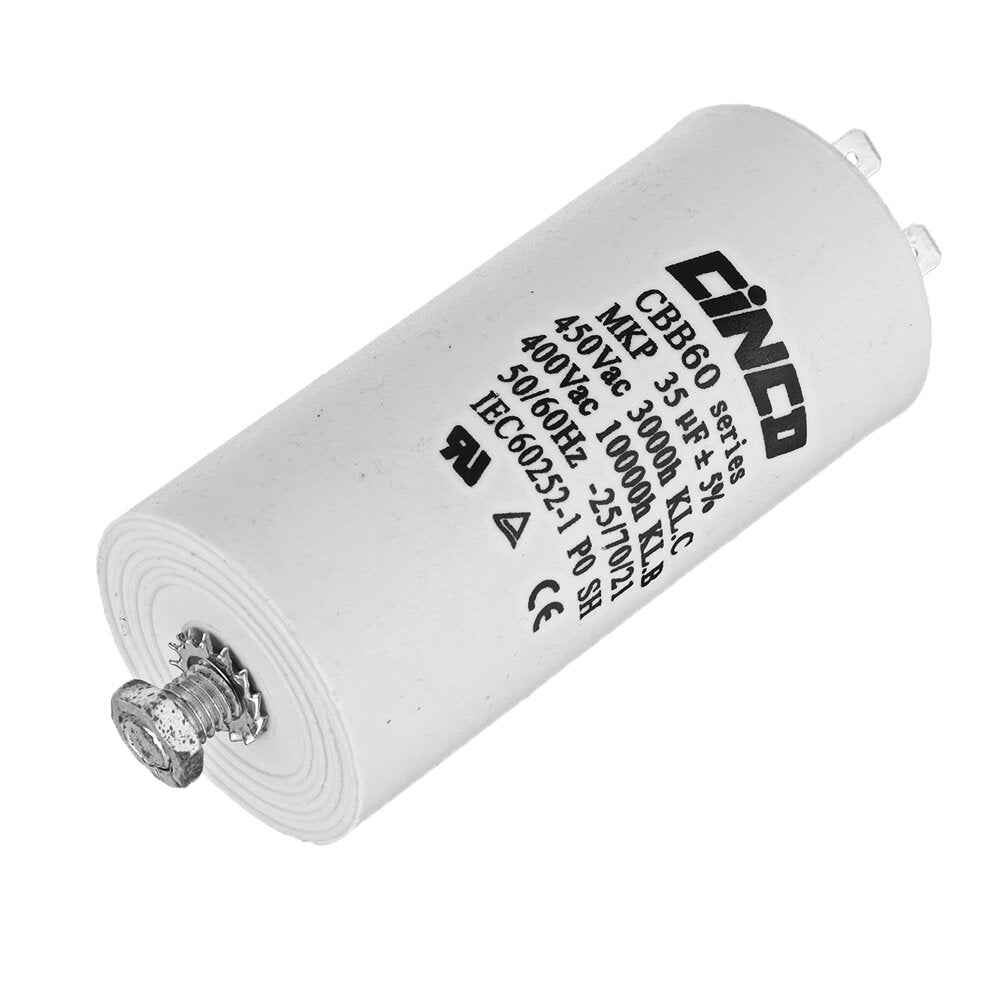

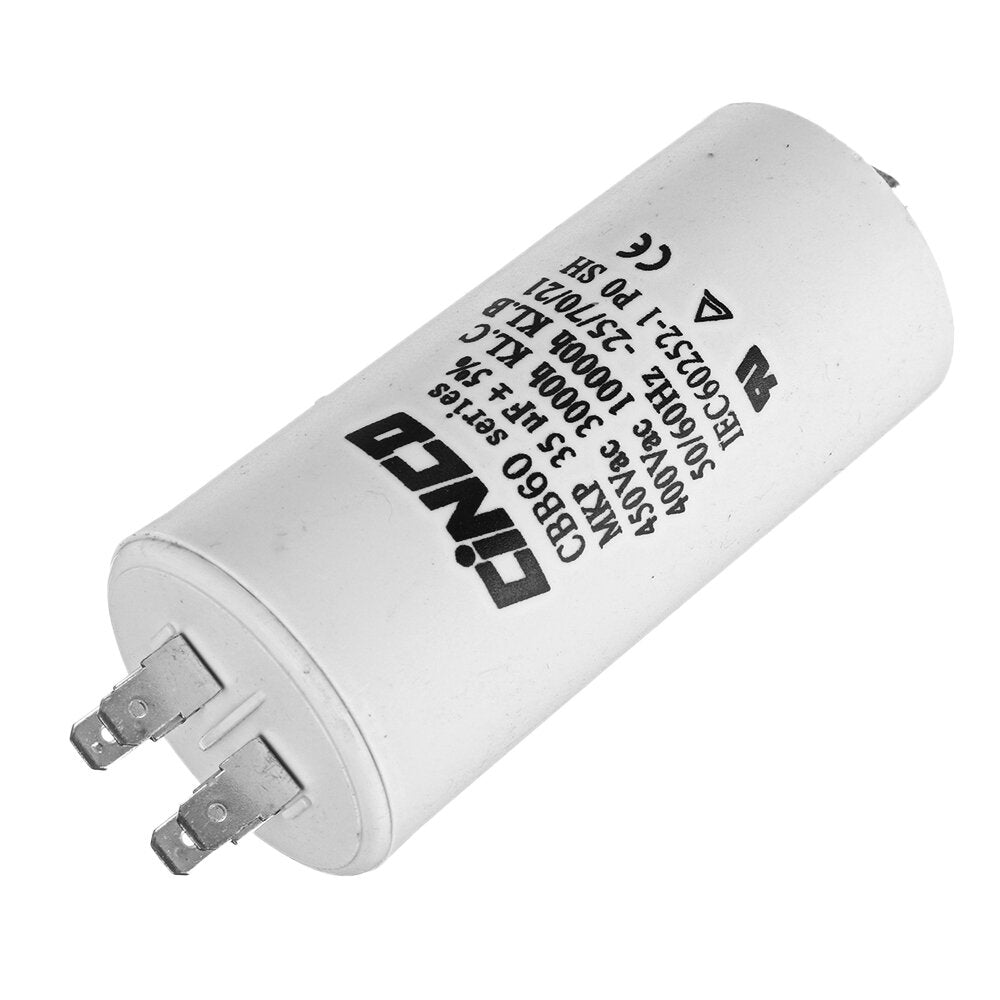

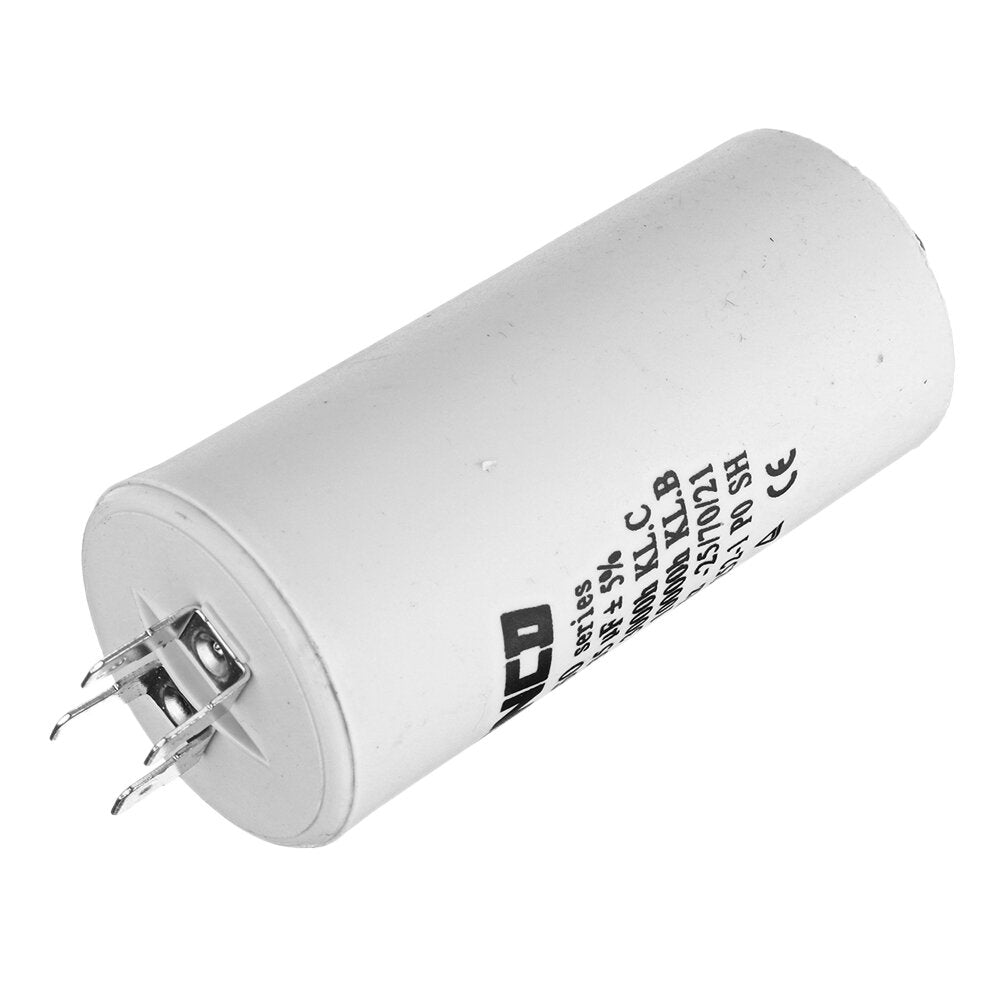

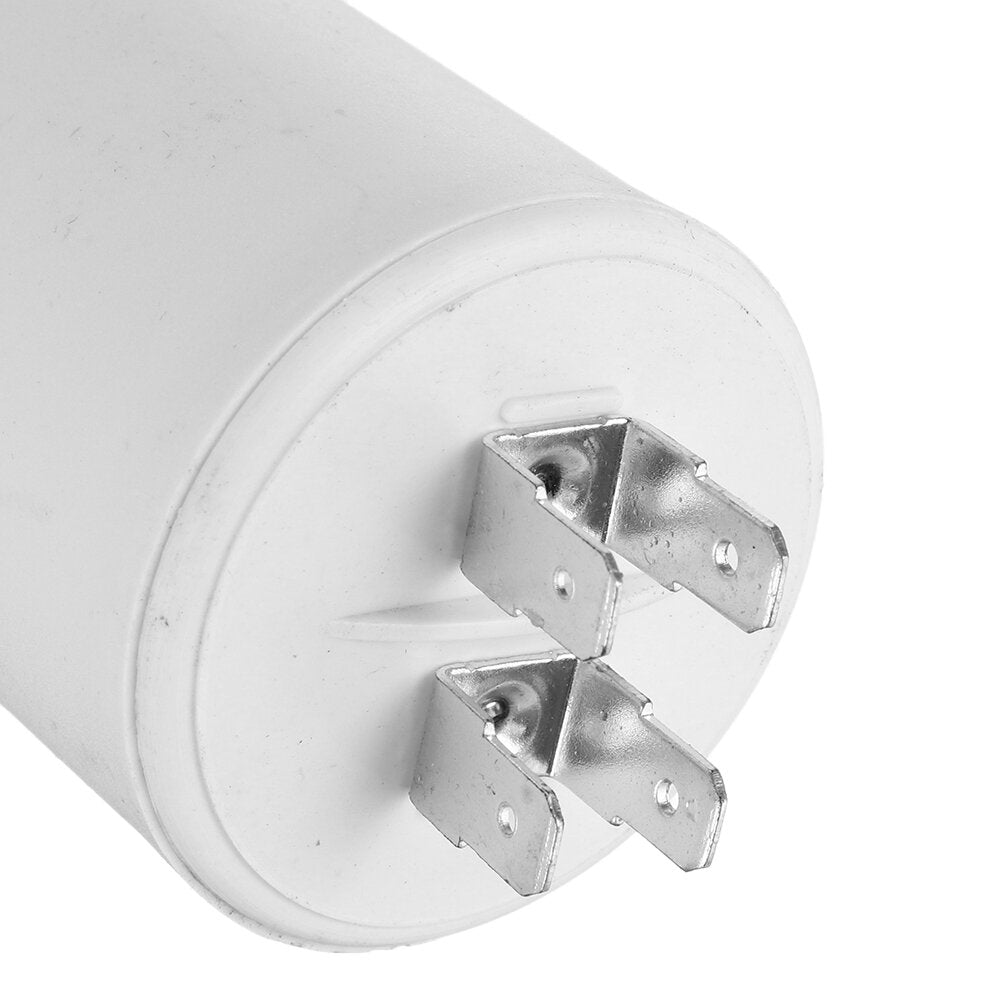

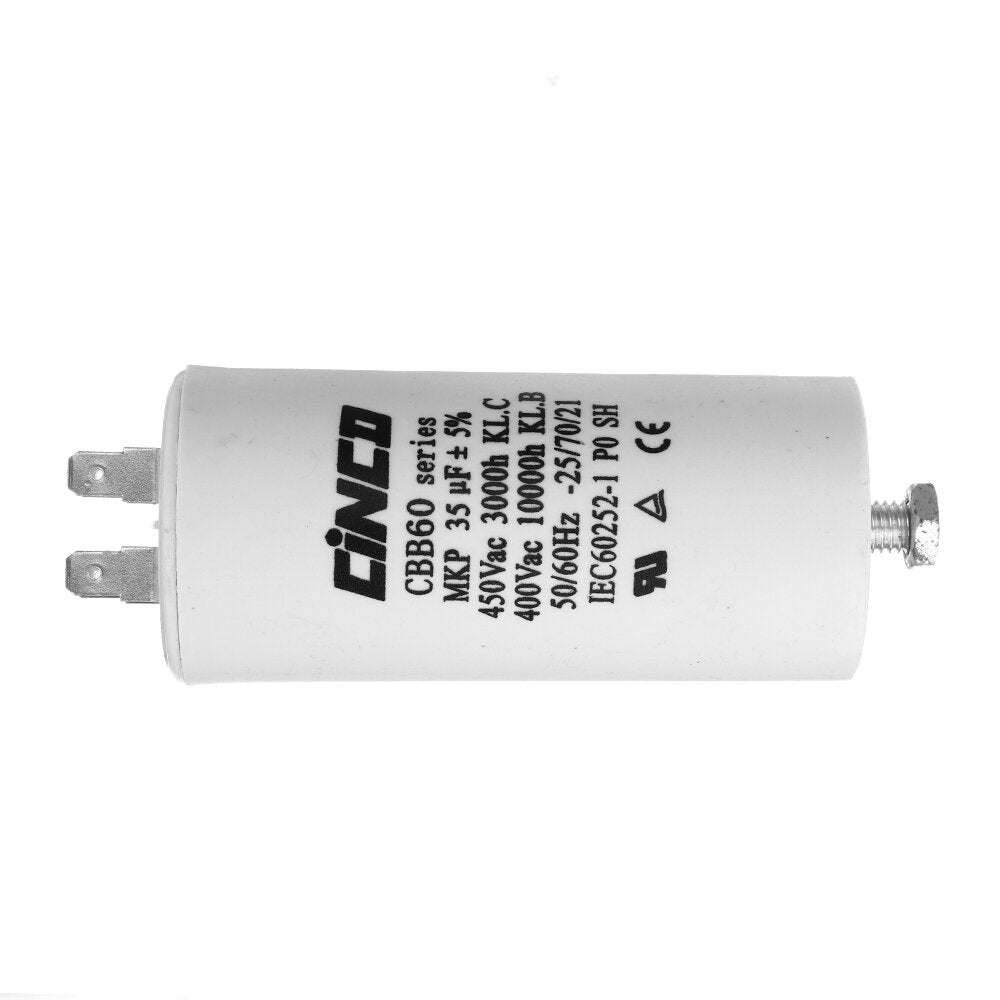

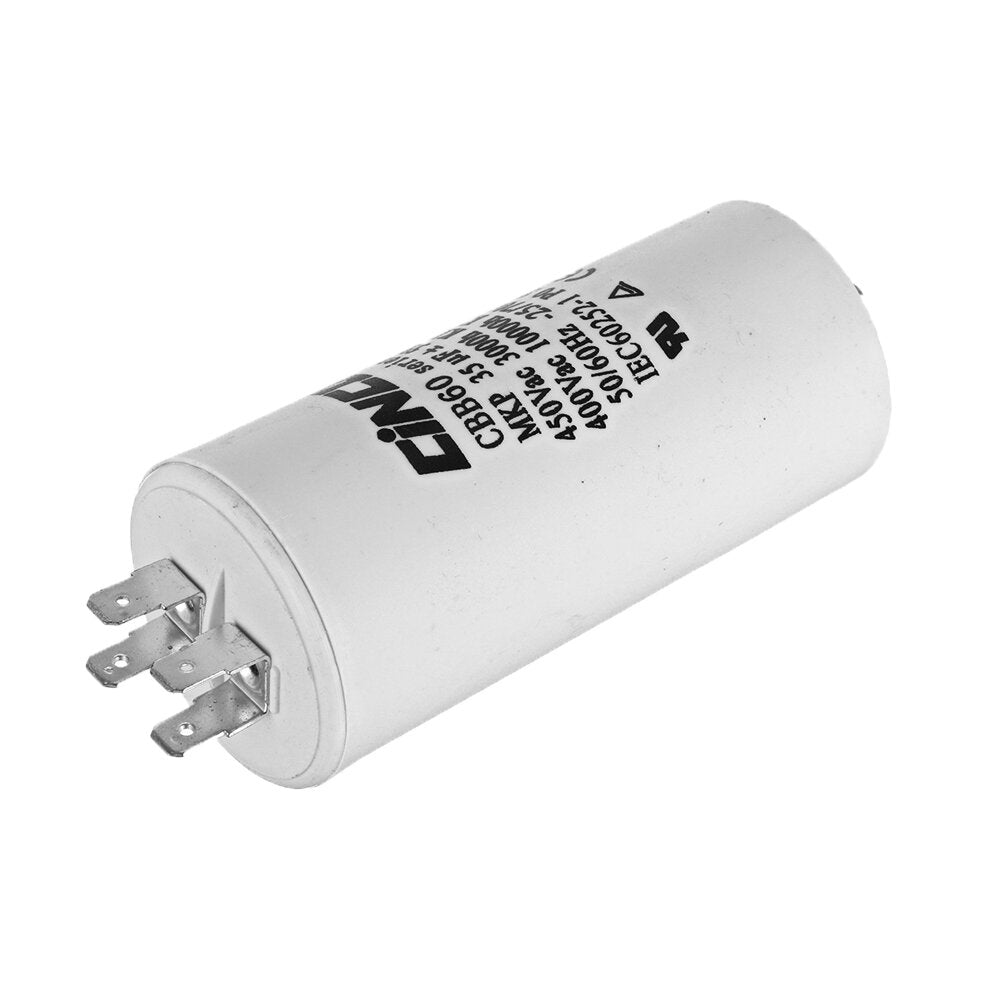

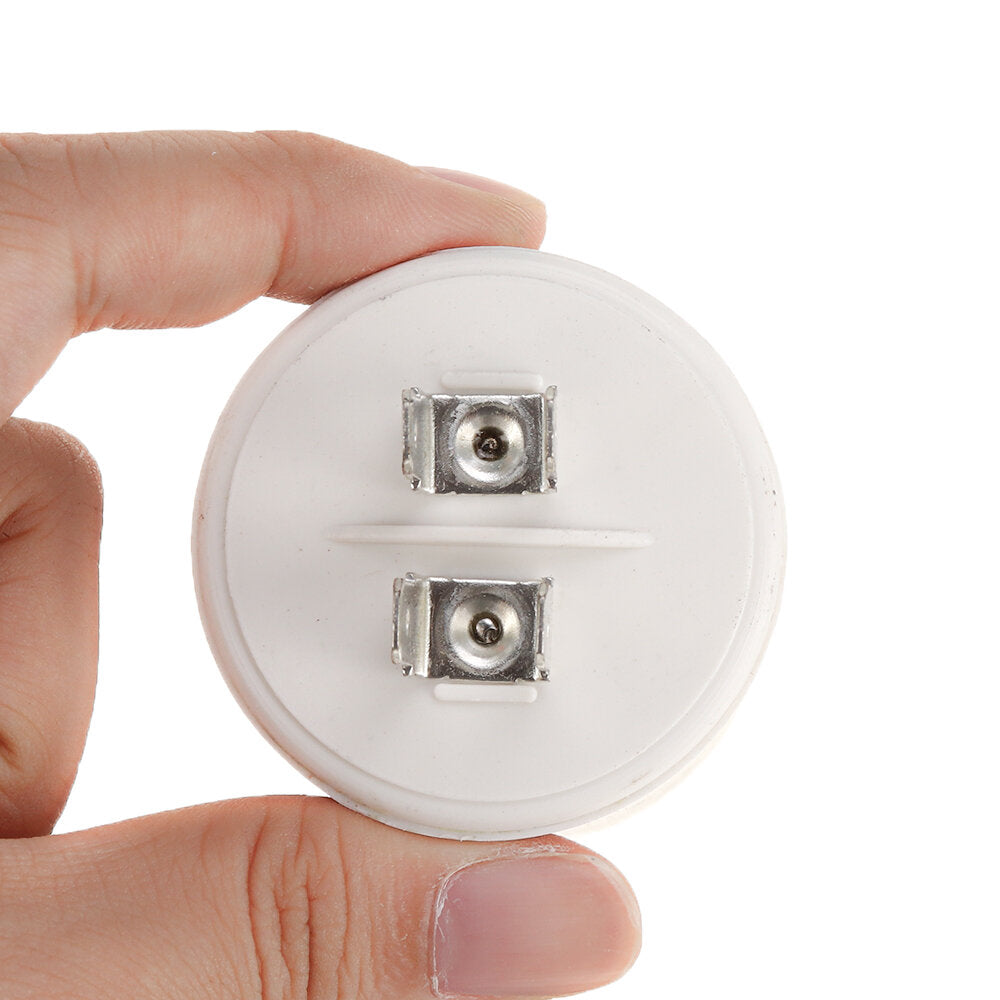

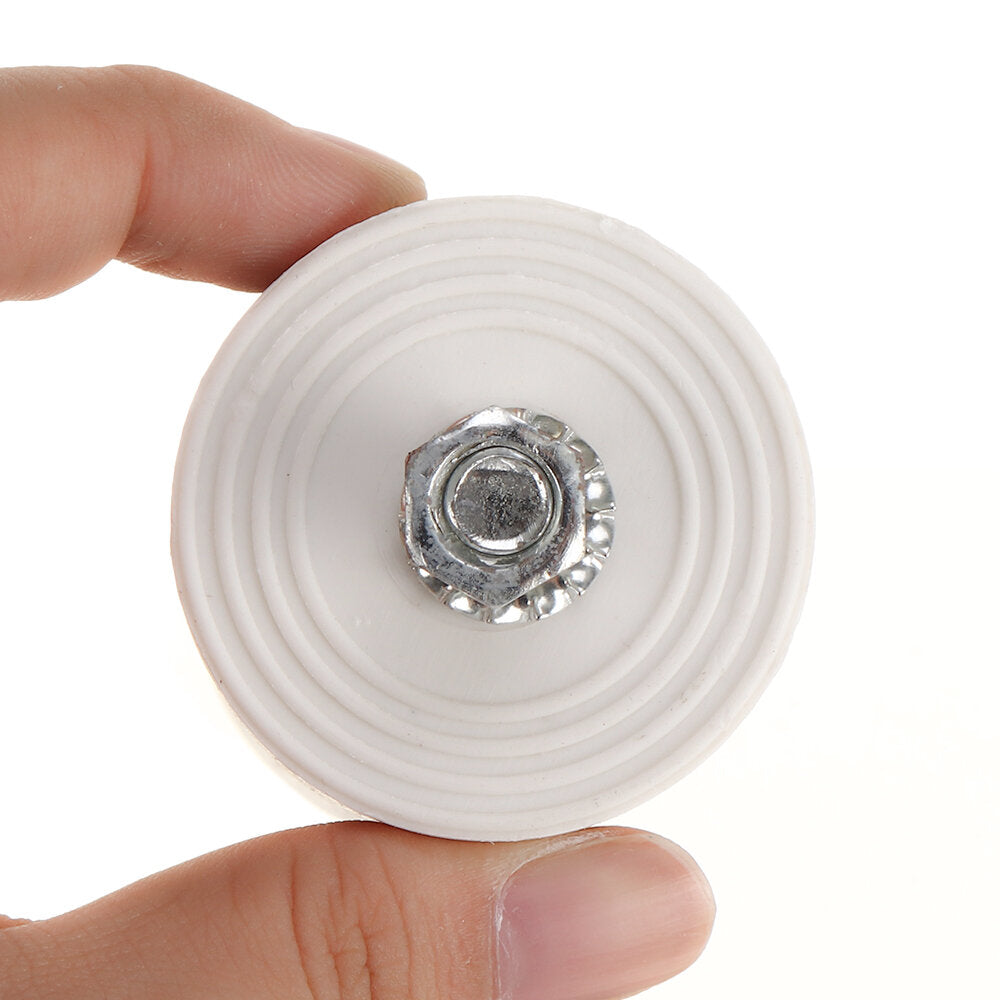

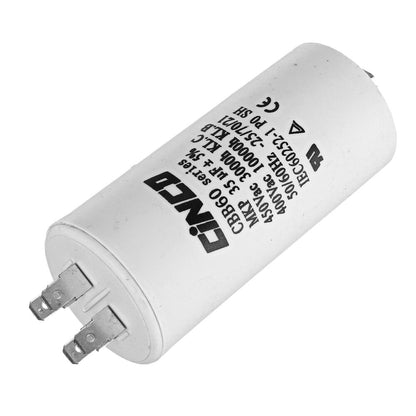

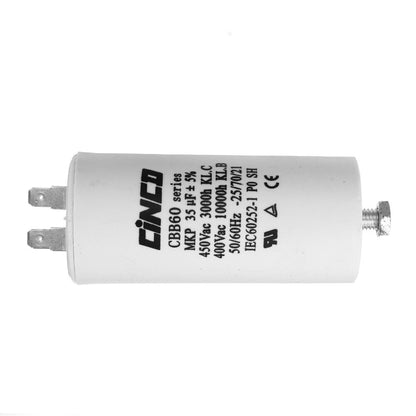

CBB60 35UF 450V Water Pump AC Motor Running Capacitor

CBB60 35UF 450V Water Pump AC Motor Running Capacitor

$17.52 $16.26

Features: CBB60 Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description
Features:

CBB60 Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.CBB60 capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.

1) Very small dissipation factor,small inheterent temperature rise.
2) High insulation resistance.
3) Good capacitance stability.
4) Excellent self-healigh property.
5) Safety and hight reliability due to flame reatardant plastic or metal case enclosure,flame retardant opoxy resin endfill.
6) It is applicable for the starting and running of AC single-way motor with 50~60Hz frequency.

Specifications:

Capacitance

35UF

Capacitance Tolerance

┬▒5% , ┬▒10%

Rated Alternate Voltage

450V

Rated Frequency

50/60 Hz

Dissipation Factors

Ôëñ0.002(1KHz,20┬░)

Operating Temp

-40┬░ ~ +85┬░ or -40┬░ ~ +70┬░

Case Material

PBT, PP, Aluminium, Flammability Class ÔÇô UL 94 V -2, 750C (RTI)

Dielectric

Polypropylene with self healing SH

Insulation Resistance

3000S

Weather Category

40/85/21, 25/70/21

Withstand voltage(Terminal to Terminal)

2 X Rated Voltage

Withstand voltage(Terminal to Case)

Minimum 2000 V AC for 1 Min.

Ref. Standard

IEC60252-1:2001,GB/T3667.1-2005,UL810

Quality System

ISO 9001:2008

Approvals

CQC,CE,VDE,UL,RoHS

Application

Electrical motor, pump, washing machine, Power saver


Package included:

1 x Capacitor
