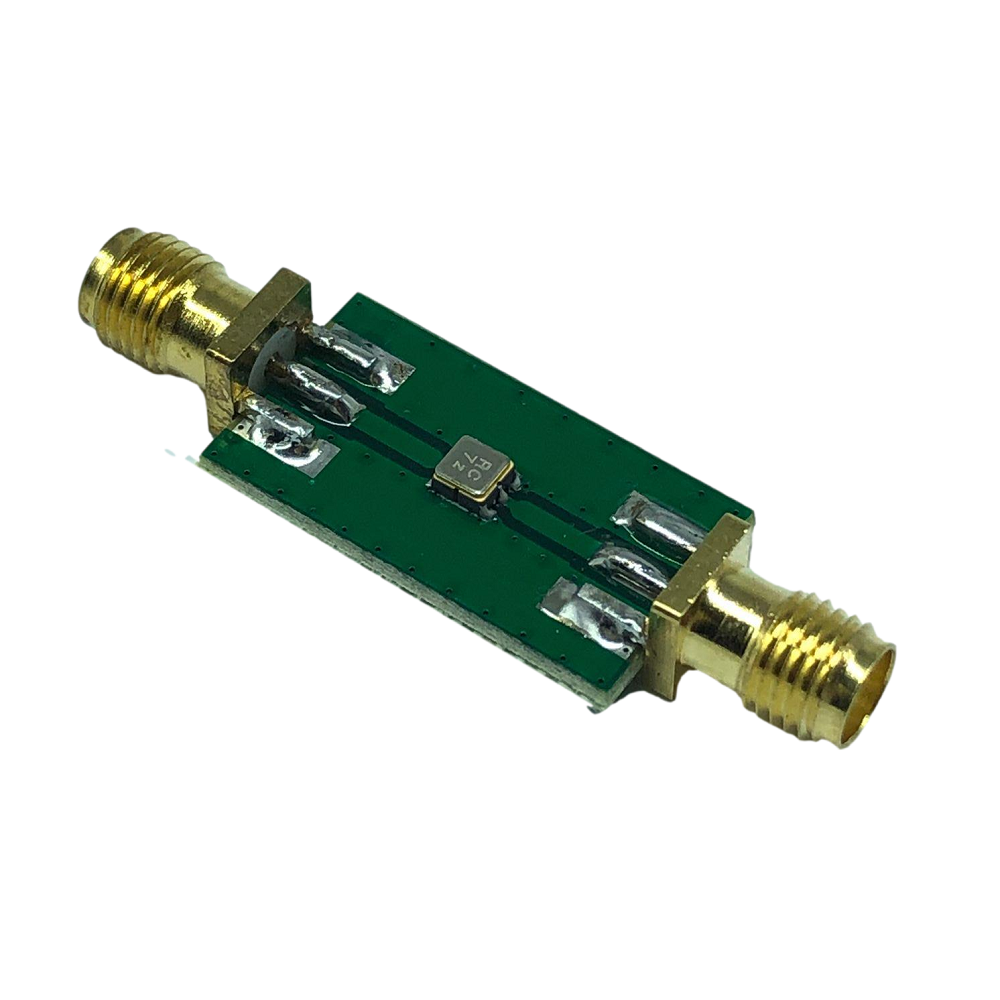

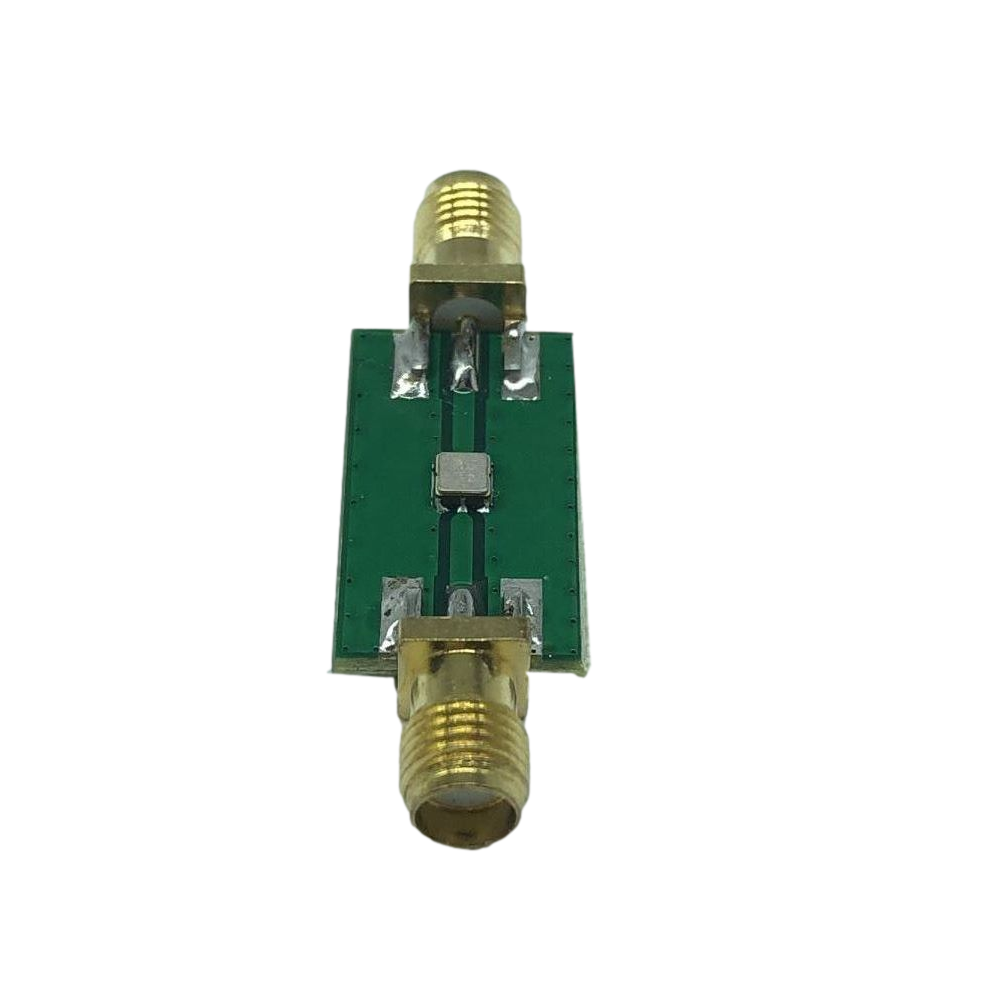

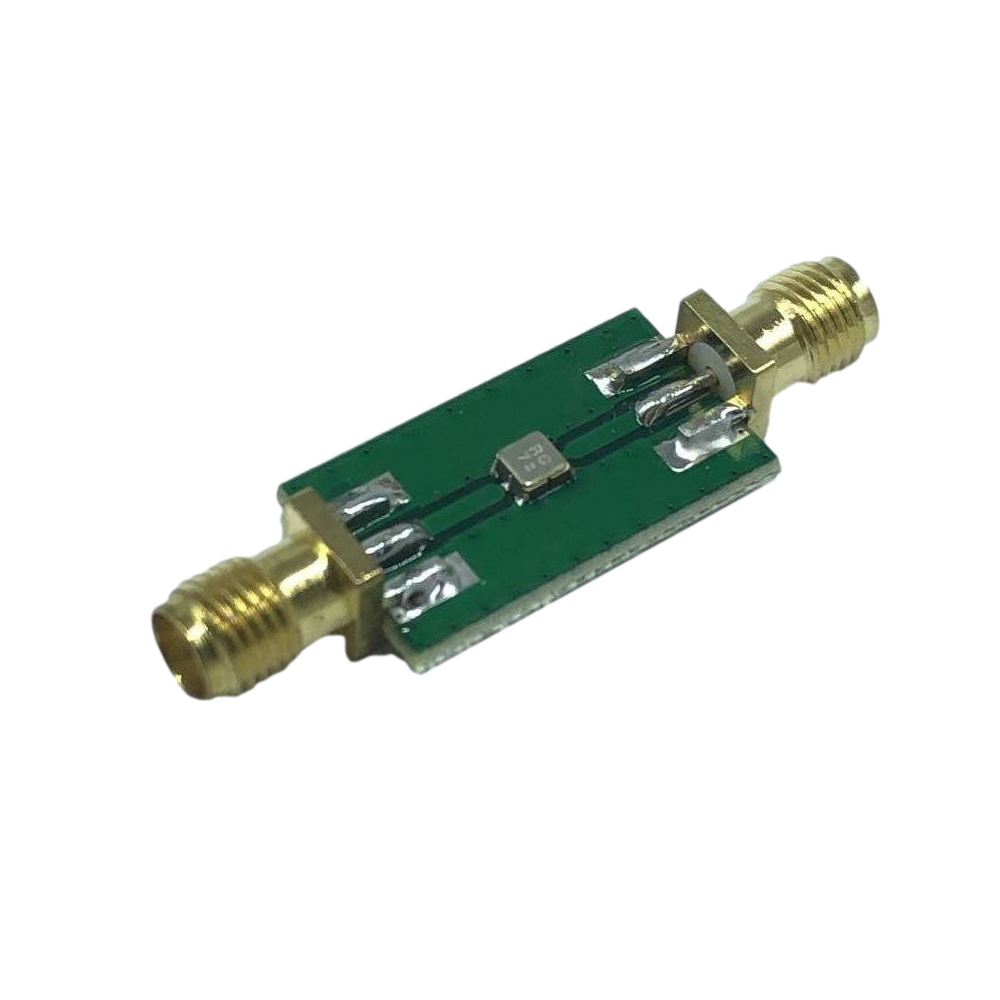

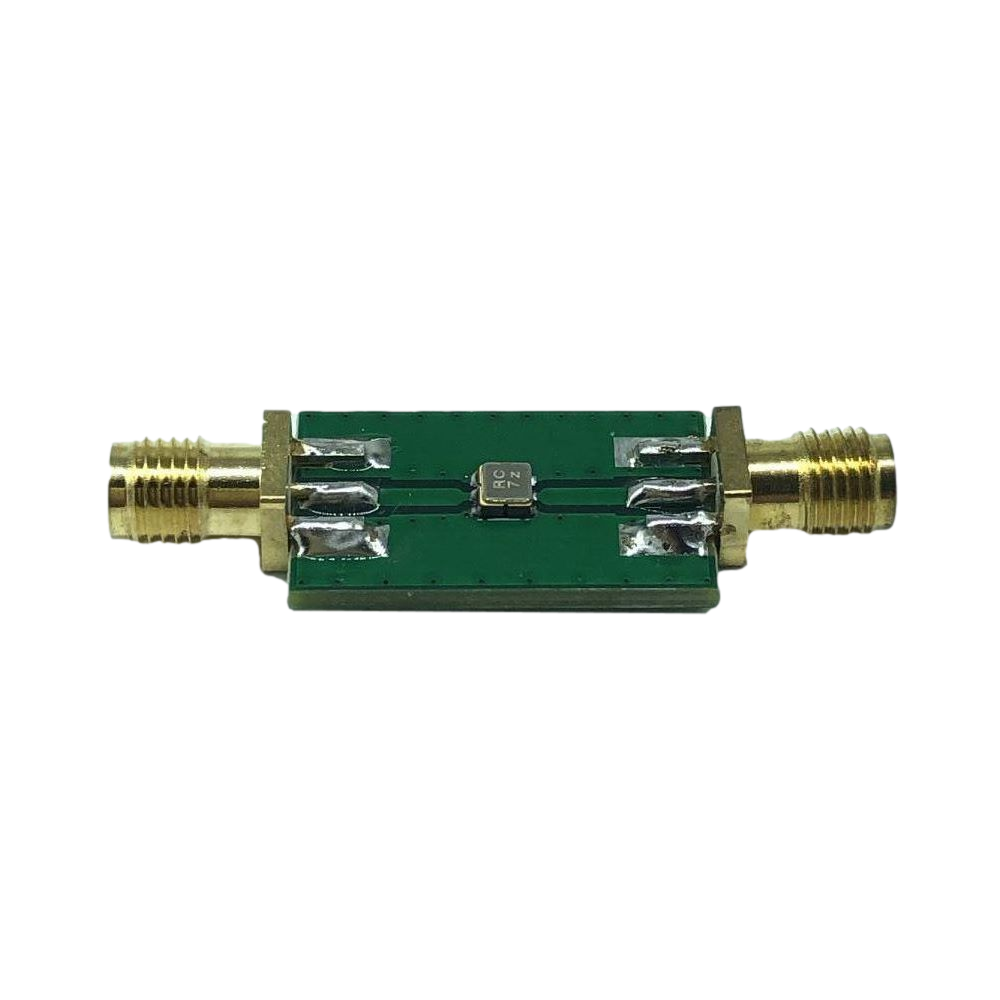

Beidou 1268MHz 10dBm Band Pass Filter Module

Beidou 1268MHz 10dBm Band Pass Filter Module

$35.99 $30.99

Technical parameter:1) Center frequency: 1268MHz2) Working bandwidth: 20MHz3) Out-of-band suppression: >40db4) In-band fluctuation: <1.0dB5) Insertion loss: 1.7dB (typical value)6) Maximum power: 10dBm (10mW)7) Dimensions: 23*13mm (excluding connectors)8) Product weight: 4.5g9)...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description
Technical parameter:

1) Center frequency: 1268MHz
2) Working bandwidth: 20MHz
3) Out-of-band suppression: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical value)
6) Maximum power: 10dBm (10mW)
7) Dimensions: 23*13mm (excluding connectors)
8) Product weight: 4.5g
9) Applicable temperature: -40Ôäâ~70Ôäâ

Package included:

1 x Filter
