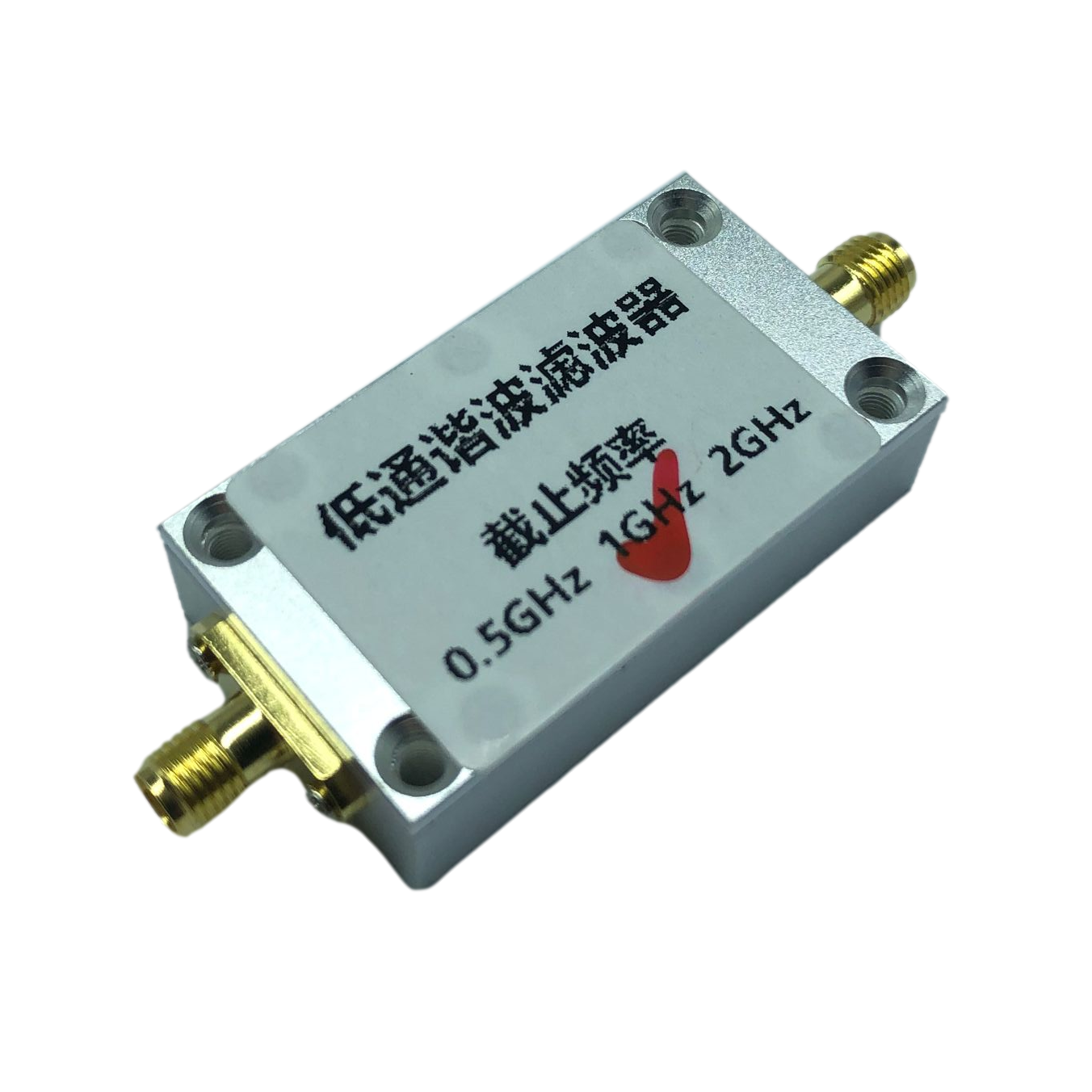

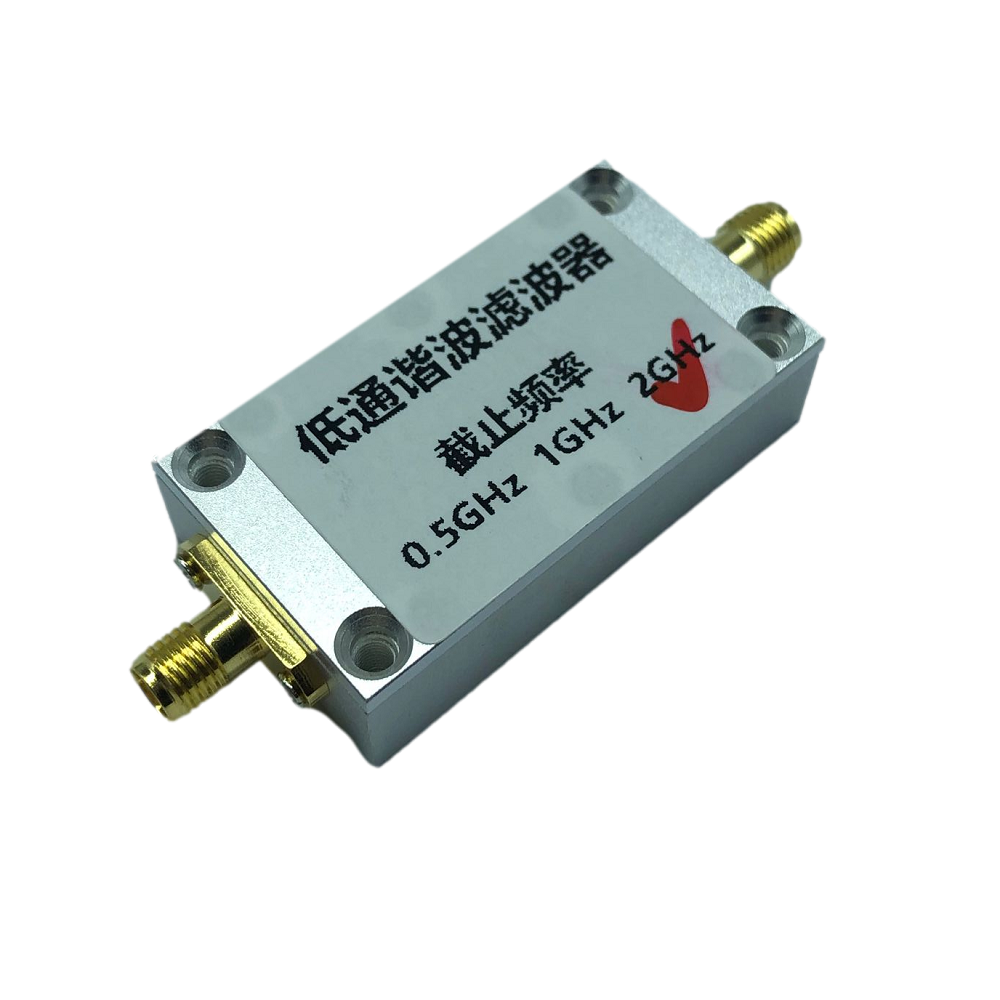

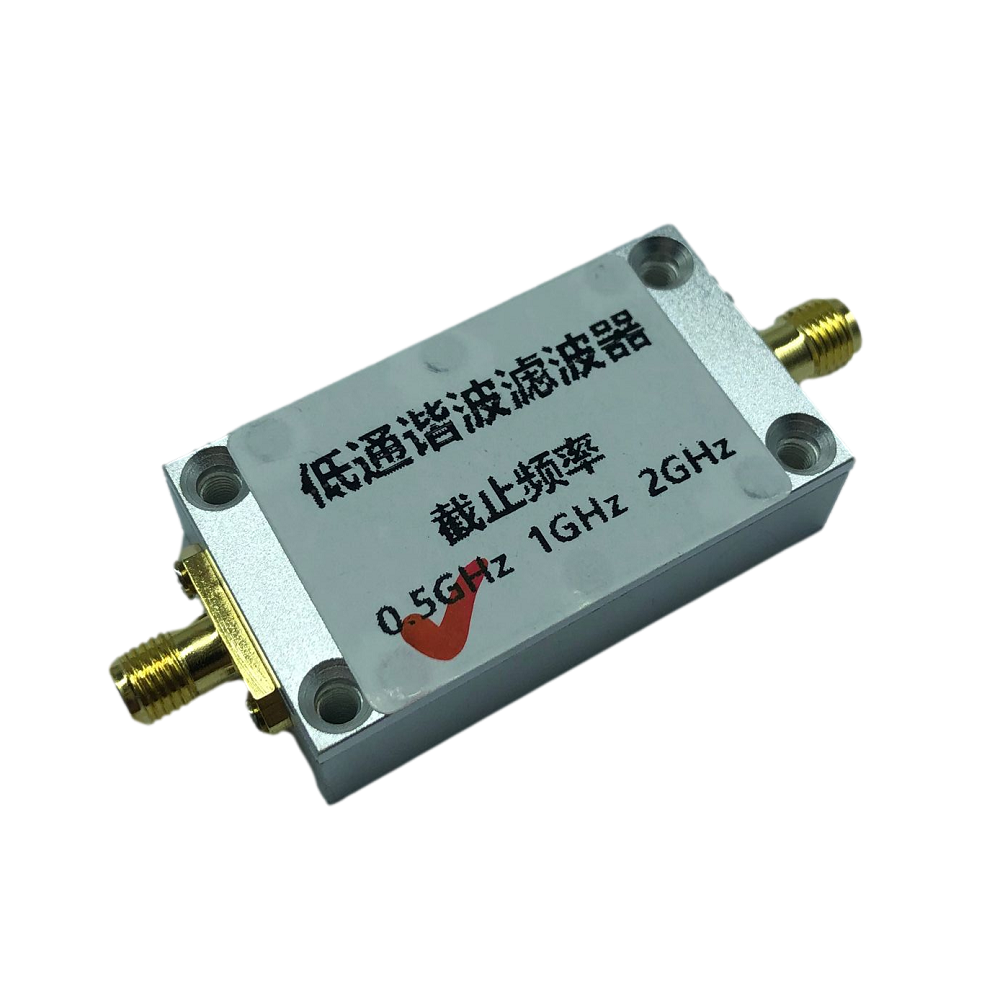

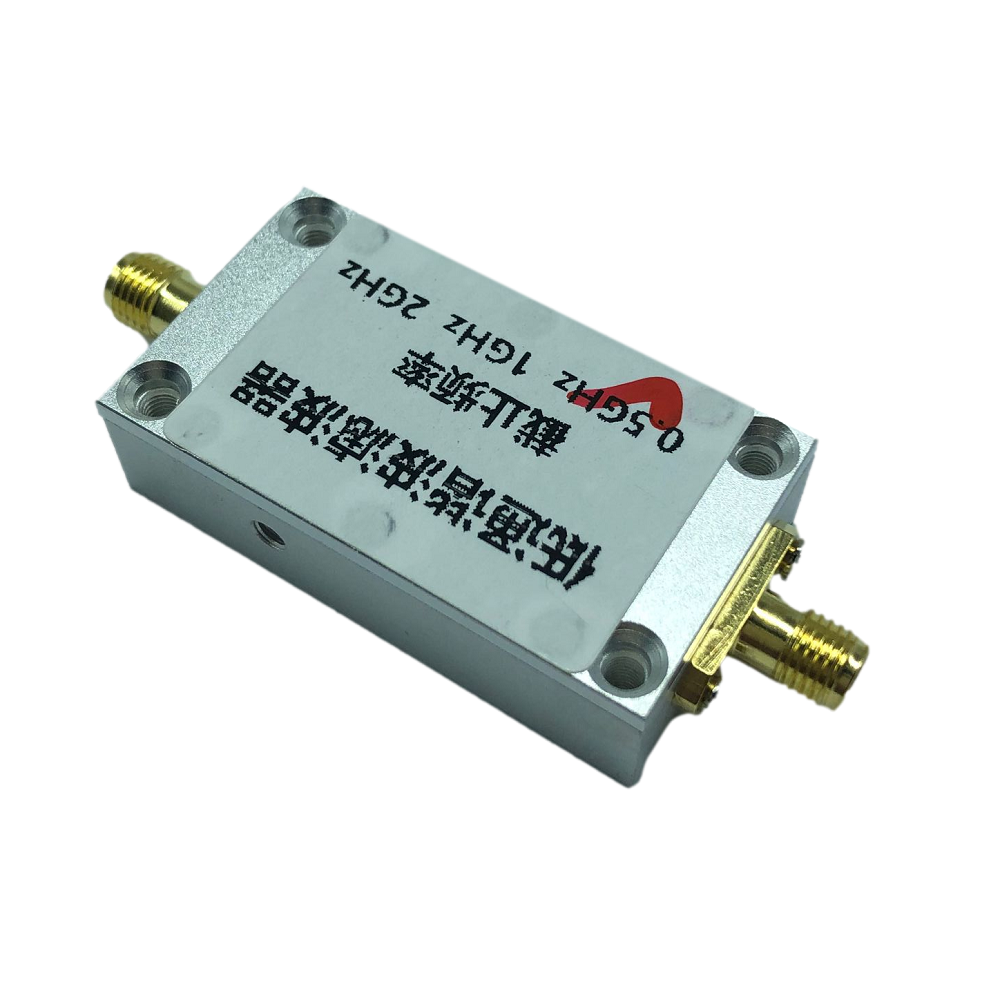

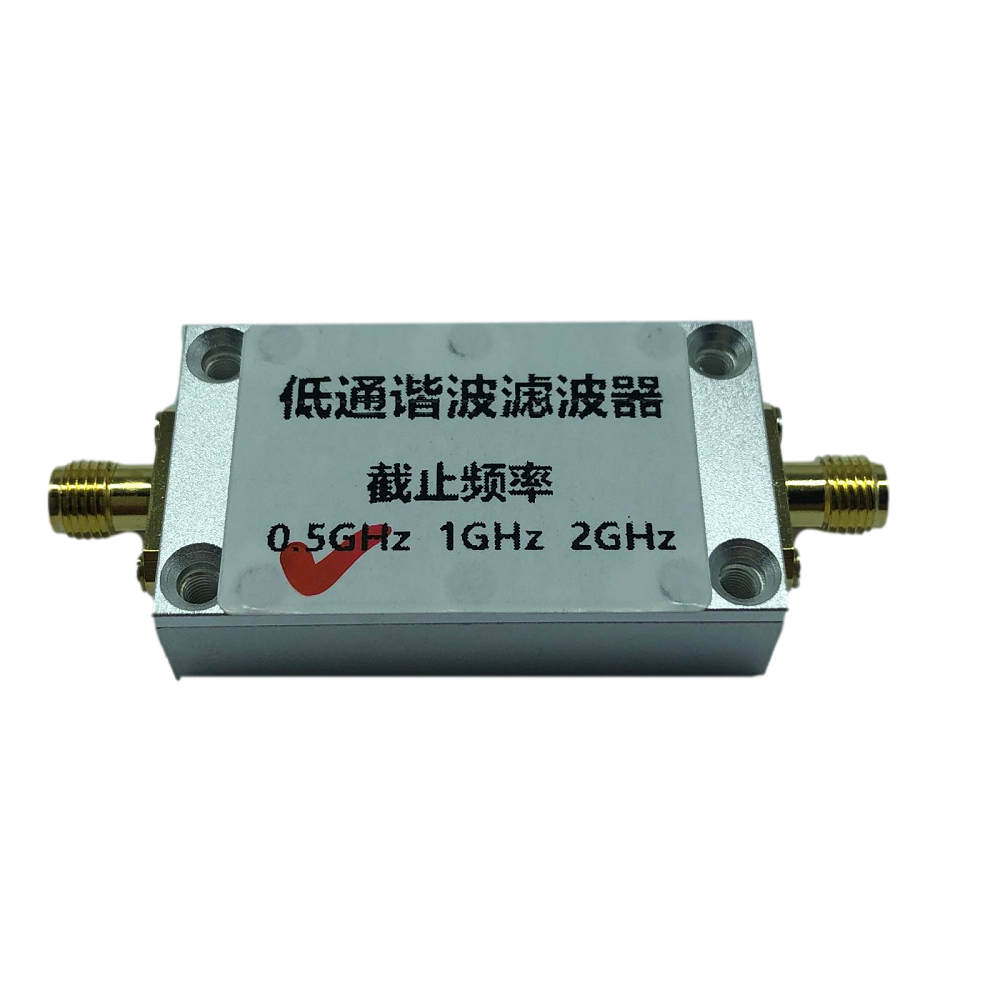

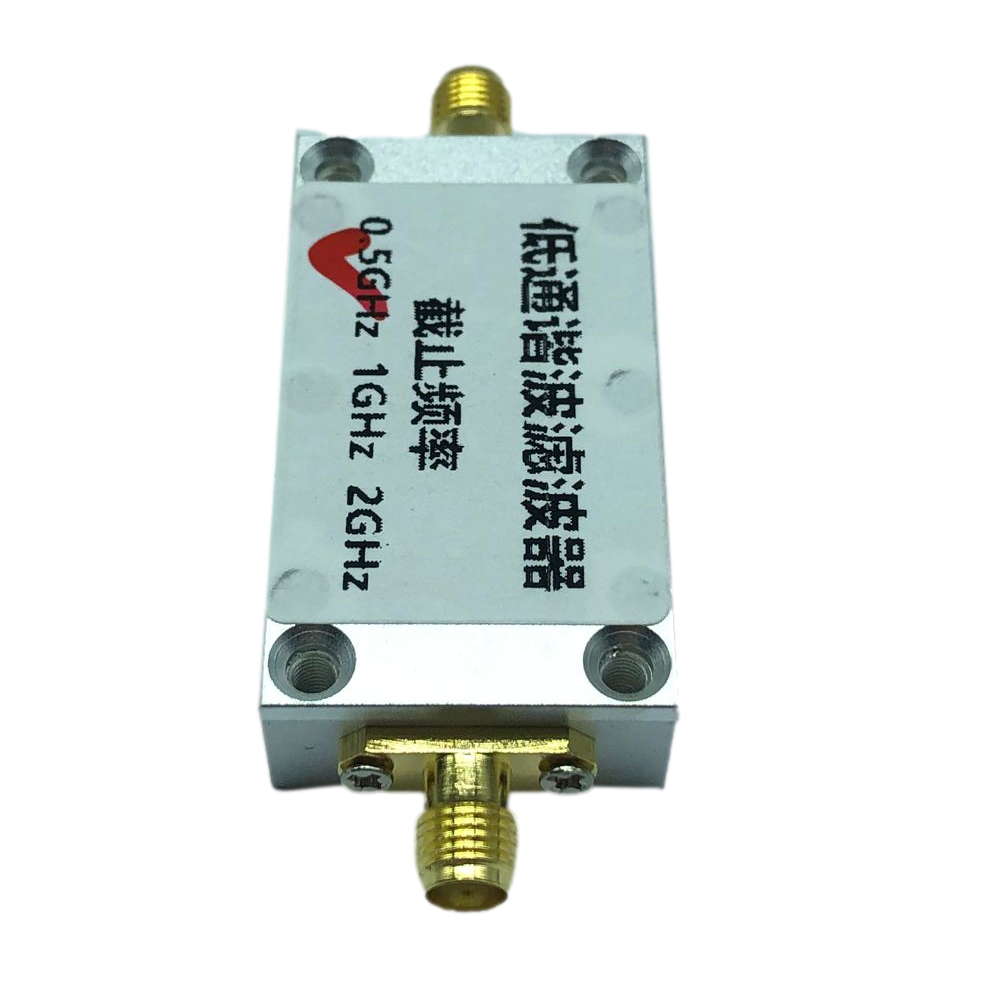

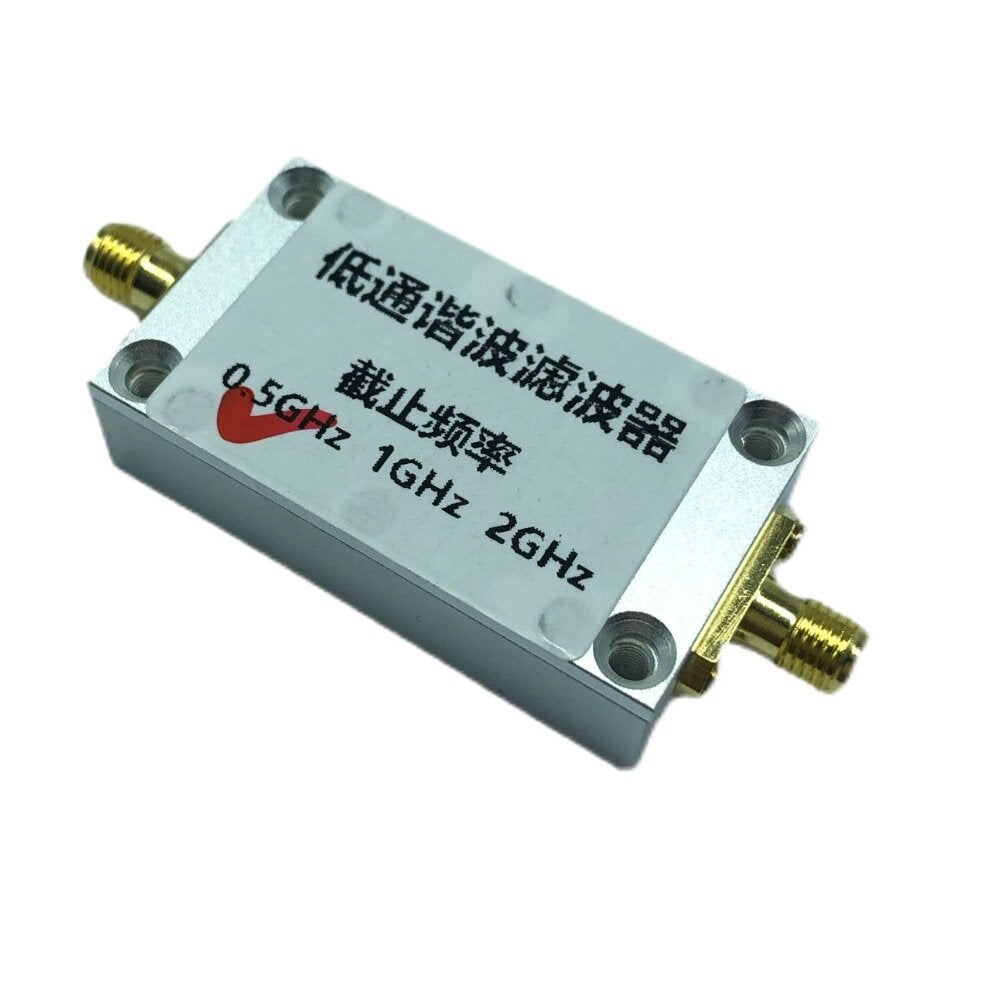

ADF4351 500MHz/1GHz/2GHz Phase-locked Loop Low-pass Harmonic Filter for 433MHZ 915MHz RFID Suppresses Harmonics
Specification:Frequency: 500MHz/1GHz/2GHz(optional)Input and output interface: SMA (2 heads are outer spiral inner hole)Input and output impedance: 50 ohmsS21 parameters, refer to the measured curve for detailsMaximum withstand power: Ôëñ10WUsing CNC...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specification:
Frequency: 500MHz/1GHz/2GHz(optional)
Input and output interface: SMA (2 heads are outer spiral inner hole)
Input and output impedance: 50 ohms
S21 parameters, refer to the measured curve for details
Maximum withstand power: Ôëñ10W
Using CNC aluminum alloy shell, performance indicators are far better than other products that use PCB bare board processing
It can be applied to: 433MHZ 915 MHz medium and low power RFID transceiver system to strongly suppress the second, third, and clutter frequency signals; it can also be applied to the low-frequency signal output of phase-locked loops such as ADF4350 ADF4351A to suppress harmonics.
Size: 45 x 25 x 12mm (length x width x height), without protruding SMA part, protruding SMA length 10mm
Product weight: 31 g
Package included:
1 x low-pass harmonic filter
ADF4351 500MHz/1GHz/2GHz Phase-locked Loop Low-pass Harmonic Filter for 433MHZ 915MHz RFID Suppresses Harmonics
$40.56
