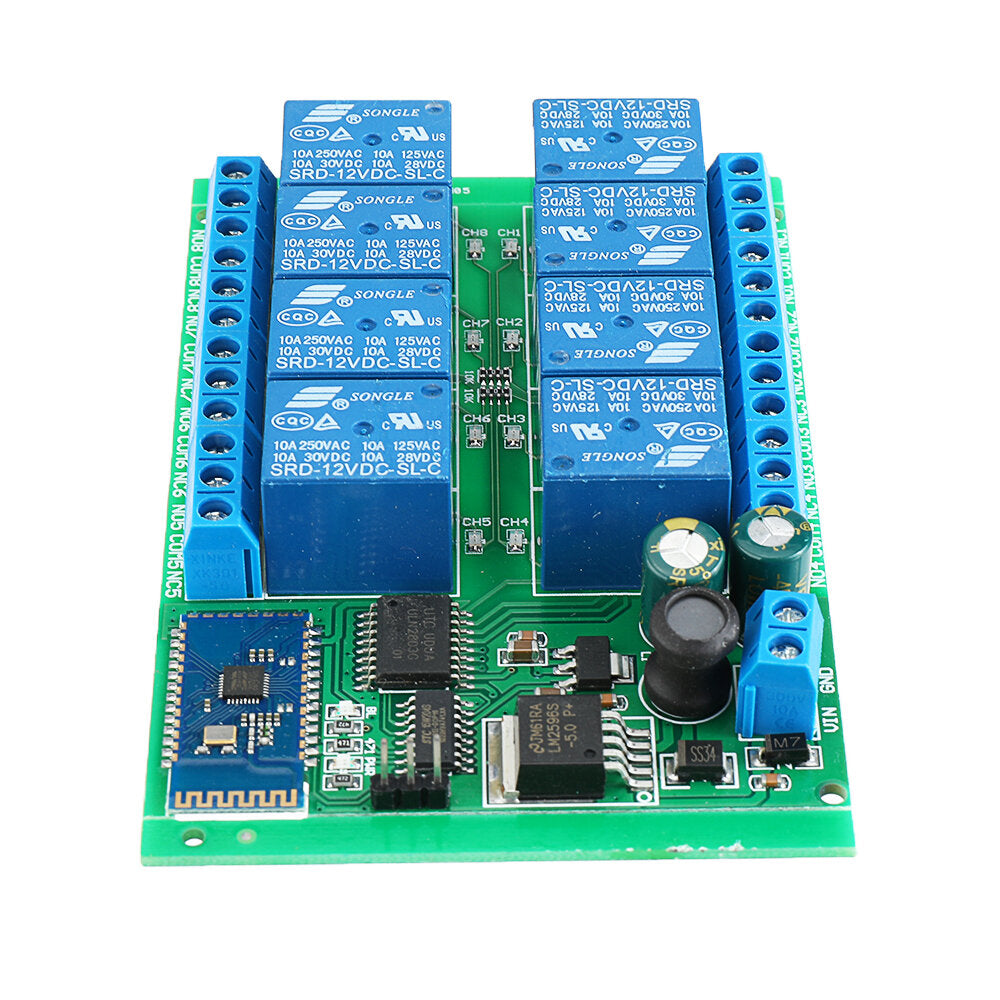

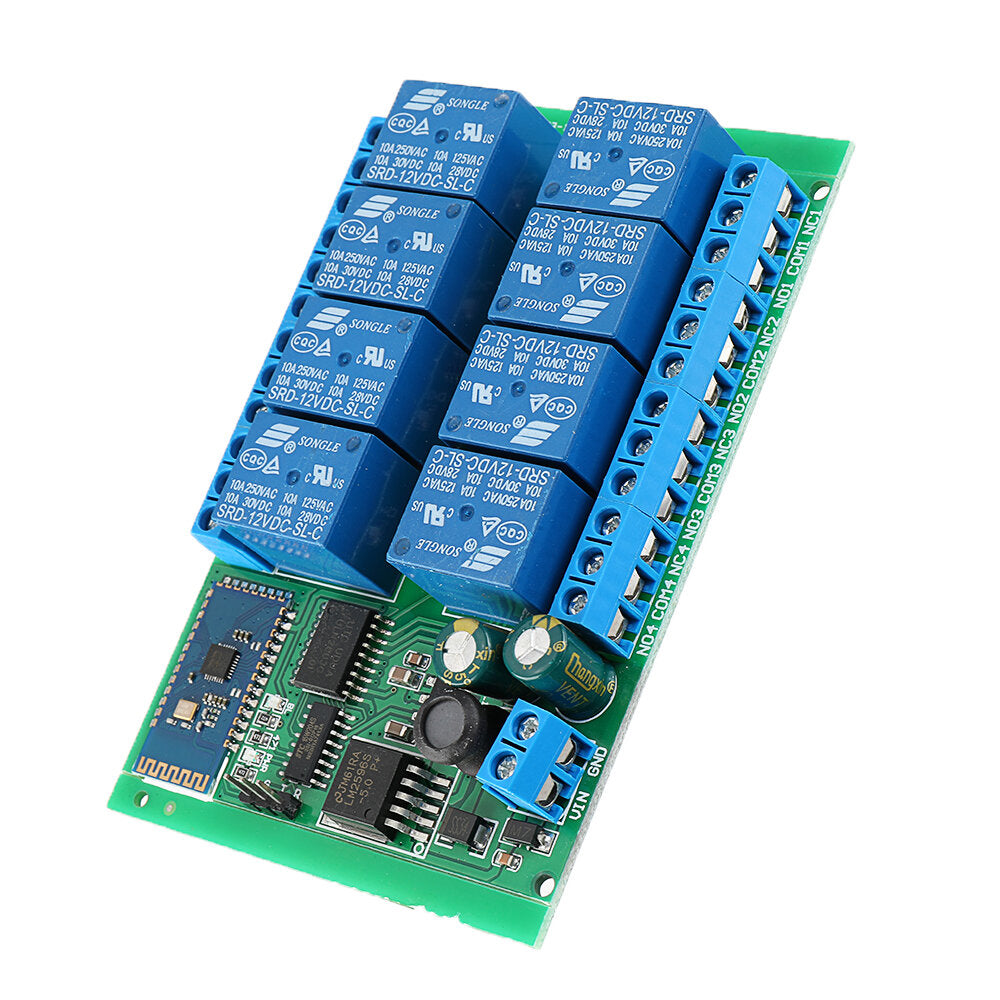

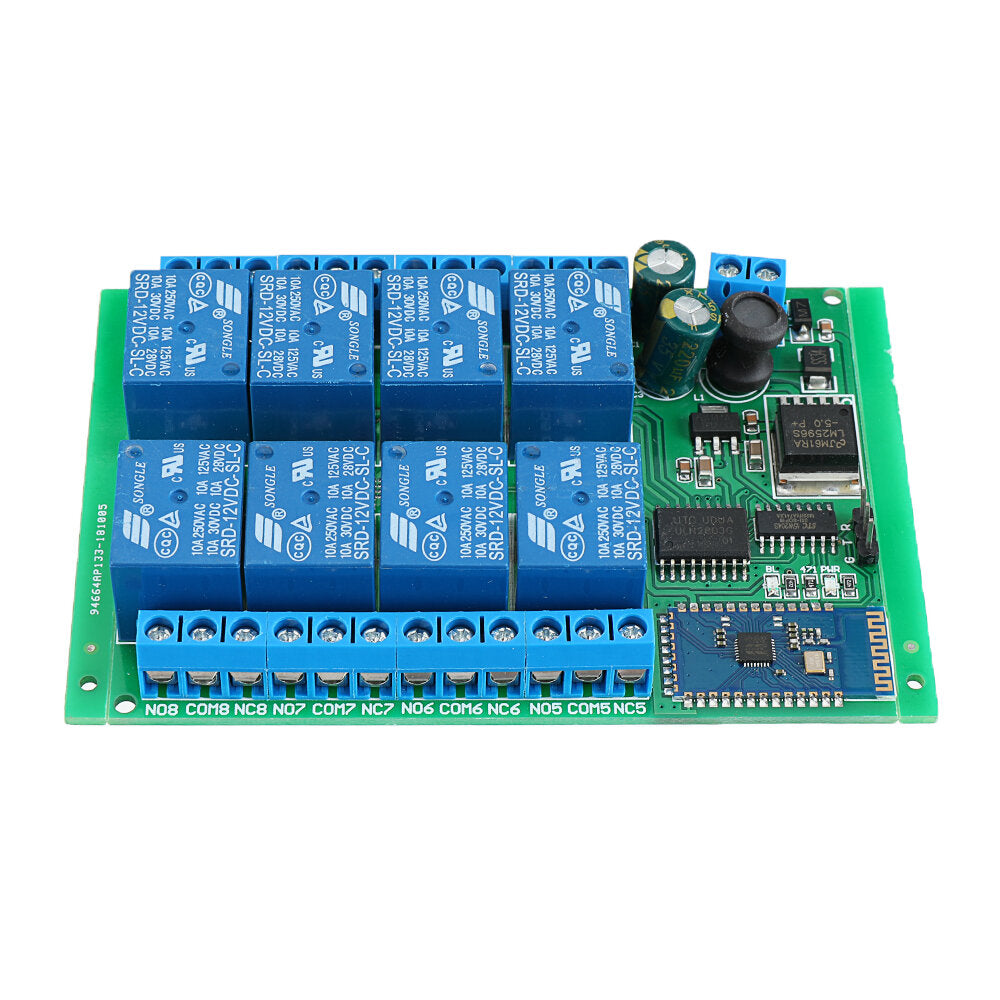

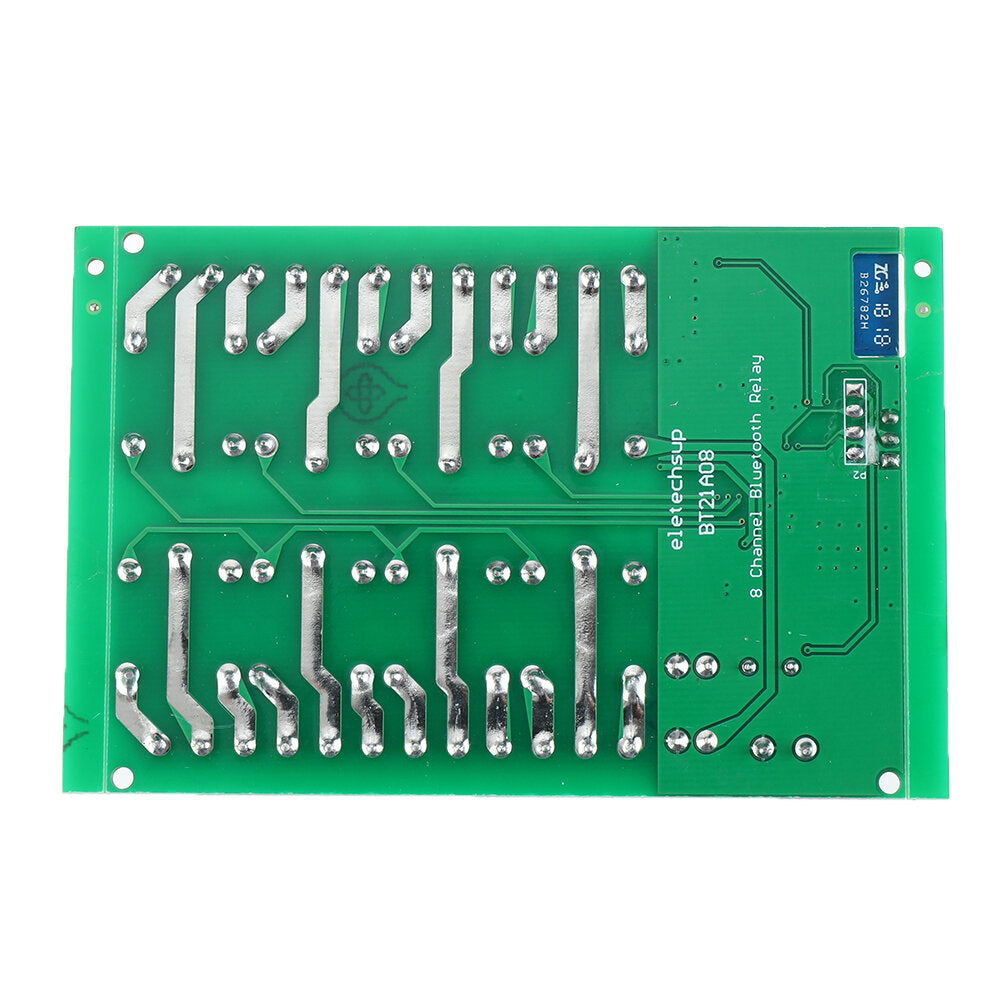

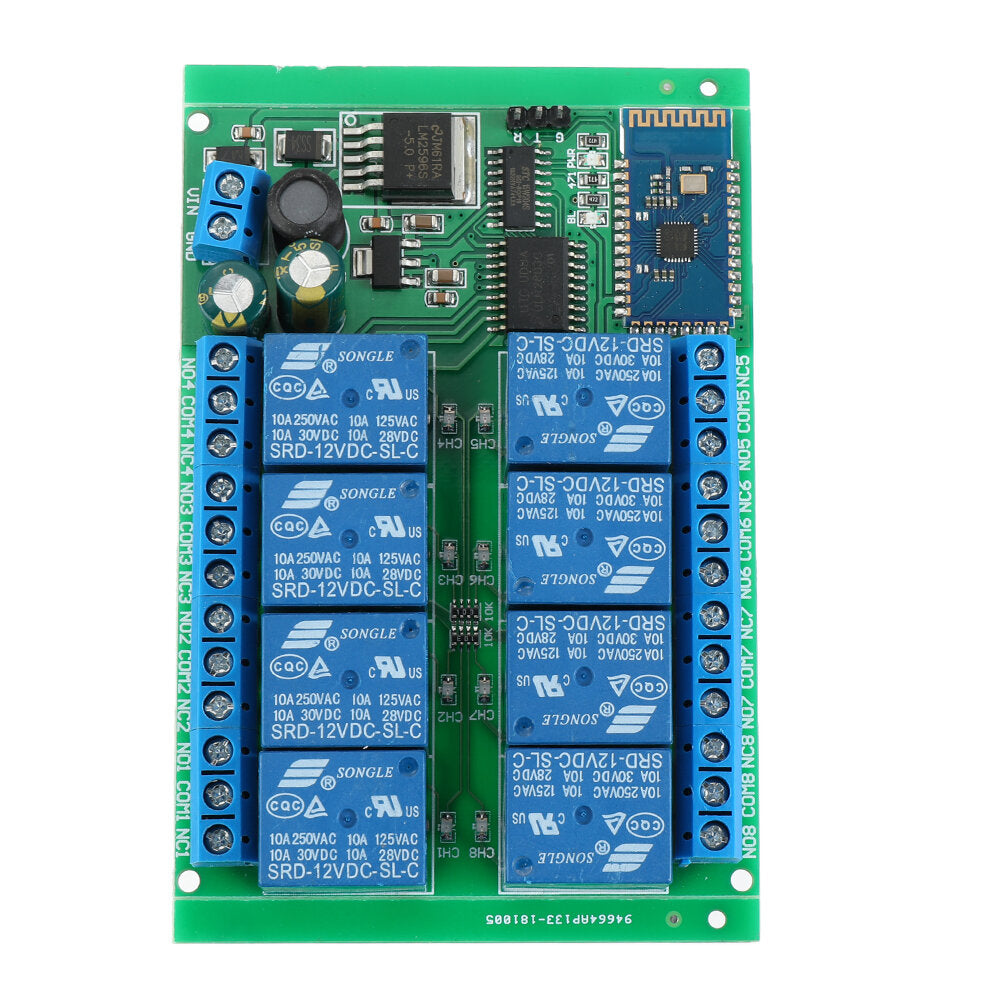

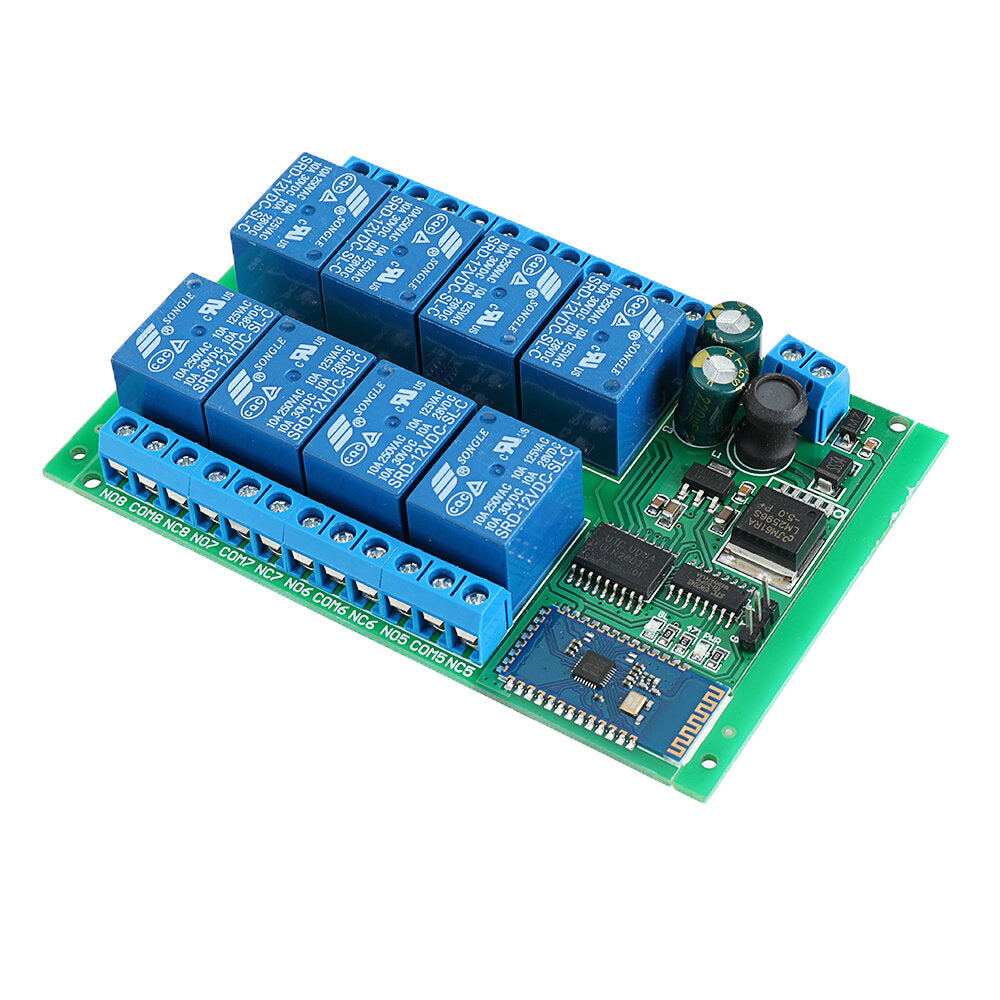

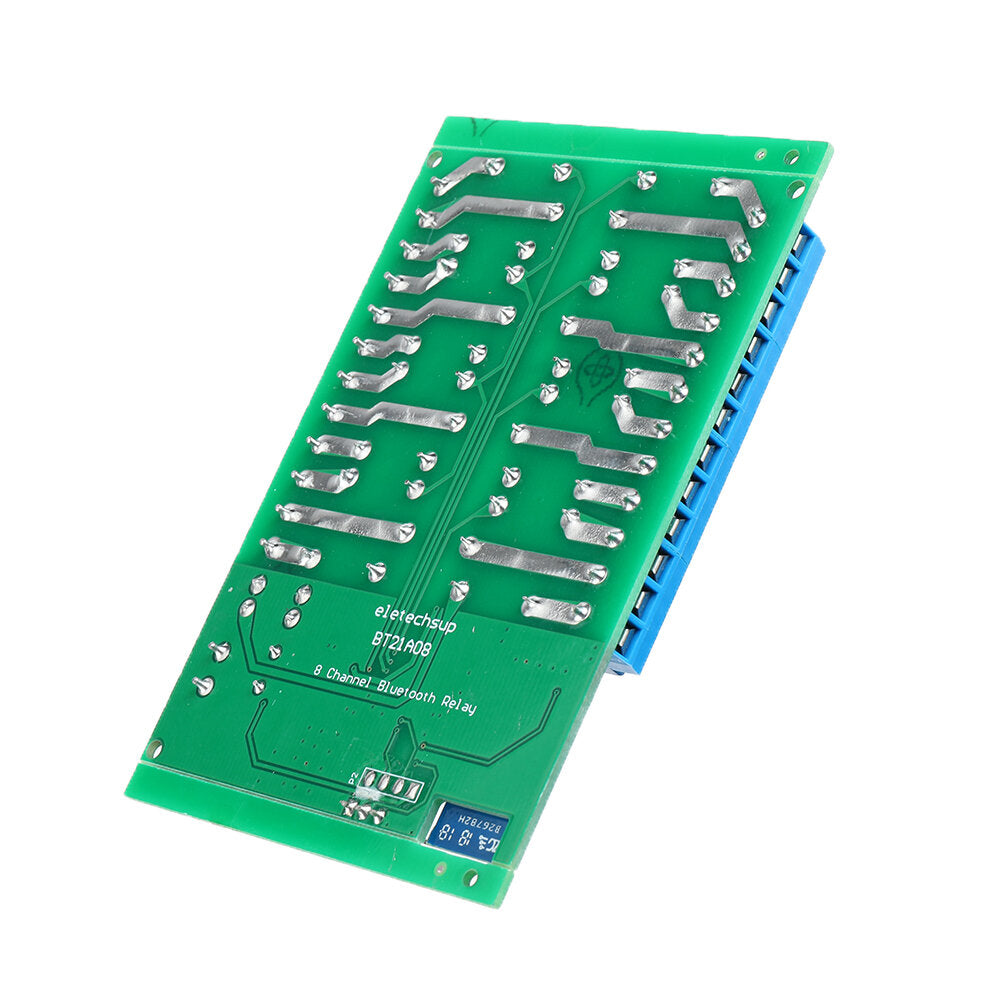

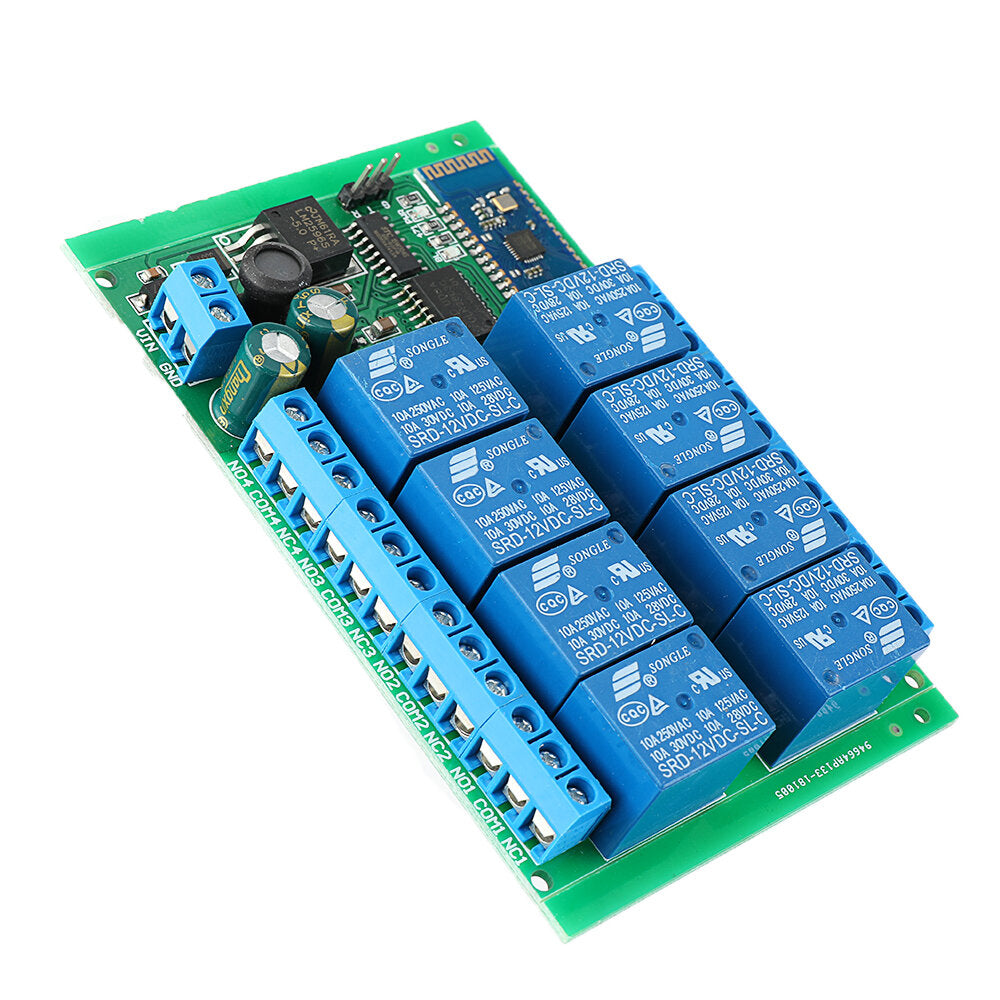

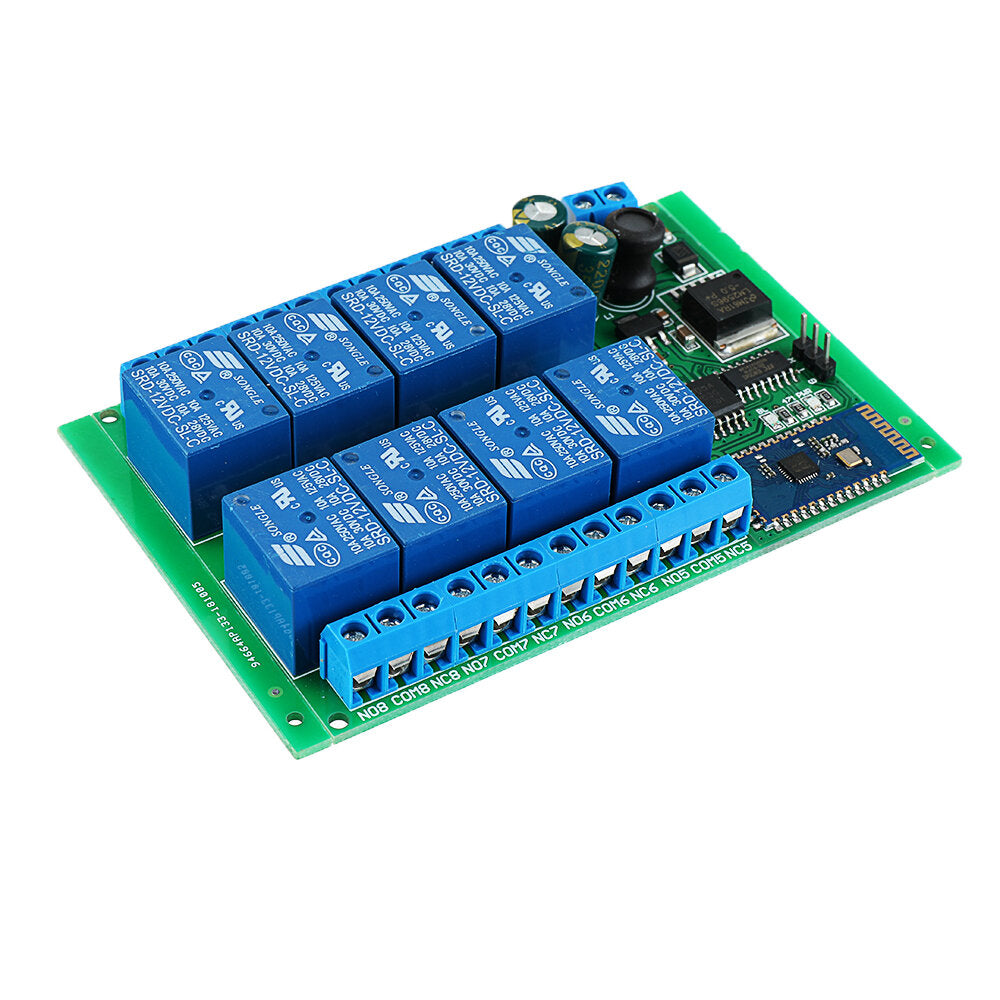

8 Channel Android Phone bluetooth Remote Control Relay Switch Module for Smart Home LED Lighting System DC 12V

8 Channel Android Phone bluetooth Remote Control Relay Switch Module for Smart Home LED Lighting System DC 12V

$36.99 $31.99

>>>Manual: Click here to open<<<Description:  - Operating voltage: DC 12V- Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description

- Operating voltage: DC 12V
- Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA,5 relays open 150MA,6 relays open 177MA,7 relays open 203MA,8 relays open 229MA.
- Ssend commands via  Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending  commands to control)
- "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands
- You can modify the Bluetooth name and PIN(Access Password) use " UST to TTL232"

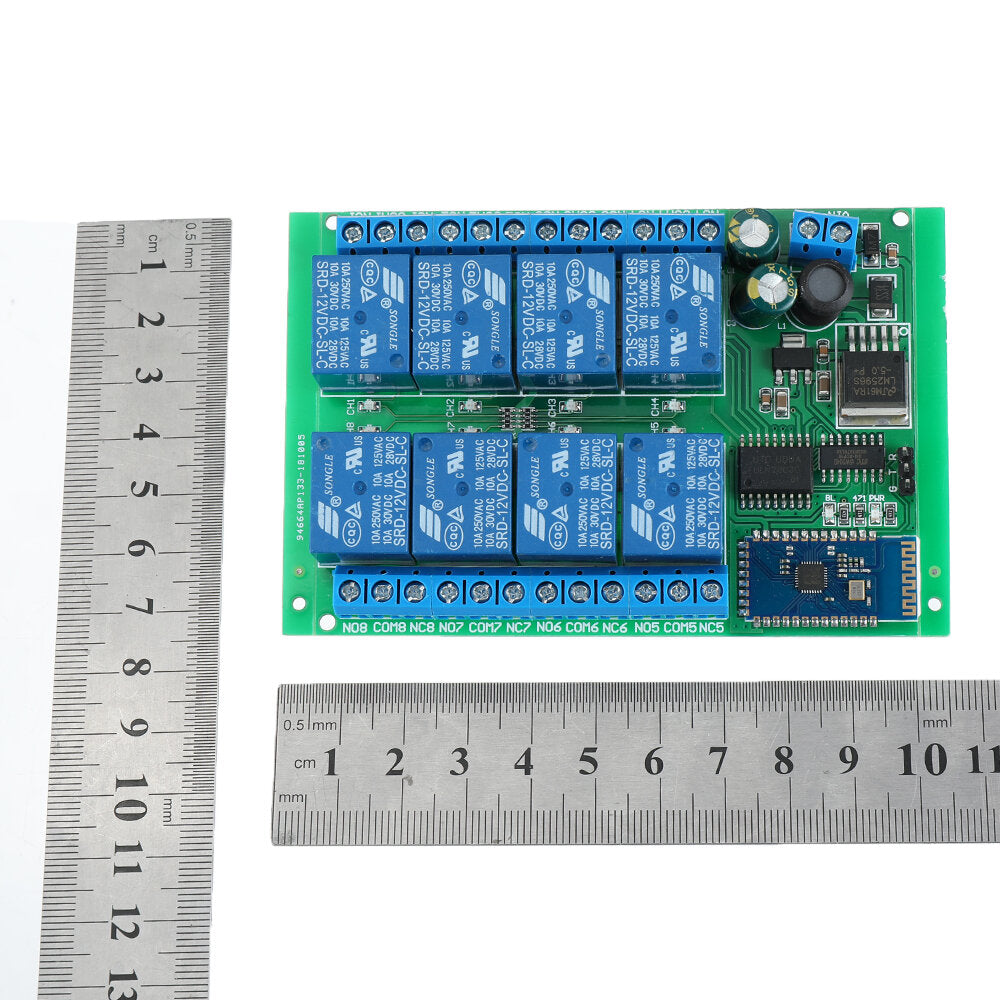

- Size:  96 x 68 x 19 mm

Typical Applications:

Home lighting system
Remote control switch
Remote locking
Garage door remote control
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
AC DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control
Access Control System
Security Monitoring

Wiring diagram:

1. DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and  other DC 12V equipment



2. DC 1-110V OR AC 85-265V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC AC equipment




Note:

Only for Android OS, does not support the Apple OS

Package Inlcuded:

 1 x DC 12V 8 Channel  Android bluetooth Relay Module
