433MHz Voice APP Remote Control Switch Relay Smart Switch 10A Smart ON-OFF Device
Specsification: Remote relay receiver:- IEEE: 802.15.4MAC/PHY- 433mhz, AC90-250V ,50/60Hz.- Load power: MAX 10A- Switch size: 89*51*26 (mm)- Encrypted connection, no signal interferences between switches- Can be paird to 20 remote control...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specsification:

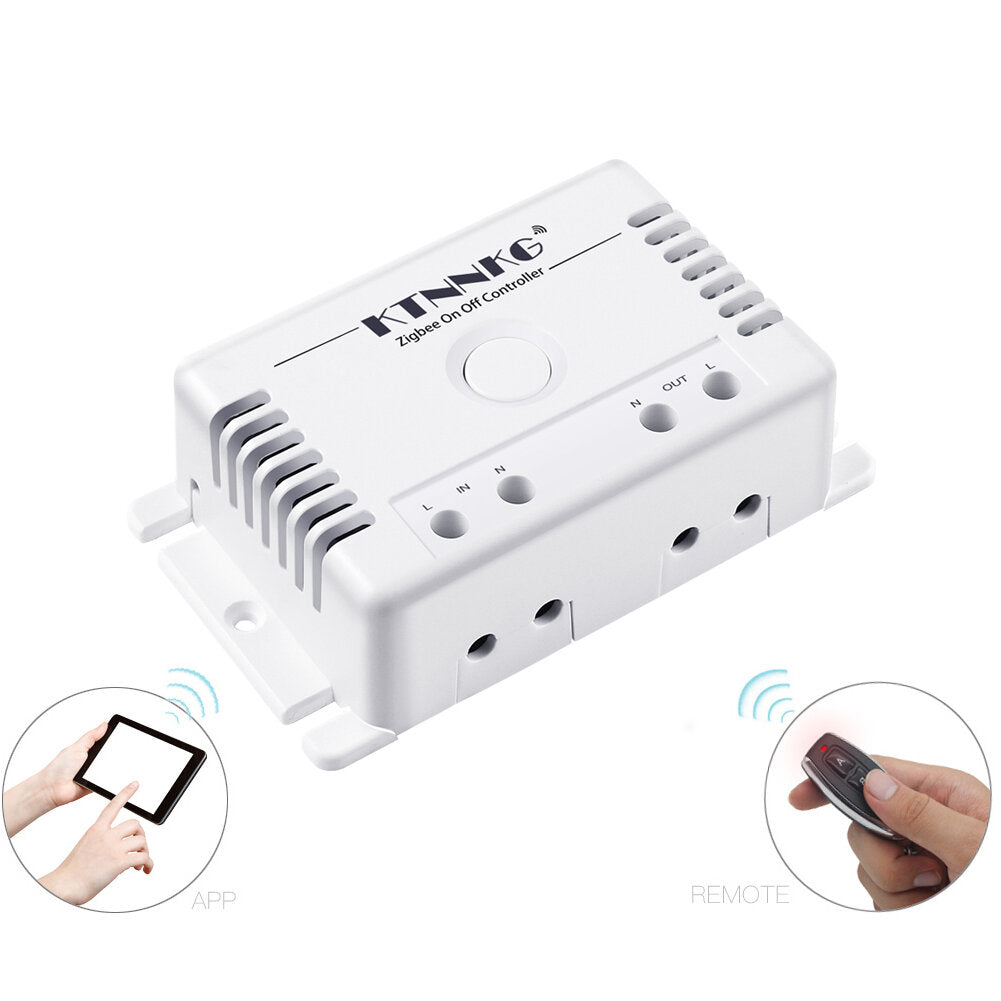

Remote relay receiver:
- IEEE: 802.15.4MAC/PHY
- 433mhz, AC90-250V ,50/60Hz.
- Load power: MAX 10A
- Switch size: 89*51*26 (mm)
- Encrypted connection, no signal interferences between switches
- Can be paird to 20 remote control max at the same time
Notice: The switch can cut off the 'L' and 'N' lines at the same time, which is safer and completely solves the influence of the return current on the device.
How to connect to ZigBe:
Notice: A compatible ZigBe Gateway is required if you want to use this switch by app. we do not supply gateway.
1. Power on your ZigBe Gateway,press and hold the pairing button for 5 seconds, light blink;
2. OpenÔÇ£TUYAÔÇØorÔÇ£SMART LIFEÔÇØapp, connect to 2.4G/4G network, find device, add your gateway when it is discovered.
Search TUYA ,Smart Life on store app
3. Power on the switch,green light on ,then press and hold pairing button for 8 seconds,green light blinks;
4. Enter into the gateway onÔÇ£TUYAÔÇØapp, pressÔÇ£+ÔÇØto add subdevice,add this switch when it is discovered;
5. Compatible with Smart speakers: Amazon Alexa or Google Home.
If your smart speaker is with ZigBe Gateway module inside,then no need extra gateway, you can control our ZigBe switch by your smart speaker directly. For example: ECH0 plus, ECH0 show 2nd´╝îECH0 studio;
How to set remote mode:
1. Power on the switch,green light on,
Find the remote pairing button aside;
2. Clean code ,clear all remote control data:
Press the remote pairing button 8 times to clean code if you want to reset mode(LED flash 3 times fast then off).
But no need to clean code if you add more remote
3. Setting Toggle Mode:
Press pairing button 2 times fast,red LED light on and flash slowly,press the remote control button,red LED flash 3 times then come off. Setting successfully.
(Press remote control button, the receiverÔÇÖs relay is ON,press button again,the receiverÔÇÖs relay is OFF)
4. Setting Latched Mode:
(Note:When you chooseÔÇ£Latched ModeÔÇØ,you need to setting two different buttons on the remote control,the first time learn is forÔÇ£ONÔÇØ,the second time learn forÔÇ£OFFÔÇØ.For example:button A=ON,button B=OFF)
Press the pairing button 3 times fast,red LED light on and flash slowly,then press the remote button A,red LED flash 3 times, then press the remote button B, red LED flash 3 times again ,and then come off,settingsuccessfully.
(Press remote button A,relay on,press remote button B,relay off)
1. Share Control:
The owner can share the devices to otherÔÇ£Smart LifeÔÇØaccounts.While sharing devices,both should stay online onÔÇ£Smart LifeÔÇØ.Because if the account you want to share is not online,he/she will not receiver the invitation message.

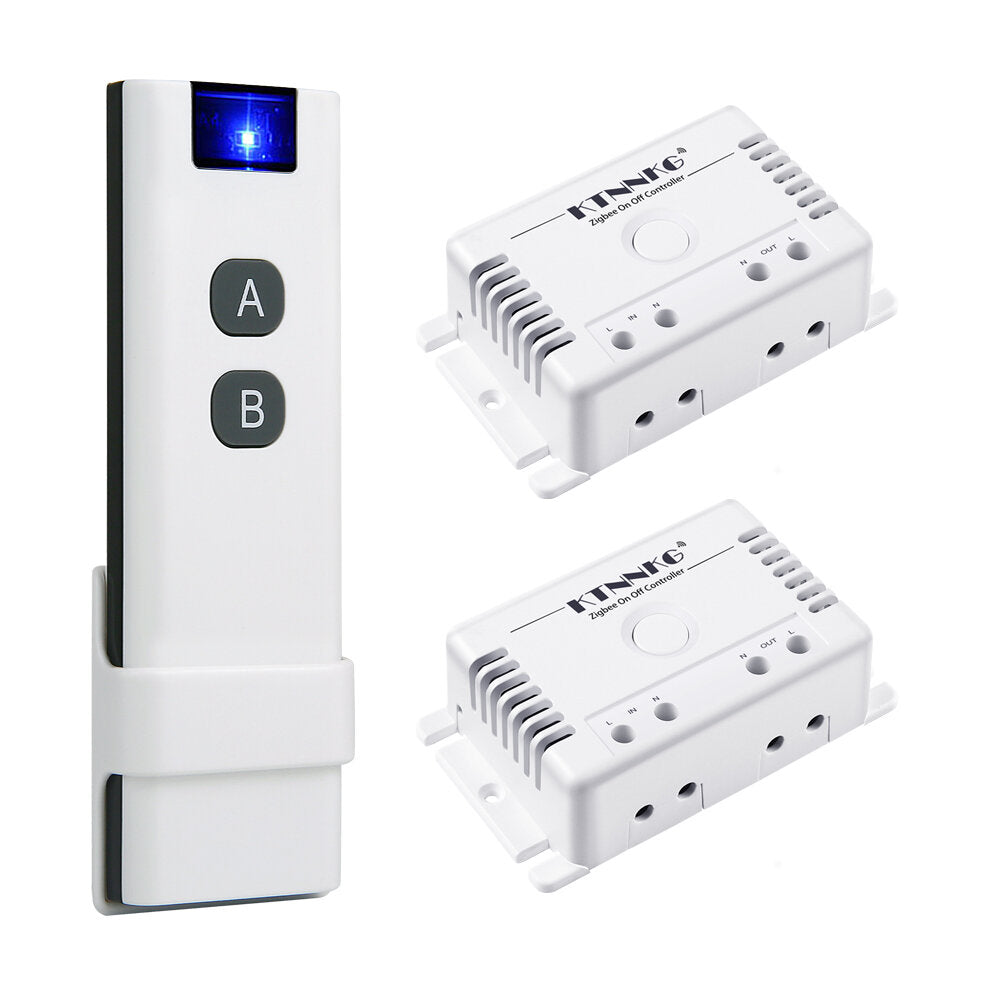

Package includes:

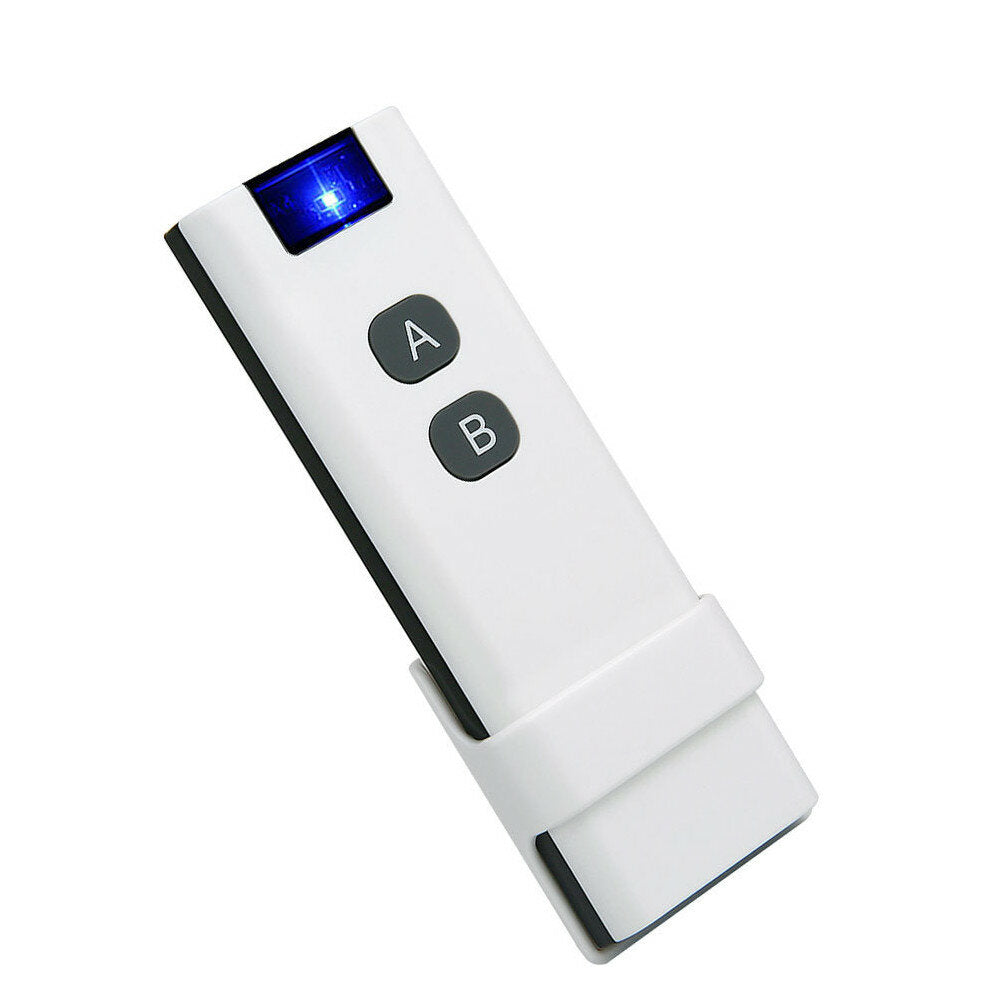

1 x Remote control
2 x Receiver
