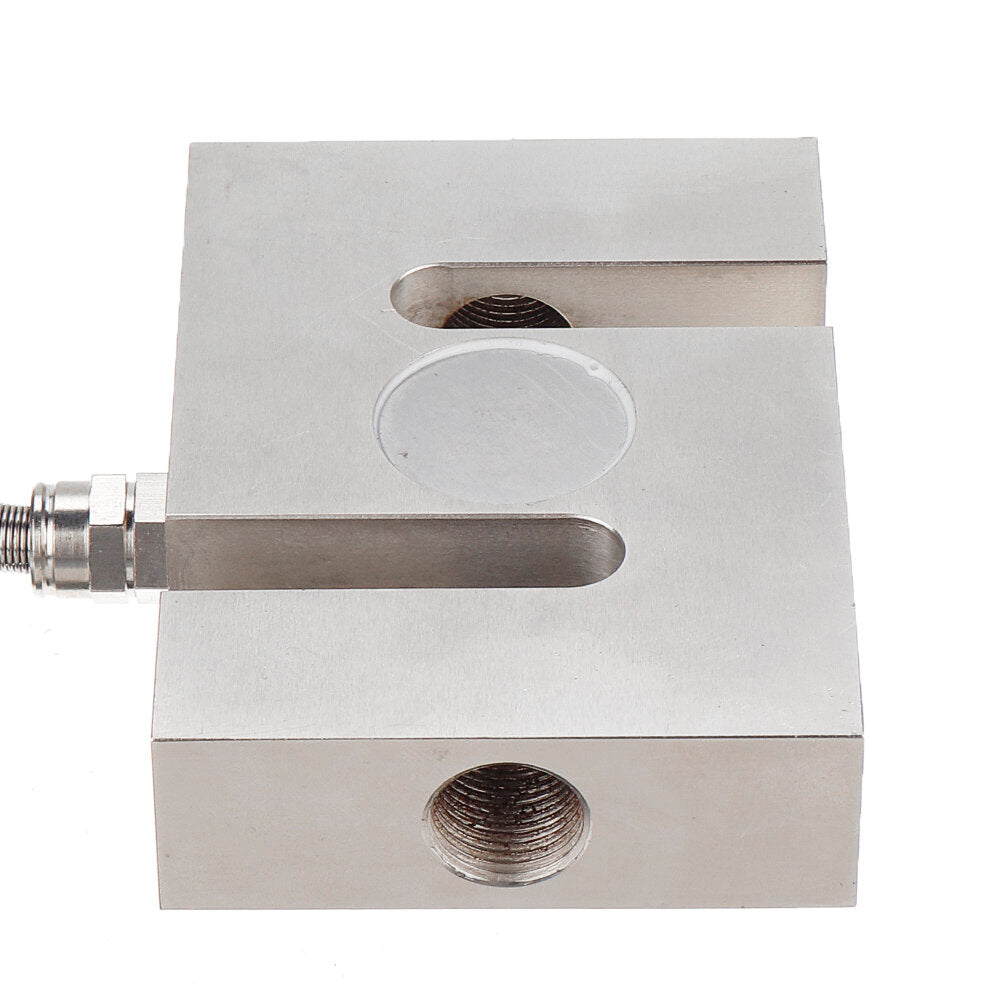

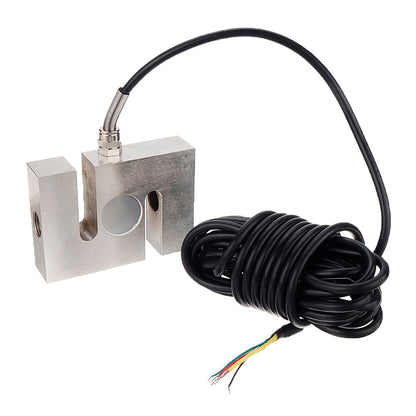

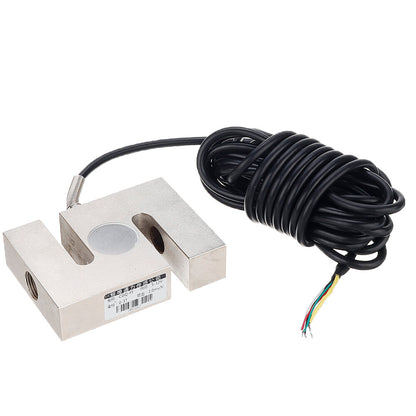

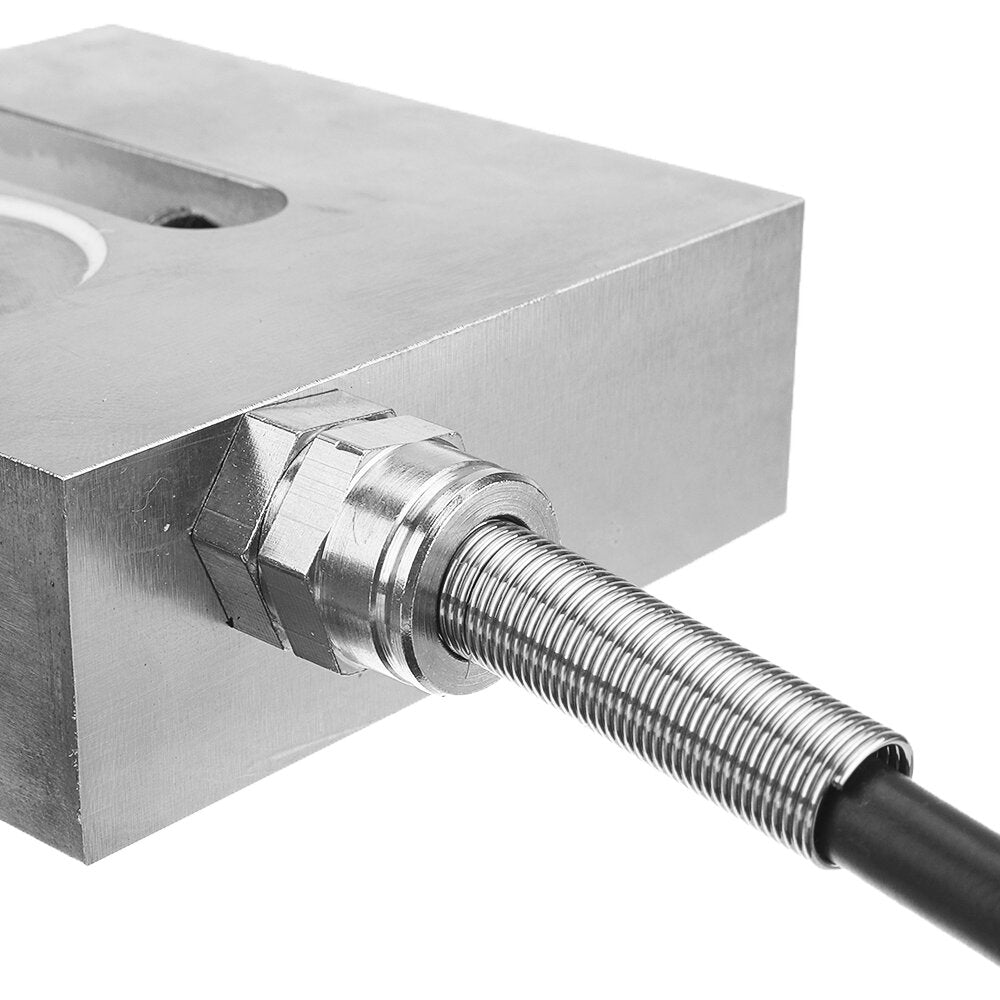

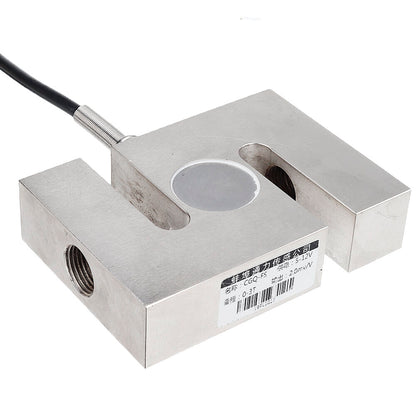

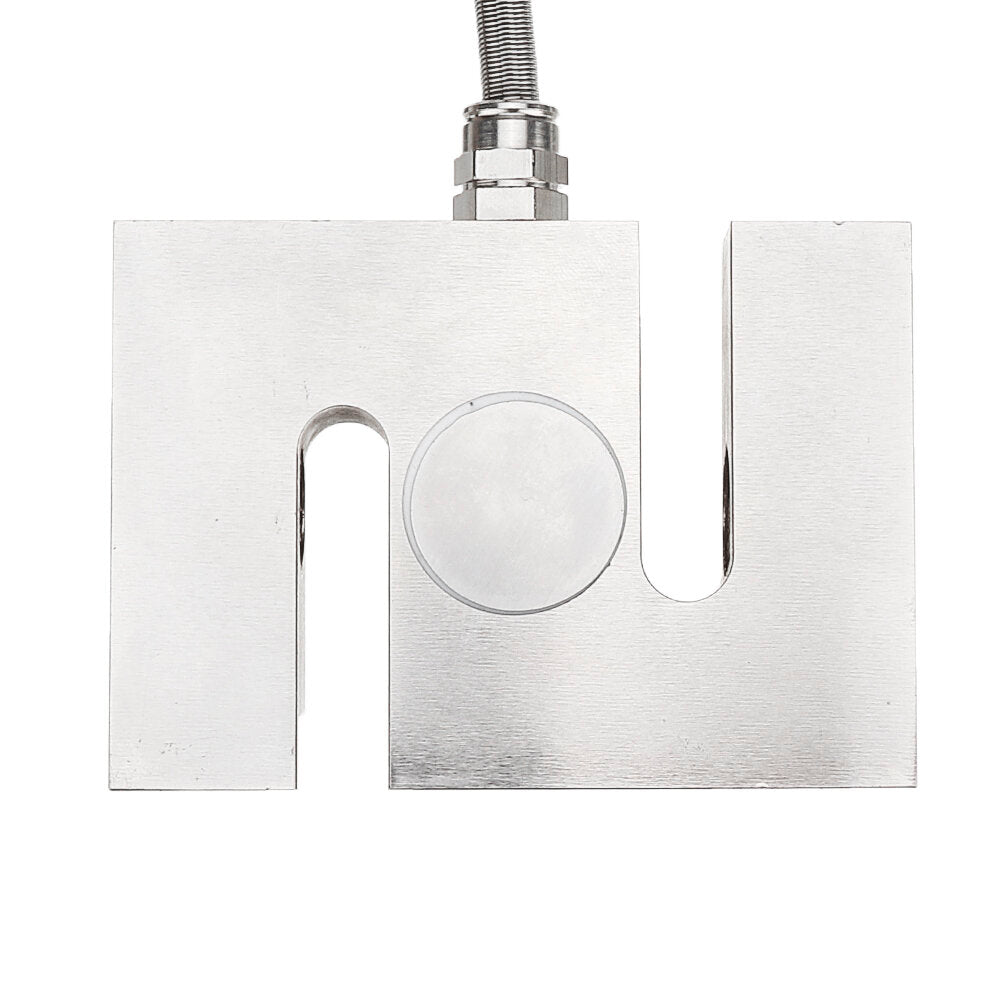

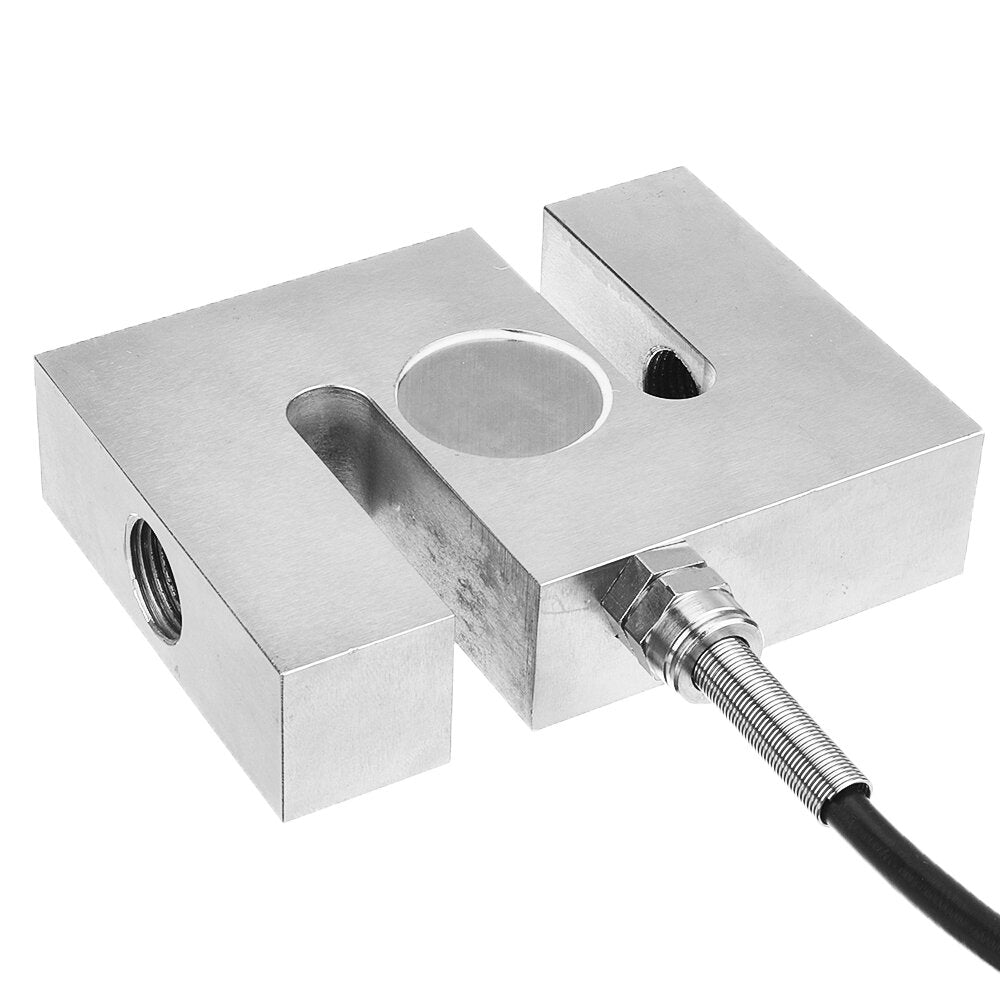

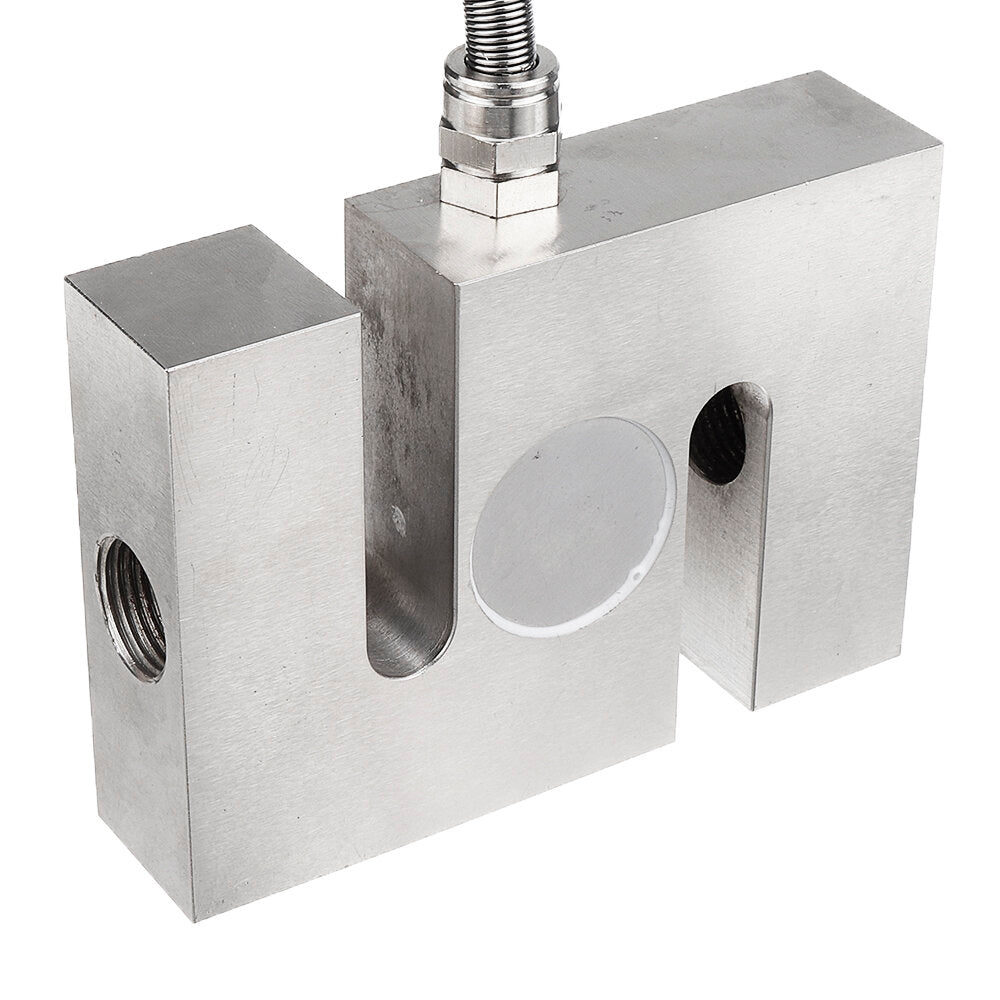

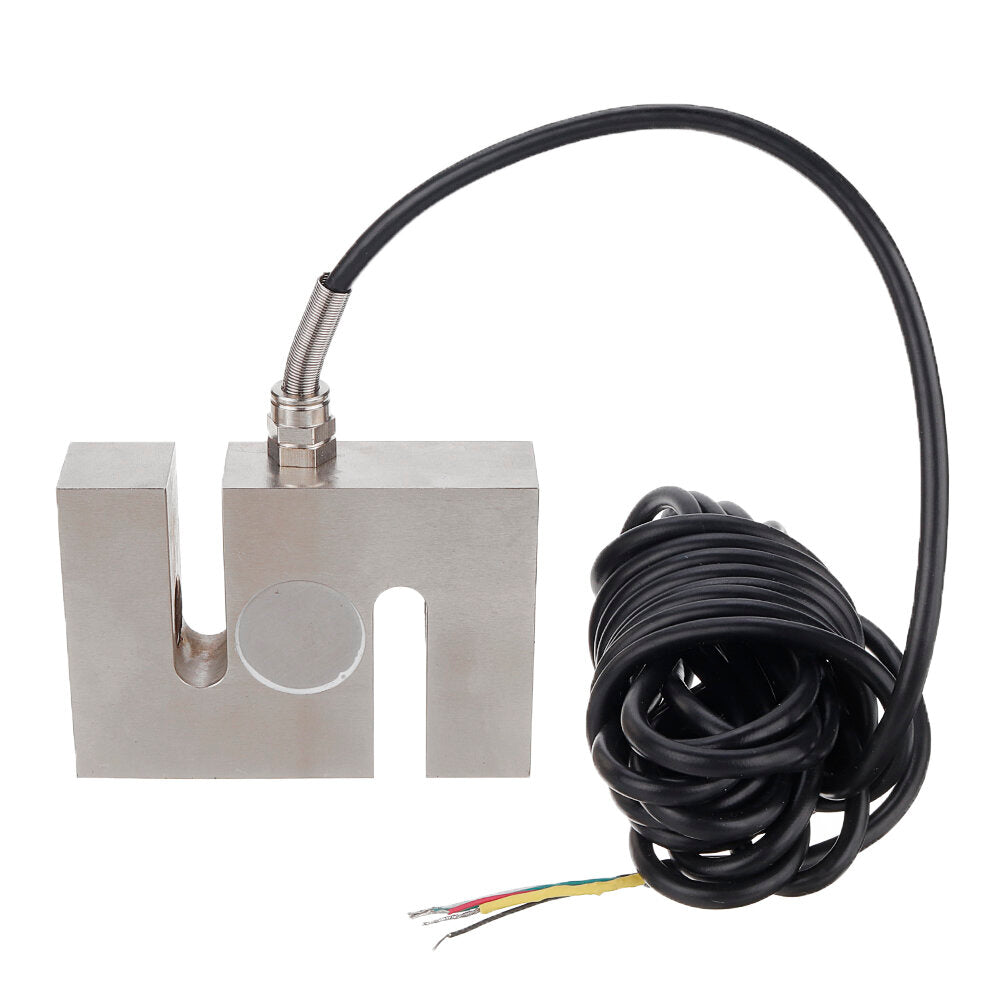

3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor

3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor

$109.99 USD

~~$159.55 USD~~ $109.99 USD

Sale Sold out

Taxes included.

Quantity

100 in stock

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Feature:

Range: 3T

Overall accuracy: 0.03% F ┬À S

Sensitivity: 2 ┬▒ 0.1 mV / V

Creep: ┬▒ 0.05% F ┬À S/30min

Nonlinear: ┬▒ 0.03% F ┬À S

Hysteresis error: ┬▒ 0.03% F ┬À S

Repeatability error: ┬▒ 0.02% F ┬À S

Zero temperature coefficient: ┬▒ 0.03% F ┬À S/10

Output temperature coefficient: ┬▒ 0.03% F ┬À S/10

Input impedance: 700 ┬▒ 15╬®

Output Impedance: 650 ┬▒ 15╬®

Insulation resistance: ÔëÑ 5000 M╬®

For the bridge voltage: Recommended 10 VDC (standard signal 12V 24V)

Operating temperature range:- 20 ~ +70

Safe overload: 150% F ┬À S

Sealing Rating: IP67

Material: Alloy steel (40CrNiMo)

Wiring Instructions:

Power Positive: Red Power Negative: green

Output Positive: Yellow Output Negative: white

Package includes:

1 x Weighing Sensor
