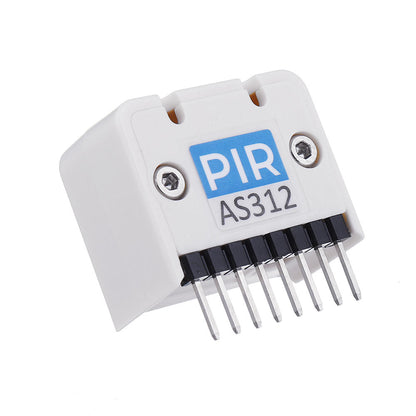

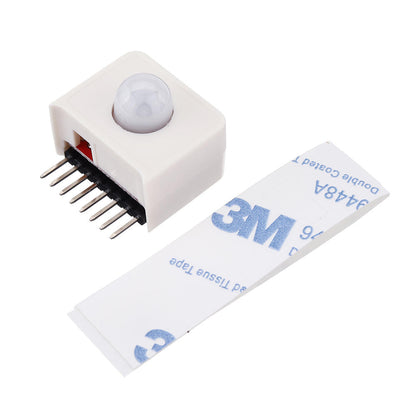

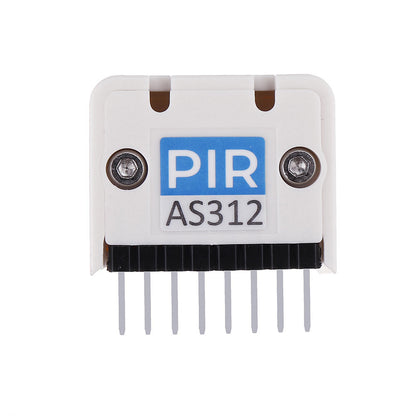

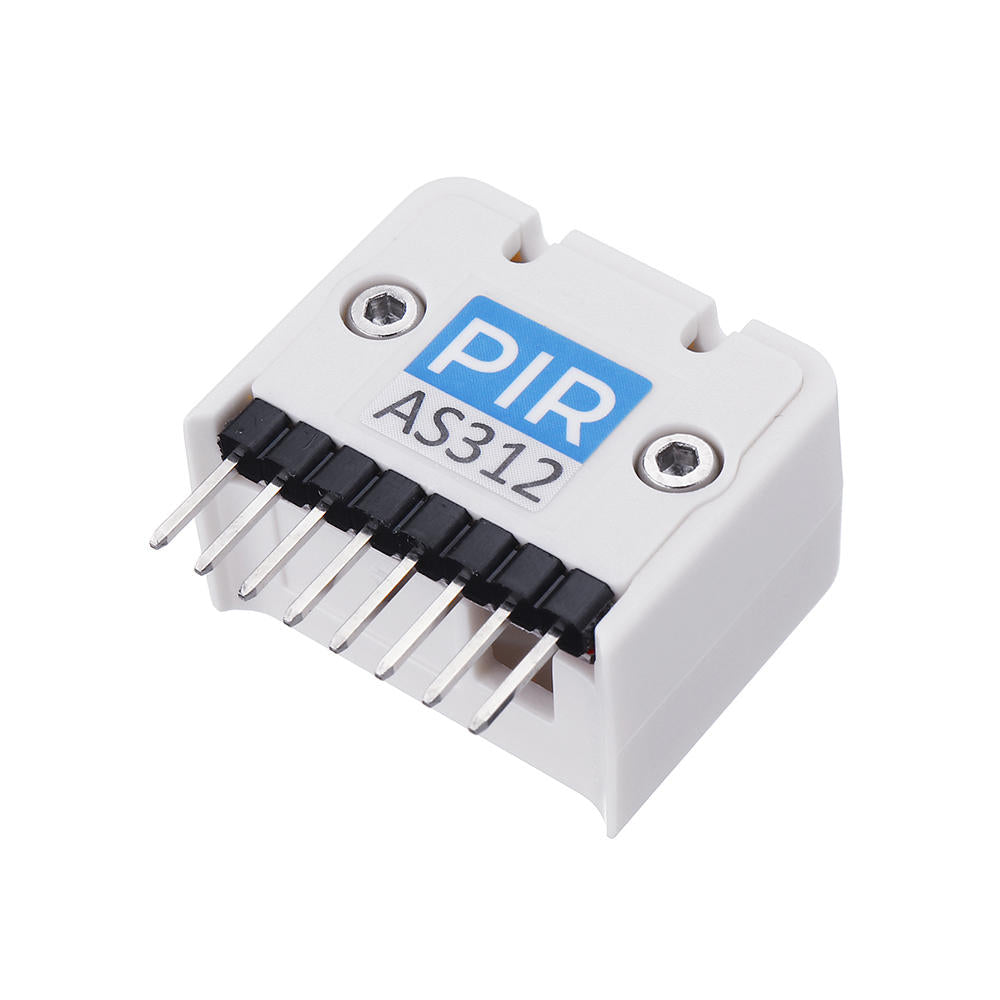

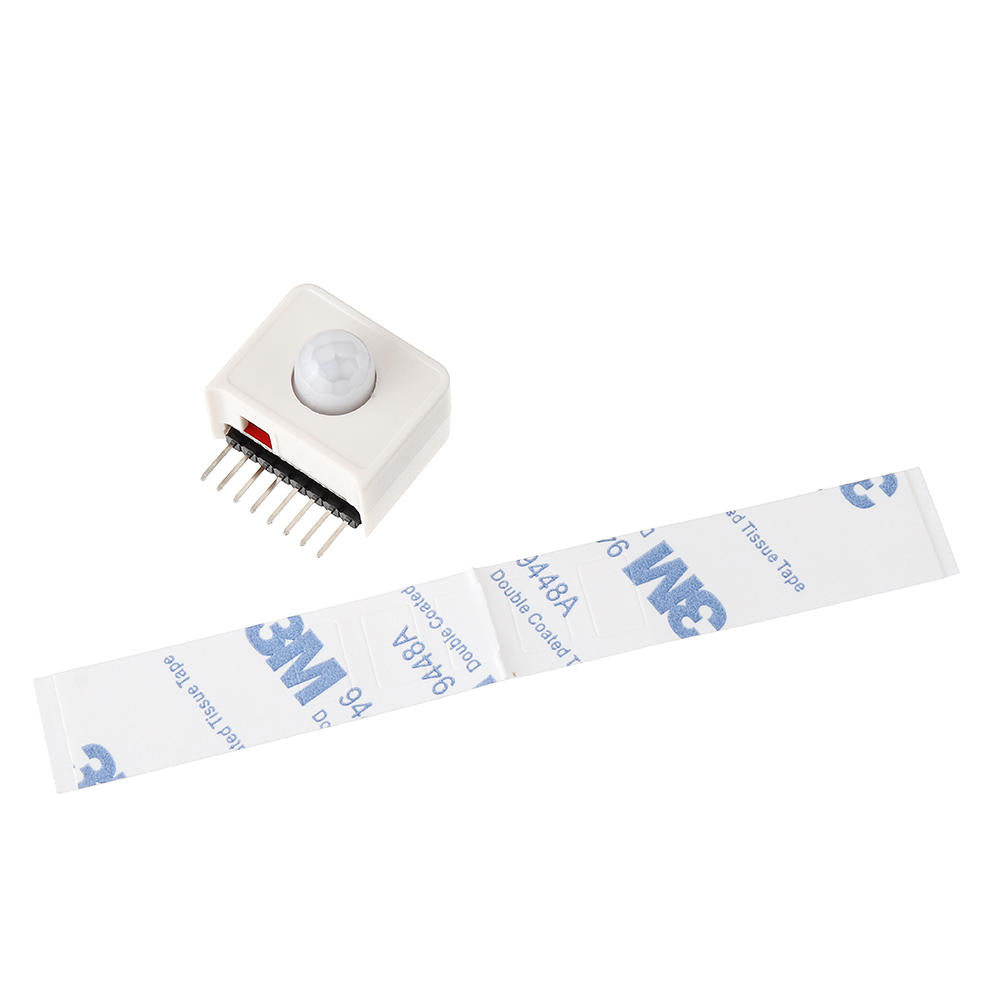

3pcs PIR Human Body Induction Sensor Module for M5StickC ESP32 Auto Security

3pcs PIR Human Body Induction Sensor Module for M5StickC ESP32 Auto Security

$26.99 $23.99

Description: Hat PIR is an M5StickC compatible human body induction sensor, it belongs to 'Passive pyroelectric infrared ', that detect the infrared come from the human body. When the infrared is...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description

Description:

Hat PIR is an M5StickC compatible human body induction sensor, it belongs to 'Passive pyroelectric infrared ', that detect the infrared come from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.

Notice: There exist 2 seconds delay

Product Feature:

  • Detecting Range: 150cm
  • Delay time: 2s
  • Induction Angle: < 100┬░
  • IDDQ : < 60uA
  • Op.T: -20 - 80 ┬░C

package Includes:

  • 3 x PIR Hat

Application:

  • Hunman body induction lamp
  • Security product
  • Auto-induction

Schematic:

EasyLoader



1.EasyLoader is a simple and fast program burner, and each product page has a product-related case program for EasyLoader.


2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click 'Burn' to start burning.


Example:

  • for

Pin Map:

M5StickC GPIO36 5V GND
HAT PIR OUT 5V GND
