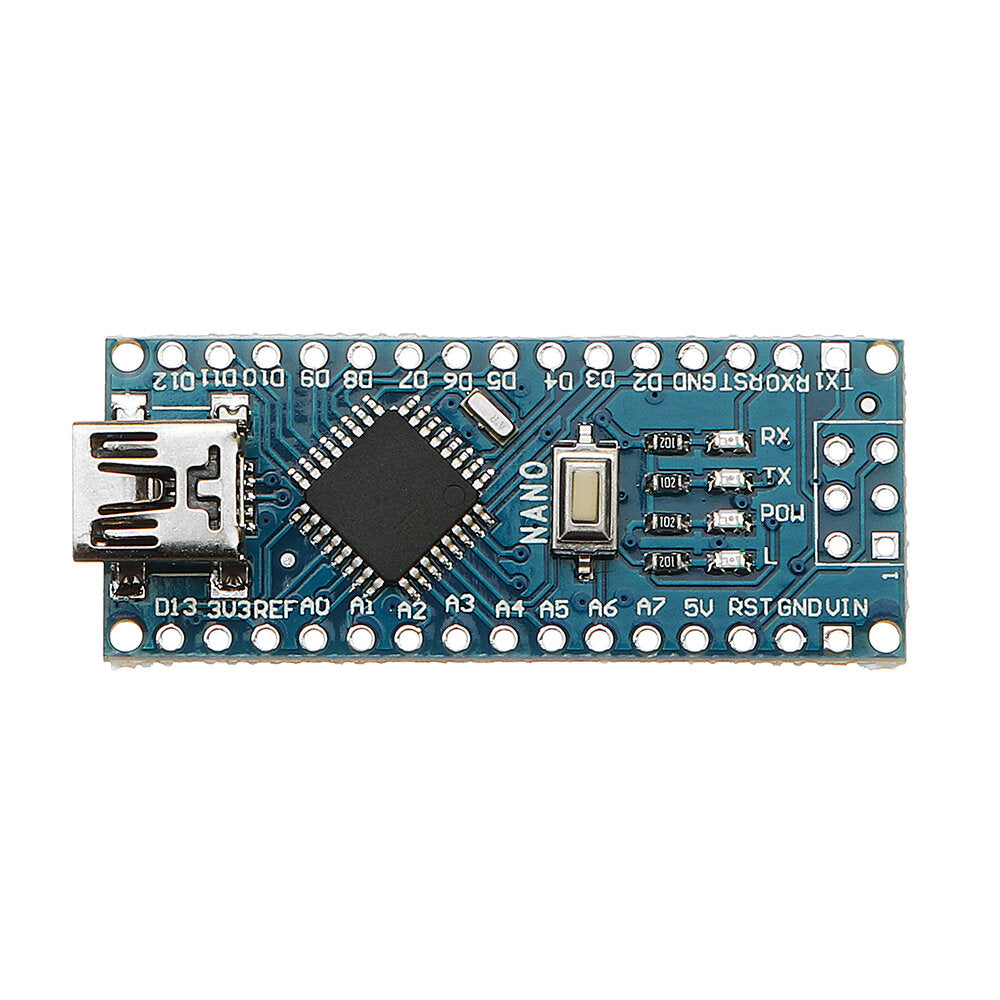

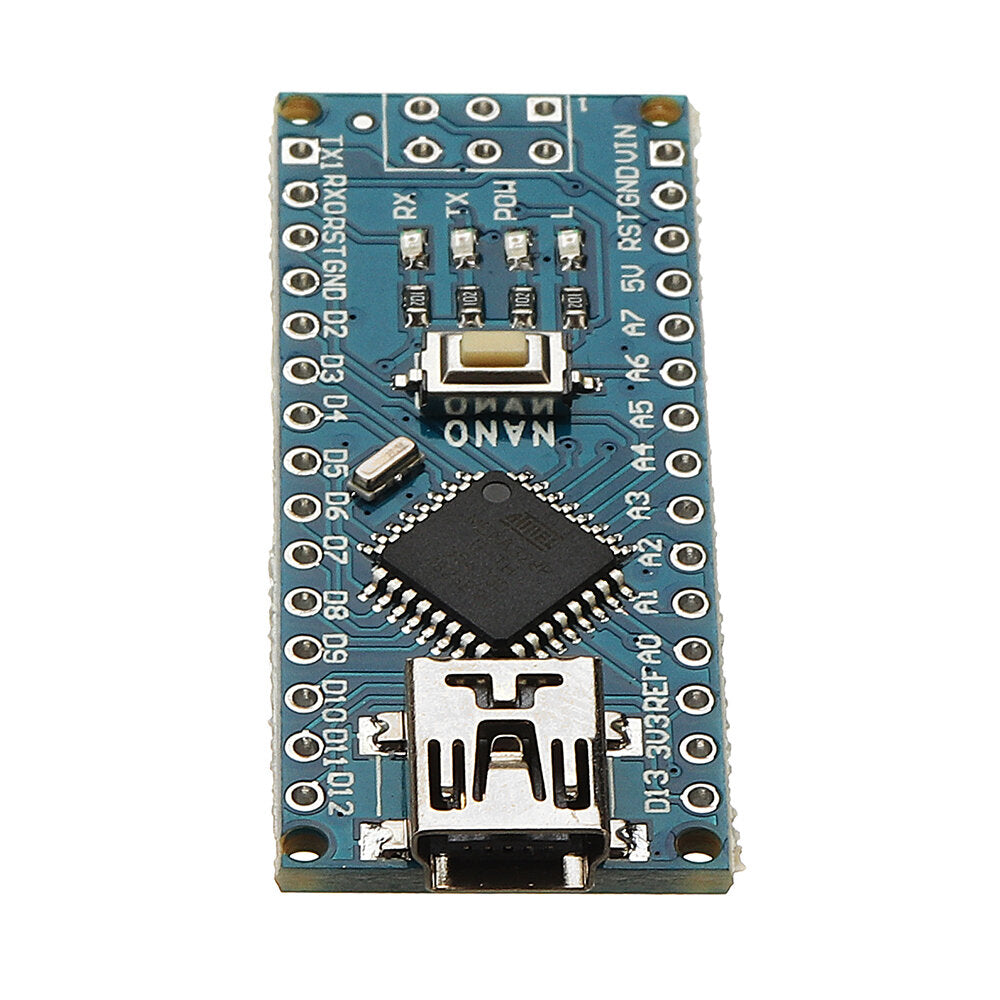

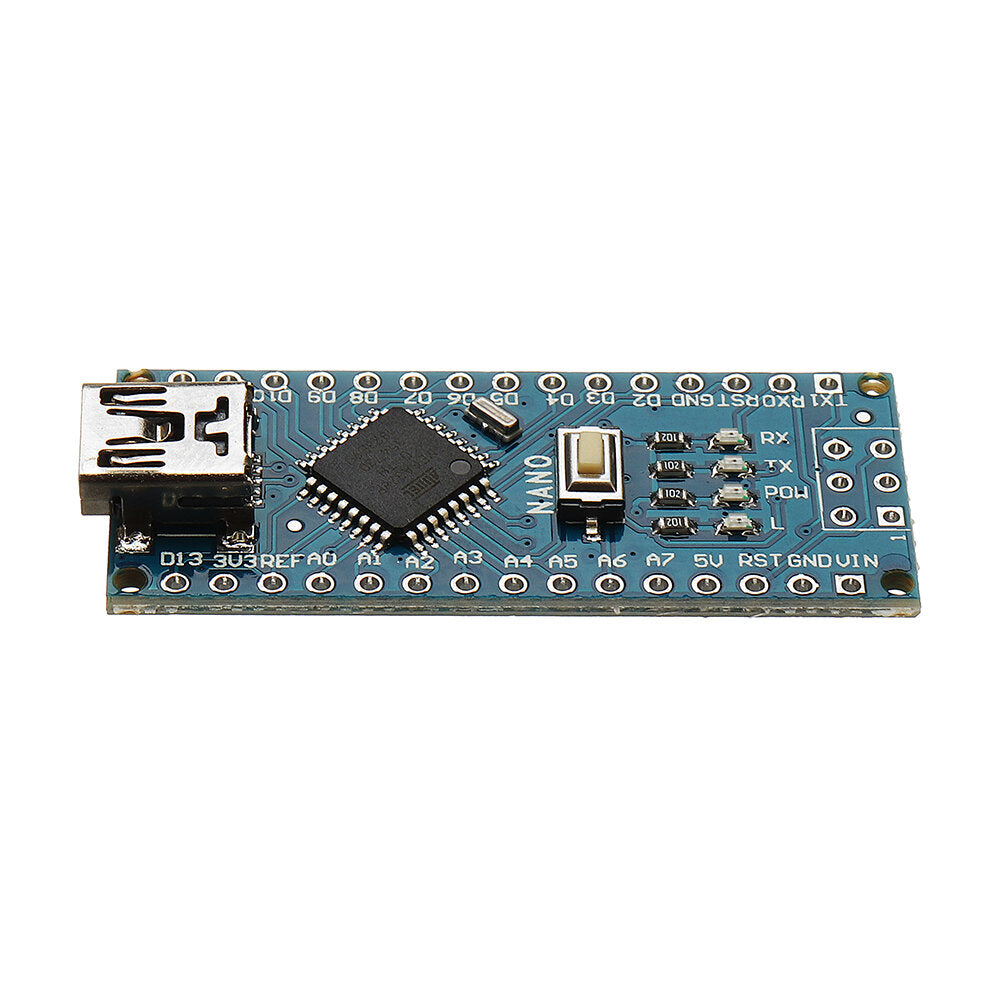

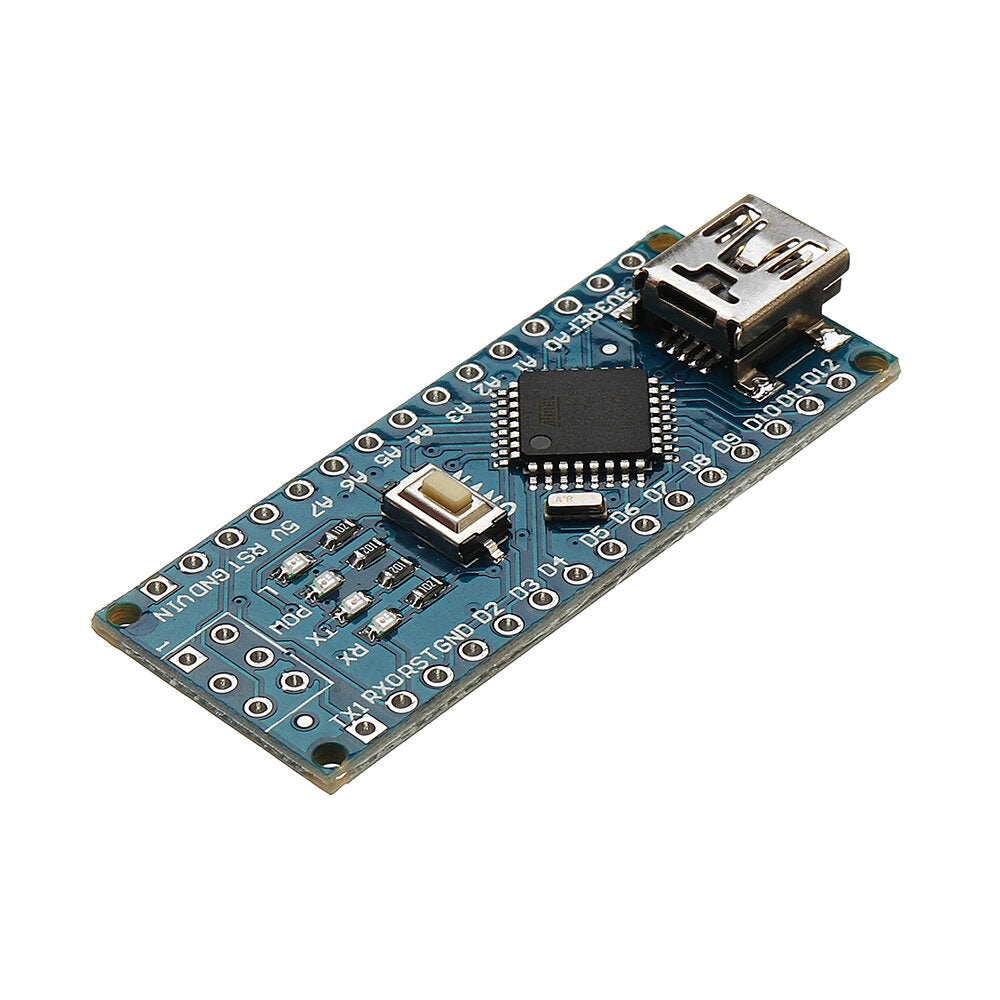

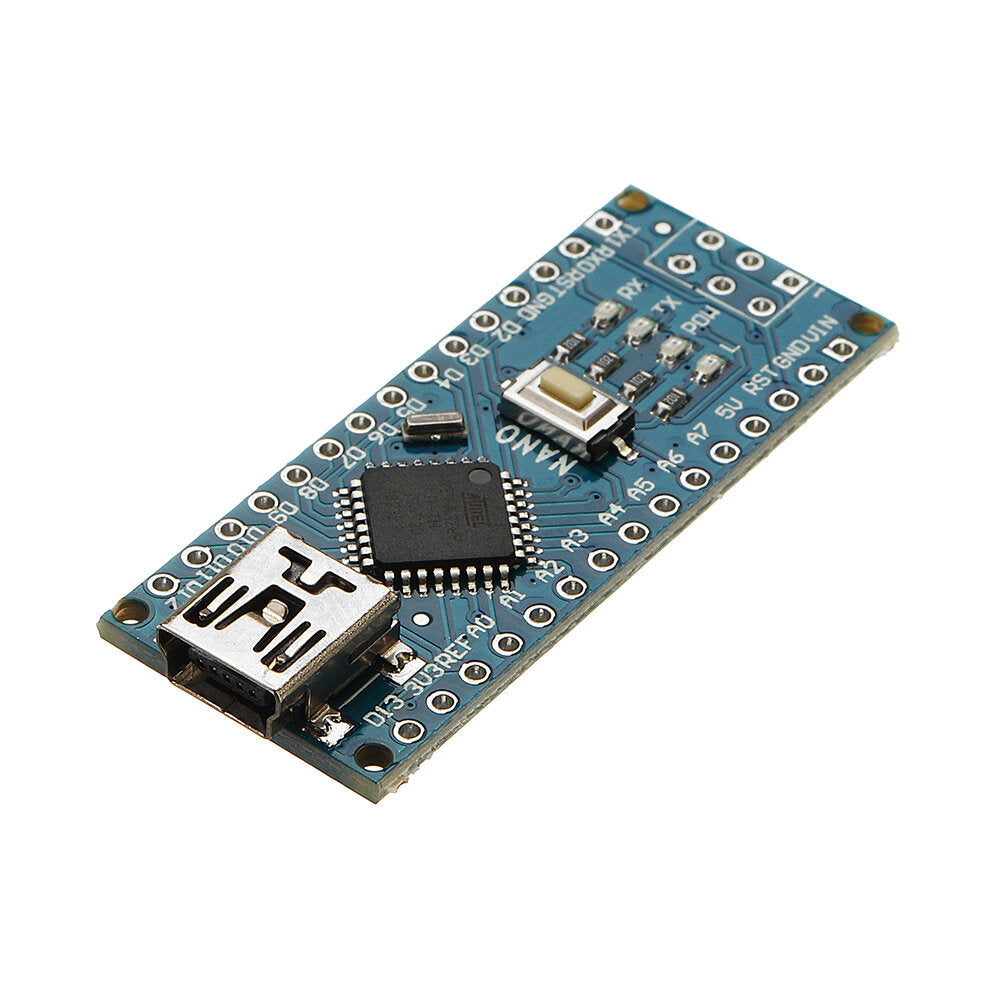

3Pcs Geekcreit ATmega328P Nano V3 Controller Board Improved Version Module Development Board
Specification:Microcontroller ATmega328Operating Voltage (logic level): 5VInput Voltage (recommended): 7V ~ 12VInput Voltage (limits): 6V ~ 20 VDigital I/O Pins: 14 (of which 6 provide PWM output)Analog Input Pins: 8DC Current...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specification:
Microcontroller ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz

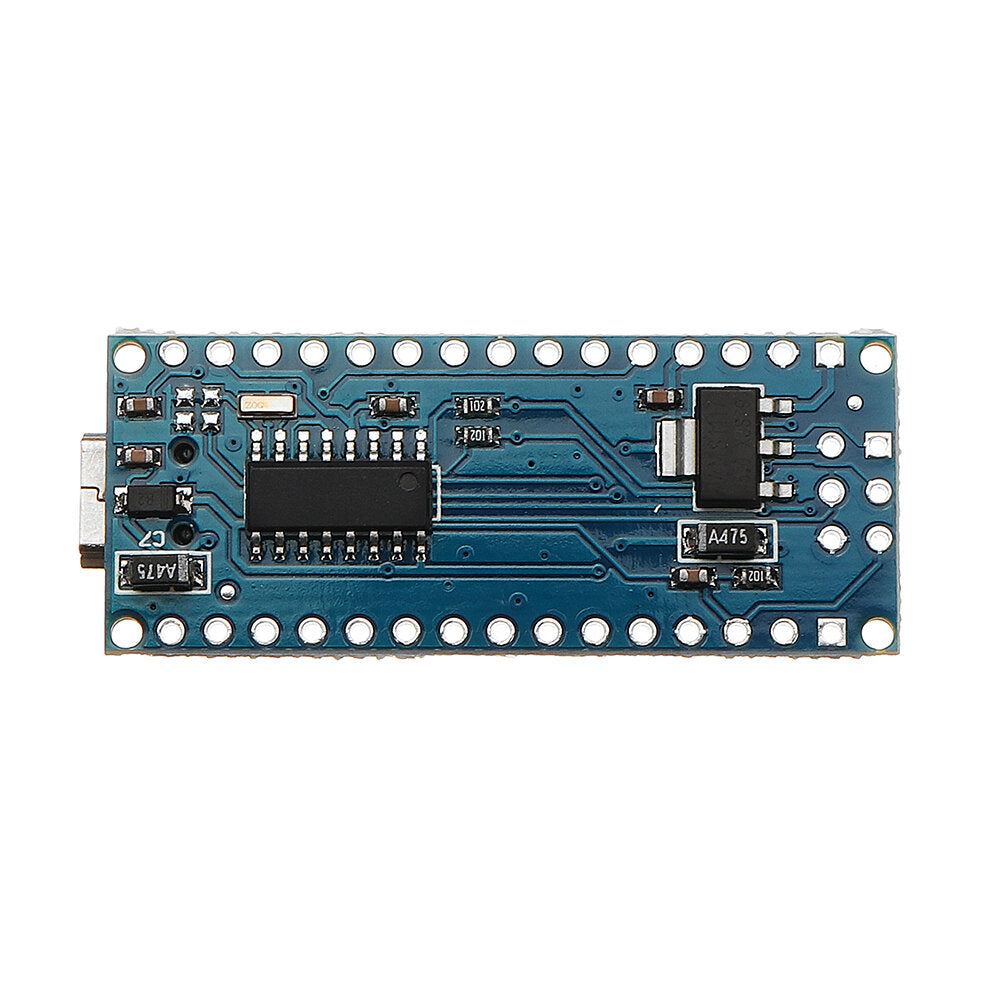

Chip: CH340C/G Random delivery (CH340B is the update version of CH340G, CH340B comes with crystal, but CH340G doesn't)
Note:

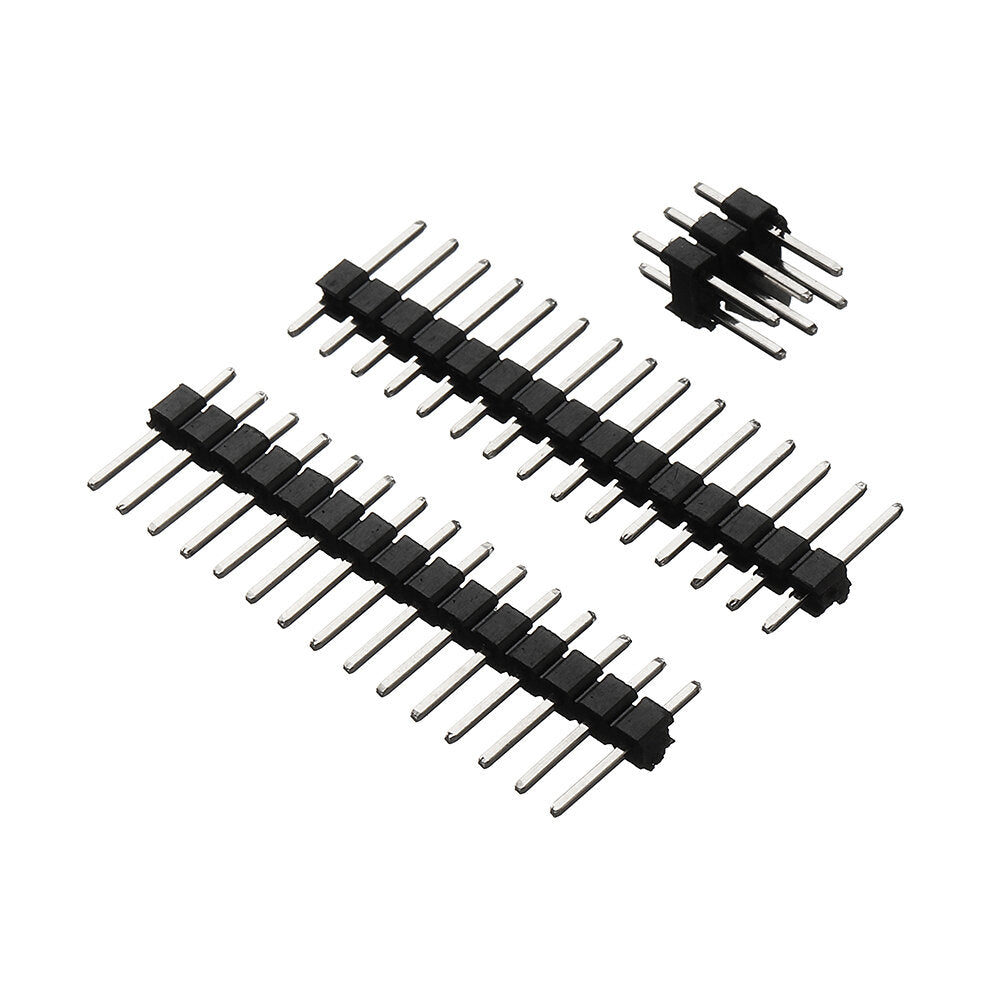

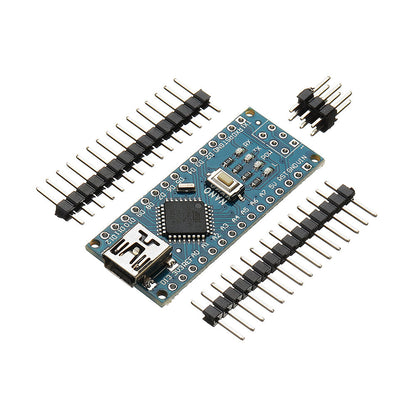

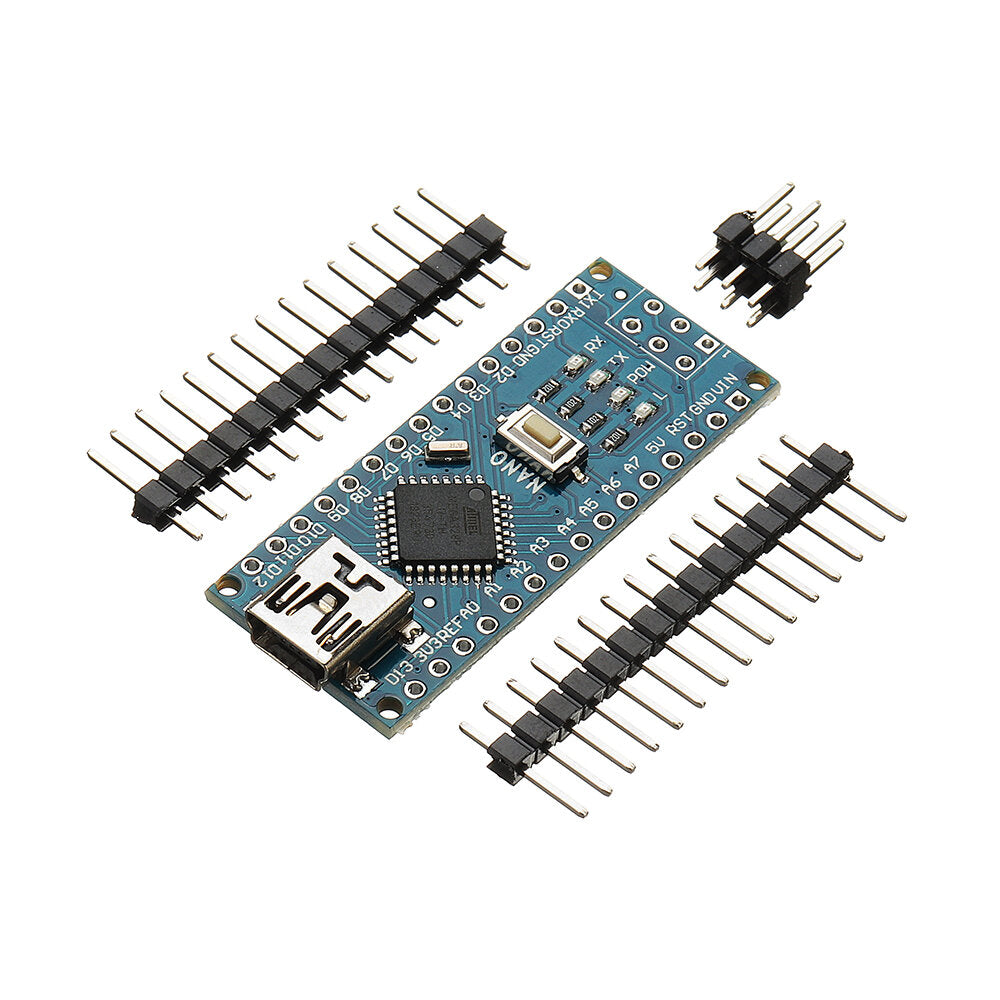

Improved USB chip for speed and stability using WIN7/WIN8. This version comes with the pin headers unsoldered and not included the USB cable.
Package included:
3 x No welding Compatible Nano V3.0 Board
Microcontroller ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Chip: CH340C/G Random delivery (CH340B is the update version of CH340G, CH340B comes with crystal, but CH340G doesn't)
Note:
Improved USB chip for speed and stability using WIN7/WIN8. This version comes with the pin headers unsoldered and not included the USB cable.
Package included:
3 x No welding Compatible Nano V3.0 Board
