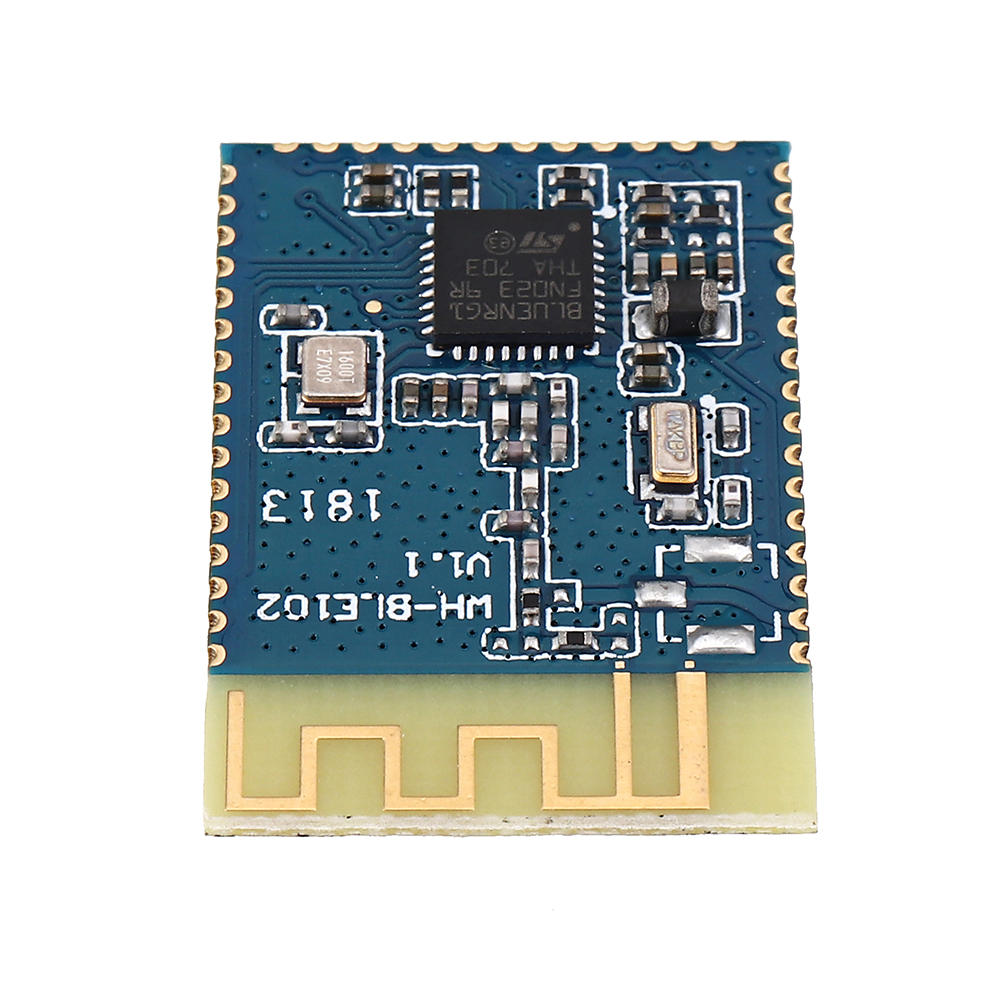

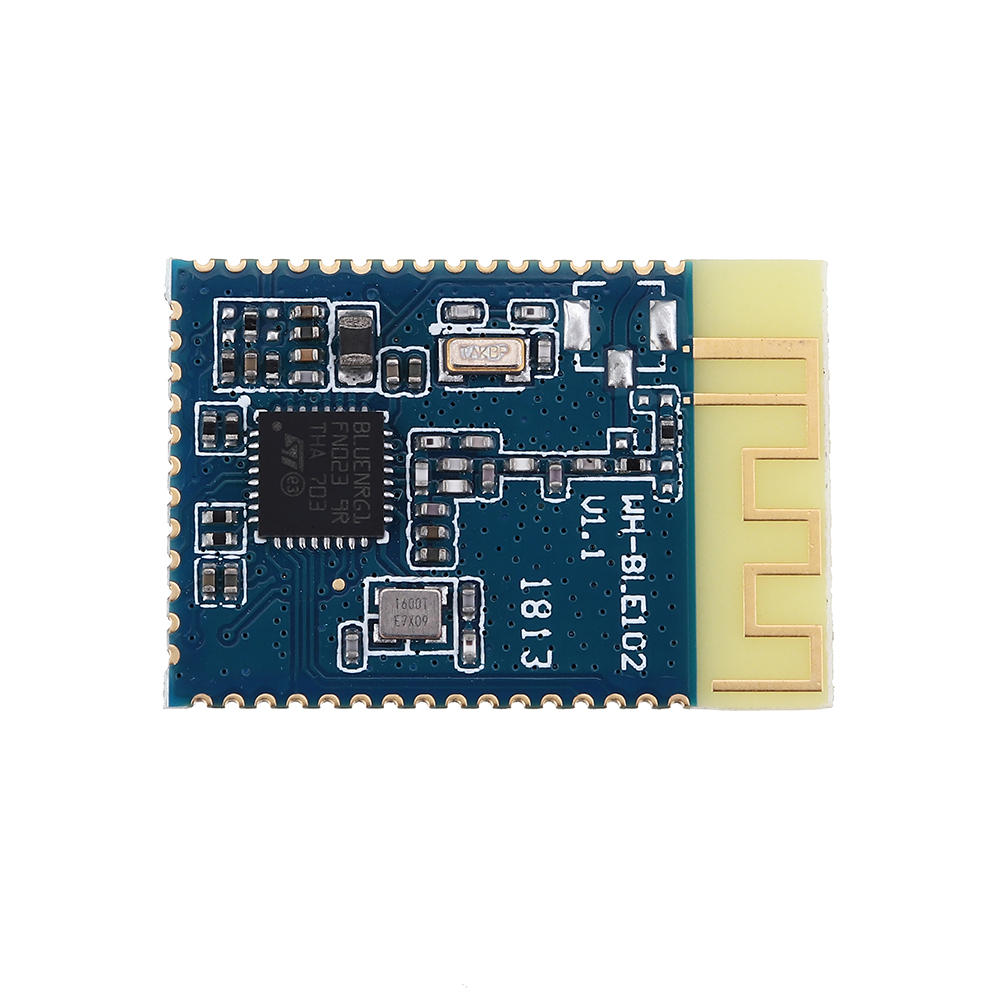

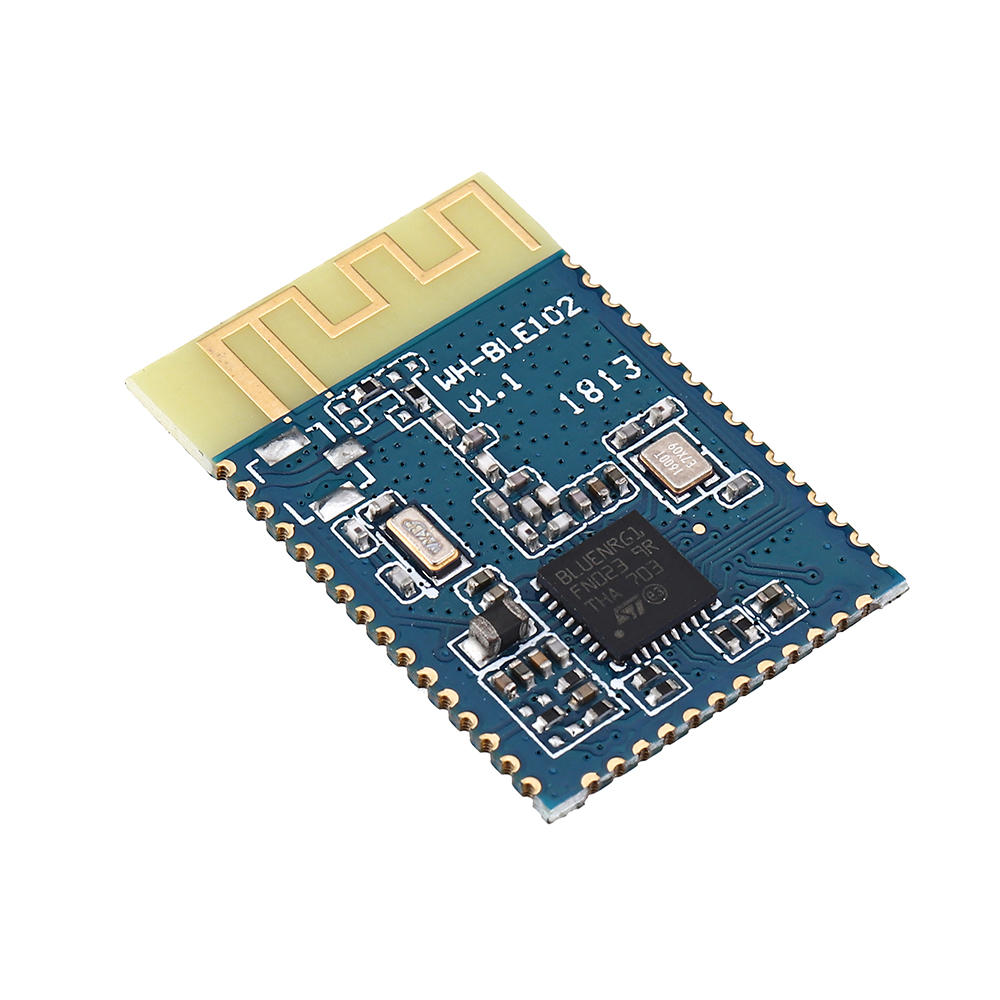

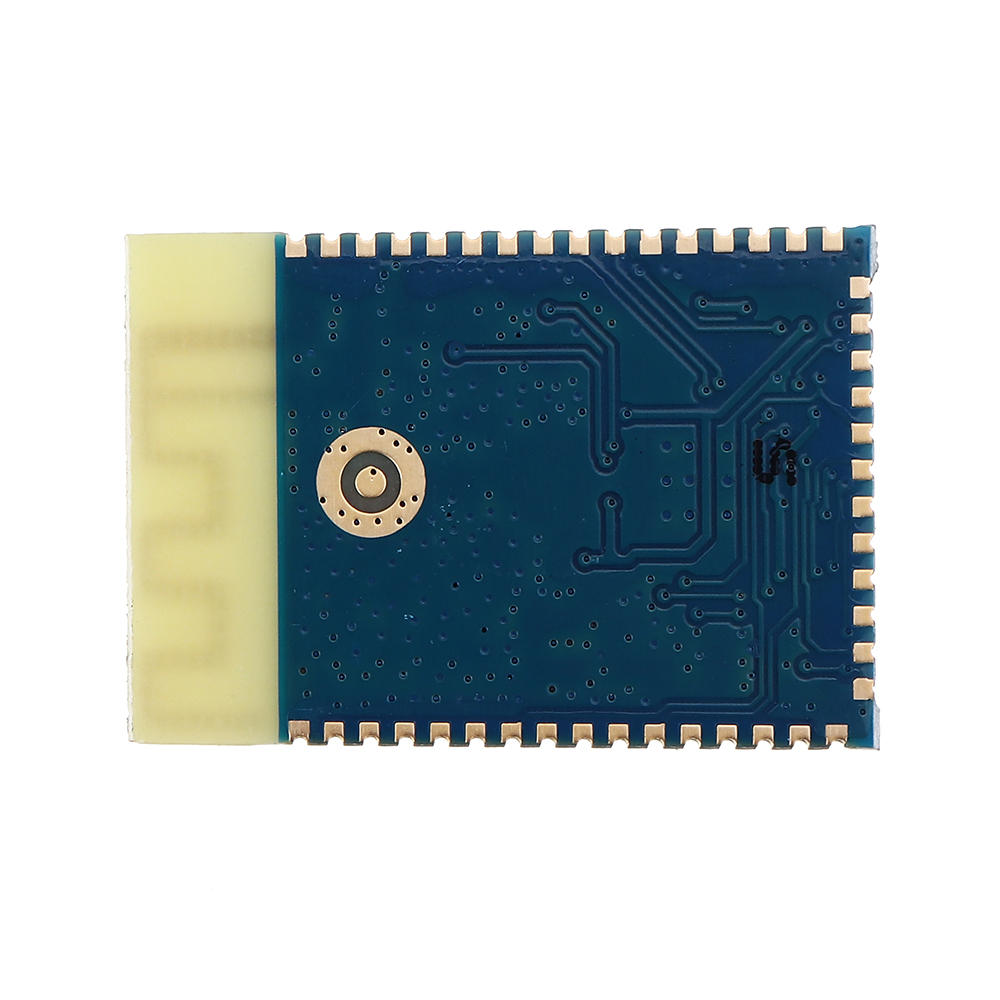

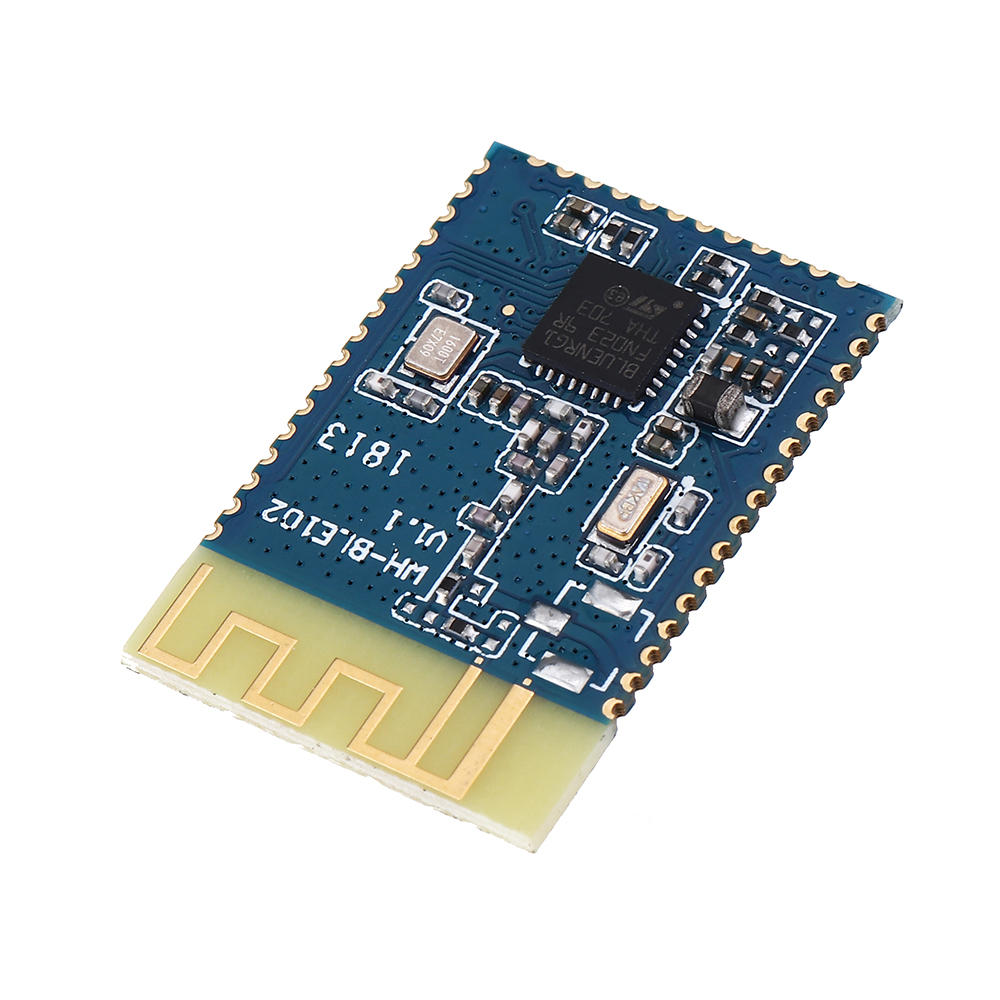

3pcs BLE102 Bluetooth Module Wireless BLE 4.1 Serial Port Ma-ster-slave Industrial Grade
Feature: Classification Description Value Wireless parameter Wireless standard 802.15.1 Bluetooth specification V4.2 Frequency Range 2.402GHz-2.480GHz Transmit power -14dBm to +8dBm User can configure via AT command Receiving sensitivity -85dBm Antenna...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Feature:
Package includes:
3 x Module
| Classification | Description | Value |
| Wireless parameter | Wireless standard | 802.15.1 |
| Bluetooth specification | V4.2 | |
| Frequency Range | 2.402GHz-2.480GHz | |
| Transmit power | -14dBm to +8dBm | |
| User can configure via AT command | ||
| Receiving sensitivity | -85dBm | |
| Antenna option | External: I-PEX connector | |
| Built-in: onboard antenna | ||
| Hardware parameter | Data interface | UART: 1200bps -921600bps |
| Operating Voltage | 1.7V~3.6V | |
| Working current | 500nA~10mA | |
| Operating temperature | -40°C- 85°C | |
| Storage temperature | -40°C-85°C | |

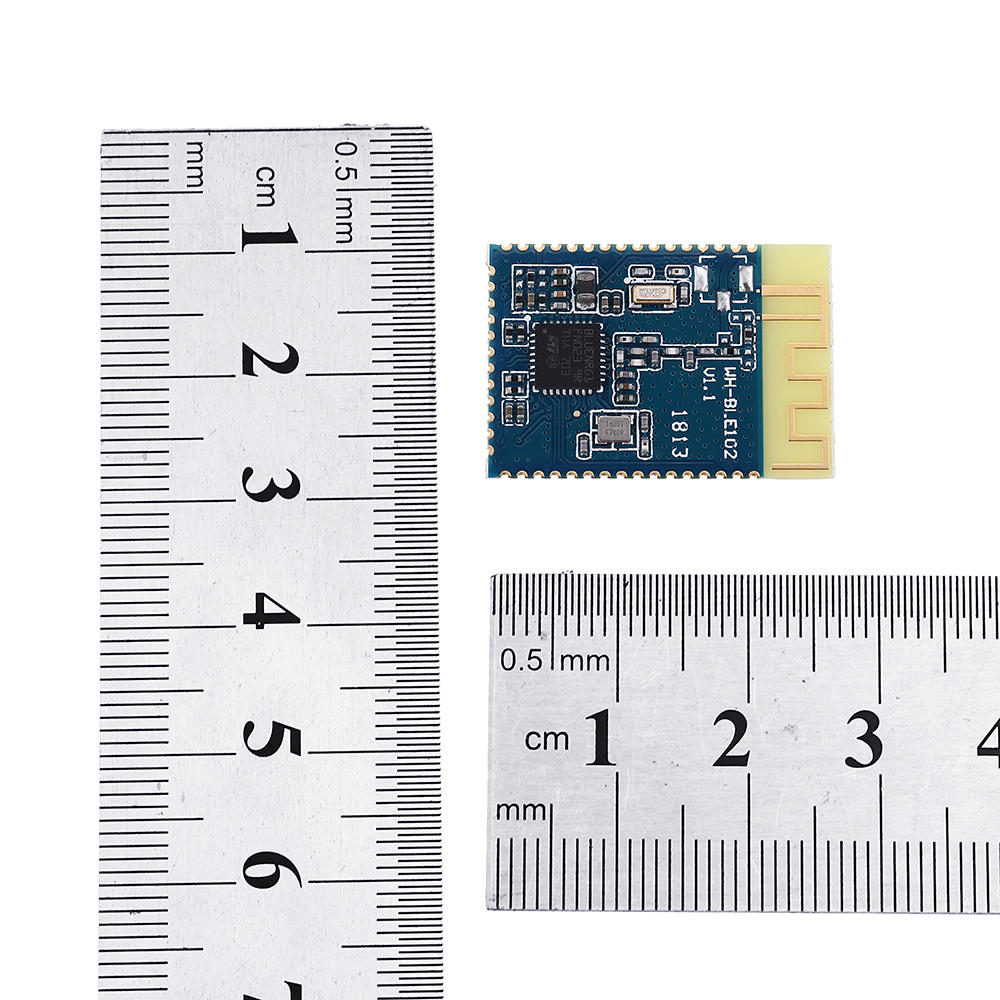

| Size | 18.2×26.7×3 (mm) | |
| Software parameter | Equipment type | ma-ster/slave |
| Security Mechanism | 128-bit AES engine | |
| Data encryption | PC1 encryption | |
| Operating mode | ma-ster mode, slave mode, broadcast mode, Mesh networking | |
| Setting command | AT+ command structure | |
| User configuration | Serial AT command, transparent transmission of AT commands | |
| Customer application software | Support customer customized application software |
Package includes:
3 x Module
