12V/24V Air Purifier Machine Fan Brushless DC Blower Fan Strong Wind Pressure Fan Blower
Product Usage: â–ºSine wave drive three-phase brushless motor, suitable for --- air cushion machine, fuel cell, ventilator air supply, modified car seat cushion air supply, electric heat is sent air,...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Description:
1. Appearance: The fan adopts aluminum alloy + plastic cover and wind blade aluminum combination.
2. Features: compact structure, stable operation, low noise (10CMH2O, 1M distance, 42dB), long life (28,000 hours) (running 8 hours, stopping for 1 hour).
3. Uses: The most suitable choice for atmospheric particulate matter sampler, dust sampling instrument, medical cough machine, ventilator, fresh air system!
Drive Controller Specification:
Package Included:

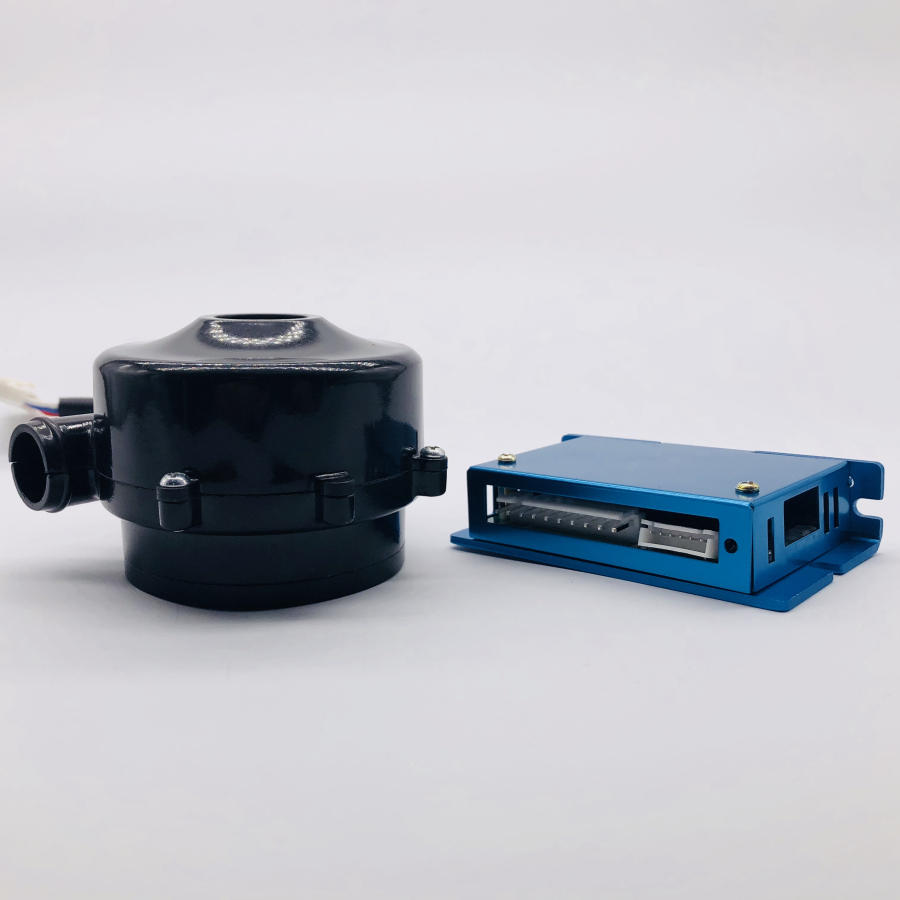

1x High Pressure Blower
1x Drive
Product Usage:
â–ºSine wave drive three-phase brushless motor, suitable for --- air cushion machine, fuel cell, ventilator air supply, modified car seat cushion air supply, electric heat is sent air, high-grade soldering station smoke, sanding.
Product advantages:
â–ºHigh pressure (full pressure 9.5KPA), large air volume (580 liters / minute), low noise (45M (A) 1KPa distance 1M far), long life (run 8 hours, stop 60 minutes life up to 28000 hours), The motor movement is designed with a hollow cup structure, featuring high efficiency, high speed and high stability.
â–ºThis brushless fan has stable start, small size, low noise, low temperature rise, long service life, high efficiency, accurate accuracy, energy saving and environmentally friendly materials.
Note:
This blower requires a drive to function properly.
Description:
1. Appearance: The fan adopts aluminum alloy + plastic cover and wind blade aluminum combination.
2. Features: compact structure, stable operation, low noise (10CMH2O, 1M distance, 42dB), long life (28,000 hours) (running 8 hours, stopping for 1 hour).
3. Uses: The most suitable choice for atmospheric particulate matter sampler, dust sampling instrument, medical cough machine, ventilator, fresh air system!
Technical parameters:
WM9250-24V
| Project | Unit | WM9250-24V |
| Voltage | V | 24V |
| Max Speed | rpm | 28000+/-5% |
| Max Current | A | 8±0.2 |
| Max airflow | L/min | 580-600 |
| Max air pressure current | A | 9.5 |
| Max air pressure | KPa | 13 |
| Coil connection method | “Y†| |
| Max Power | W | 190 |
| Size | mm | D:92mm, H:50mm |
| Weight | g | 350 |
| Holzer angle | degree | 120 |
| Bearing | NSK double balls bearing | |
| Rotor magnet pole number | 2 | |
| Noise | db(A) | 45(1M-1KPa) |
| Speed adjustment | 0-5V Or PWM |
Controller Drive
| +5V | Hall power supply | 0-5V | Input | |
| HU | Hall U Input | VSR | Speed control signal | |
| HV | Hall V Input | GND | Ground | |
| HW | Hall W Input | ENA | enable input | |
| GND | Hall negative electrode | FR | Positive reversal | |
| U | Phase U | FG | Speed pulse output | |
| V | Phase V | GND | Negative power supply | |
| W | Phase W | VCC | Positive power supply |
Drive Controller Specification:
| Name | 3 Phase Brushless DC Motor Dirve |
| Rated Voltage | 24V |
| Working Voltage Range | 14V-26V |
| Max. Continous Current | 8.5A |
| Hall electrical angle | 120° |
| Current limiting protection | 10A |
| Weight | 45g |
Package Included:
1x High Pressure Blower
1x Drive
