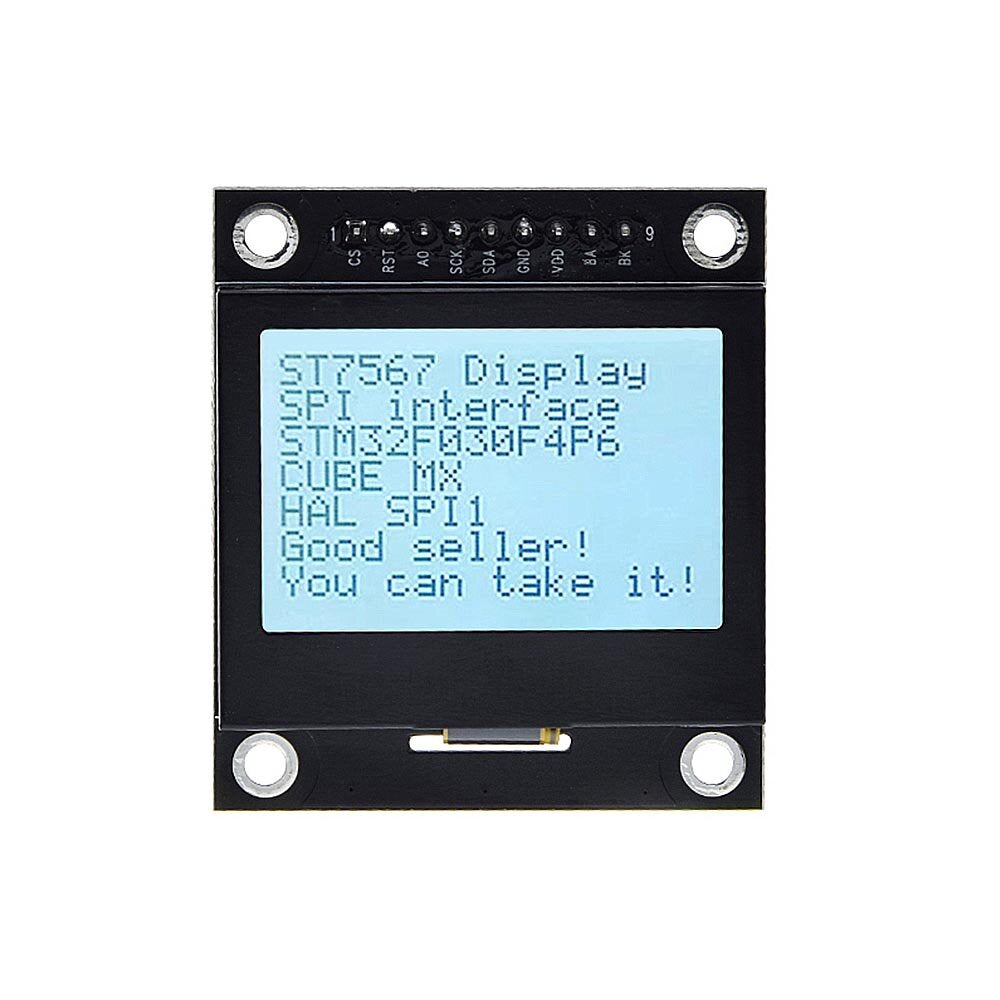

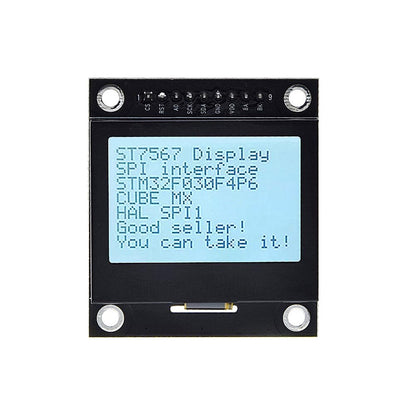

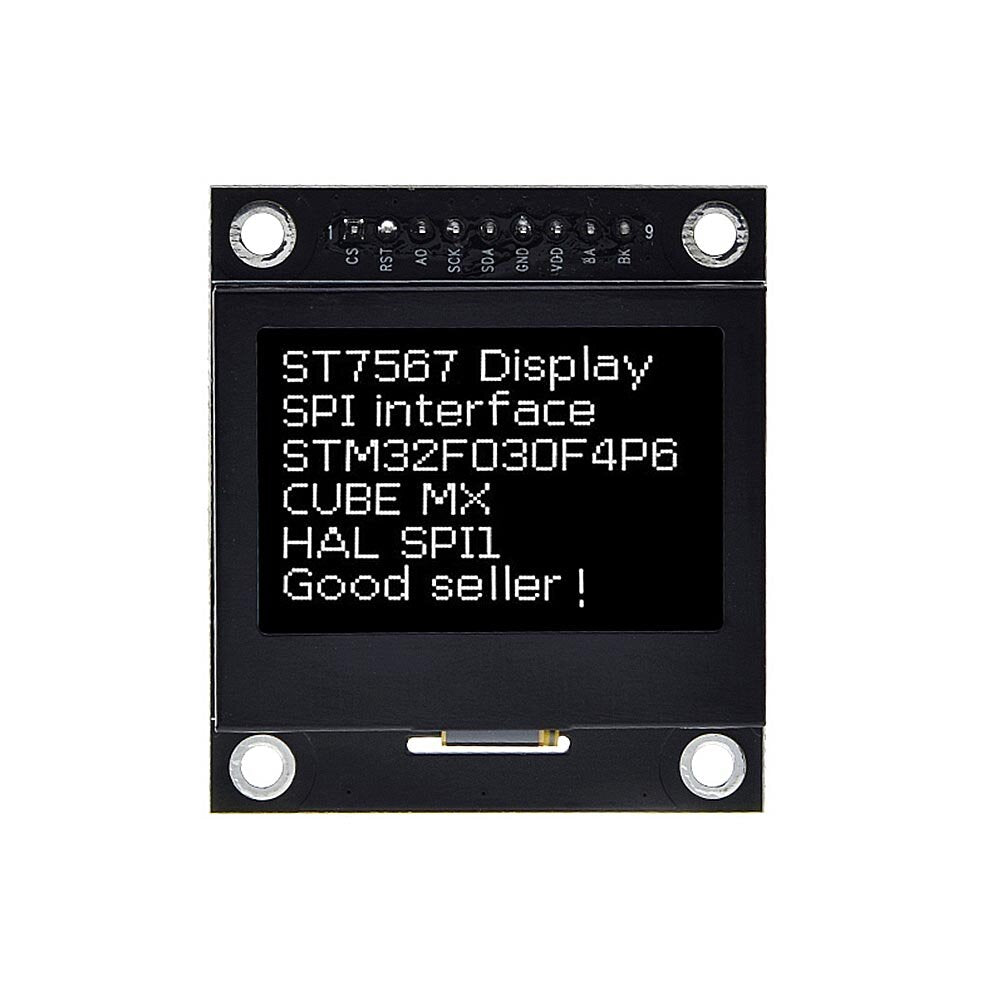

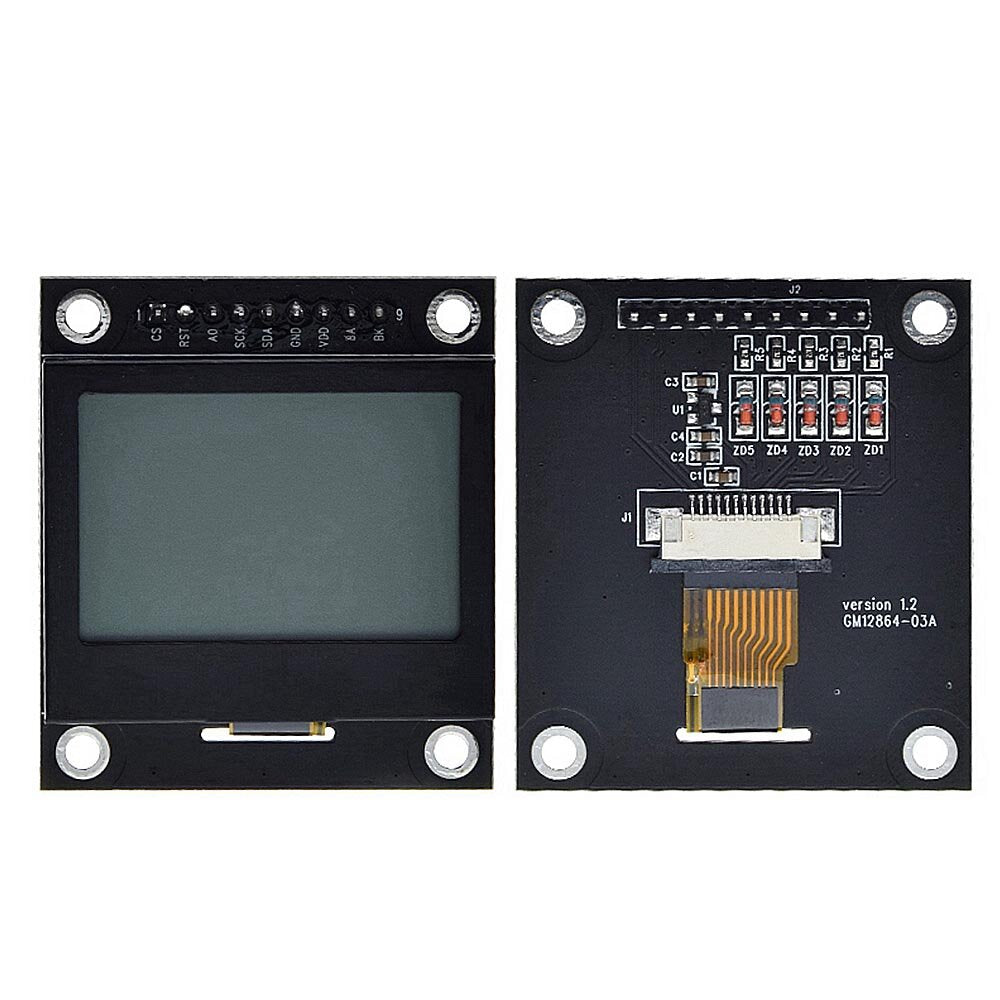

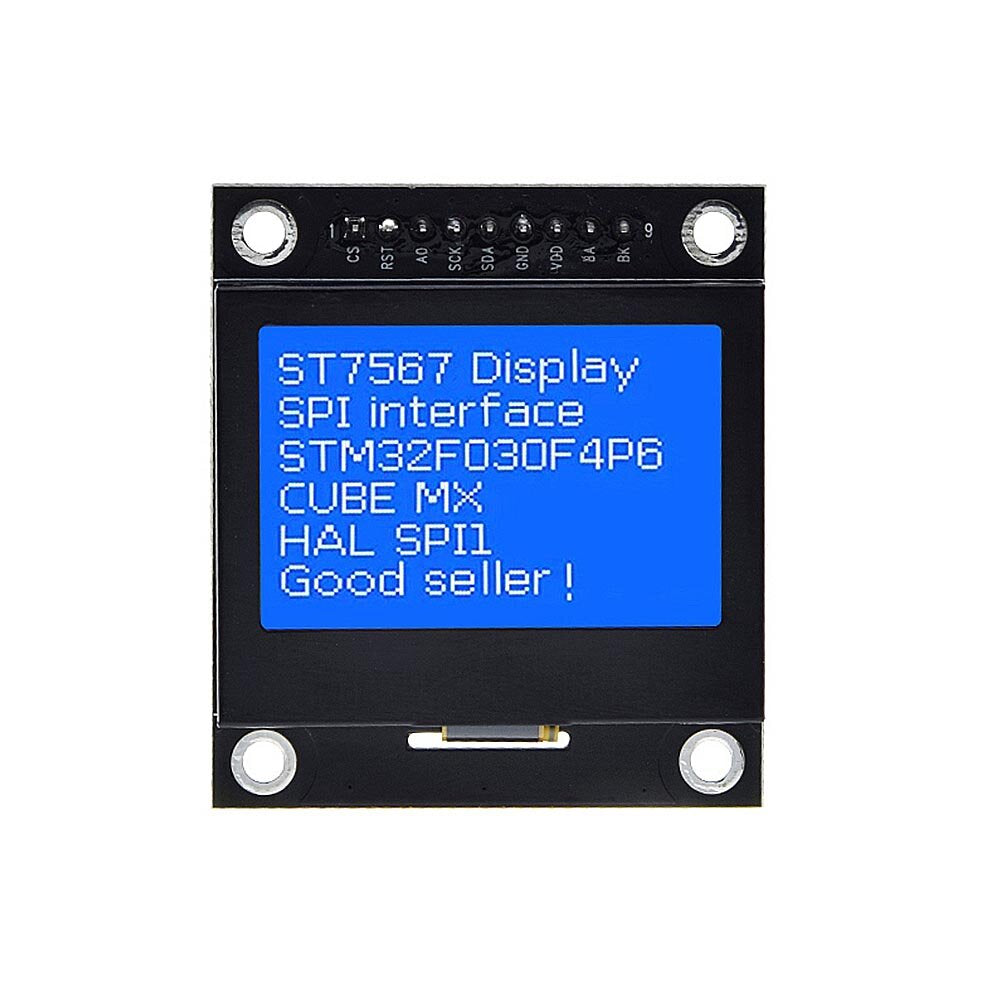

12864 LCD Display Screen 12864-03A Module Serial Port Dot Matrix SPI with Iron Frame

12864 LCD Display Screen 12864-03A Module Serial Port Dot Matrix SPI with Iron Frame

Regular price $17.99 USD
Regular price $20.99 USD Sale price $17.99 USD
Sale Sold out
Taxes included.
Color

100 in stock

Specifications:


Lattice: 128 x 64 Dots

LCD mode: FSTN, negative, full transparency, black film

Viewing Direction: 6 o'clock

Drive Mode: 1/64 Duty, 1/9 Bias

LCM Working Voltage (VDD): 3.3-5.0V

LCD Drive Voltage VLCD (VOP): 9.0V

Operating Temperature: -10┬░C~+60┬░C

Storage Temperature: -20┬░C~+70┬░C

Connection Method/Drive IC: COG/ST7567

Backlight (BL): 2 white LEDs (parallel)

(15mA/LED), If-30mA(Type), Vf=3.0V(Type)

Outline Dimensions: 42(L) × 47.5(L) × 13.65(H) (mm)

Viewing Area: 23.4 (W) × 36.00(L)(mm)

Dot Pitch: 0.32 (W) × 0.26 (L) (mm)

Dot Size: 0.29 (W) × 0.23 (L) (mm)



Packeage Include:


1×12864-03A Display Screen Module
