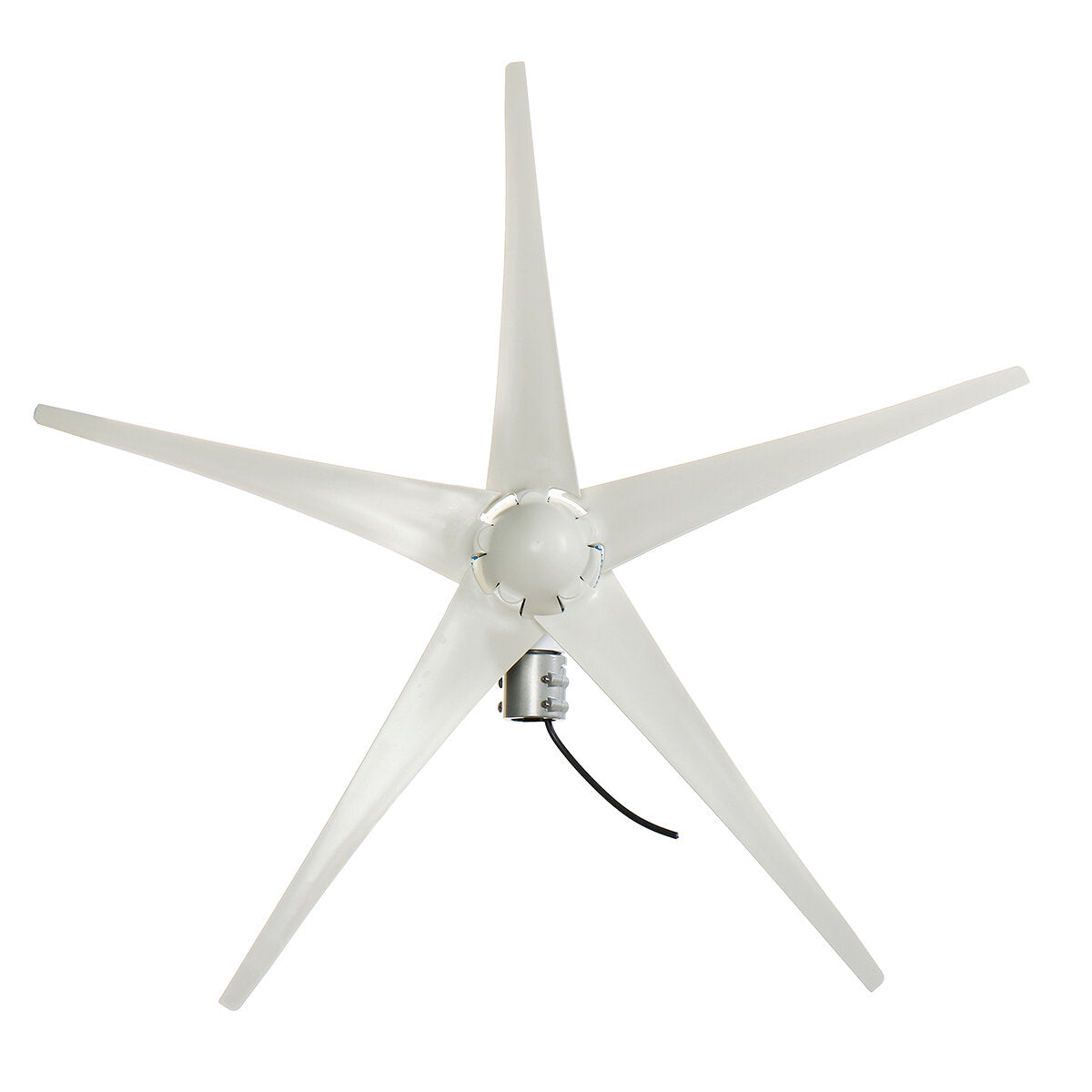

1000W Peak 12V / 24V Wind Turbine 5 Blade Wind Generator Turbine Wind Turbine With Controller
Specification: Brand NE Rated power 500W Maximum power 1000W Rated voltage 12V/24V Start up wind speed 2.0m/s Rated wind speed 11.5m/s Survival wind speed 55m/s Top net weight 6.2kg Wheel...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Specification:
Brand |
NE |
Rated power |
500W |
Maximum power |
1000W |
Rated voltage |
12V/24V |
Start up wind speed |
2.0m/s |
Rated wind speed |
11.5m/s |
Survival wind speed |
55m/s |
Top net weight |
6.2kg |
Wheel diameter |
1.3m |
Blades number |
3/5 |
Blades material |
Nylon fiber |
Generator |
Three phase permanent magnet ac generator |
Magnetic steel |
NdFeB |
Generator case |
Die-casting aluminum |
Control system |
Electromagnet |
Speed regulation |
Automatically adjust windward |
Working temperature |
-40℃ï½80℃ |
Included |
Mounting accessories |
Not included |
Mounting post |
Hoop type wind turbine:
1. Low starting wind speed, high wind energy utilization rate, small size, elegant appearance, low operating vibration;
2. The host is connected by a hoop, which is convenient, quick and easy to disassemble and save labor;
3. The wind turbine blades are precision injection molded with a new process and designed with the latest aerodynamic principles to start the wind
The speed is lower, and the blade is made of high-strength PA66 plus fiber nylon material, which has high impact resistance and good wind energy.
High utilization rate, increase annual power generation;
4. Adopt rare earth permanent magnet generator with special stator design to effectively reduce the resistance torque of the generator.
