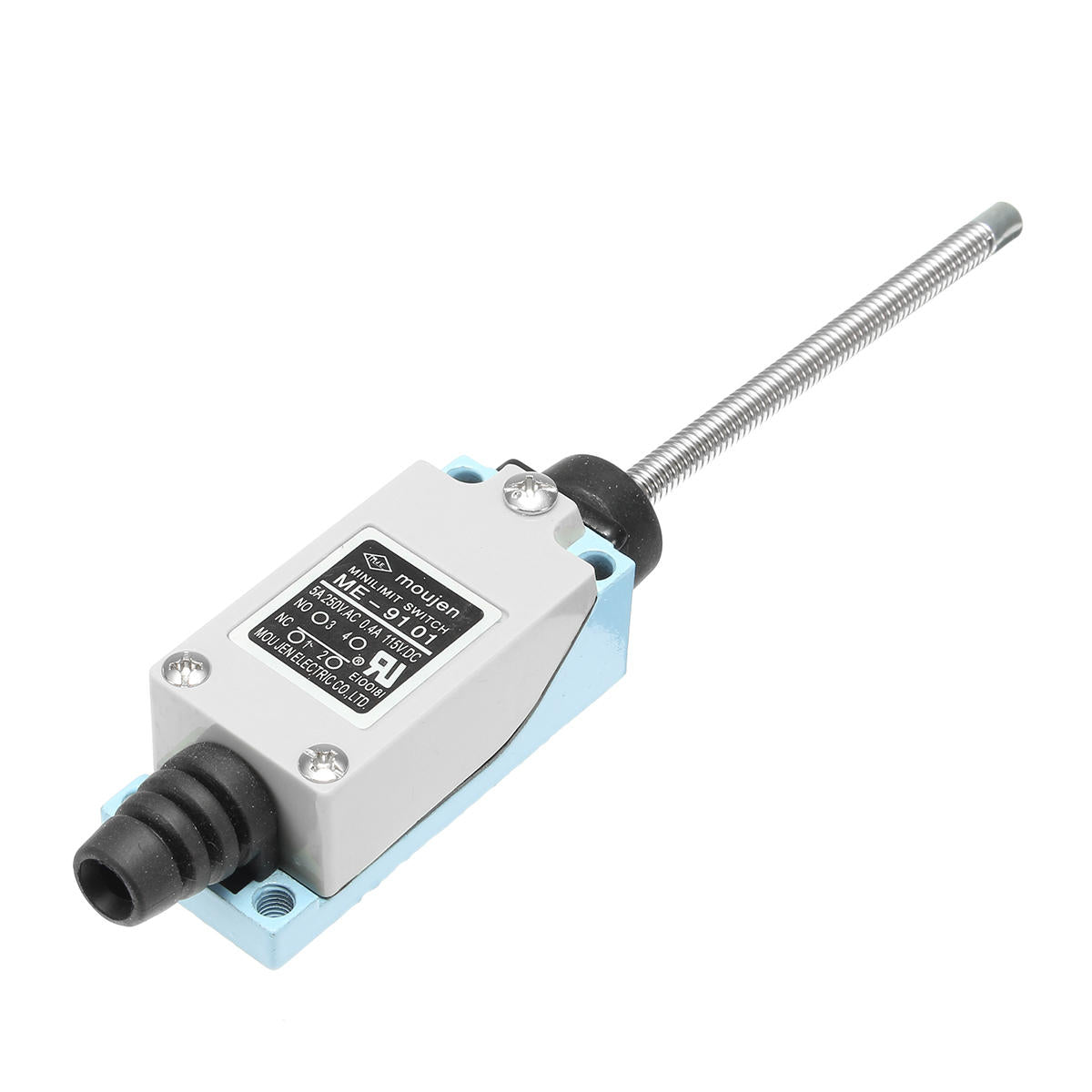

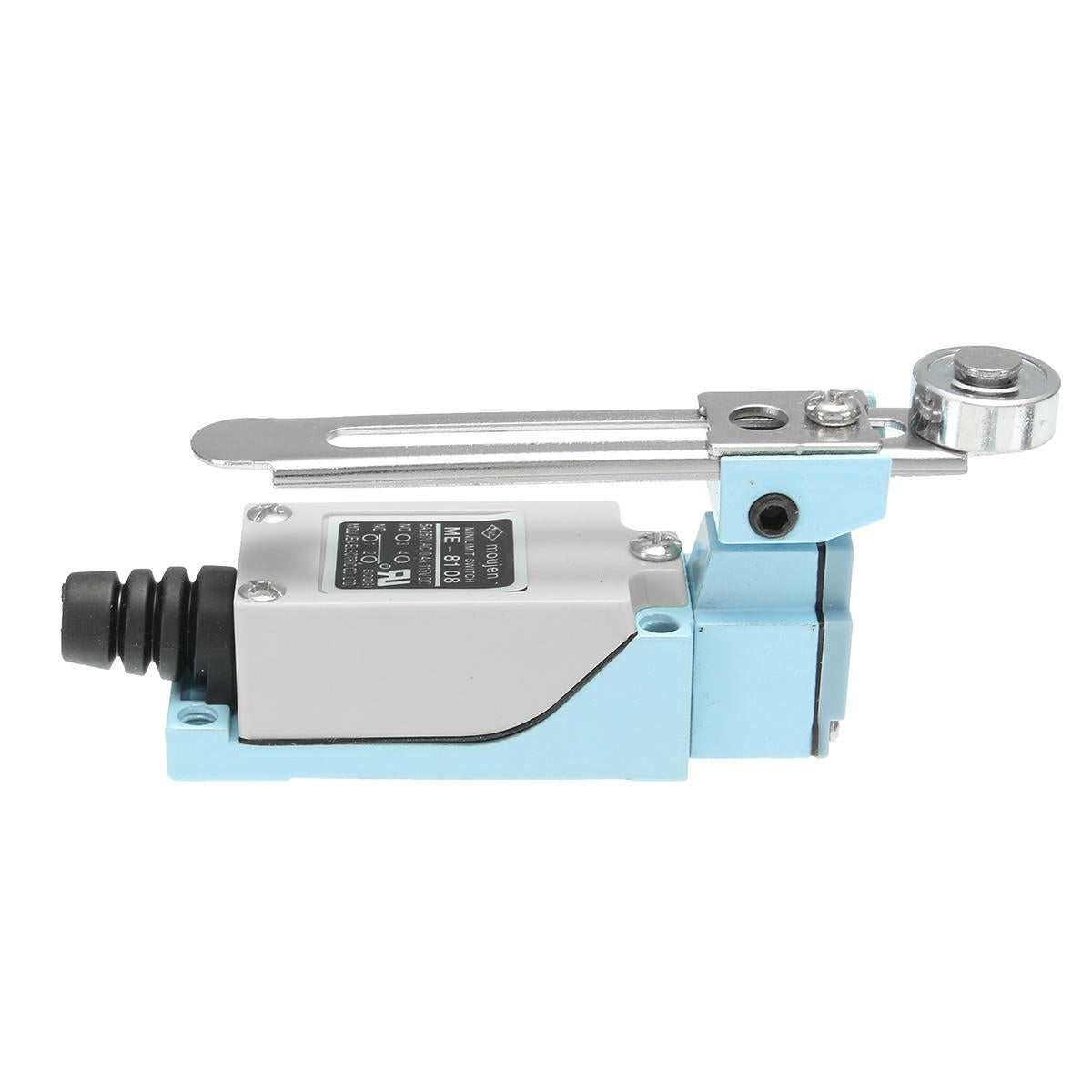

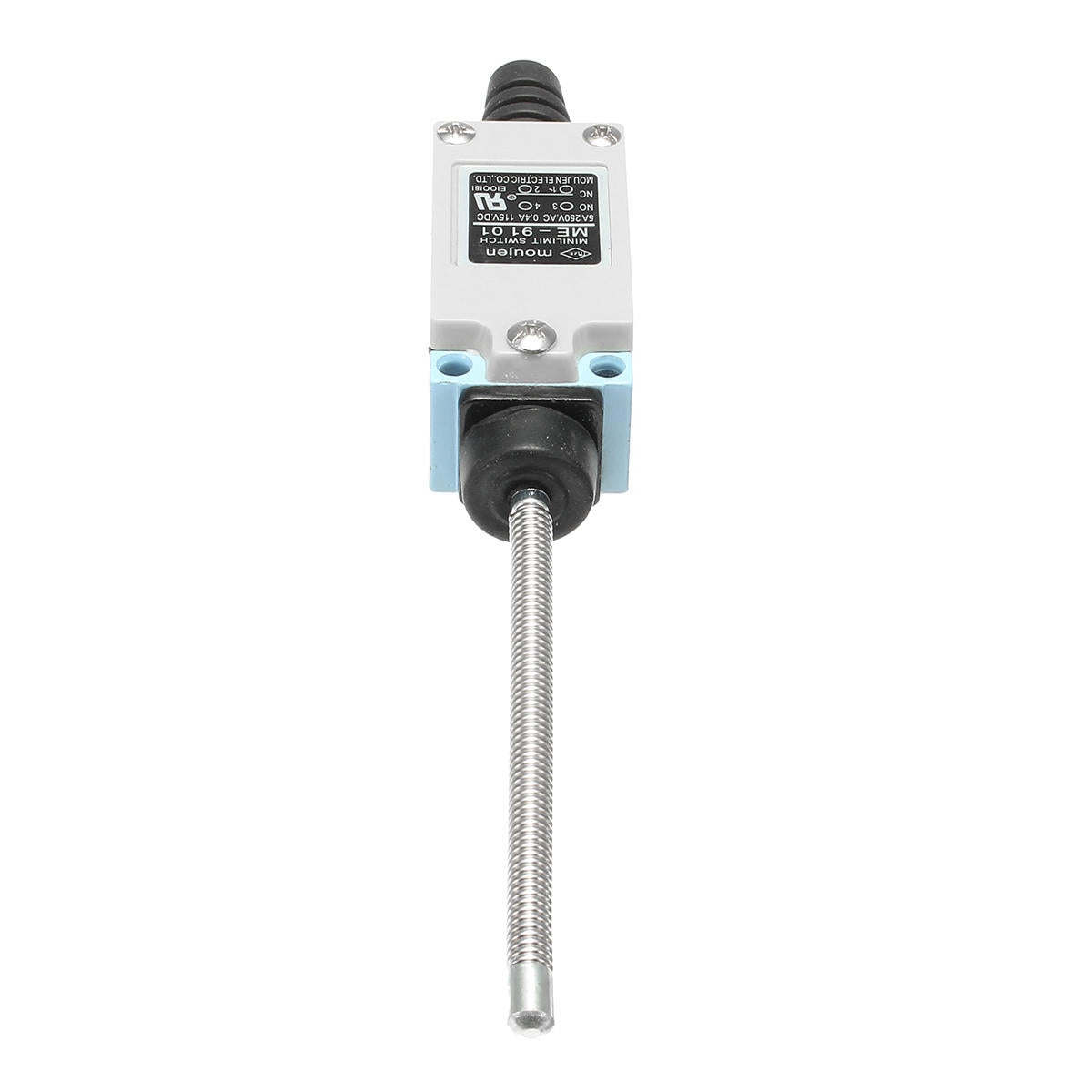

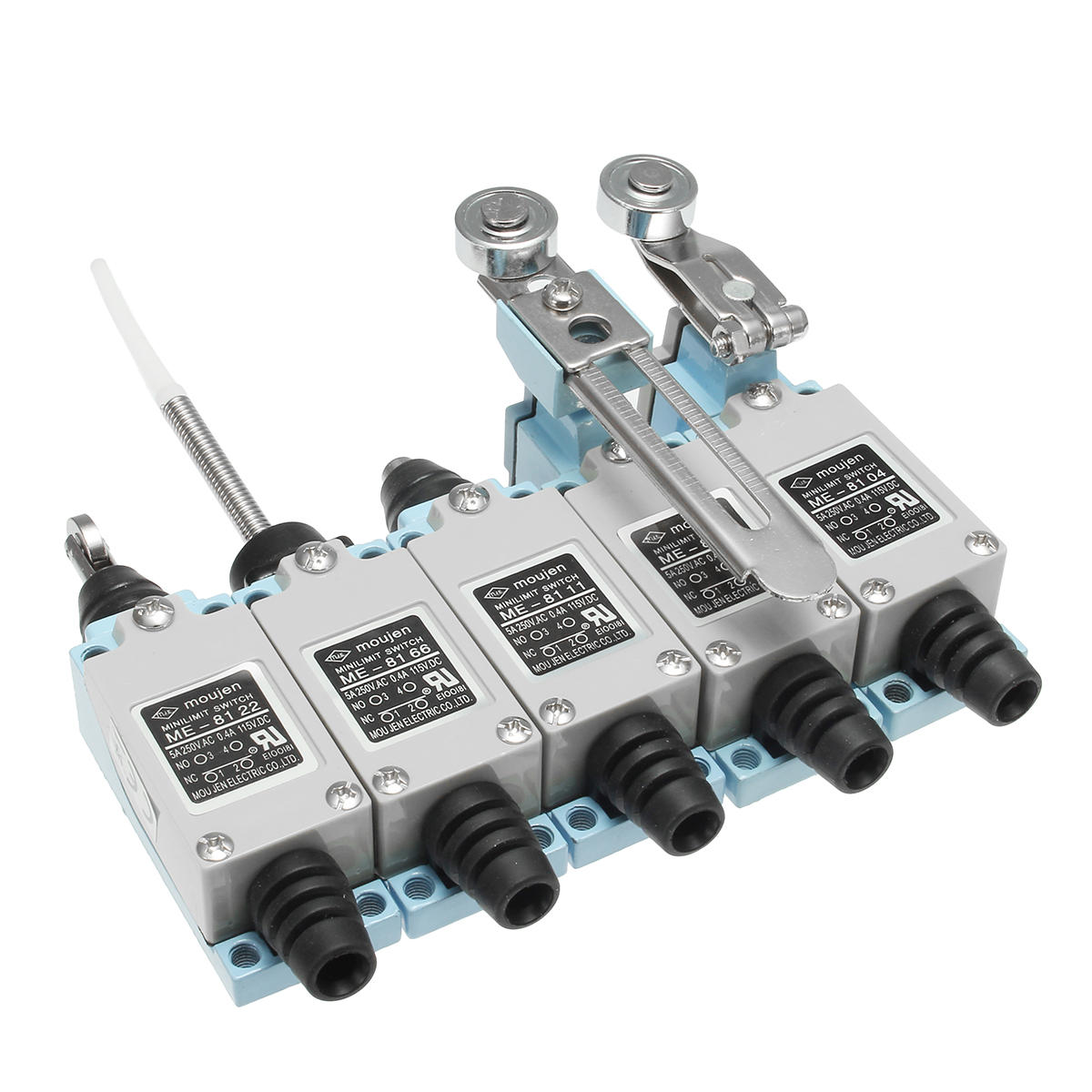

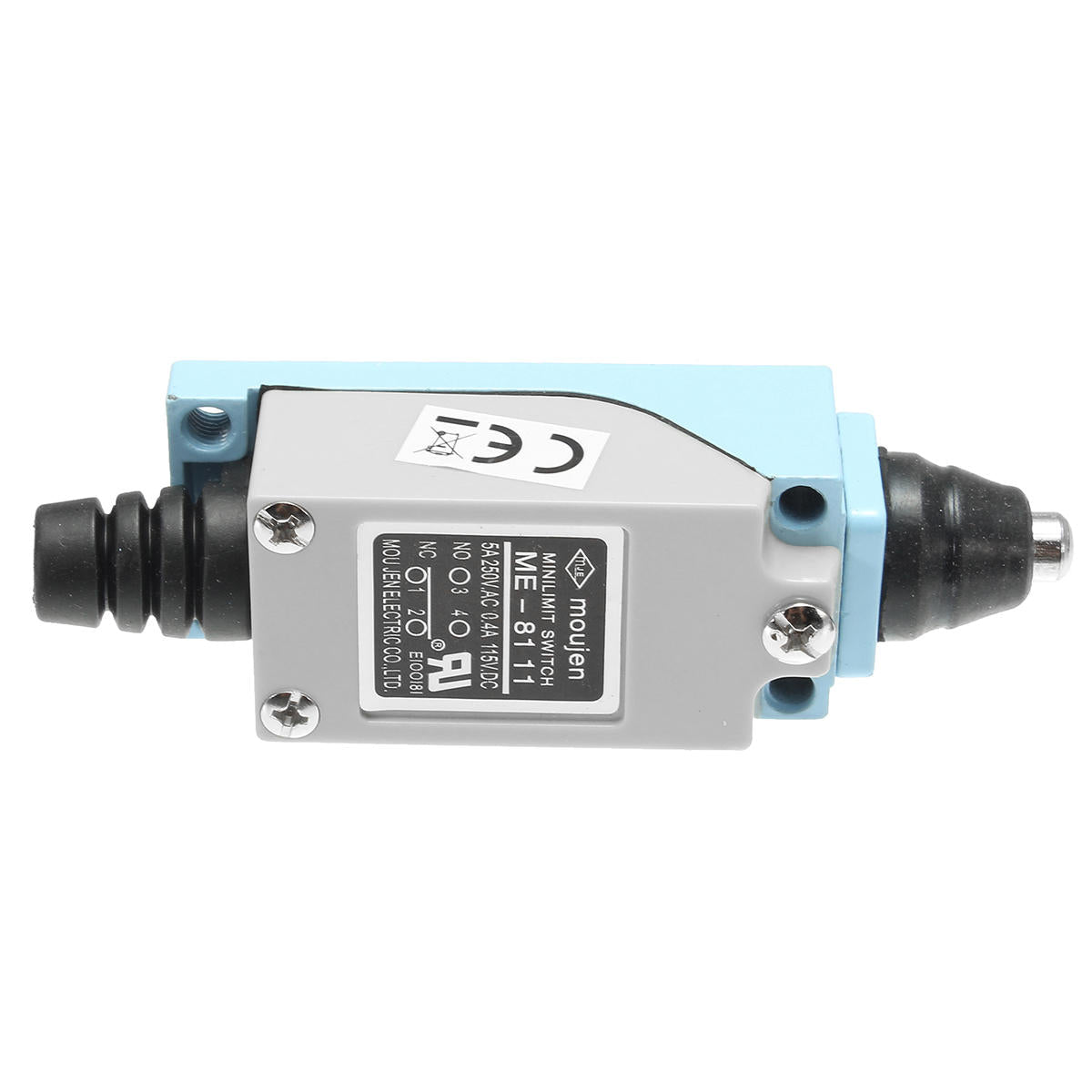

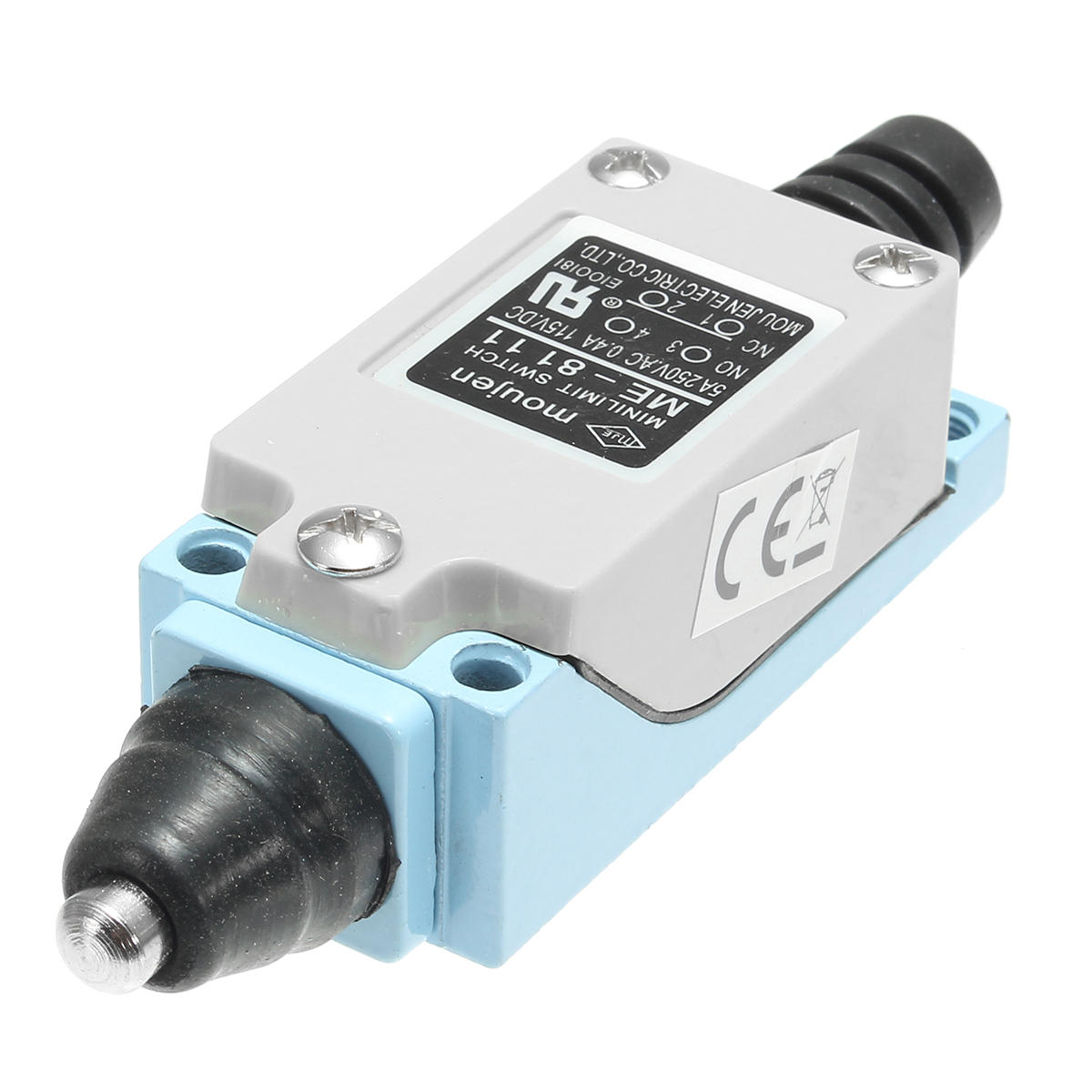

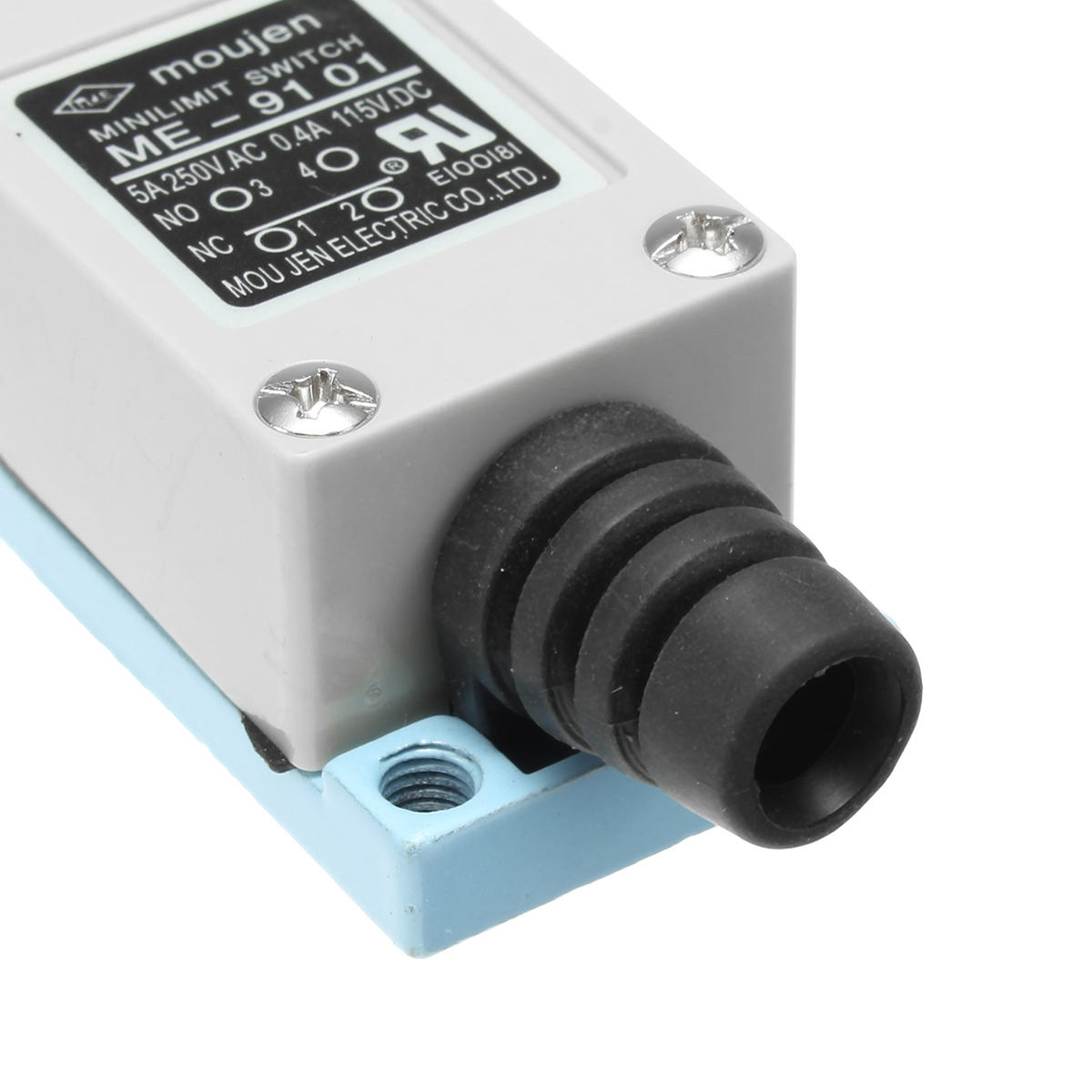

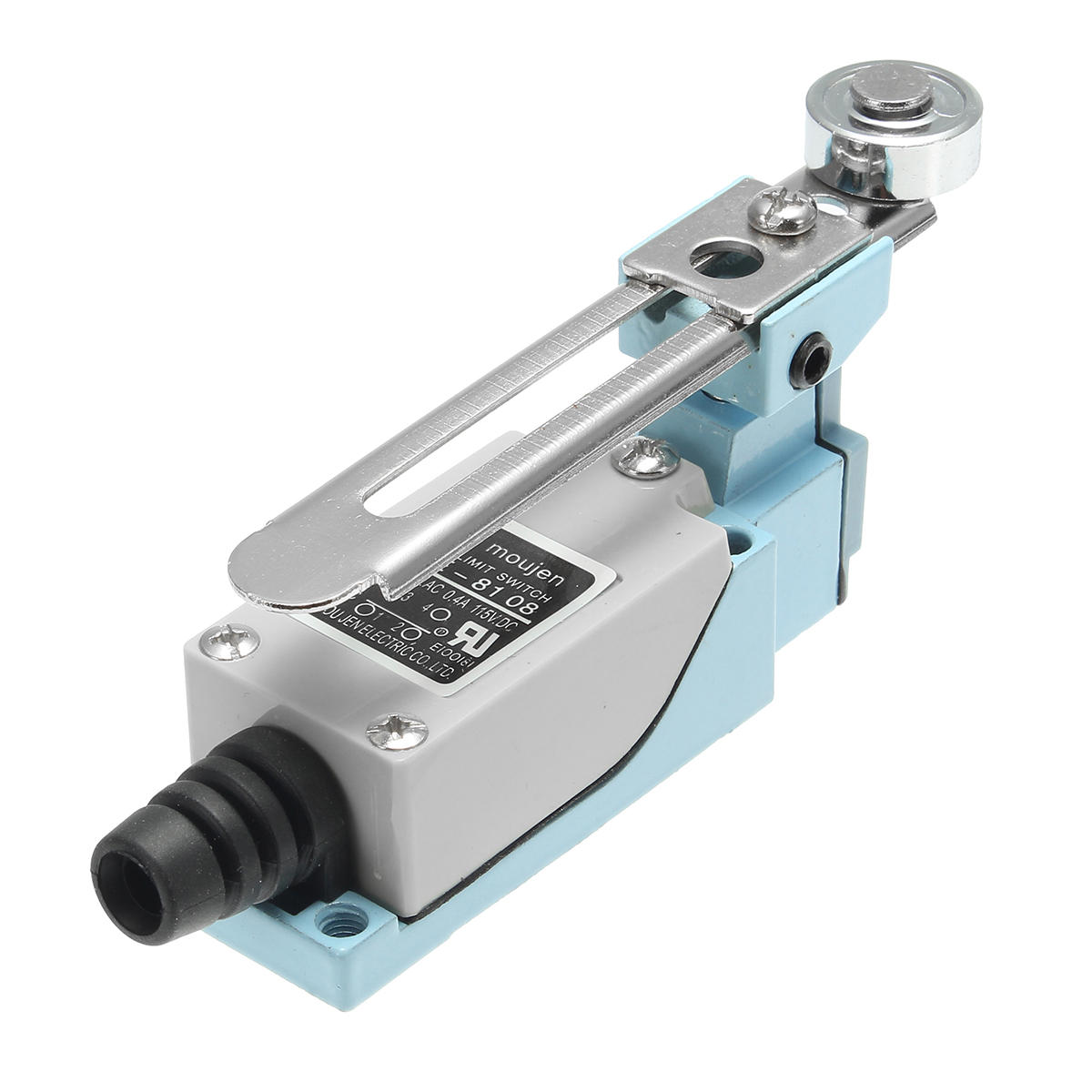

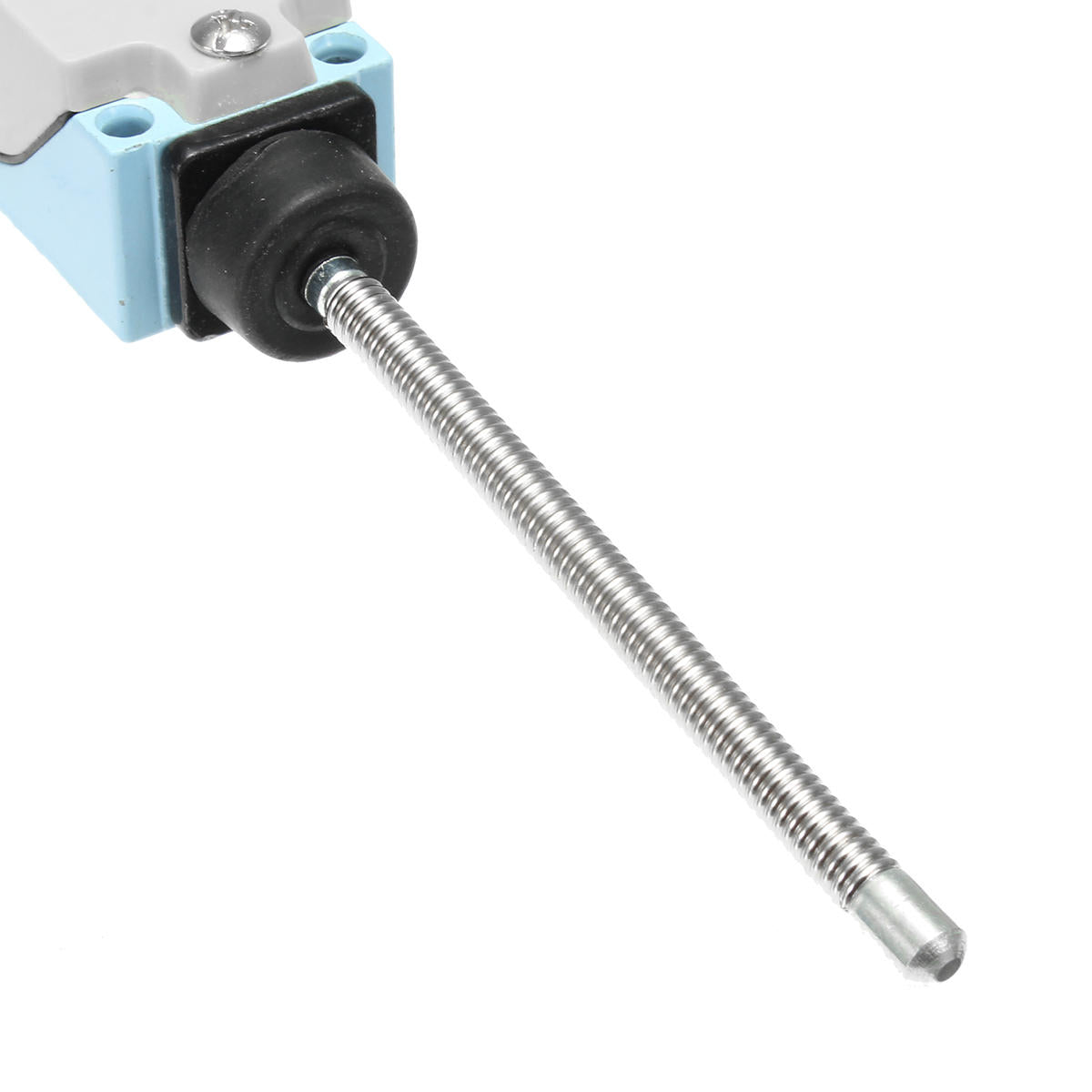

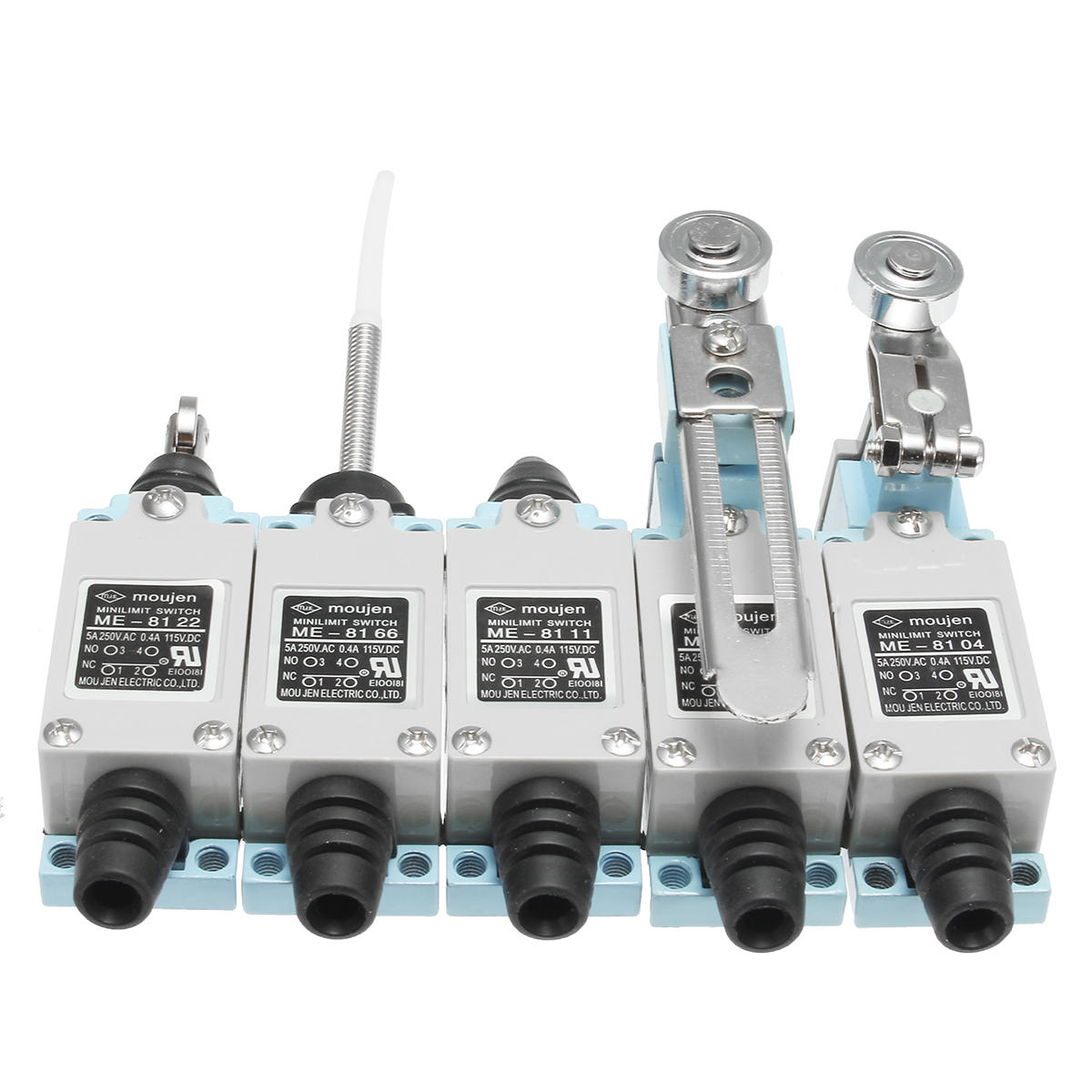

10 Types 250VAC Limit Switch IP65 Adjustable Actuator Roller Arm Rod Spring Coil Endstop Switch
Specifications: Rating: 5A/250VAC Life span electrical: 100.000 Life span mechanical: 1.000.000 Protection degree: IP65 Operating temperature: -5 ~ +40C Operating Humidity: < 85 Operating frequency (electrical): 30times/min Operating frequency...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specifications:
Rating: 5A/250VAC
Life span electrical: 100.000
Life span mechanical: 1.000.000
Protection degree: IP65
Operating temperature: -5 ~ +40C
Operating Humidity: < 85
Operating frequency (electrical): 30times/min
Operating frequency (mechanical): 120times/min
Insulation resistance: 100M ohm
Contact resistance: 25m Ohm (initial)
Contact layout and mounting holes
Style Note:
#1: 8169
#2: 8168
#3: 8167
#4: 8166
#5: 8122
#6: 8112
#7: 8111

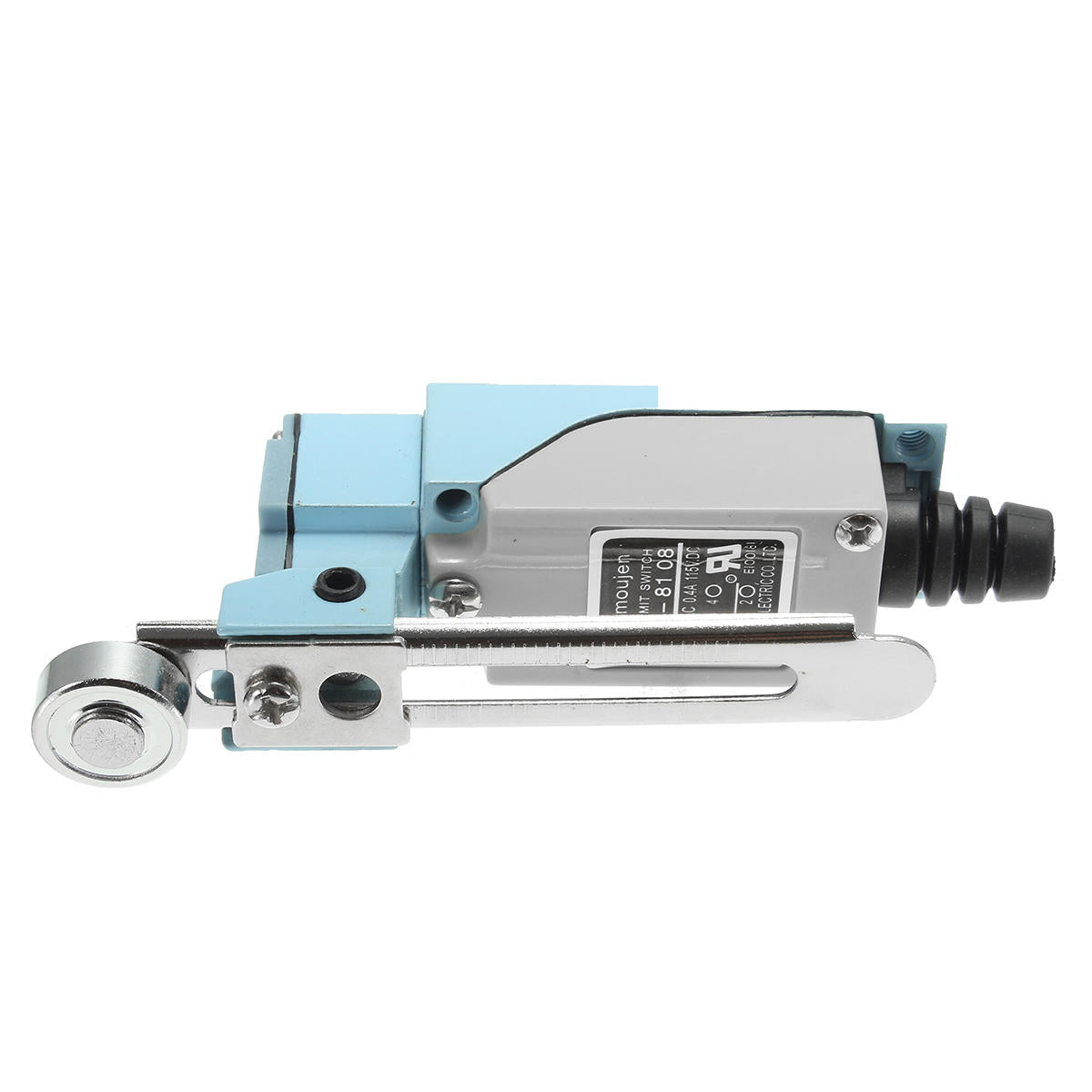

#8: 8108
#9: 8107

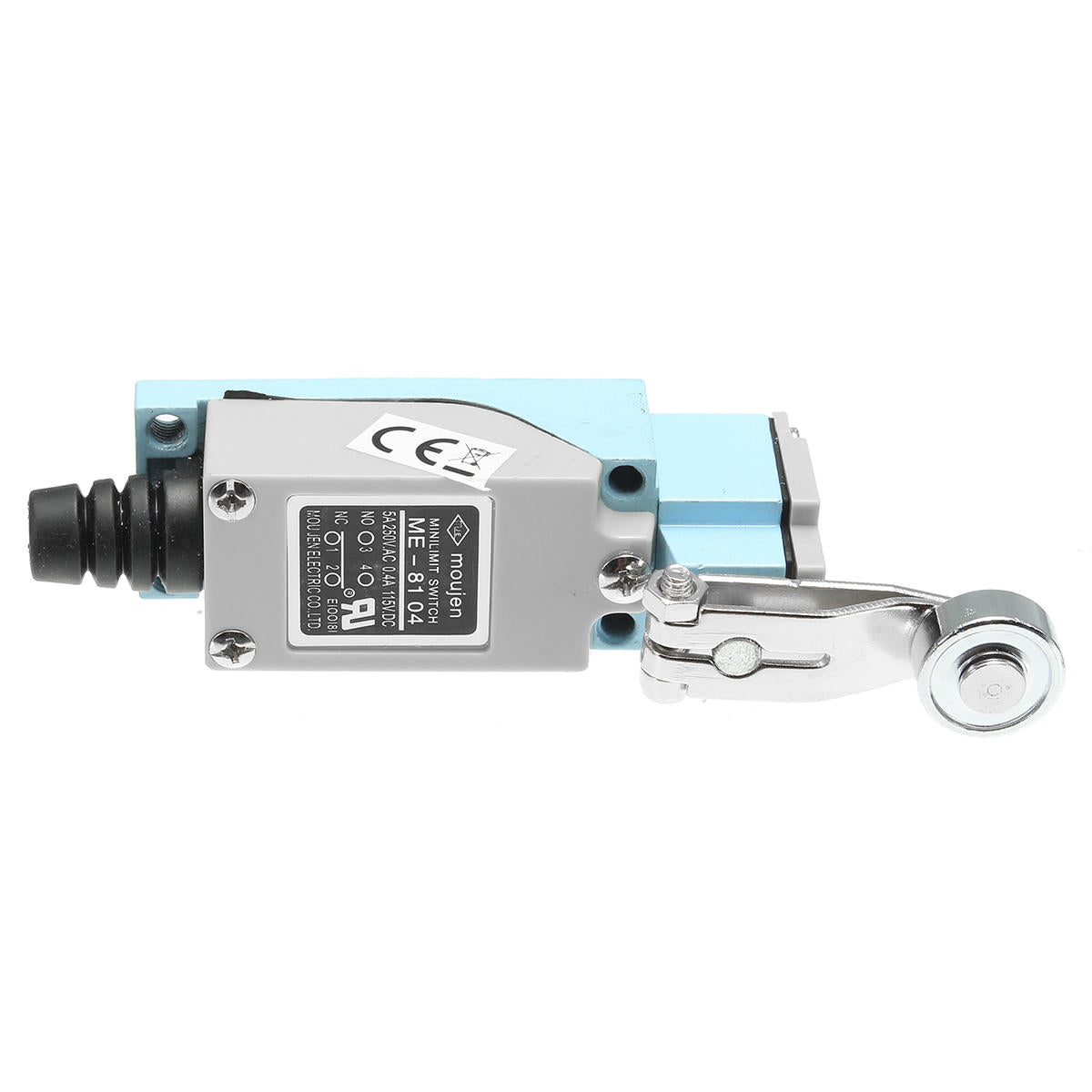

#10: 8104
Style Note:
#1: 8169
#2: 8168
#3: 8167
#4: 8166
#5: 8122
#6: 8112
#7: 8111
#8: 8108
#9: 8107
#10: 8104
NOTE:
1. The elevation of the installation site is no more than 2000m;
2. The ambient air temperature is 5 ℃ ~ + 40 ℃.
3. At the highest temperature is + 40 ℃, the relative humidity of the air does not exceed 50%;
4. The switch pollution level is level 3;
5. Vertical installation in a place without strong vibration and impact;
6. Shell protection level is IP62;
7. Switch for â…¡ installation category.
Pacakage includes:
1 x Limit Switch
More Details:
10 Types 250VAC Limit Switch IP65 Adjustable Actuator Roller Arm Rod Spring Coil Endstop Switch
