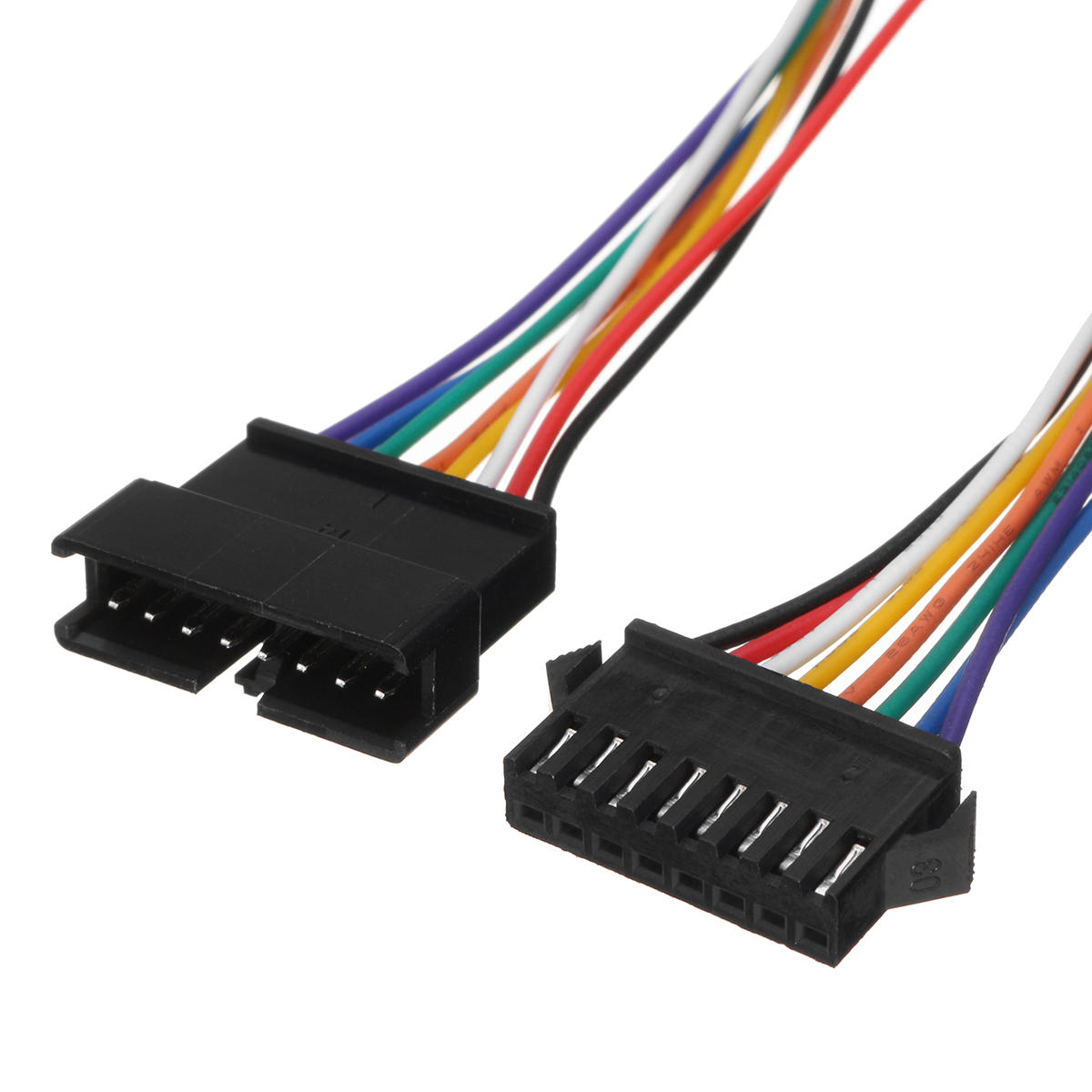

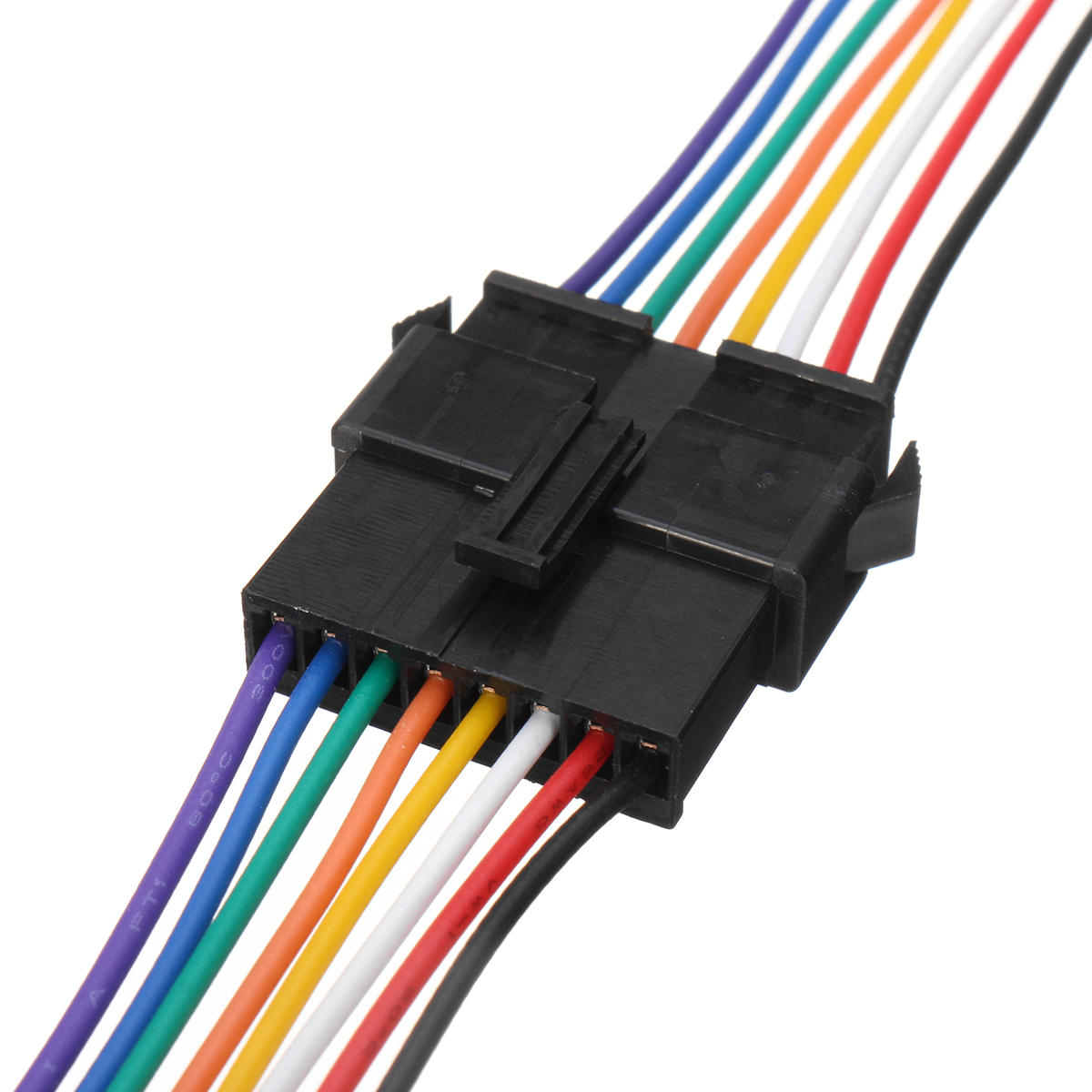

10 Set Jst 2.5mm SM 8-Pin Male & Female Connector Plug With Wire Cable 300mm
🟢 In Stock
JST 10 Sets 2.5mm 26 AWG SM 10 Pin Female Male Housing Connector Plug Wire 300mmSpecification :Condition : 100% Brand newModel : 568512Product name : male & female connectorSeries :...
✔️ WORLDWIDE FREE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
JST 10 Sets 2.5mm 26 AWG SM 10 Pin Female Male Housing Connector Plug Wire 300mm
Specification :
Condition : 100% Brand new
Model : 568512
Product name : male & female connector
Series : SM Connector

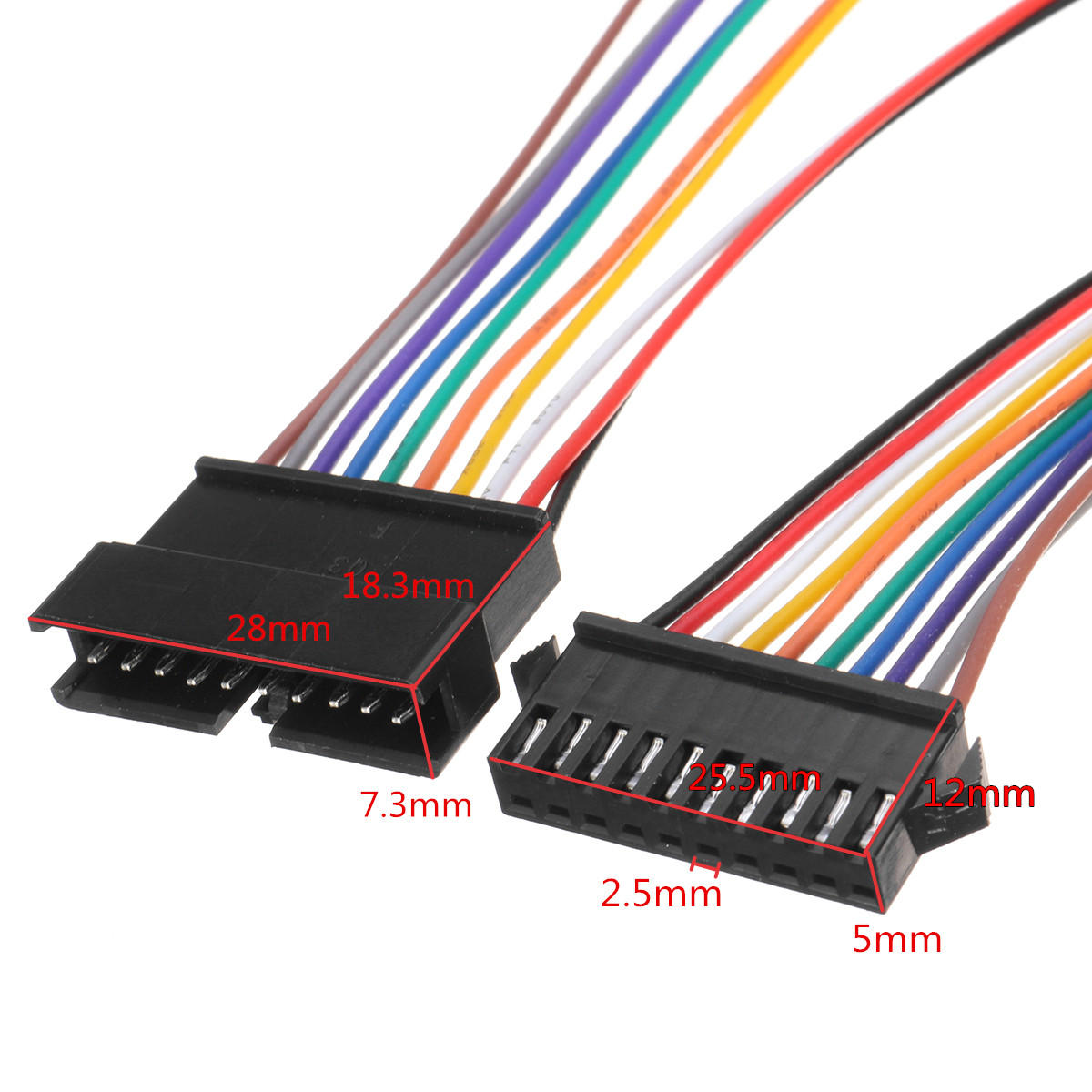

Pitch : 2.5mm
Position : 8
Gender : Male & Female plug housing
Number of rows : 1
Applicable : 26 AWG

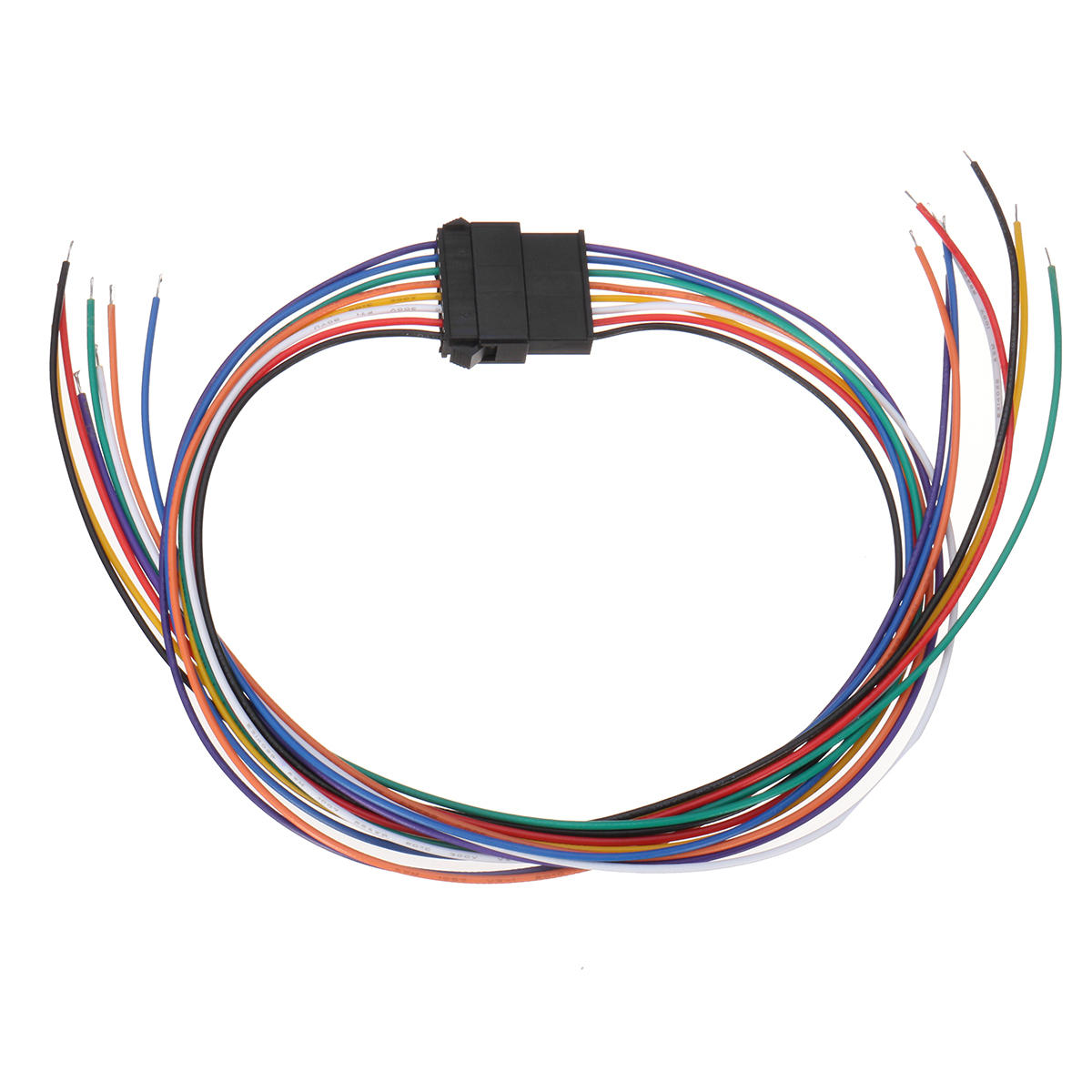

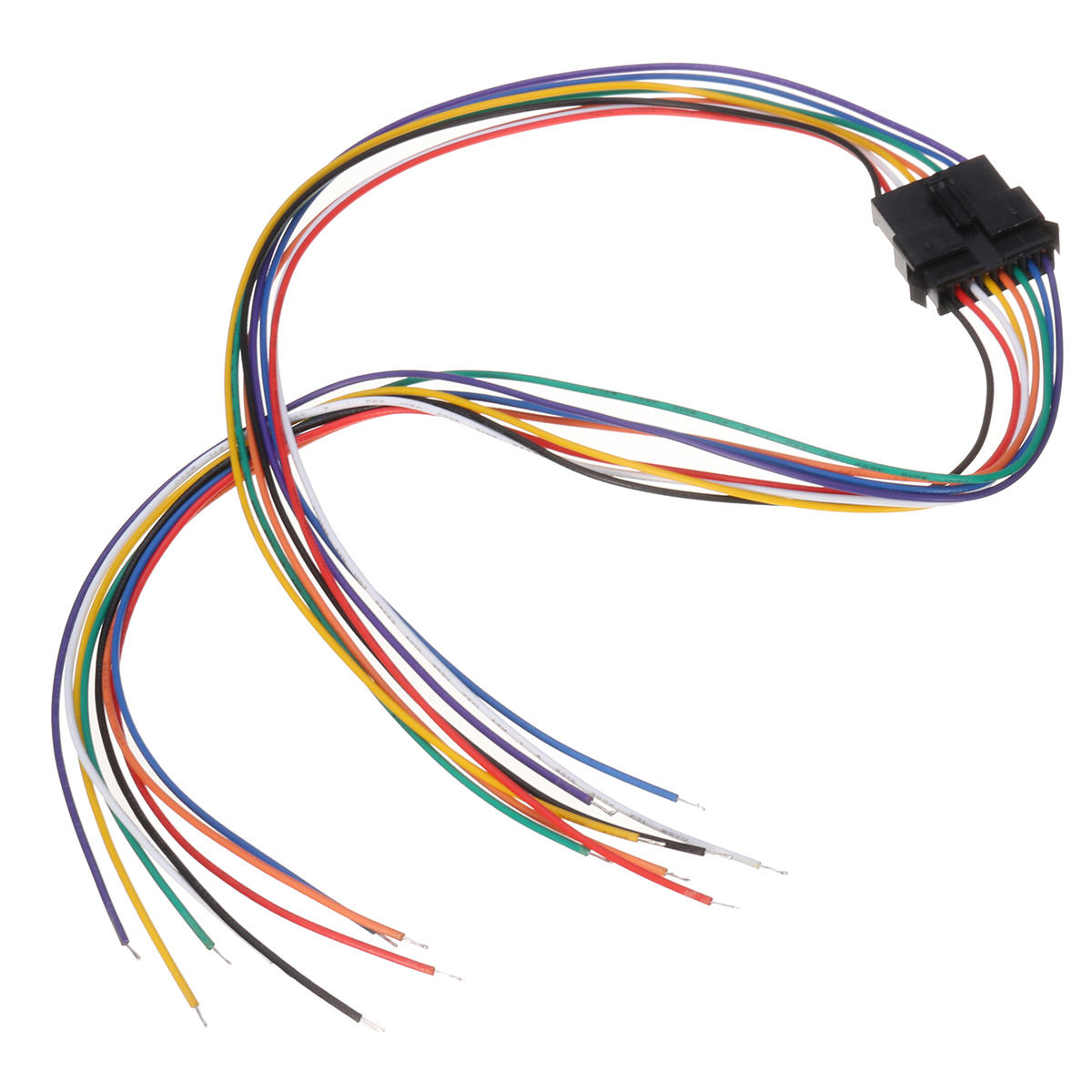

Wire length : Approx 300mm
End of wire material : solder bare wire
Voltage rating : 250V DC/AC
Current rating : 3.0A DC/AC
Temperature : -25to85°C
Withstand voltage : 500 VAC/minute (effective value)
Insulation resistance : ≥1500M Ω
Contact resistance : ≤0.02 Ω
Applicable panel thickness : 0.5 to 2.0mm

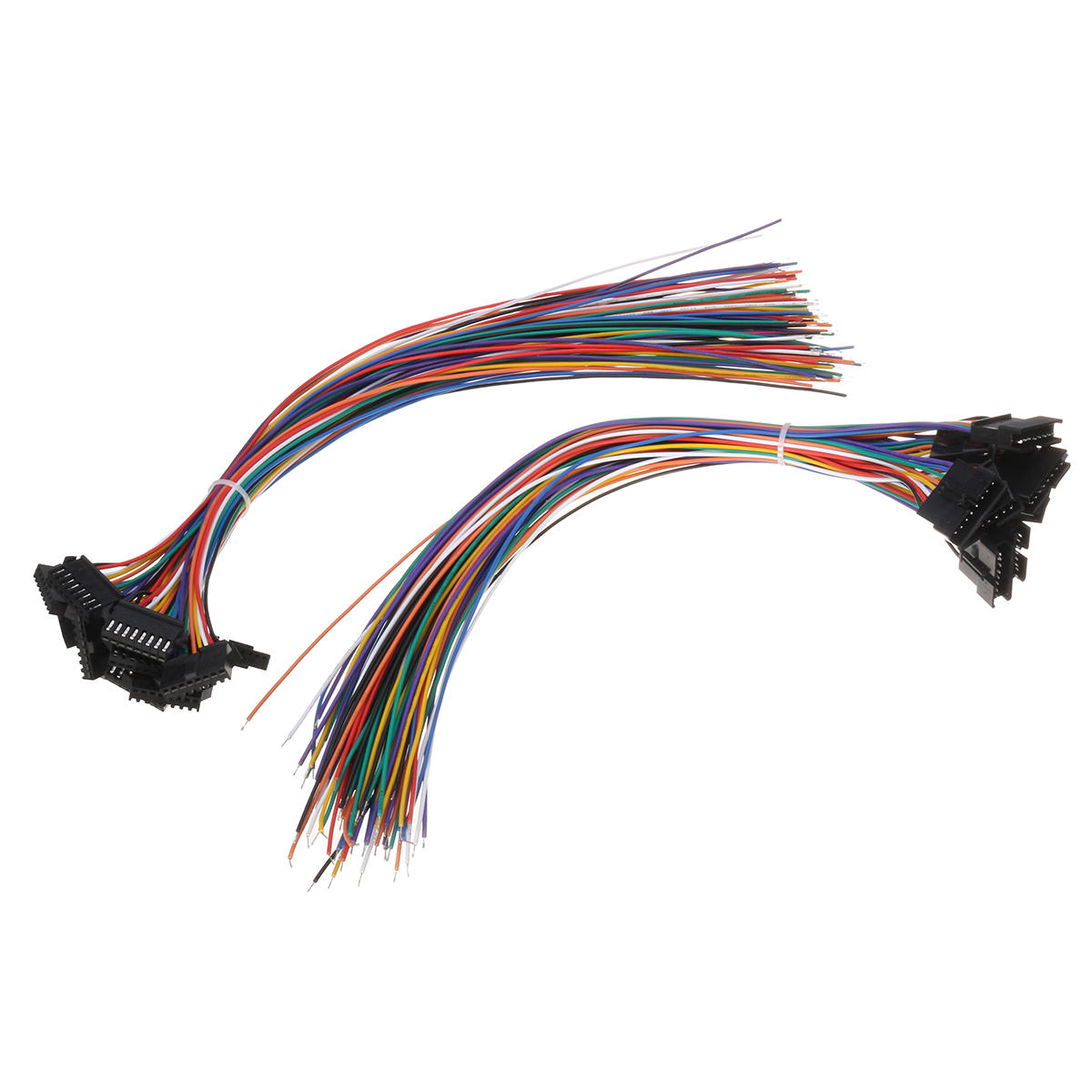

Package included :
10 x SM 2.5mm 8 Pin Male Housing Connector with wire
10 x SM 2.5mm 8 Pin Female Ho
,
,
,
,
,
,
,
Specification :
Condition : 100% Brand new
Model : 568512
Product name : male & female connector
Series : SM Connector
Pitch : 2.5mm
Position : 8
Gender : Male & Female plug housing
Number of rows : 1
Applicable : 26 AWG
Wire length : Approx 300mm
End of wire material : solder bare wire
Voltage rating : 250V DC/AC
Current rating : 3.0A DC/AC
Temperature : -25to85°C
Withstand voltage : 500 VAC/minute (effective value)
Insulation resistance : ≥1500M Ω
Contact resistance : ≤0.02 Ω
Applicable panel thickness : 0.5 to 2.0mm
Package included :
10 x SM 2.5mm 8 Pin Male Housing Connector with wire
10 x SM 2.5mm 8 Pin Female Ho









10 Set Jst 2.5mm SM 8-Pin Male & Female Connector Plug With Wire Cable 300mm
