10 Bar Digital Display Pressure Controller Switch G1/2" EU Adapter For Water Pump

10 Bar Digital Display Pressure Controller Switch G1/2" EU Adapter For Water Pump

$36.74

220V 10 Bar Digital Display Pressure Controller Switch G1/2' EU Adapter For Water PumpSpecification:Model: i23479Product Name: Digital Pressure Switch Socket type: EU PlugConnection: G1/2' (OD: 20mm)Pressure Range: 0-10 Bar, matching with...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Description

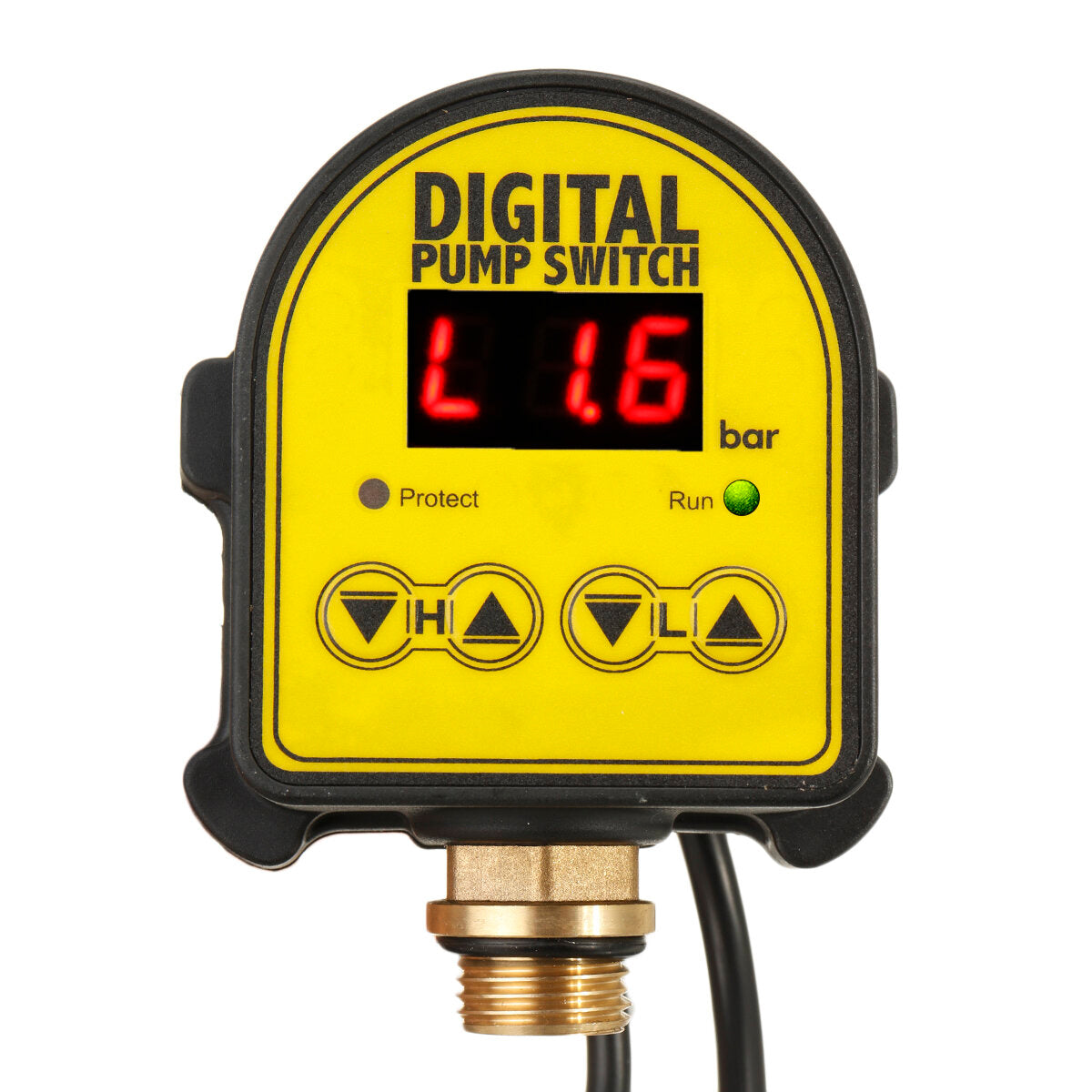

220V 10 Bar Digital Display Pressure Controller Switch G1/2' EU Adapter For Water Pump

Specification:
Model: i23479
Product Name: Digital Pressure Switch
Socket type: EU Plug
Connection: G1/2' (OD: 20mm)
Pressure Range: 0-10 Bar, matching with all pumps
Overload Capacity: 220V,10A; Pump(≤1.5KW) can be started directly
Long Life: can be used continuously for more than 20 million times.
Power supply: 220V supply
Fluid Temperature: 80 degrees
Waterproof: IP65
Color: Yellow & Black
Material: Plastic , Metal
Size: Approx 115mm/4.53' x 83mm/3.3' x 52mm/2'(LXWXH)
Cable length: the Long one is 96.5cm ; the short one is 29.5cm
Wiring (3 wires) : White: Positive, Black: Negative, Green&Yellow: Ground
Number of piece: 1

Features:
-- Environmental protection: Pressure sensing principle, Silent design
-- Safety: IP65,water-proof case,water-shortage protection
-- Efficient: Real-time digital display pressure, stable and precise control
-- Energy saving: Freely adjust setting parameters for easy operation
-- Intelligent: Effectively prevent the pump from starting frequently
-- Reliable: Electronic life, up to 200,000 times, anti-vibration
-- Widely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.

Installation remarks:
1. If the pump dosen't have a check valve, then a check valve must be installed in front of the pressure switch to prevent the water going back to the switch to release the pressure, in this case the pump may on'off more frequently.
2.When you turn on the tap water , if the pump is on/off time to time. please adjust the H value to a larger value.
3.If the pump keep runs with stopping ,please lower the H value, on the other hand , if the pump doesn't work please set the L value higher.

Package included:
1x Pressure Switch
1x English user manual

Note:
1. (IMPORTANT) Professional Installation Is Highly Recommended!
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
