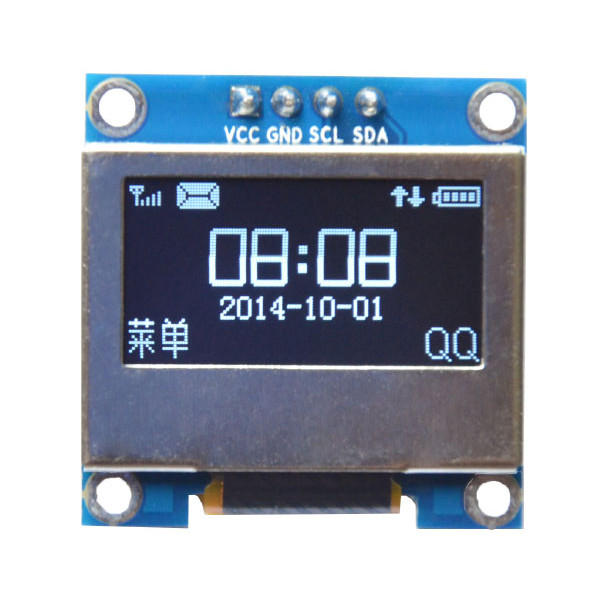

0.96 Inch 4Pin White LED IIC I2C OLED Display With Screen Protection Cover
0.96 Inch 4Pin White LED IIC I2C OLED Display With Screen Protection Cover
Regular price
$22.99 USD
Regular price
$25.99 USD
Sale price
$22.99 USD
Unit price
/
per
Taxes included.
100 in stock
Couldn't load pickup availability
Note:
To protect the screen, add an iron frame to the screen
Interface: IIC/I2C
GND: Power Gound
VCC: 3.3V-5V
SCL: CLK clock
SDA: IIC data
Feature:
Color: White LED
Resolution: 128x64
Power: 0.06W
Wide power supply range: DC 3V-5V
Temperature: -30°C to 70°C
Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD1306
Package included:
1 x White OLED display
,
,
,
,
,
,
