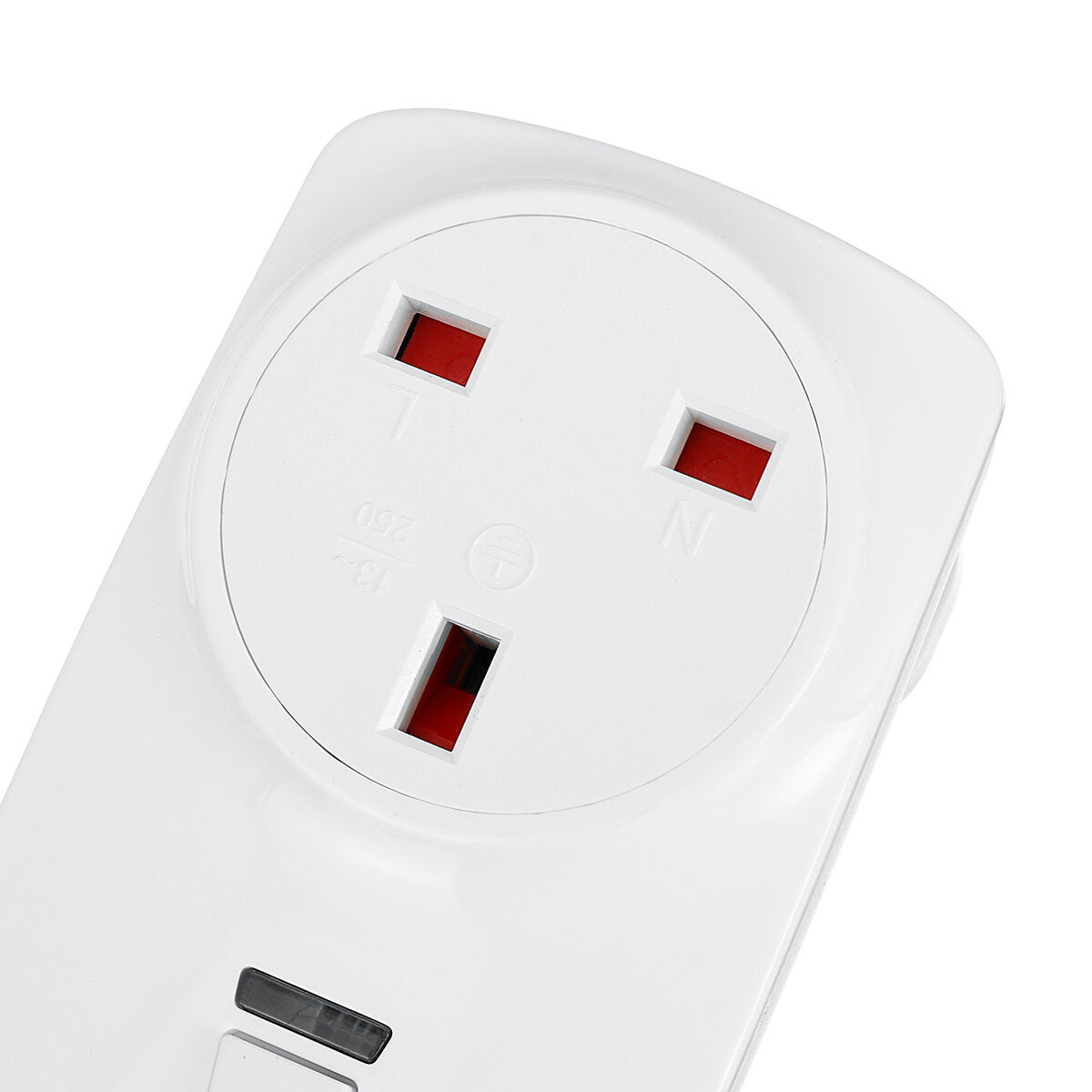

Wireless Remote Control Socket AC220V UK Socket + Remote Control Round SOS Remote Control
Feature:RF Remote control socket refers to a socket where one or more circuit wiring can be inserted, through which various wiring can be inserted to facilitate connection with other circuits....
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Feature:
RF Remote control socket refers to a socket where one or more circuit wiring can be inserted, through which various wiring can be inserted to facilitate connection with other circuits. The power socket is an electrical device that provides a power interface for household appliances, and it is also an electrical accessory that is frequently used in residential electrical design. It has a close relationship with people's lives.
It can be used to remotely control the switch of electrical power, energy saving and environmental protection!

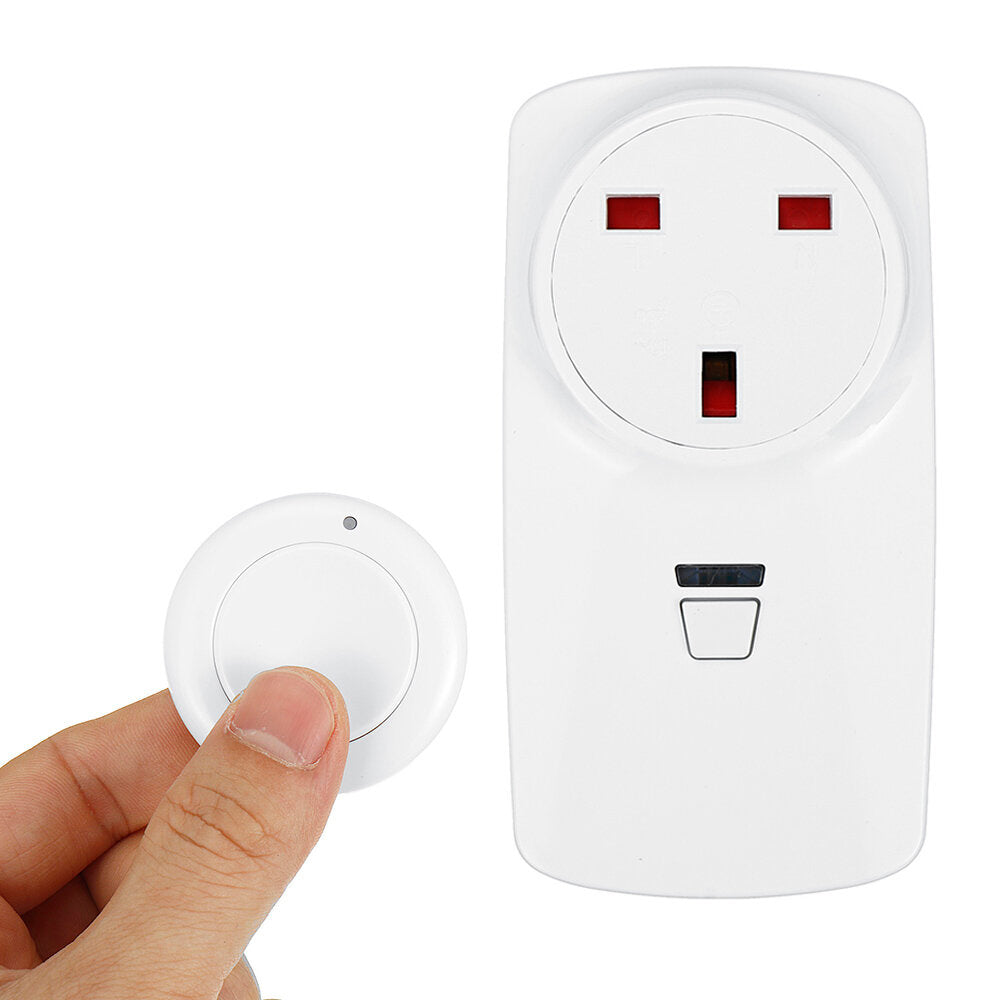

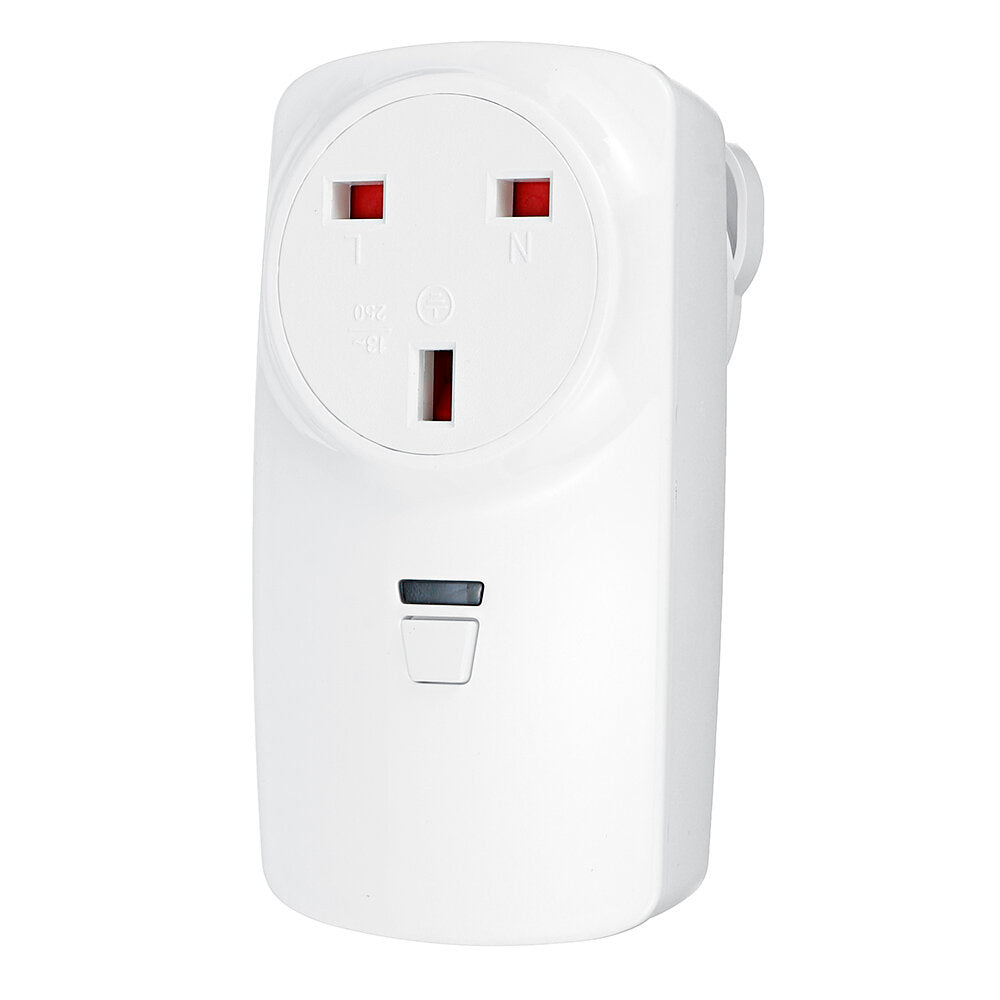

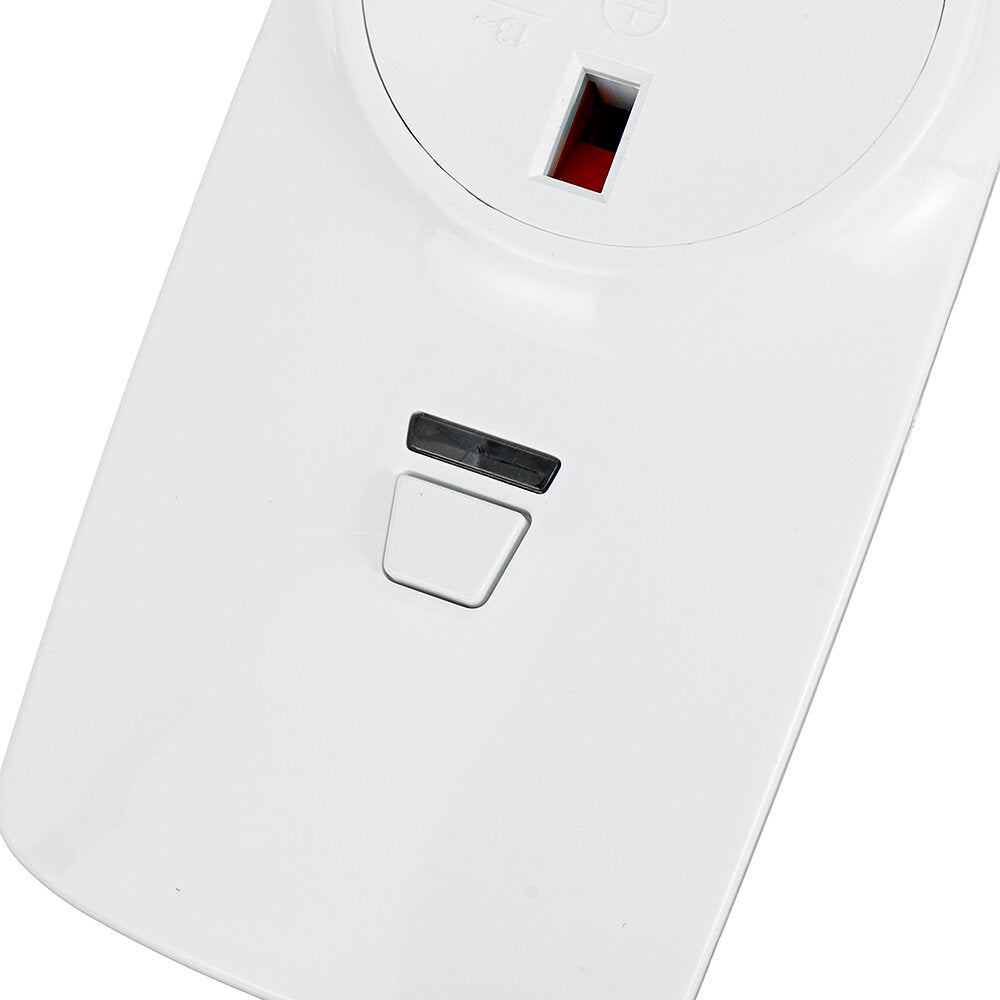

This wireless remote control socket is designed with two working modes: manual and remote control. The circular button on the interface is the manual switch key and the learning key for code matching with the remote control. There are two adjustable working modes in the remote control mode (self-locking and interlock), which can be switched through the learning button on the interface, and can be combined with a variety of wireless remote controllers in any combination.
In self-locking mode: learn the code matching with the same button on the remote control, press the same button once to turn it on, and press it again to turn it off;
In interlock working mode: it is to learn the code with two different keys on the remote control, press one key to turn on, and press the other key to turn off;
Specification:
Working frequency: 433MHZ
Weight: 0.115KG
Working voltage: AC220V

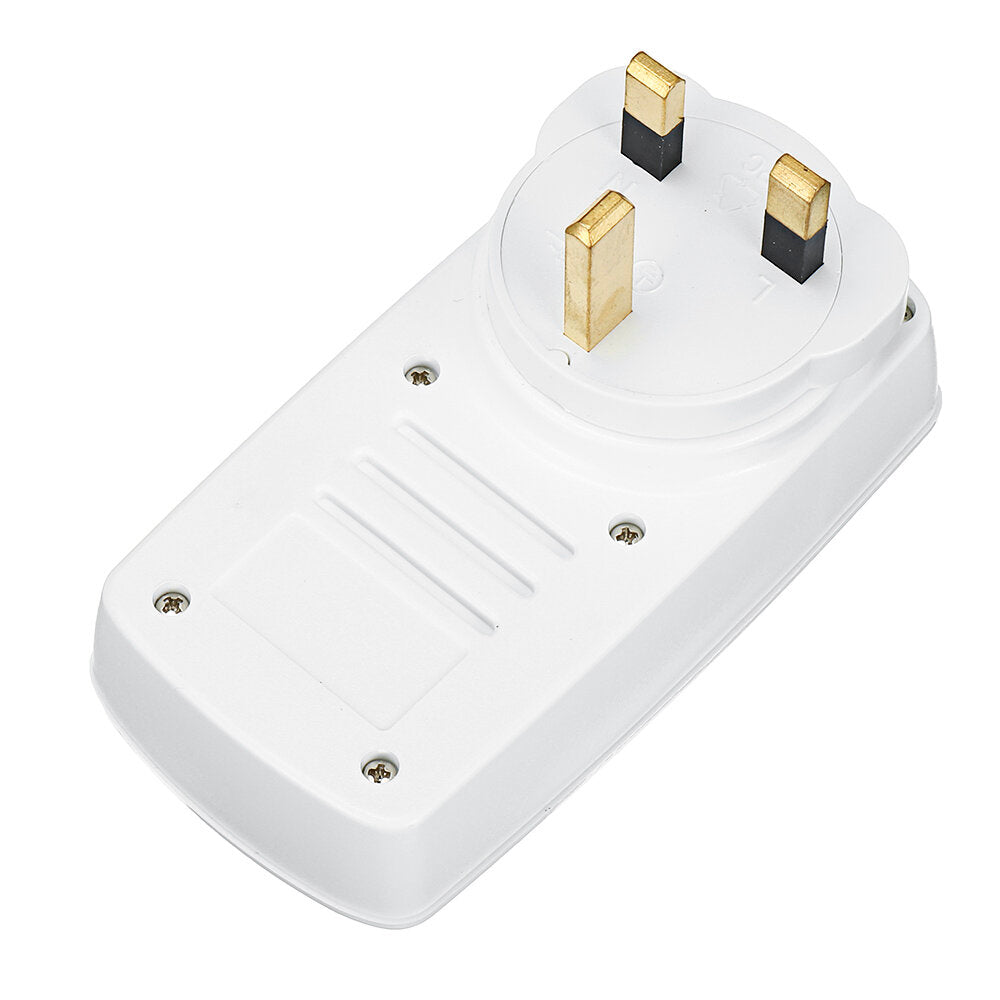

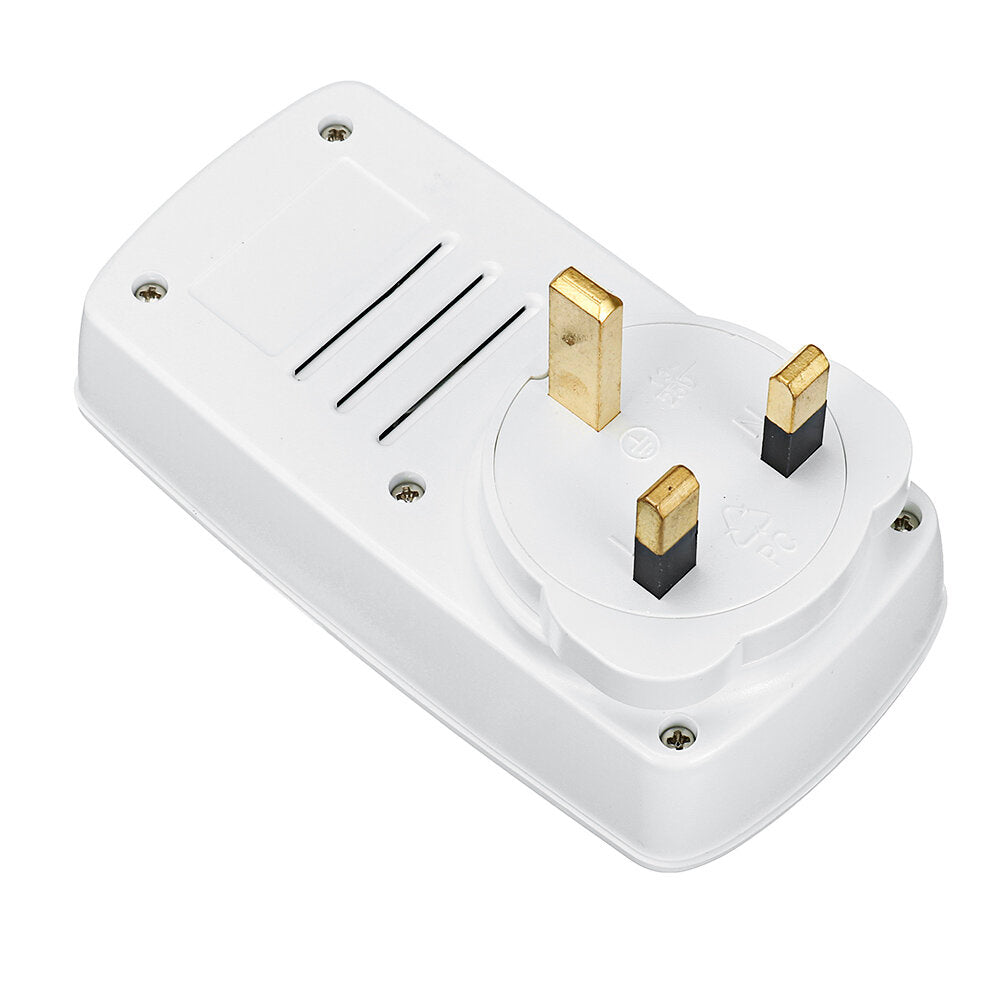

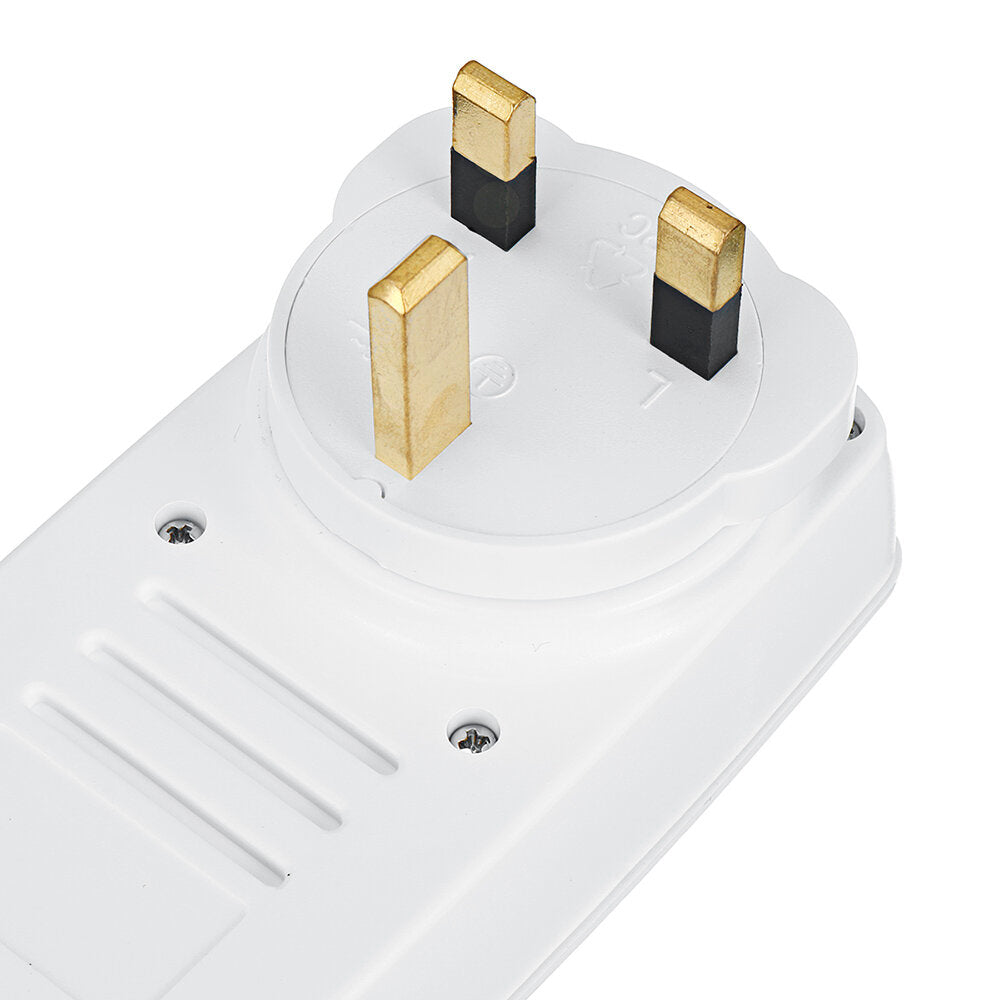

Back interface terminal: 3 feet
Load: ÔëĞ1000W
Remote control chip: ev1527 learning code
Reference distance: 20-80m
Remote control working voltage: 6V (two button batteries)
Remote control Size: outer diameter 45mm, button diameter: 30mm
Self-locking learning code matching method:
First, plug the wireless remote control socket into the normal household plug-in board that is powered on, and then connect an electrical appliance to the remote control socket to manually test whether the socket is normally energized. Then, after long pressing the learning button for about 3 seconds, the learning indicator on the remote control socket interface is on, release it, and immediately press any button on the remote control twice. The learning indicator flashes three times and then turns off gray, indicating successful learning.
Code clearing method: (please clear the code first and then match the code when you need to change the working mode)
Press and hold the learning button on the remote control socket interface for about 15 seconds, and the learning indicator turns from on to off to indicate that the code has been cleared successfully.
Interlock learning and coding method:
After pressing the learning button for about 3 seconds, the learning indicator on the remote control socket interface will be on, release it, and immediately press any button (or unlock button) on the remote control, and then press another button on the remote control (or lock button), the learning indicator flashes Turn off the gray after three times, indicating successful learning.
Package includes:
1 x Socket
1 x remote
