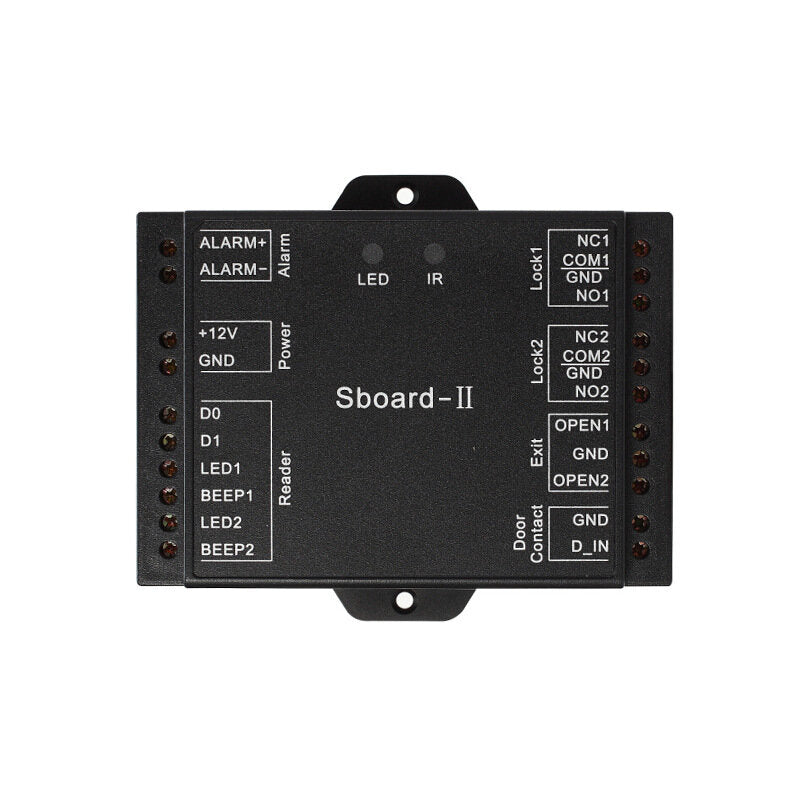

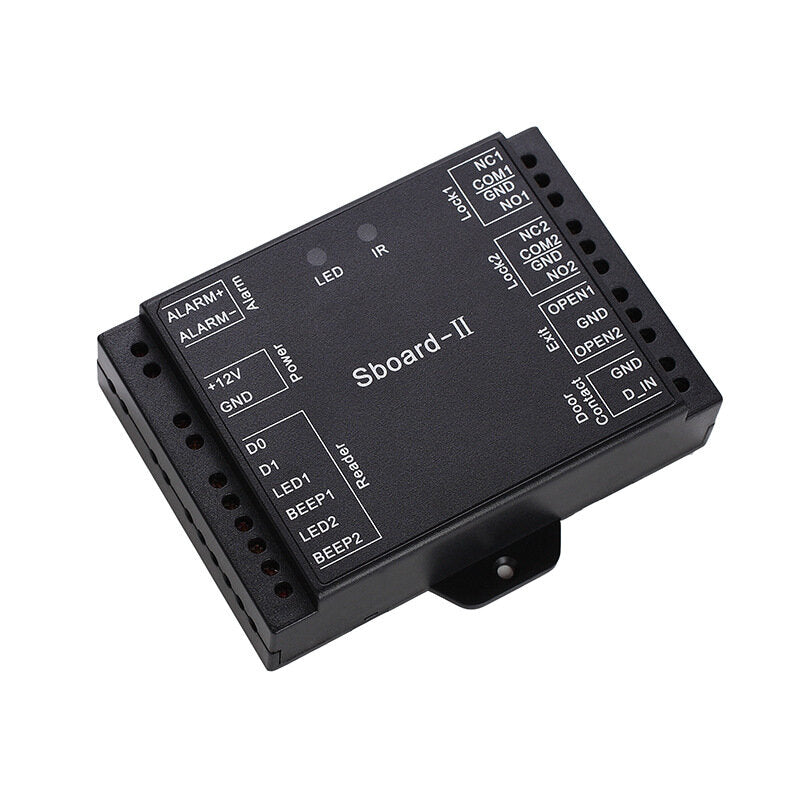

Mini Network 2 Reray Door Access Control Board for Electric Lock Card Reader Wiegand 26~37 Bits Output
Features: ÔÇó 2100 Users, user data can be transferred ÔÇó Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs ÔÇó Can connect with any reader with...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Features:
ÔÇó 2100 Users, user data can be transferred
ÔÇó Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
ÔÇó Can connect with any reader with Wiegand 26~37 bits output
ÔÇó Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output
ÔÇó Support Master Card function
ÔÇó Support set principal card
Specification:
User Capacity: 2100
Zone 1: 2000
Zone 2: 100
Operating Voltage: 9~24V DC
Idle Current: <30mA
Idle Current (With Wifi): <100mA
Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
Lock Output Load: 10A Maximum
Wiegand Interface
Input : Wiegand 26-37 bits
Output : Wiegand 26-37 bits (for user transfer)
Environment: Indoor
Operating Temperature: -40Ôäâ ~ 60Ôäâ (-40┬░F ~ 140┬░F)
Operating Humidity: 0~90%RH
Physical: ABS Shell
Color : Black
Dimensions: 100 x 86 x 26mm(L x W x D)
Product Weight : 110g
Package Weight: 180g
Package included:

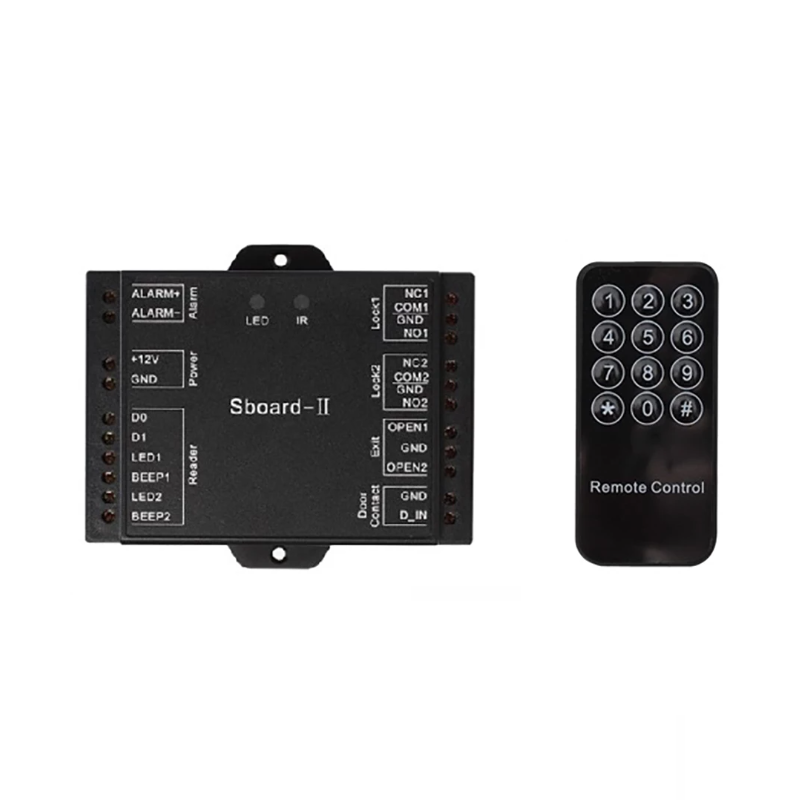

1 x Sboard Mini Single Door Controller

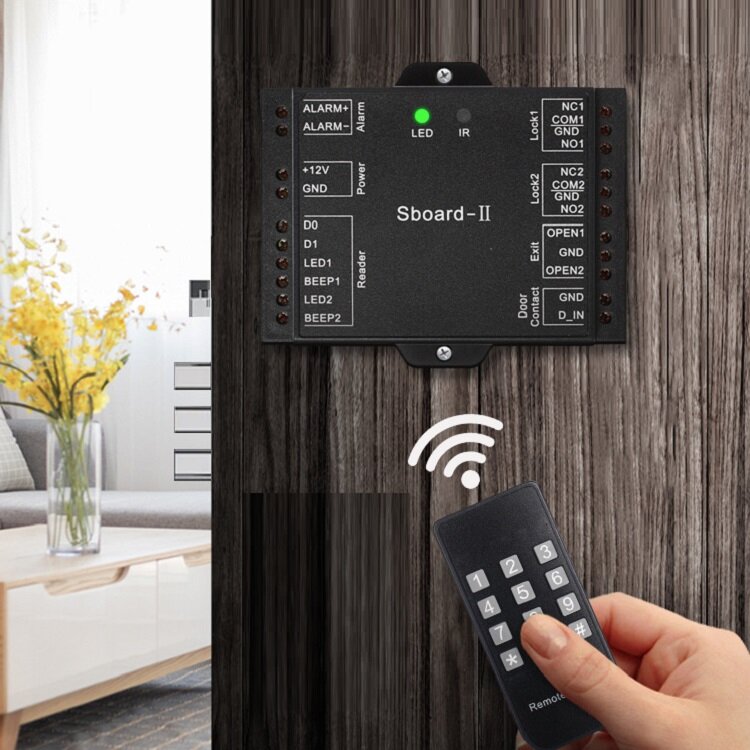

1 x Remote controller
