Description:

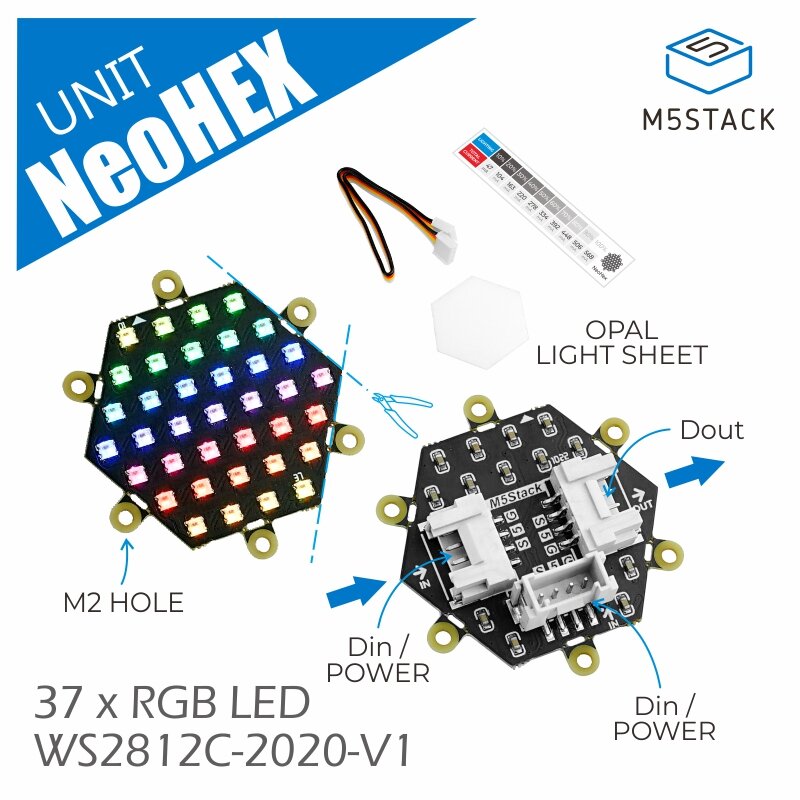

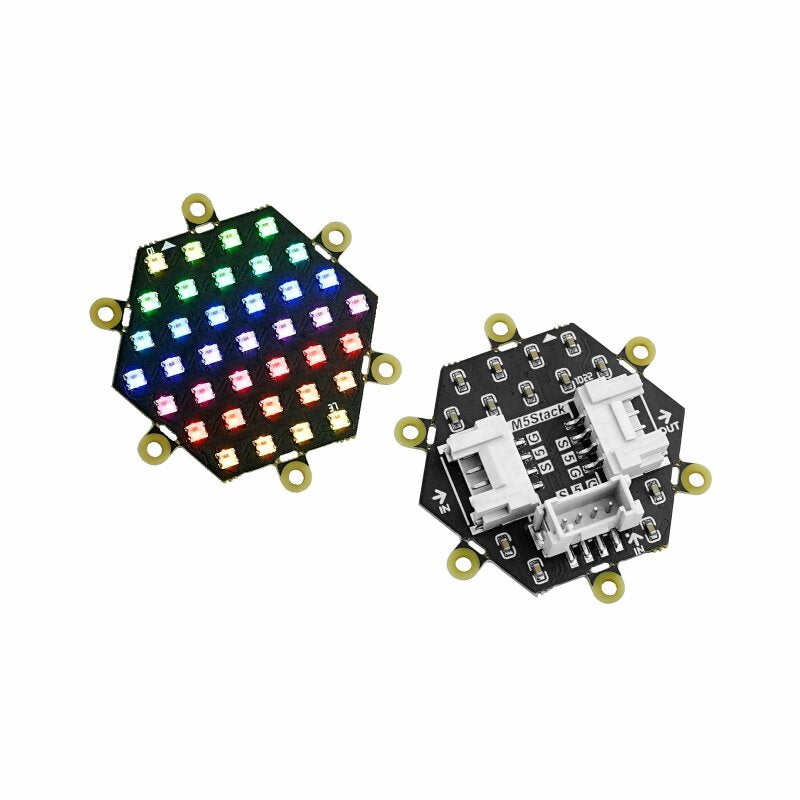

NeoHEX is a hexagonal board with 37 RGB LED flexible beads and will be sure to 'WOW' plenty. Use single BUS control, and support multiple boards connecting. Two sets of different angle input connectors are provided for independent power supply + signal control. External structure with fixing ears for easy installation. With its opal light sheet, the diffusion creates a gentle glow and provides innovative solution to transform your living spaces into unique pieces of functional art.
Product Features:
WS2812C-2020-V1

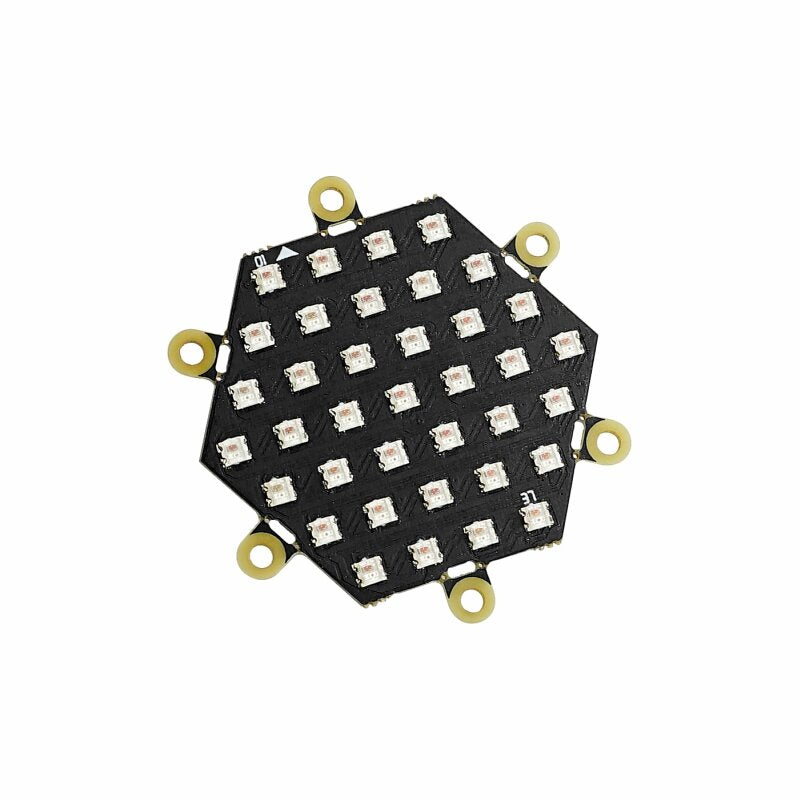

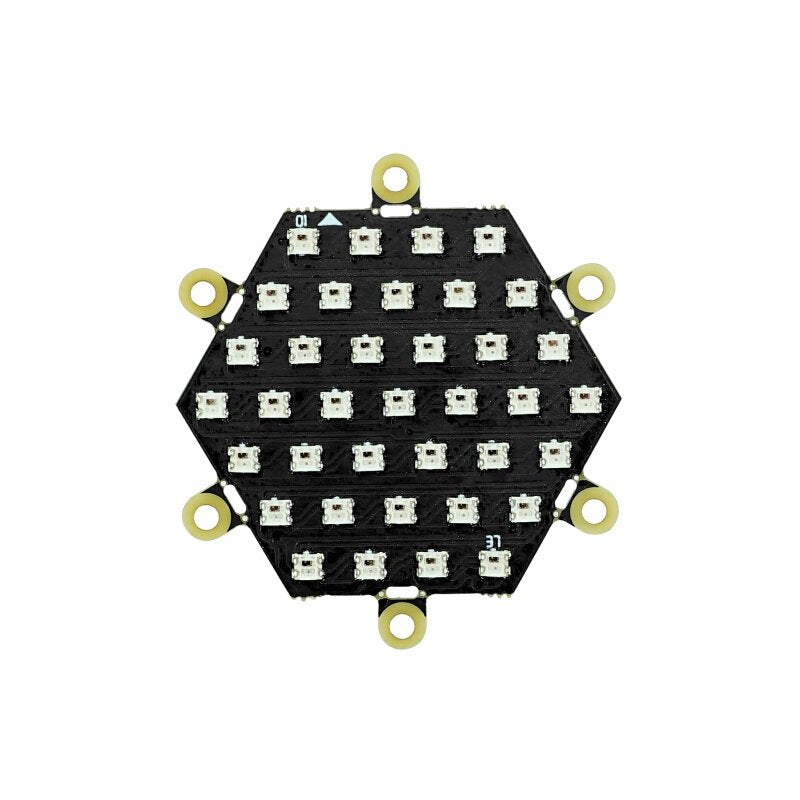

Number of LEDs: 37
Support multiple boards connection
6x fixing ears (removable)

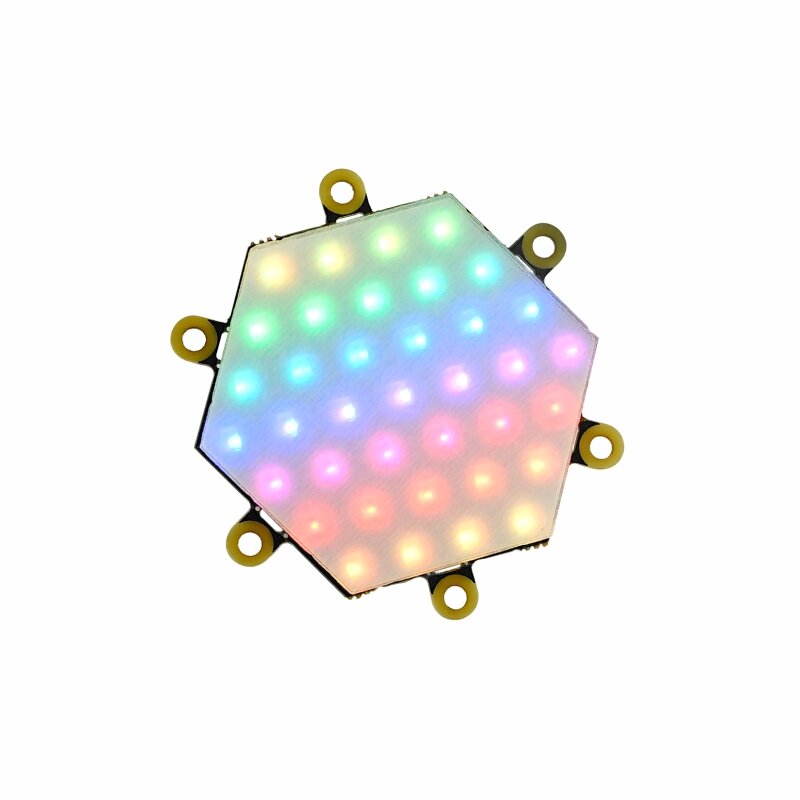

Comes with opal light sheet
Single pixel support 256 levels of brightness display, can be combined for 16777216 kinds of full color display
Applications:
Lighting decoration
| Specification | Parameters |
| LED Bead Model | WS2812C-2020-V1 |
| Number of light beads | 37 |
| Voltage supply | 3.7 ~ 5.3V |
| Logicinput level | -0.3V ~ VDD+0.7 |

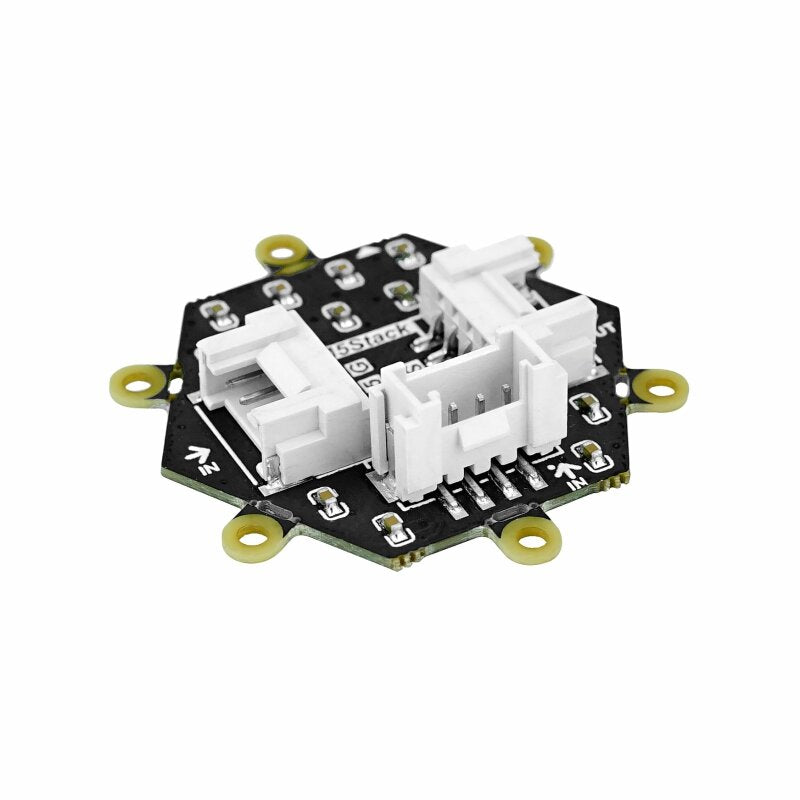

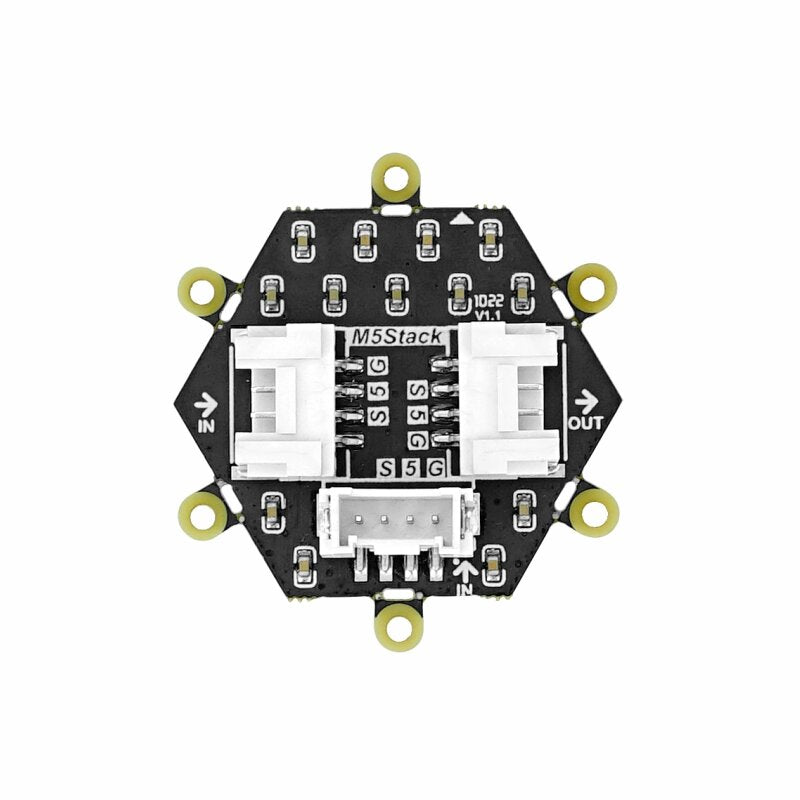

| Output/output interface | HY2.0-4P interface: 2x input (signal, power), 1x output (extension) |
| Refresh Rate | 30 frames (1024 cascades) |
| Power consumption | Actual measurement of power consumption (37 lights are fully lit, brightness 100%): |
| Red Light: DC5V@207mA | |
| Green Light: DC5V@109mA | |
| Blue Light: DC5V@208mA | |
| White light: DC5V@568mA | |
| Adjustable brightness | Level 256 |
| Support Colors | 16777216 kinds of colors |
| Fixing hole diameter | 2mm |
| Net Weight | 3.7g |
| Gross Weight | 9g |
| Product Size | 40*36*7mm |
| Package Size | 93*138mm |
Package Included:
1 x NeoHEX Unit
1 x Opal light sheet
1 x Power Consumption Reference Card
1 x HY2.0-4P cable (20cm)
