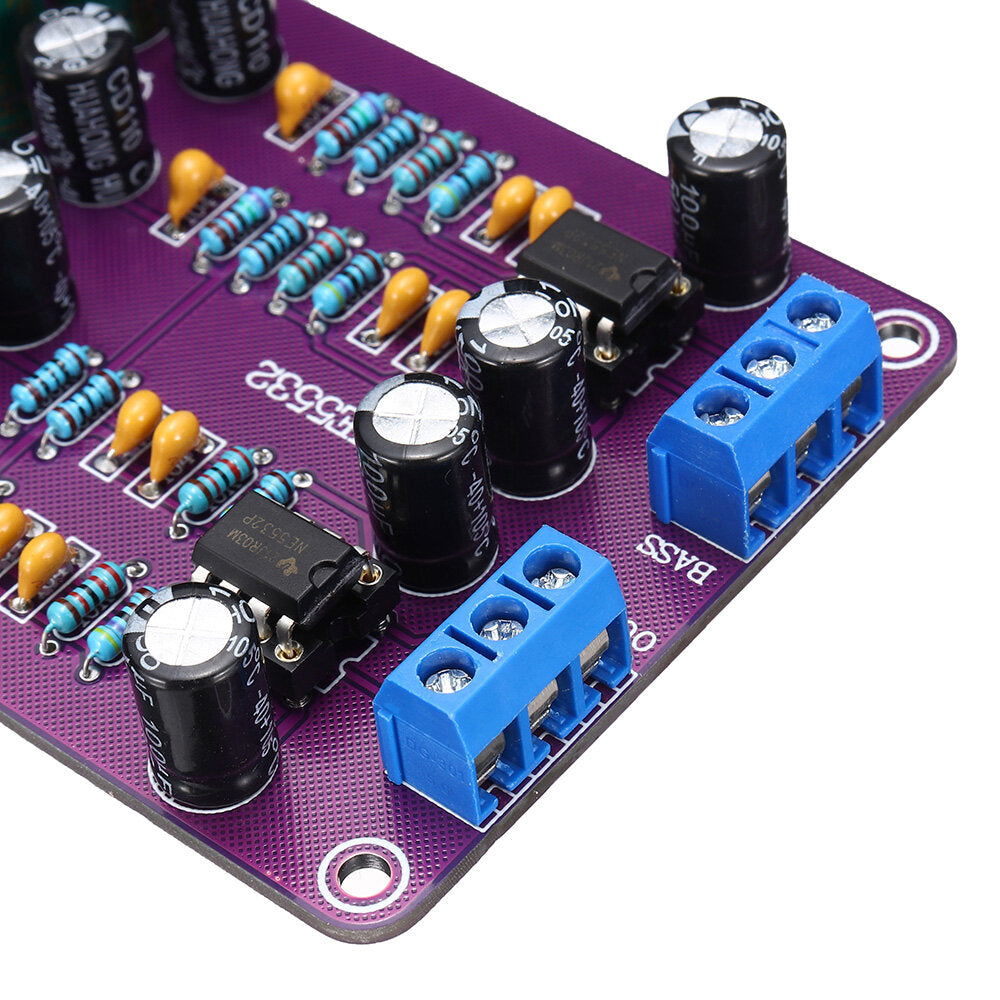

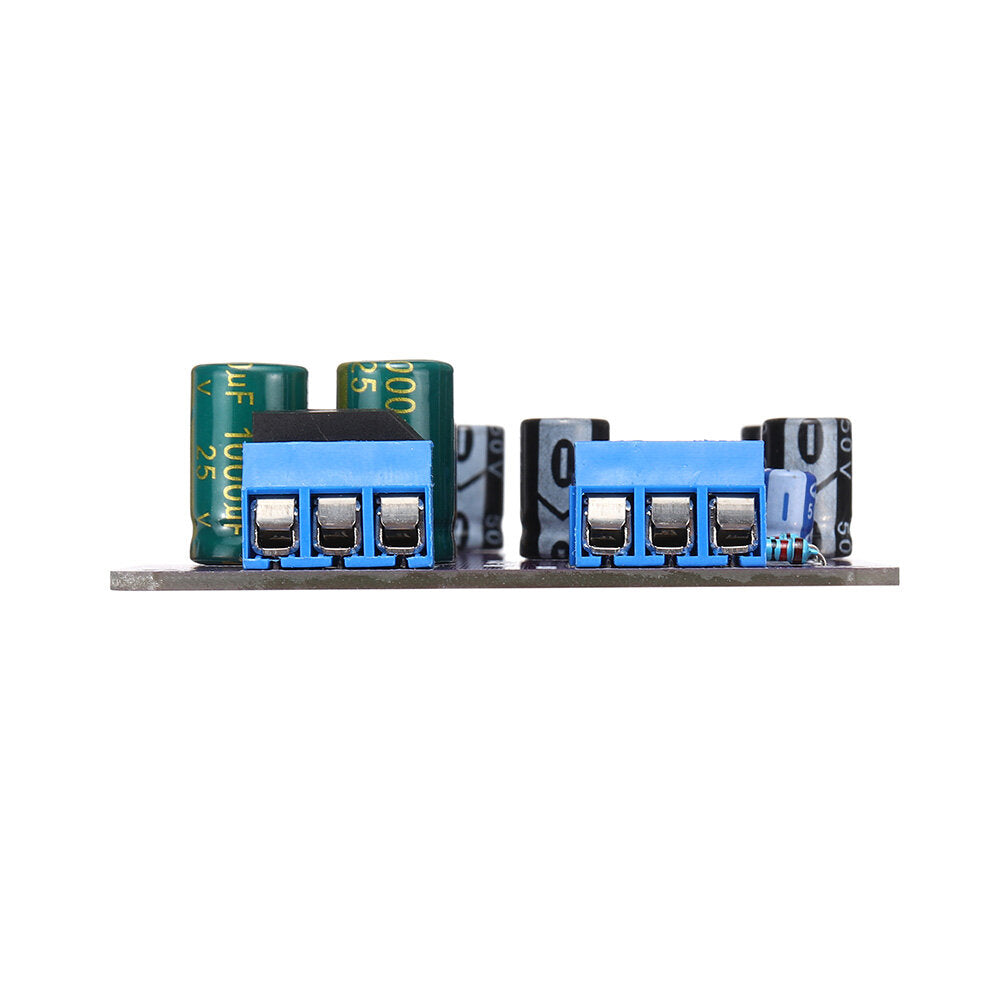

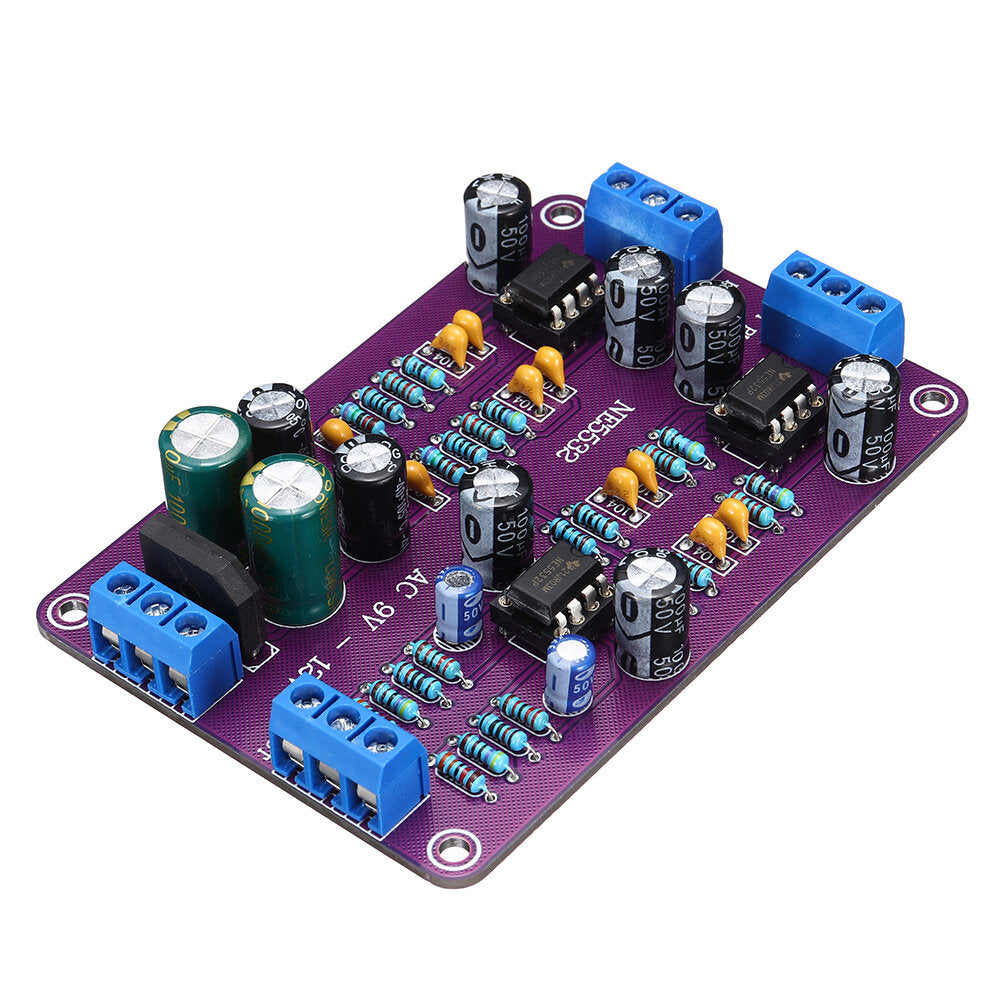

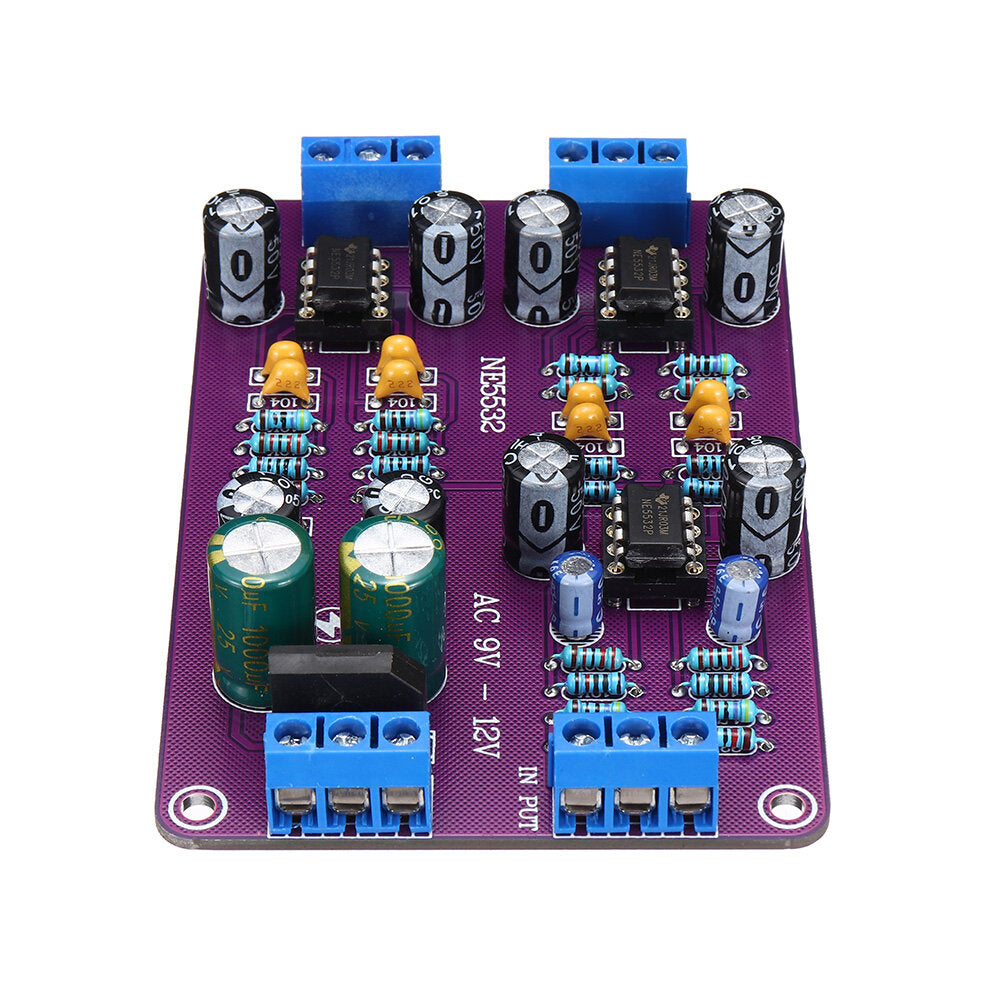

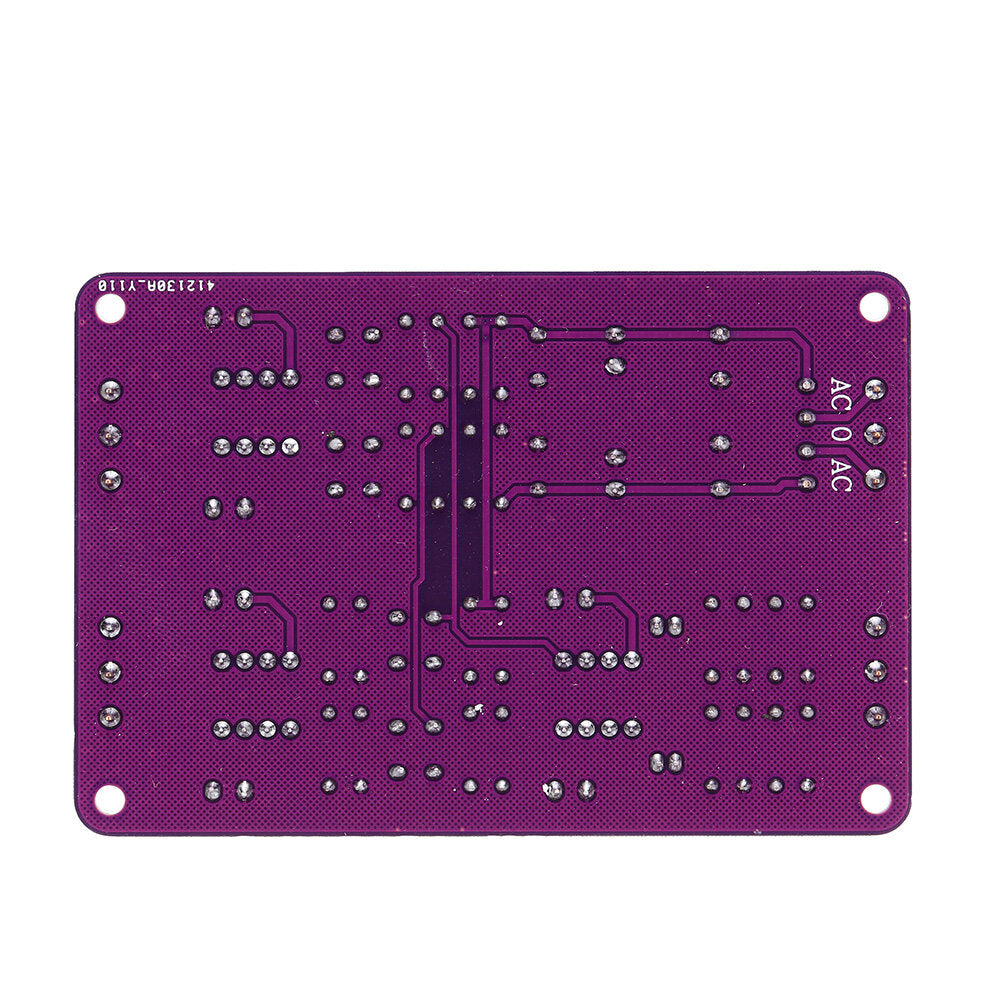

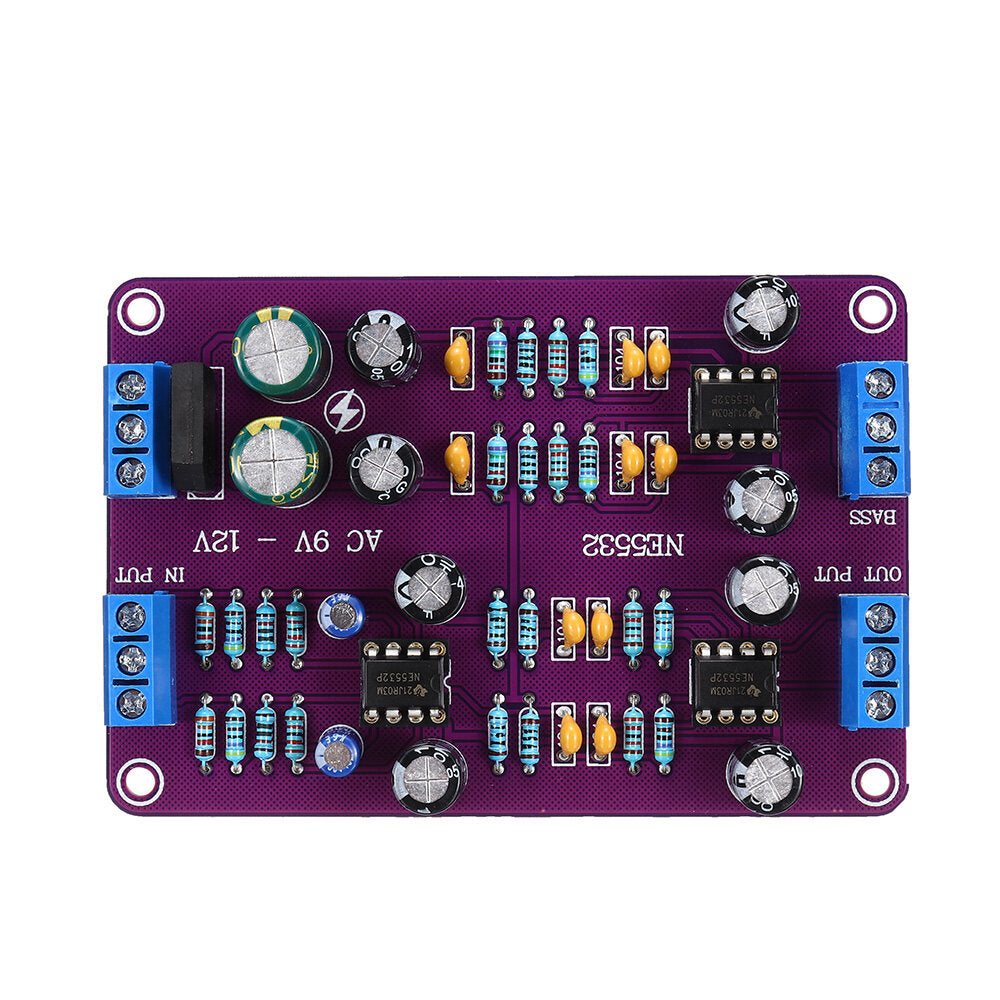

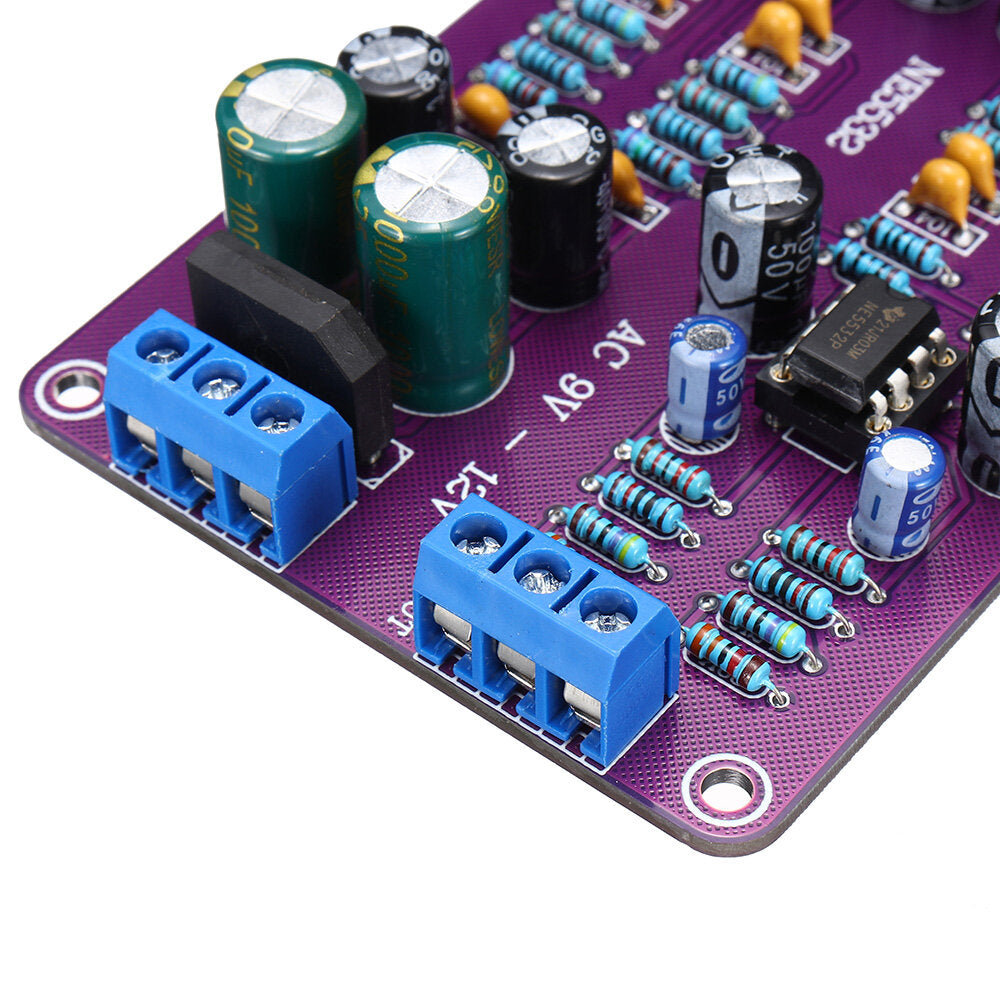

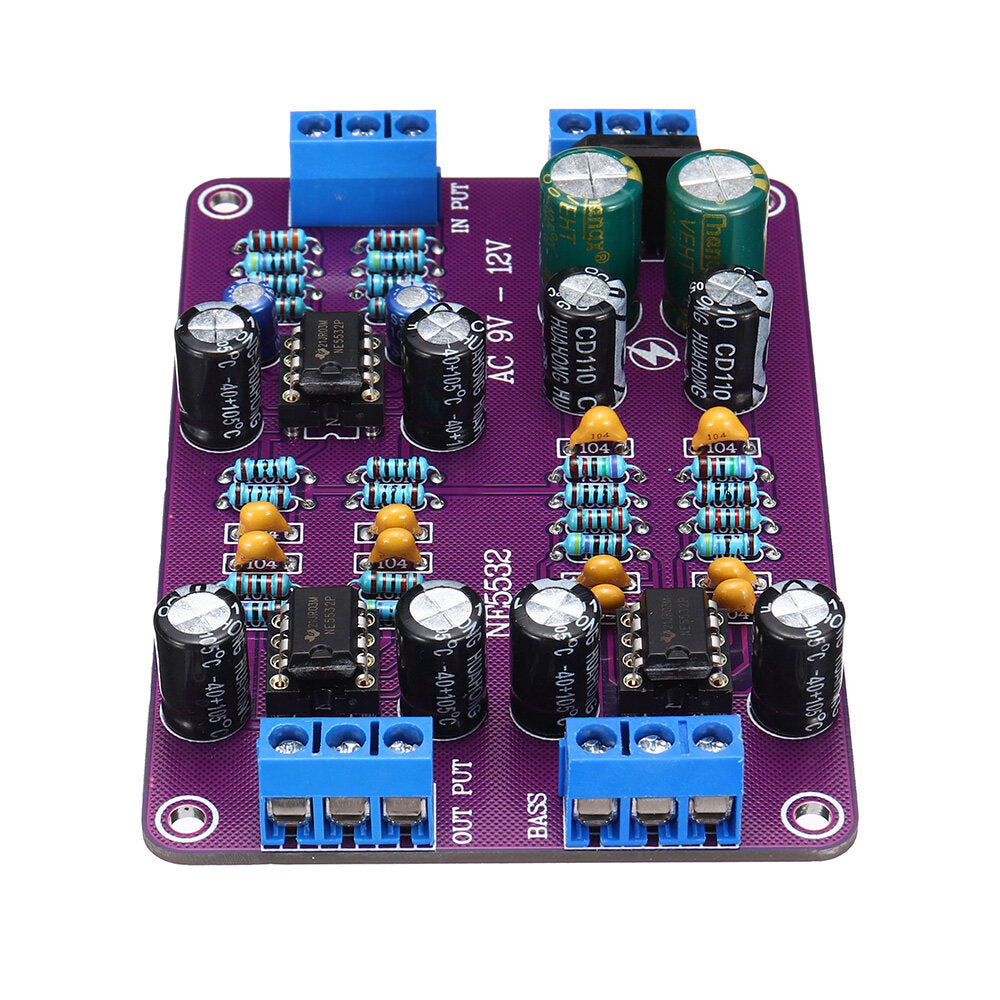

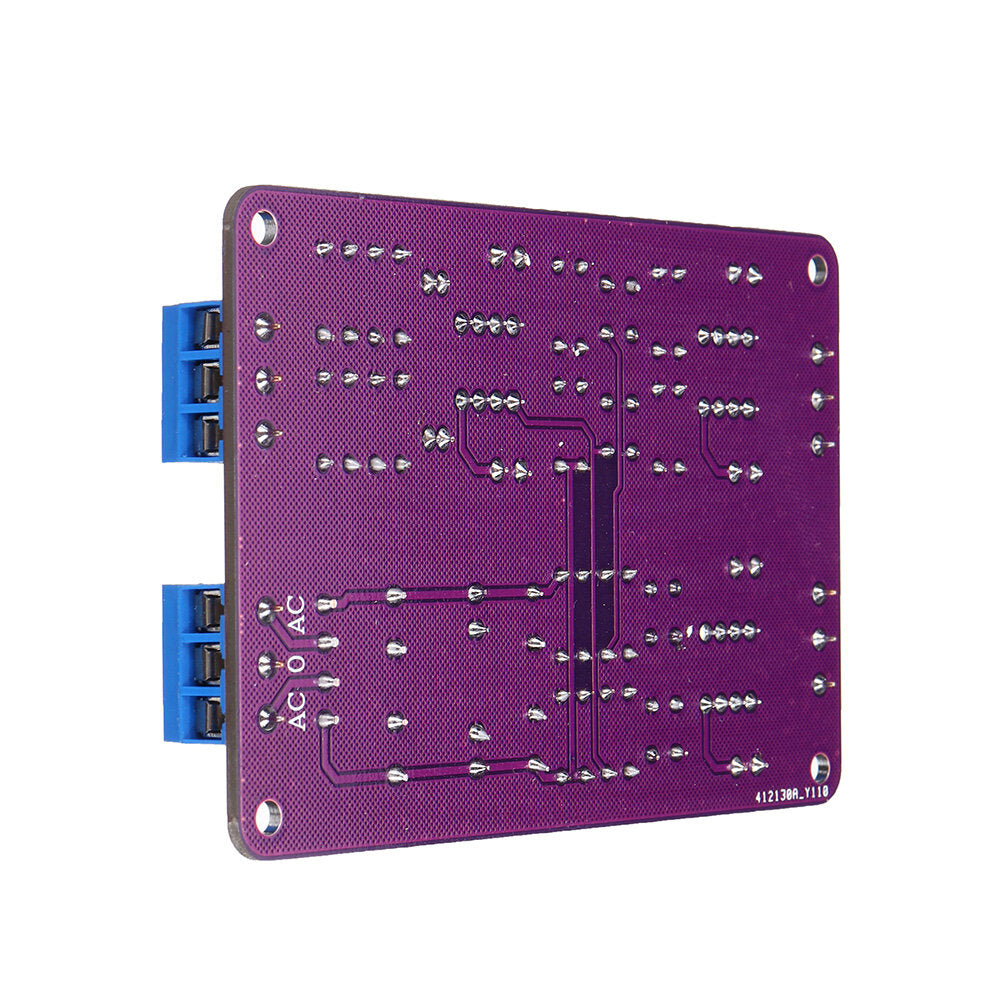

Linkwitz- Riley Filter 160Hz-15250Hz Electronic Frequency Divider NE5532 2 Way Division Monolithic Capacitor Pre-Stage Amplifier
Linkwitz- Riley Filter 160Hz-15250Hz Electronic Frequency Divider NE5532 2 Way Division Monolithic Capacitor Pre-Stage Amplifier
Regular price
$19.89 USD
Regular price
$19.89 USD
Sale price
$19.89 USD
Unit price
per
Taxes included.
100 in stock
Couldn't load pickup availability
Parameters:
ÔùÅ Frequency Division Structure: Linkwitz-Riley
ÔùÅ Board Structure: Stereo Four-Channel output (left and right channel mid-treble, left and right channel heavy bass)
ÔùÅ Op-amp chip: high-precision NE5532 (high-quality domestic chip)
ÔùÅ Crossover slope: 12dB/Oct 12dB (2nd oroder) (low frequency), 6dB (high frequency)
ÔùÅ Crossover frequency: Monolithic capacitor version (160Hz-330Hz-480Hz-1020Hz-1590Hz-3380Hz-7170Hz-15250Hz)(low frequency)
ÔùÅ Chip type: high precision and low noise
ÔùÅ Capacitor Type: Monolithic Capacitor
ÔùÅ Resistance type: high precision metal film resistor
ÔùÅ Op amp bandwidth: 10MHz
ÔùÅ Op amp slew rate: 9V/╬╝s
ÔùÅ Recommended power supply: dual power transformer 12V
ÔùÅ Number of pins: 8P
ÔùÅ Operating temperature range: normal temperature environment
ÔùÅ -3dB bandwidth gain product: 10MHz
ÔùÅ Device Marking: NE5532P
ÔùÅ Package type: DIP
ÔùÅ Op amp features: internal compensation
ÔùÅ Chip socket: high-quality round hole gold-plated 8P socket

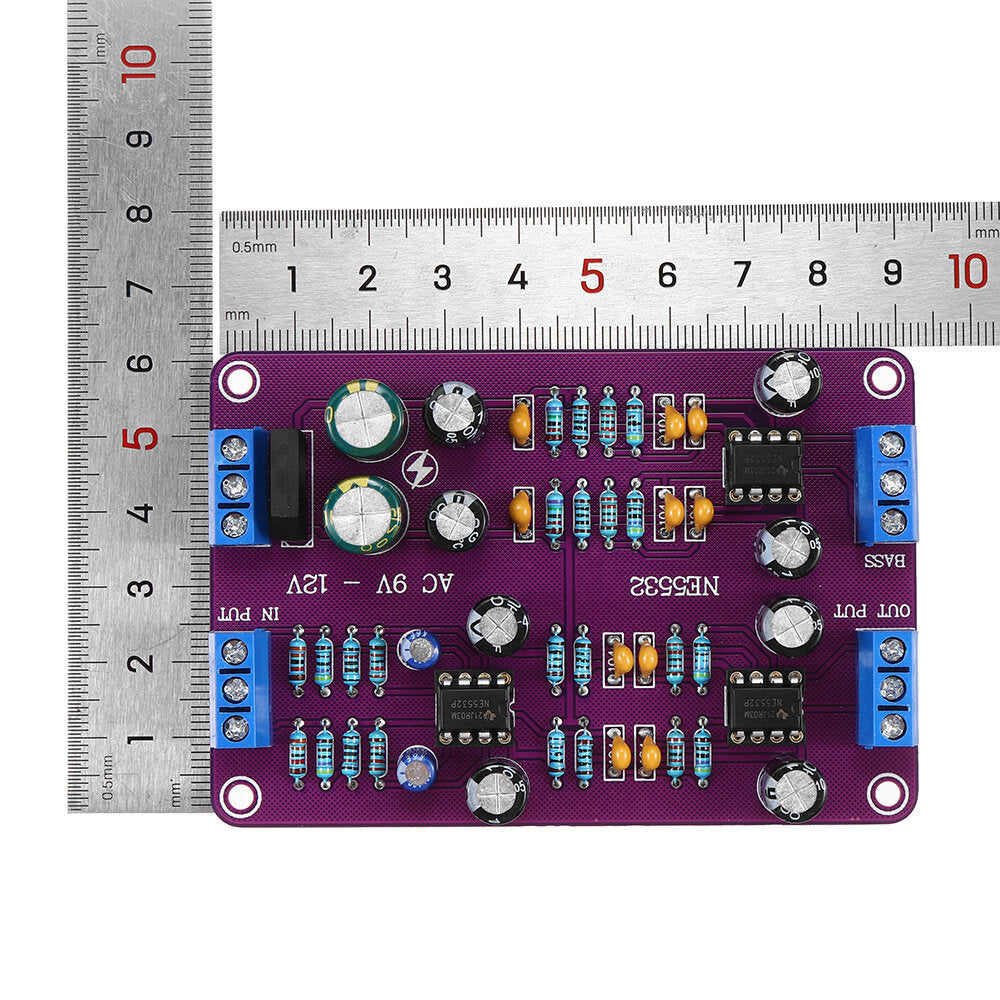

ÔùÅ Dimensions: 93*63*19mm
ÔùÅ Module weight: 50┬▒1g
ÔùÅ The power supply range of the AC transformer is dual 9V to dual 12V.
ÔùÅ It is recommended to use a dual power transformer 12V, and remember that the maximum value should not exceed dual 15.
Package included:
1 x Crossover Point Divider(160Hz/330Hz/480Hz/1020Hz/1590Hz/3380Hz/7170Hz/15250Hz optional)
