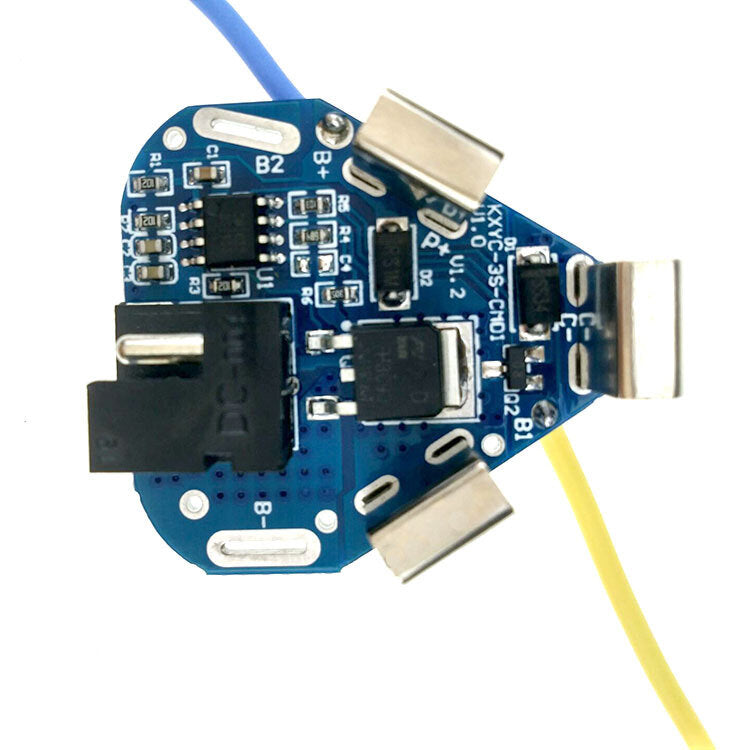

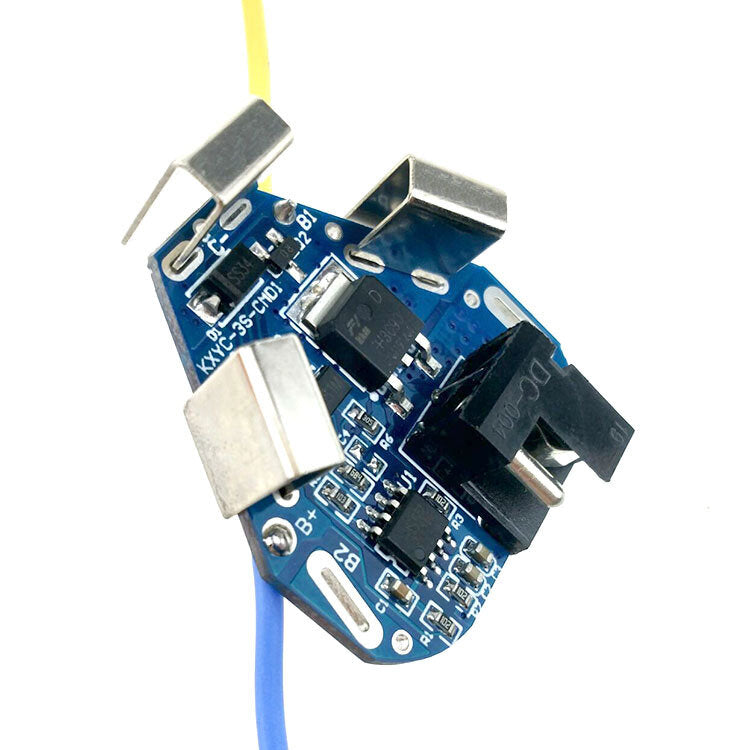

KXYC-3S-CMD1 3S 40A DC Power Tool 12V Hand Drill Protection Board Lithium Battery Protection Board
Specification: Model: KXYC-3S-CMD1Size: 36*33.5*12mmOvercharge voltage range: 4.25v┬▒0.05vOver-discharge voltage range: 2.5v┬▒0.05vMaximum operating current: 8AUpper limit instantaneous current: 40AQuiescent current: <30uACharging voltage: 12.6V-13VWeight: 8gWith overcharge, overdischarge, overcurrent, short circuit protection Package included:...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Specification:
Model: KXYC-3S-CMD1
Size: 36*33.5*12mm
Overcharge voltage range: 4.25v┬▒0.05v
Over-discharge voltage range: 2.5v┬▒0.05v
Maximum operating current: 8A
Upper limit instantaneous current: 40A
Quiescent current: <30uA
Charging voltage: 12.6V-13V
Weight: 8g
With overcharge, overdischarge, overcurrent, short circuit protection
Package included:
1 x Lithium Protection Board
KXYC-3S-CMD1 3S 40A DC Power Tool 12V Hand Drill Protection Board Lithium Battery Protection Board
