Keyes Brick Collision Sensor (pad hole) with Pin Header Module
Description: This sensor is fully compatible with ARDUINO single-chip microcomputer, and its connection port is also compatible with arduino sensor expansion board. The sensor inputs a key signal and can...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Description:
This sensor is fully compatible with ARDUINO single-chip microcomputer, and its connection port is also compatible with arduino sensor expansion board. The sensor inputs a key signal and can output a digital voltage signal. When the sensor presses the button due to a collision object, the sensor signal terminal outputs a low level signal, and when the button is released, the sensor signal terminal maintains a high level. The sensor can be used as a position switch in a 3D printer. The sensor comes with 2 positioning holes, which is convenient for you to fix the sensor to other equipment.
Specification:
Operating voltage: 3.3V-5V (DC)
Interface: 3PIN interface
Output signal: digital signal

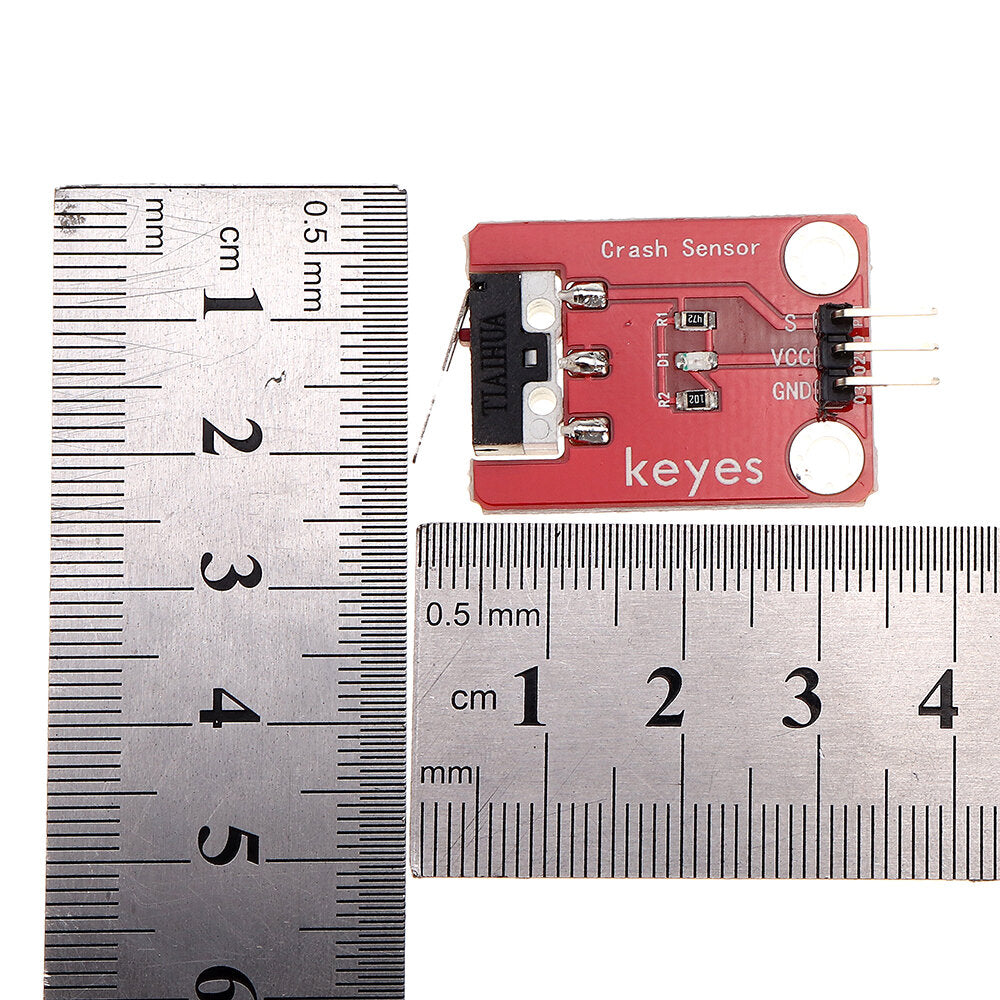

Size: 38*22*6mm
Weight: 2.7g
Package included:
1 x Collision Sensor
Keyes Brick Collision Sensor (pad hole) with Pin Header Module
