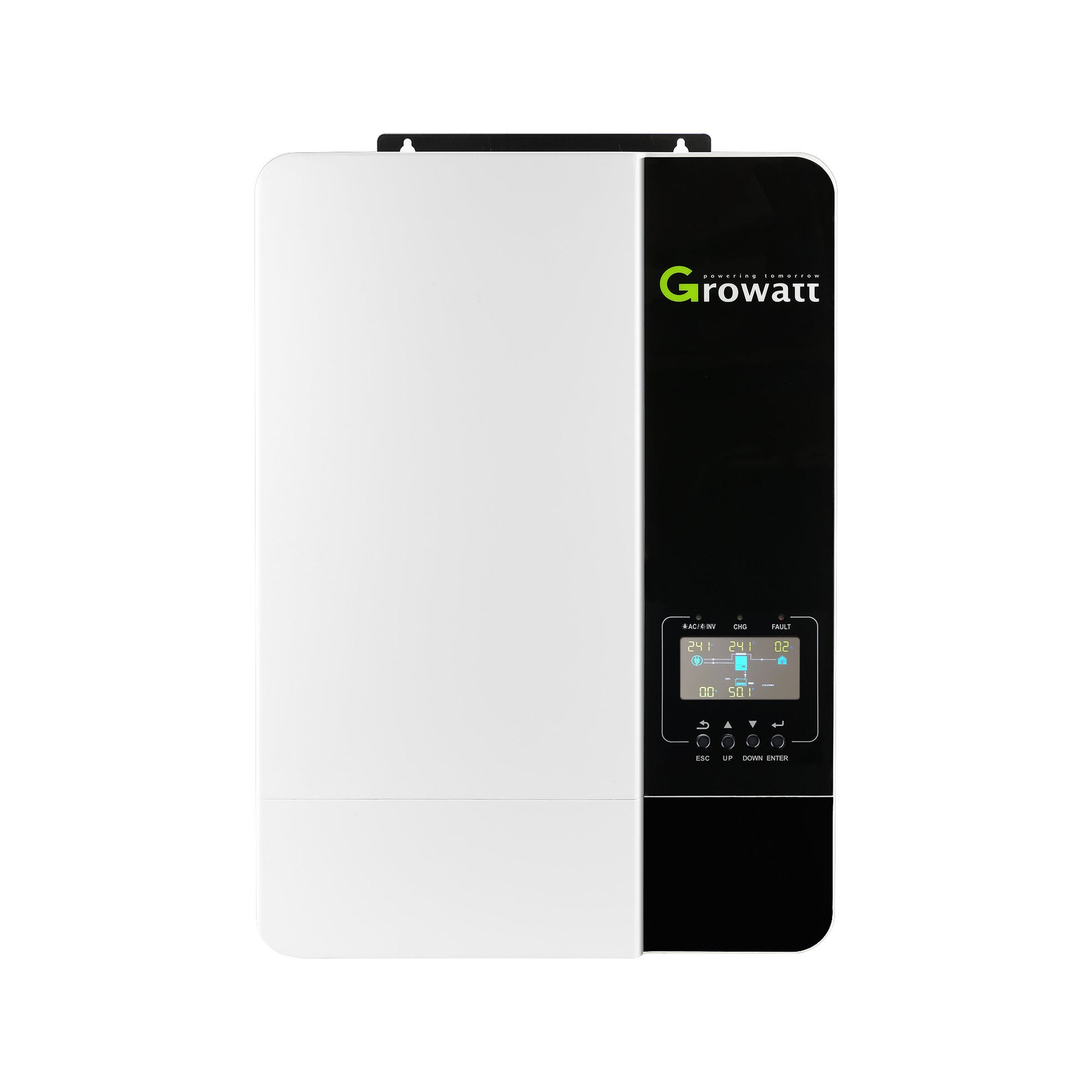

Growatt Hybr1d Solar Inverter 3.5KW/5KW 48V 220V MPPT 80A/100A Pure Sine Wave Off Grid Solar Inversor Can Work without Battery SPF 3500-80A SPF 5000-100A
InverterUse Note: The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
InverterUse Note: The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
For Details, Please Refer To The Manual
Introduction´╝Ü
This is a multifunctionaloff gridsolar inverter, integrated with aMPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This invertercan work with or without batteries.The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on
your requirements. TheWiFi / GPRS moduleis a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Features´╝Ü
1.Rated power 3.5KW to 5KW, power factor 1
2.MPPT ranges 120V~430V, 450Voc
3.High frequency inverter with small size and light weight
4.Pure sine wave AC output
5.Solar and utility grid can power loads at the same time
6.With CAN/RS485 for BMS communication
7.With the ability to work without battery
8.Parallel operation up to 6 unit (only with battery connected)
9.WIFI/ GPRS remote monitoring (optional)
Package Included:
1 x Growatt Hybr1d Solar Inverter 3.5KW/5KW

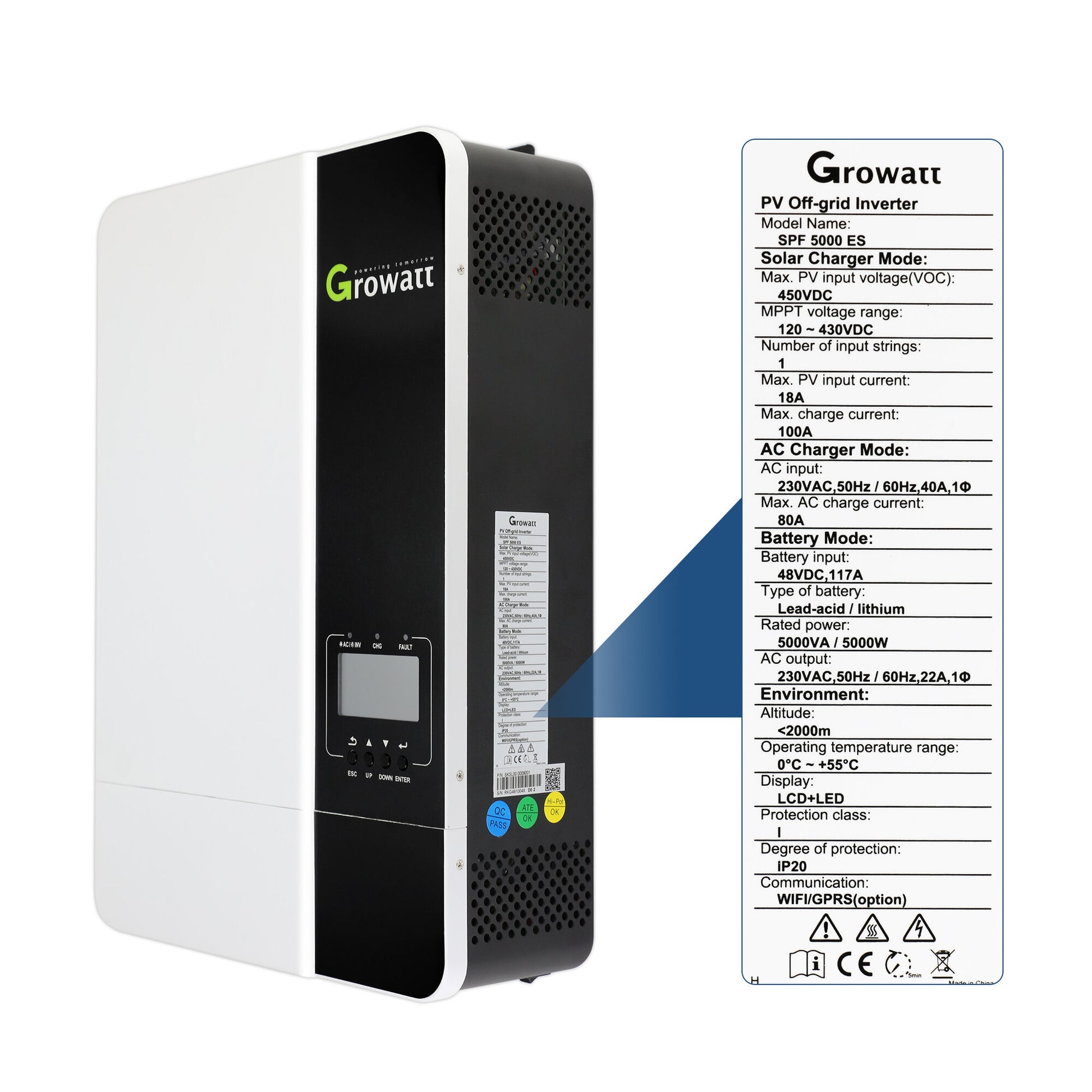

Datasheet´╝Ü
Product Overview´╝Ü
1. LCD display 2. Status indicator
3. Charging indicator 4. Fault indicator
5. Function buttons 6. AC input
7. WiFi/GPRS communication port 8. USB communication port
9. CAN communication Port 10. RS485 communication Port
11. Dry contact 12. PV input
13. Power on/off switch 14. Battery input
15. Parallel communication ports 16. Current sharing ports
17. AC output 18. Circuit bre1aker
Mounting the Unit
Consider the following points before selecting where to install:
1. Do not mount the inverter on flammable construction materials.
Mount on a solid surface.
2. Install this inverter at eye level in order to allow the LCD display
to be read at all times.
3. The ambient temperature should be between 0┬░C and 55┬░C to ensure optimal operation.
4. The recommended installation position is to be adhered to the
wall vertically.
5. Be sure to keep other objects and surfaces as shown in the
diagram to guarantee sufficient heat dissipation and to have enough space for removing wires.
PV Module Selection:
When selecting proper PV modules, please be sure to consider below parameters:
1.Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
2.Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.
Recommended brea1ker specification of battery for each inverter:
Parallel Operation in Single Phase
Communication Connection
Six inverters in parallel:
Power Connection
Communication Connection
