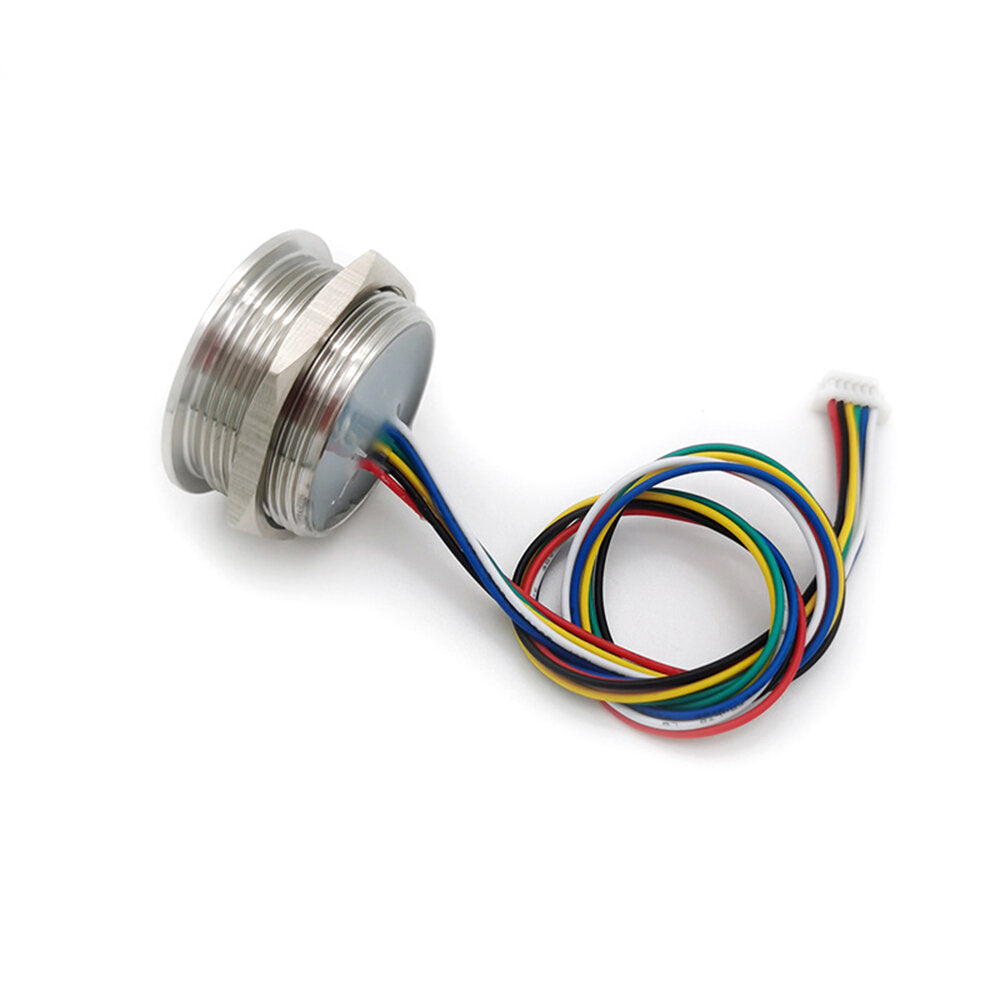

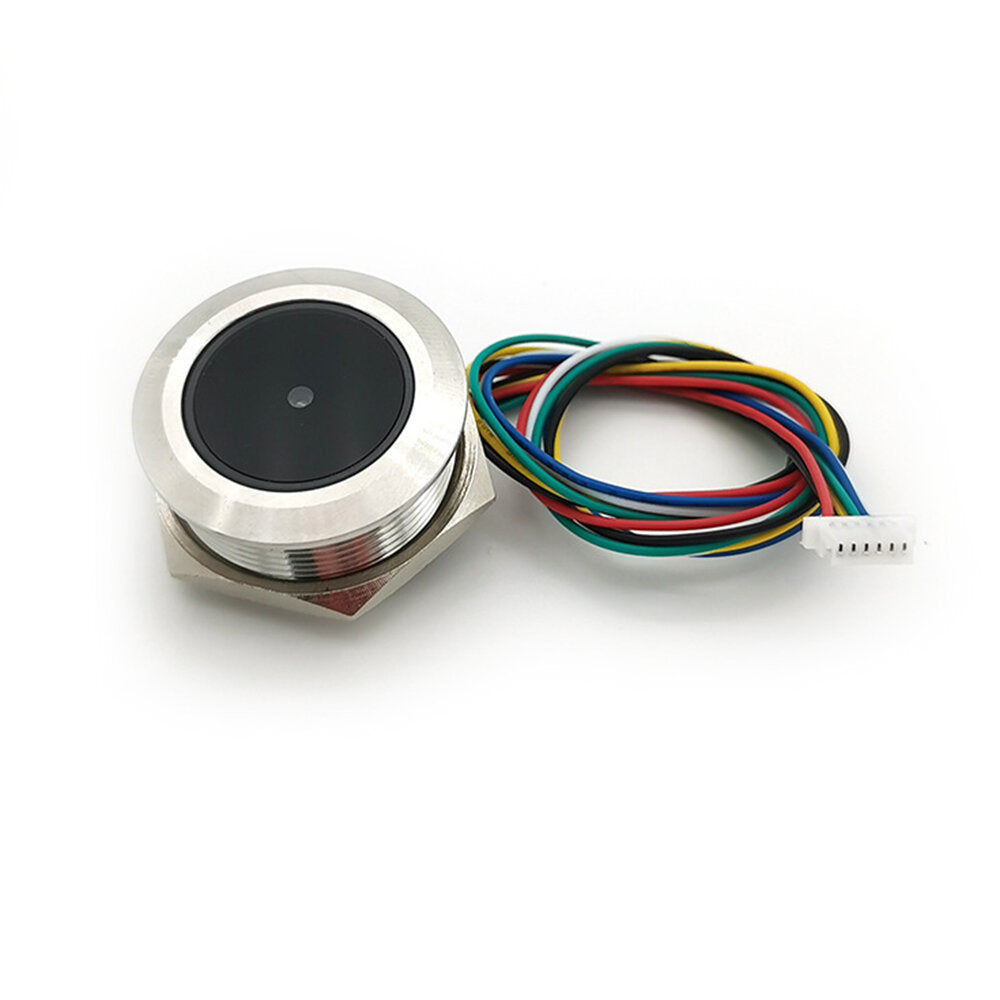

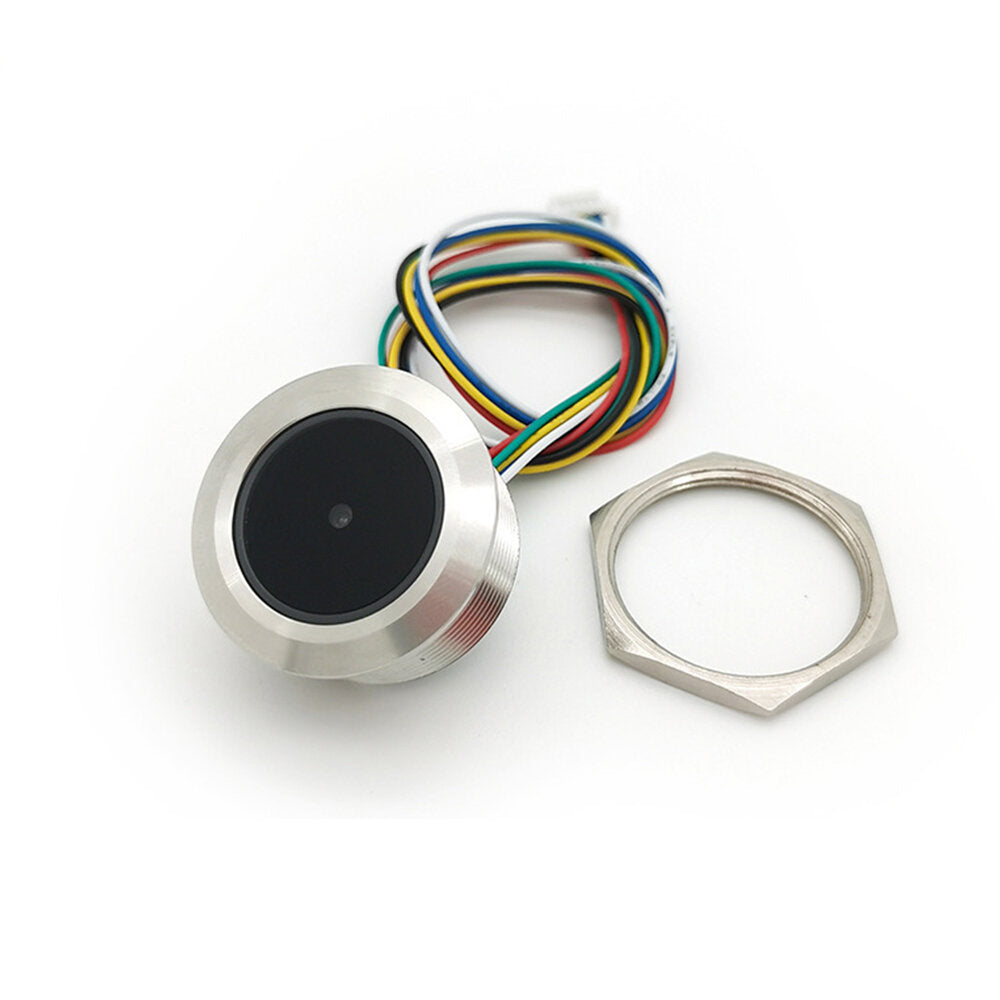

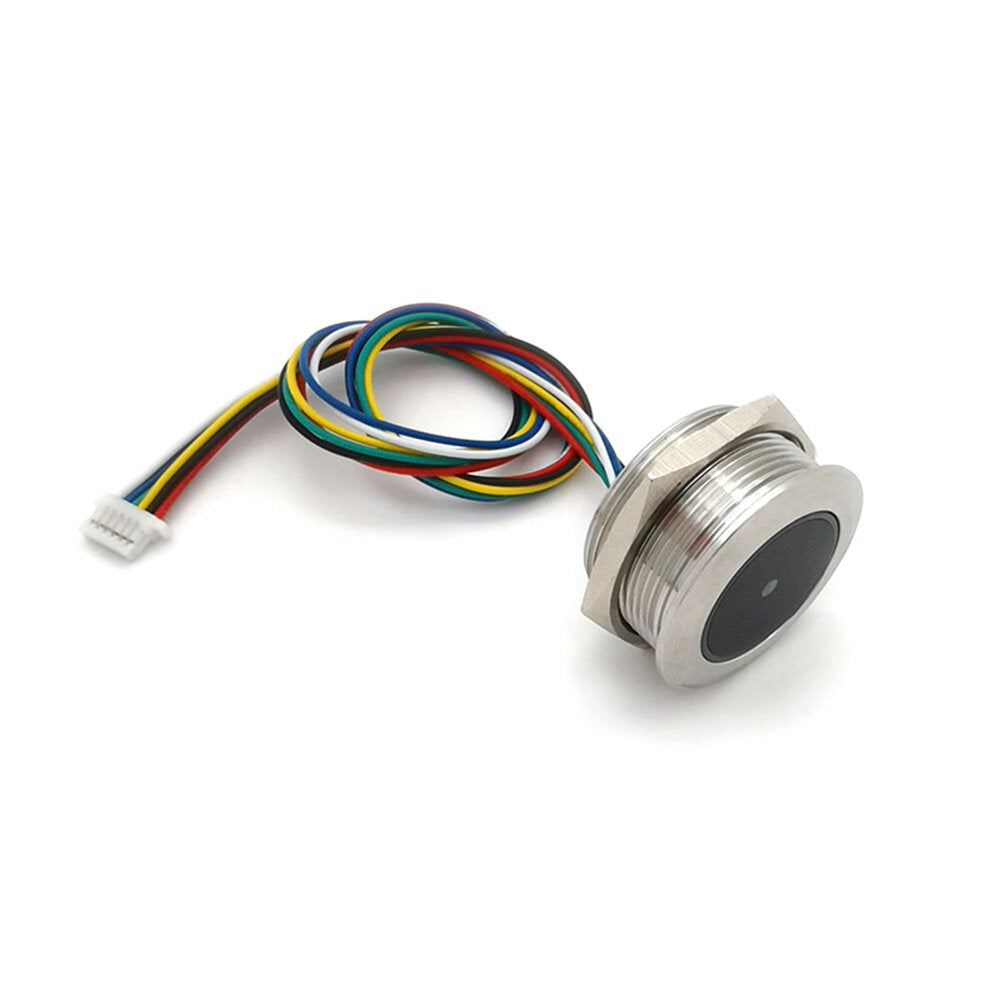

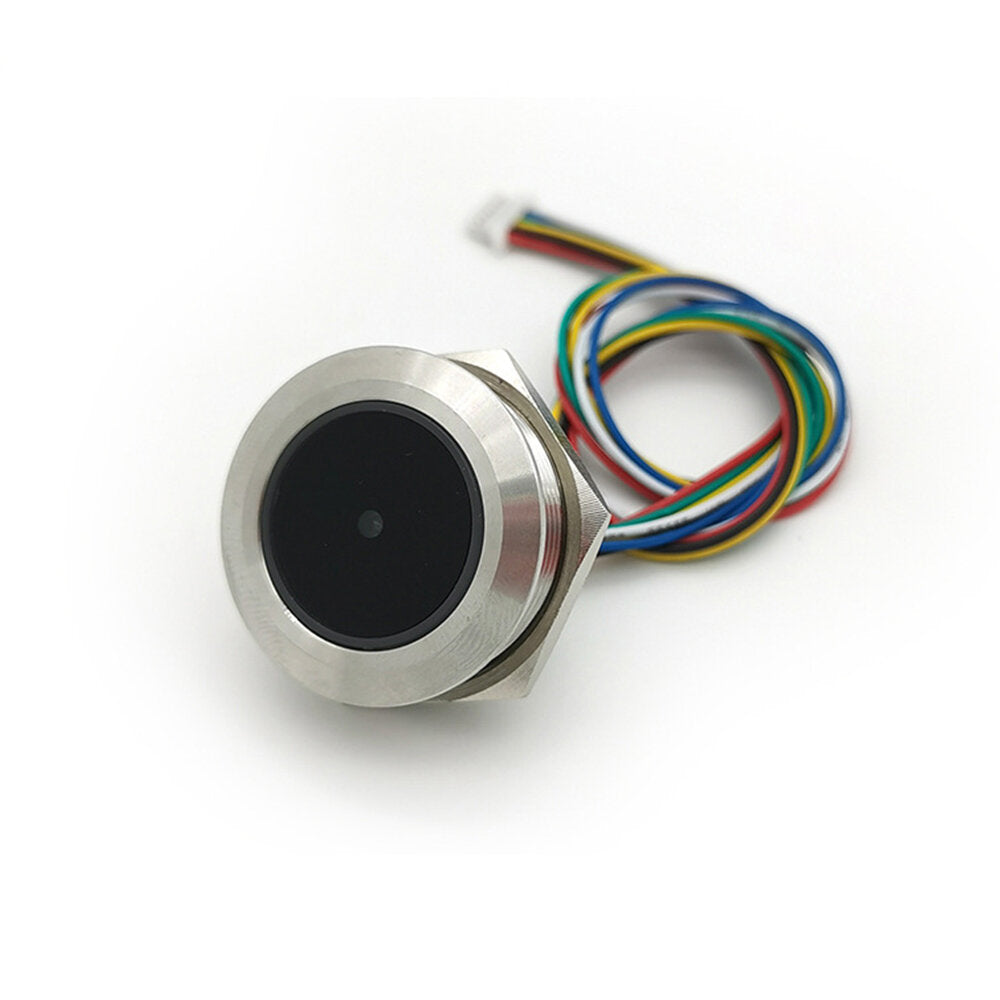

GM861 Circular Barcode QR Code Scanning and Recognition Module 1D/2D Code Reader with LED Indicator Light Threaded Shell

GM861 Circular Barcode QR Code Scanning and Recognition Module 1D/2D Code Reader with LED Indicator Light Threaded Shell

$31.99 $28.99

Specifications: Parameters                               Performance Image Sensor  CMOS Pixel  640*480 Warning light  Green light indicates successful reading Code...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description

Specifications:


Parameters                               Performance

Image Sensor

 CMOS

Pixel

 640*480

Warning light

 Green light indicates successful reading

Code system

 1D:

 EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,

 2D: QR Code, Data Matrix, PDF417

Symbol Contrast*

 >25%

Reading angle**

 Rotate 360┬░, Yaw 65┬░, Tilt 65┬░

Scan angle
 67┬░(horizontal), 53┬░(vertical)
Reading Accuracy*
 ÔëÑ10mil

Electrical Characteristics

Communication Interface

 TTL-232, USB

Appearance size (mm)

 Outer diameter 28 ├ù height 15mm

 Hole diameter 25mm

Weight

 25g

Tips
 LED indication
Operating Voltage
 3.3V
Working current
 <70mA
Sleep current
 Ôëñ6mA (typ)
Start Time
 Ôëñ250ms (typ.)

Environmental Parameters

Operating temperature

 -20┬░C~60┬░C

Storage temperature

 -40┬░C~+100┬░C

Relative humidity

 5% to 95% (non-condensing)
Ambient lighting
 Direct sunlight from normal indoor light sources
Fall
 Withstands a 1.2-meter drop from a concrete floor (50 repeated 1.2-meter drops to a concrete floor)



Package Include:

1*GM861 Barcode QR Code Scanning Module
