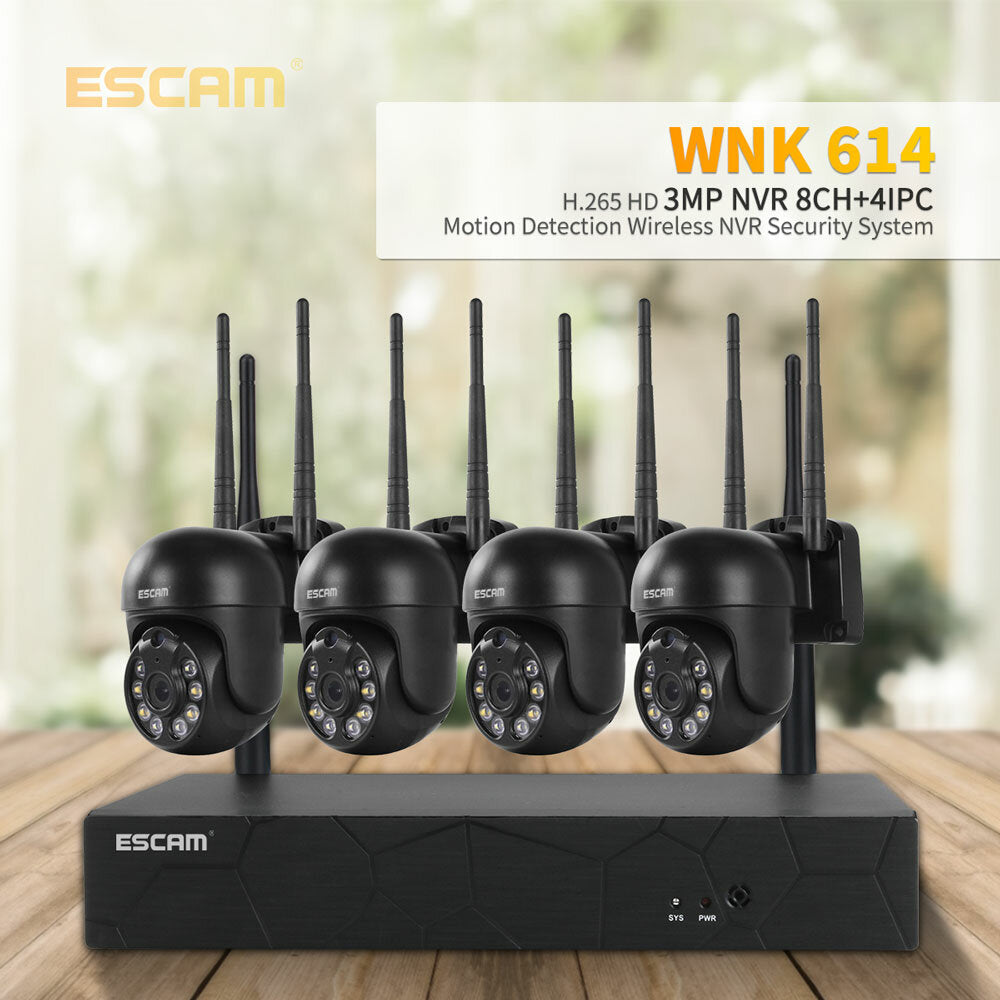

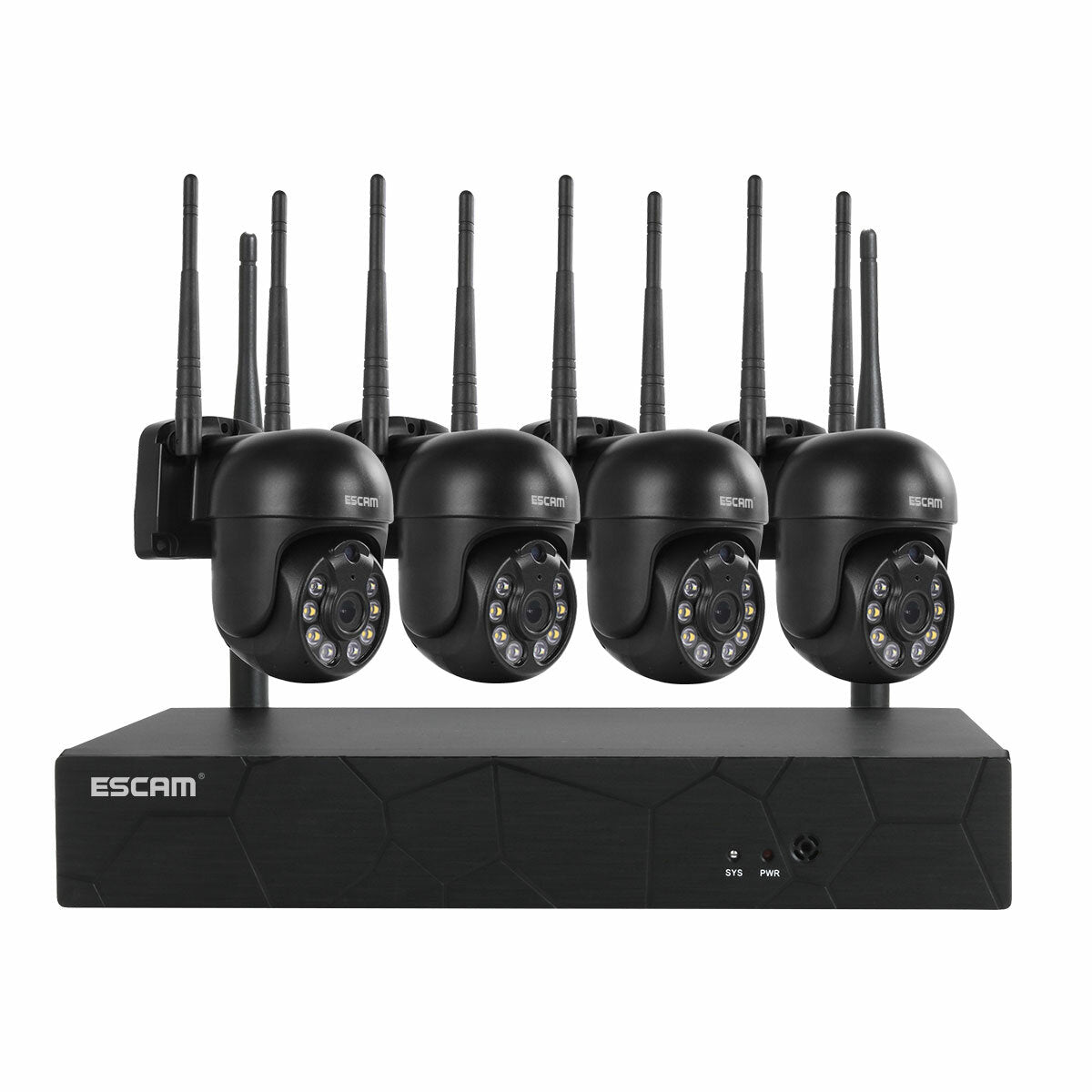

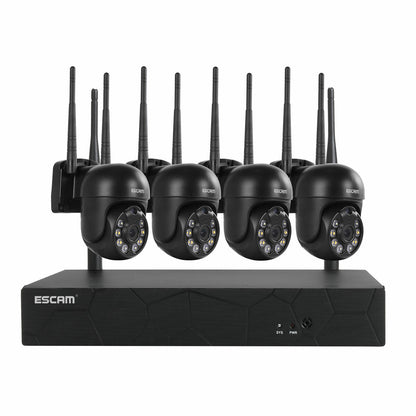

ESCAM WNK614 8CH 3MP Wireless Dome Camera CCTV Security System NVR Kit Two Way Audio Dual Light Motion Sensor Detection IP Camera

Features:

´╗┐

APP: EseeCloud

1. Support H.265 video compression format

2. 8ch wireless NVR+4ch 3MP high-definition dome camera´╝êIf you need to add more cameras, please >>>Click here<<<´╝ë

3. Three kinds of intelligent full-color night vision with dual light sources

3. Support two-way voice

4. 7 days free recurring cloud storage

5. Maximum support 1 bay 6TB hard drive

6. Support motion sensor detection alarm push video

7. Support mobile APP remote monitoring

´╗┐

Specification:

* 3.0MP wireless network hard disk video recorder;

* Built-in security dedicated wireless WIFI module, stable signal and strong anti-interference ability;

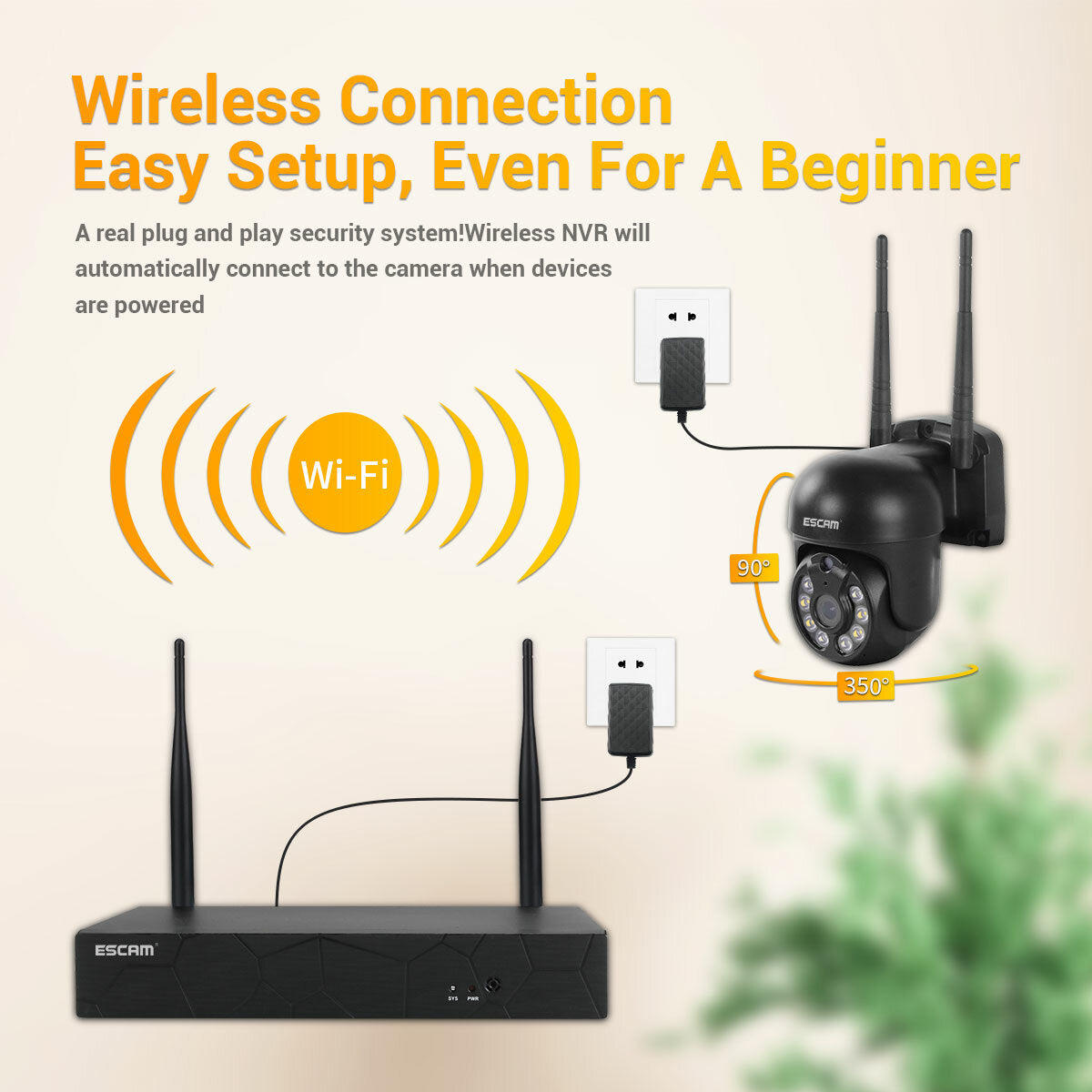

* No need for WIFI pairing, the image will be displayed when the box is powered on;

* Wired and wireless mixed use, adapt to various scenarios;

* P2P EseeCloud (APP: EseeCloud), remote connection in seconds, smooth and stable picture;

* Support multiple alarm triggers (video loss/motion detections, etc.) and alarm output (voice/E-Mail/FTP, etc.);

* Support Android/Apple mobile phone (or tablet) remote (LAN and Internet) access and control.

Wireless NVR
operating system			Embedded Linux real-time operating system
Video and audio input			Network video input				8 channels
Video and audio output			HDMI output				1 channel, resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080p, support audio output
			VGA output				1 channel, resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080p
Video and audio codec parameters			Video resolution				D1/960H/720P/960P/1080P/3MP
			Synchronous playback				4 channels
Video			Video/capture mode				Manual recording, timing recording, motion detections recording, alarm recording
			Playback mode				Instant playback, regular playback, event playback
			Backup mode				Regular backup
Storage			Cloud storage				7 days free recurring storage
			Hard disk interface type				1 SATA interface
			Maximum hard disk capacity				Hard drive up to 6TB
External interface			Network Interface				1, RJ45 10M/100M adaptive Ethernet port
			USB interface				1 USB
			audio port				A 3.5mm headphone port
Network			Network protocol				UPnP (plug and play), SMTP (mail service), PPPoE (dial-up Internet access), DHCP (automatically obtain an IP address), etc.
other			power supply				DC 12V 2A
			Power consumption (without hard disk)				Ôëñ5W
			Operating temperature				-10Ôäâ--´╝ï55Ôäâ
			Working humidity				10%--90%
			Weight (without hard disk)				Ôëñ1Kg
			size				255×220×42mm

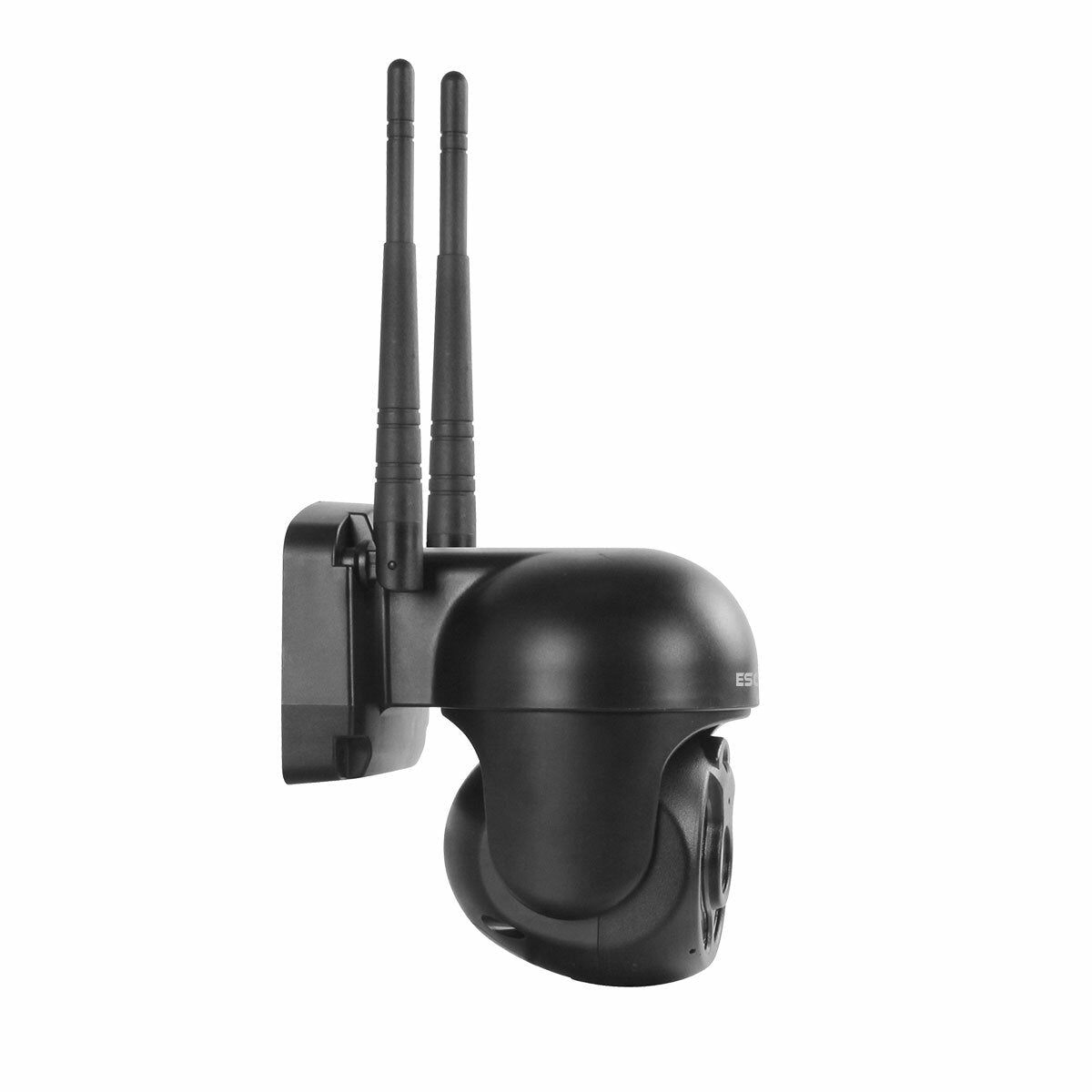

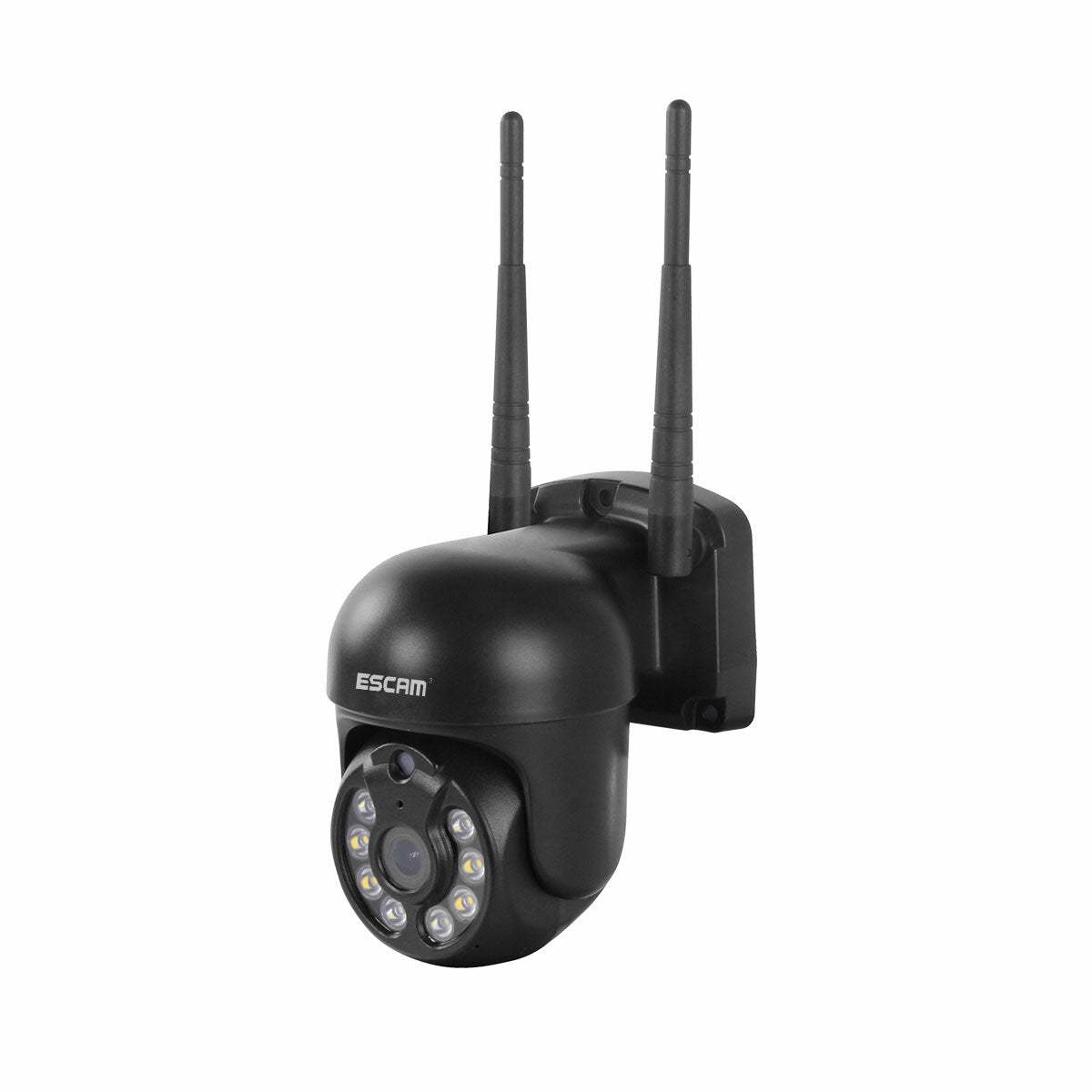

Wireless IPC
Pixel		3MP
Image Sensor		1/2.7ÔÇØ CMOS Sensor, color: 0.1 Lux, black/white: 0.01 Lux
Lens		4mm
Video processing		H.264/H.265 video encoding, support dual stream
Image output		Main stream: 2304*1296@15fps; Sub stream: 640x360@15fps
shutter		Automatic shutter
Noise reduction		Support 2D/3D noise reduction
Wide dynamic		Support digital wide dynamic
Day and night mode		IR-CUT infrared filter type support infrared / full color / smart   3 modes
Image flip		Support horizontal and vertical flip
Audio processing		G.711 codec standard, support audio and video synchronization
audio port		1 input, level 2Vp-p, impedance 1k╬®, support MIC/pickup input; 1 output, impedance 8╬®, 1W output power, support direct speakers
Wired network		1 RJ45 Ethernet interface, 10/100M adaptive; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols
wireless network		802.11b/g/n
IR signal interface		1 photoresistor interface, 1 IR-CUT drive interface, support dual light source lamp panel control (dual IO control, no lamp panel MCU)
Yuntai		350┬░ left and right, 90┬░ up and down
Reset button interface		stand by
SD card slot		Max support 128G
Features		Motion detections; push alarm information; support remote monitoring of mobile phones and clients
Night vision		4 IR light + 4 white light
power supply		DC 12V 1A
weight		0.65kg
size		156x91x130mm
Package information		Weight	3.25kg
		Size	320x332x170mm

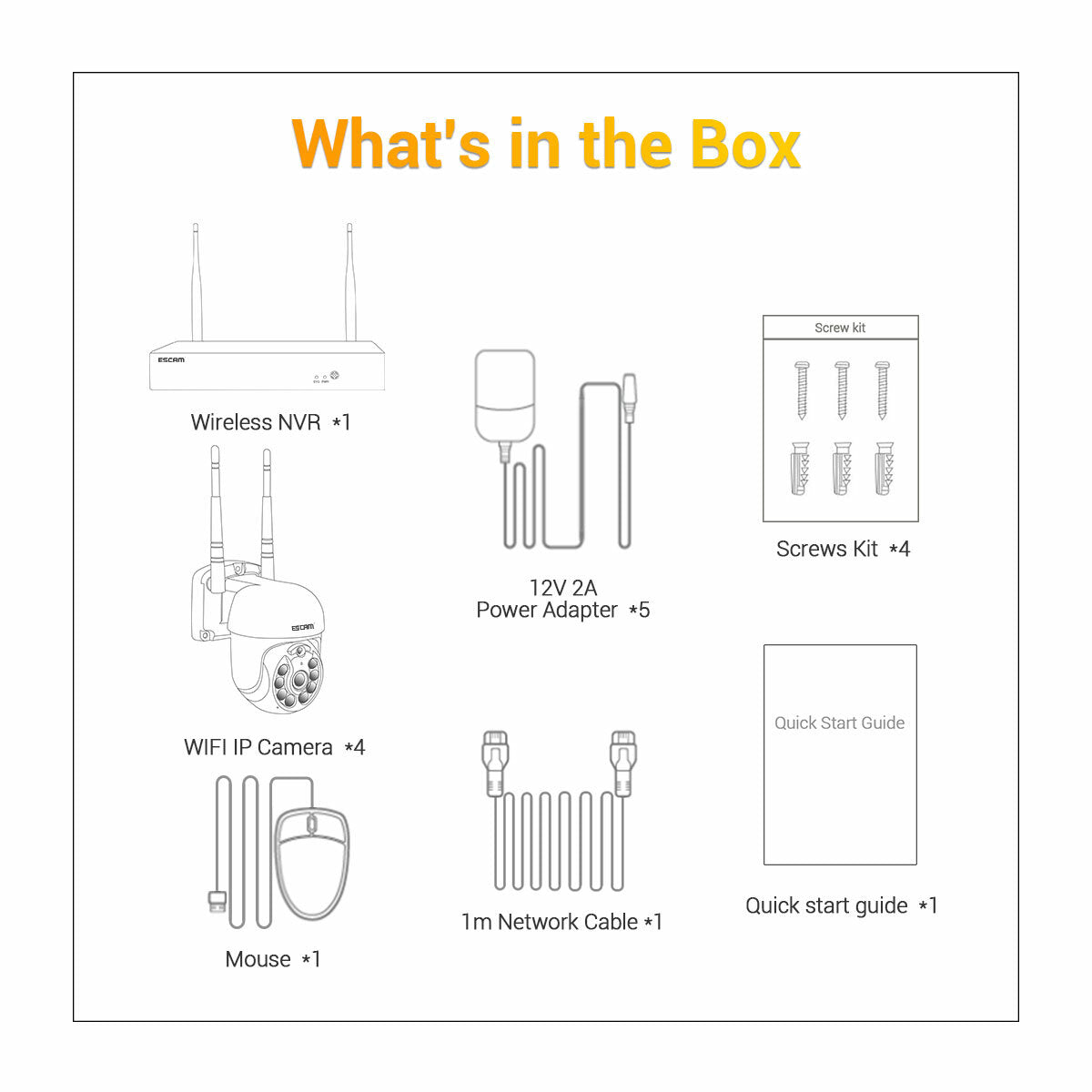

		Packing list	8CH WIFI NVR*1, WIFI camera*4, NVR power adapter*1, camera power adapter*4, manual*1, mouse*1, screw pack*4, network cable*1

Package Included:

´╗┐

1 x Wireless NVR
