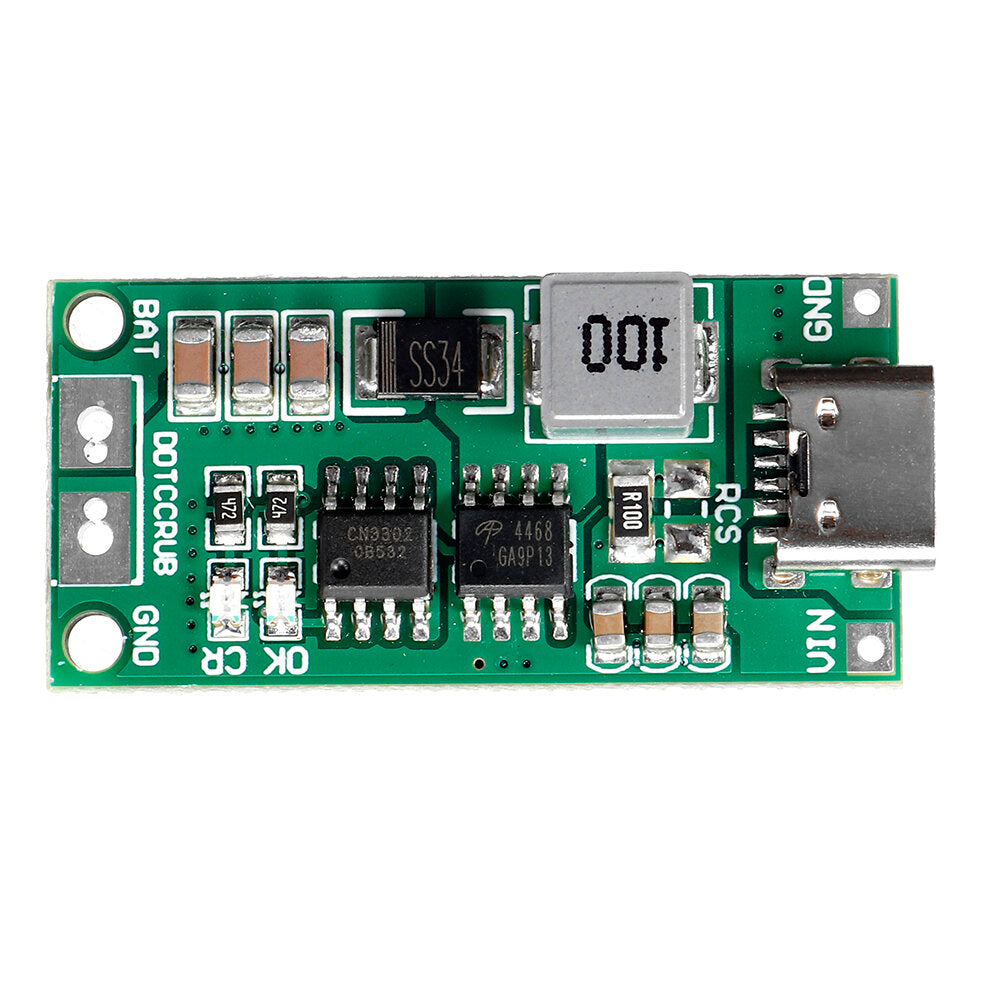

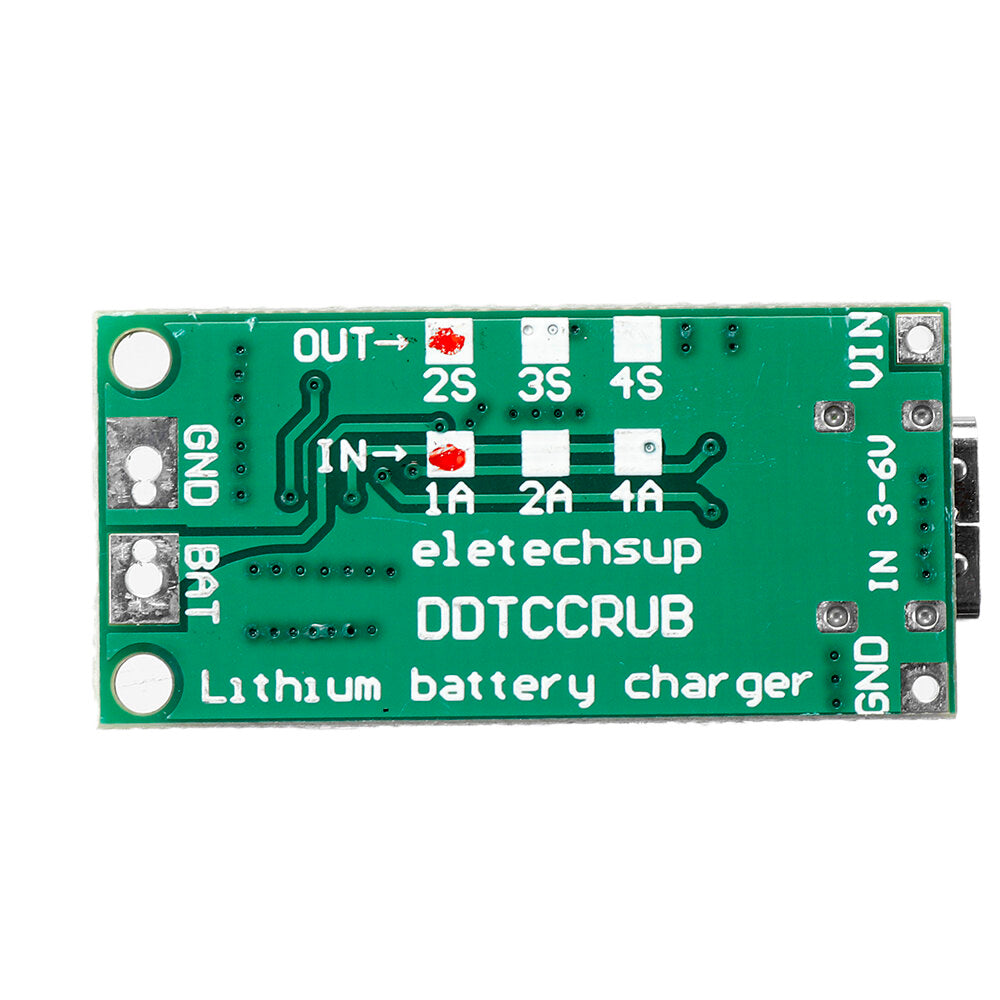

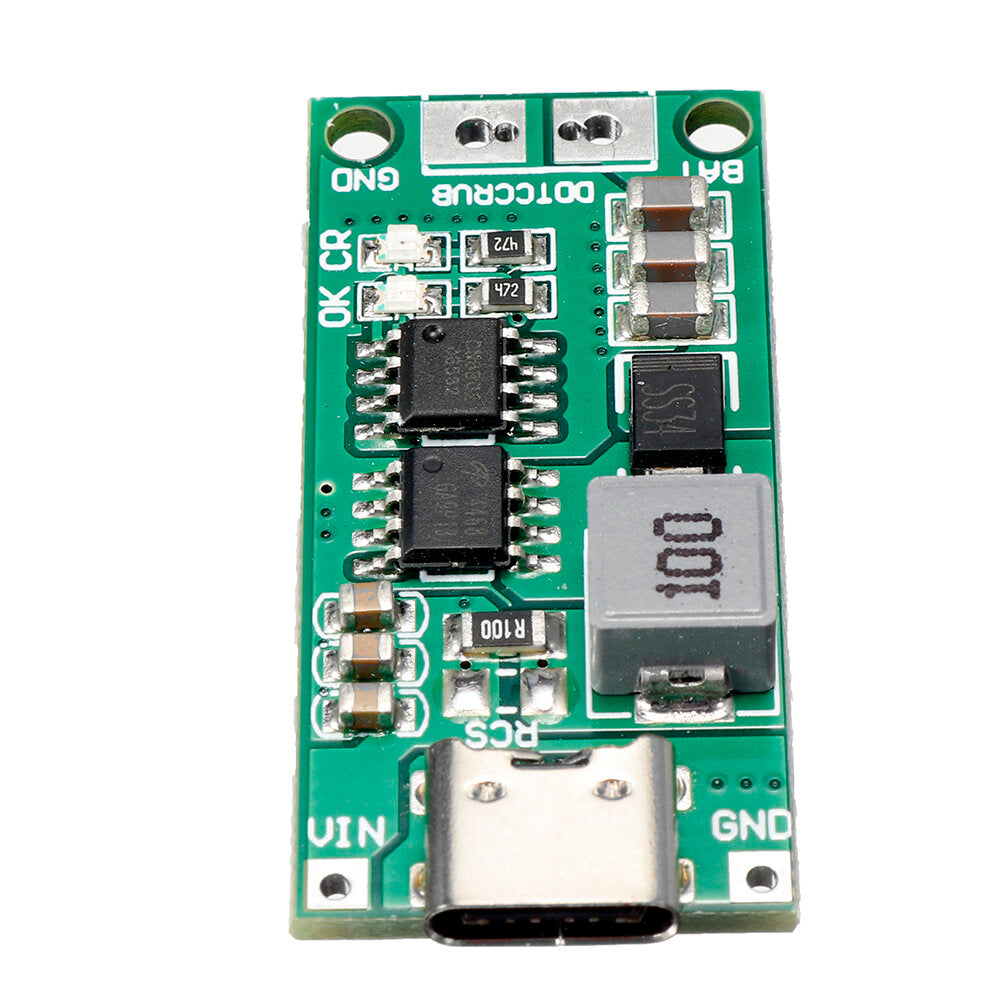

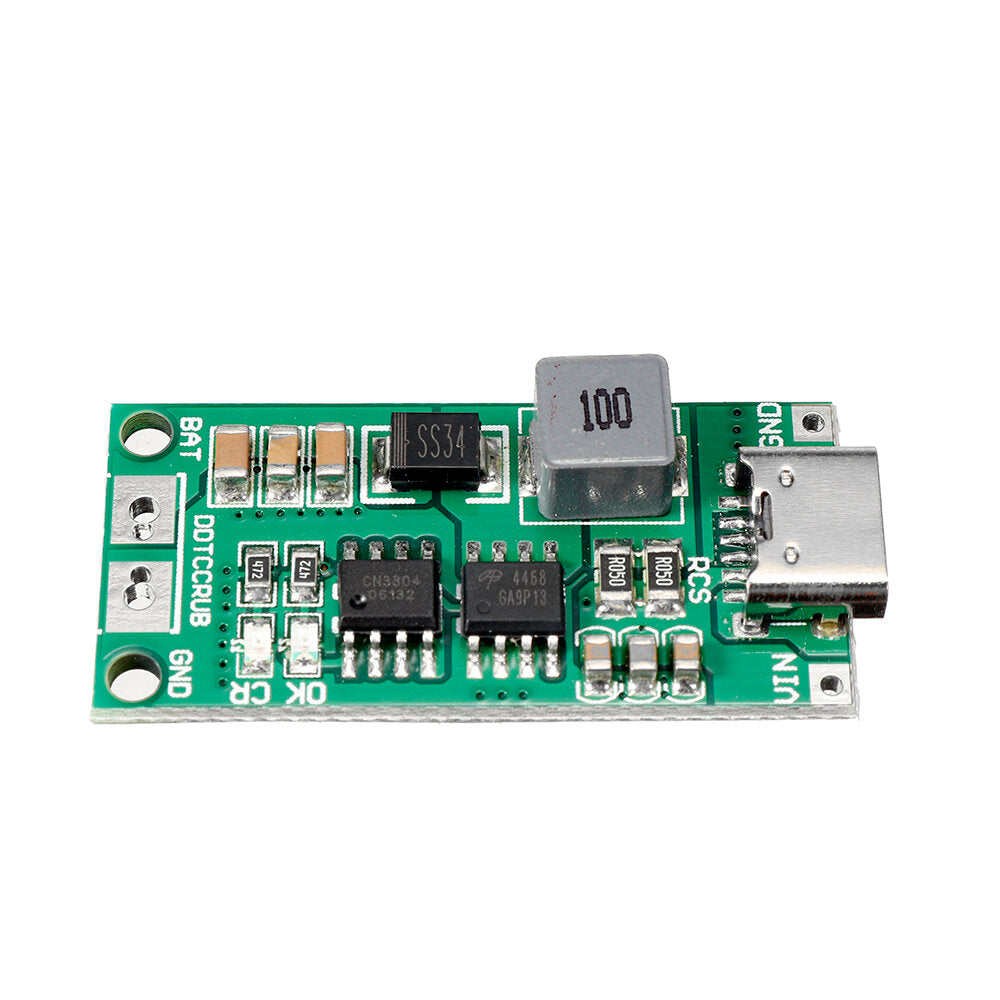

DDTCCRUB 2S/3S/4S 1-4A Battery Charger Module Step Up Boost Li-Polymer Li-ion Module Lithium Battery Charger Board Circuit Protection
Feature:1. Switching frequencies up to 1MHz, compensate for voltage loss in quasiÔÇæCV mode.2. The internal resistance and tracking resistance of the battery are charged automatically.3. Protection battery voltage is lower...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Description
Feature:
1. Switching frequencies up to 1MHz, compensate for voltage loss in quasiÔÇæCV mode.
2. The internal resistance and tracking resistance of the battery are charged automatically.
3. Protection battery voltage is lower than the input voltage and battery short circuit.
4. Strong adaptability to the input power supply, driving capacity is limited over voltage protection battery.
5. Version 8.4V/12.6V/16.8V of input voltage DC 3ÔÇæ6V (DC 3.7V 5V is recommended).
Specification:
Condition: 100% Brand New
Item Type: Battery Charger Module
Material: Plastic
2 Battery (2S):
Version 8.4V: Input voltage: DC 3ÔÇæ6V (DC 3.7V 5V is recommended)
Charging Voltage: 8.4V
2SÔÇæ4A:
Input Current: 4A
Charging Current: 2.2A

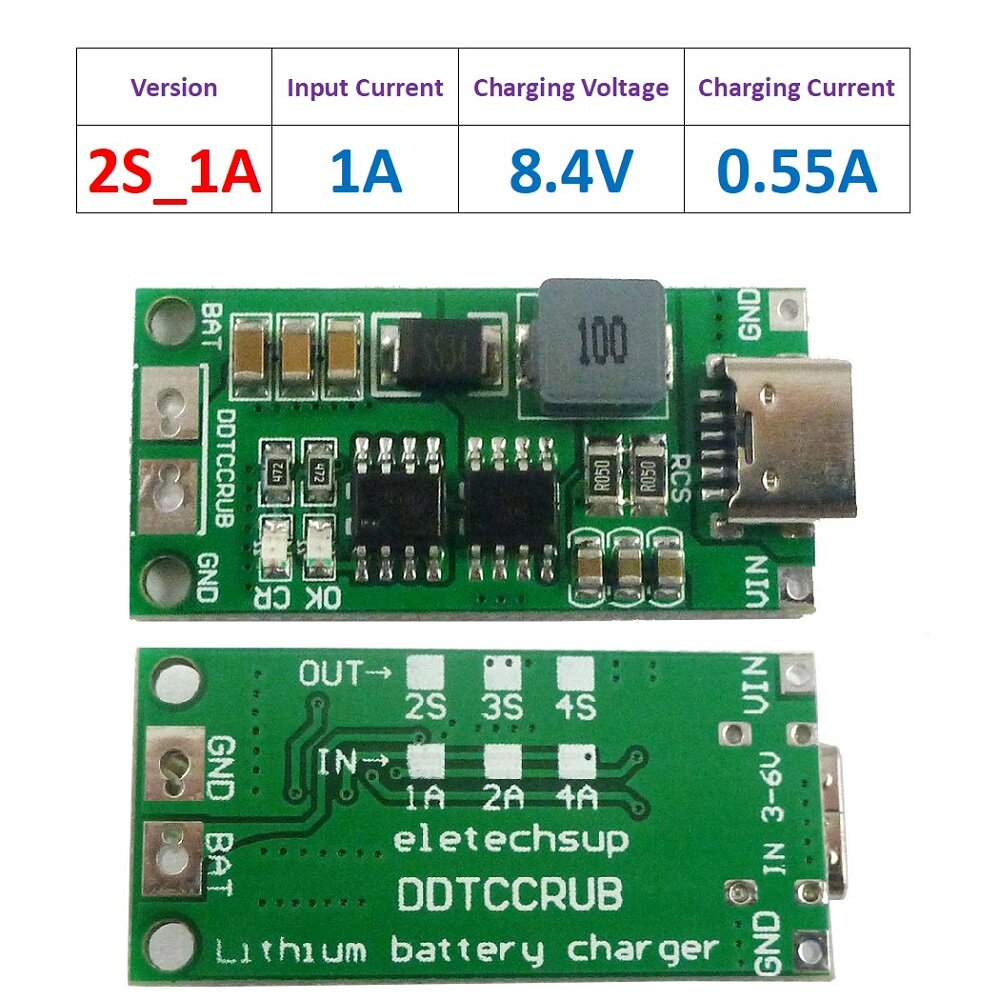

2SÔÇæ2A:
Input Current: 2A
Charging Current: 1.1A
2SÔÇæ1A:
Input Current: 1A
Charging Current: 0.55A
3 Battery (3S):
Version 12.6V: Input voltage: DC 3ÔÇæ6V (DC 3.7V 5V is recommended)
Charging Voltage: 12.6V
3SÔÇæ4A:
Input Current: 4A
Charging Current: 1.48A
3SÔÇæ2A:
Input Current: 2A
Charging Current: 0.74A
3SÔÇæ1A:
Input Current: 1A
Charging Current: 0.37A
4 Battery (4S):
Version 16.8V: Input voltage: DC 3ÔÇæ6V (DC 3.7V 5V is recommended)
Charging Voltage: 16.8V
4SÔÇæ4A:
Input Current: 4A
Charging Current: 1.12A

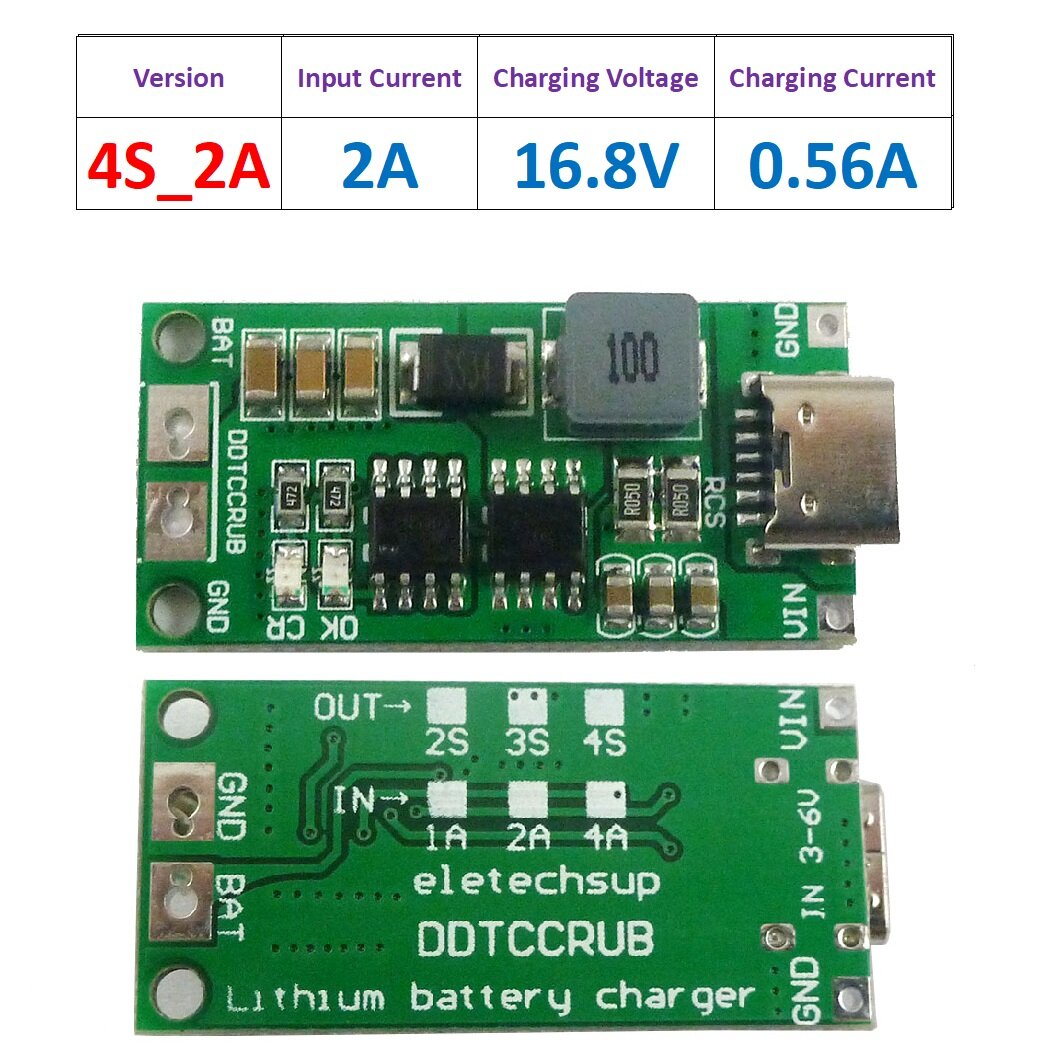

4SÔÇæ2A:
Input Current: 2A
Charging Current: 0.56A

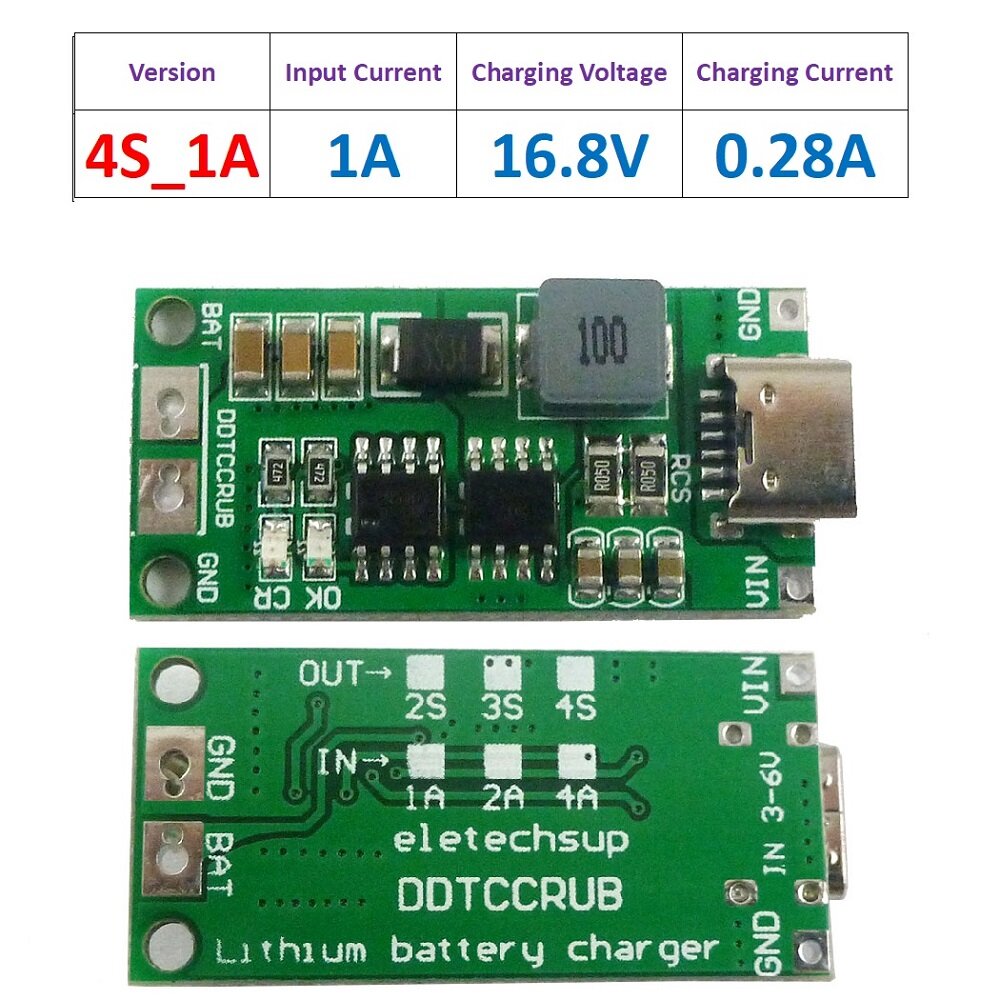

4SÔÇæ1A:
Input Current: 1A
Charging Current: 0.28A
Package included:
1 x Battery Charger Module
DDTCCRUB 2S/3S/4S 1-4A Battery Charger Module Step Up Boost Li-Polymer Li-ion Module Lithium Battery Charger Board Circuit Protection
$14.99
