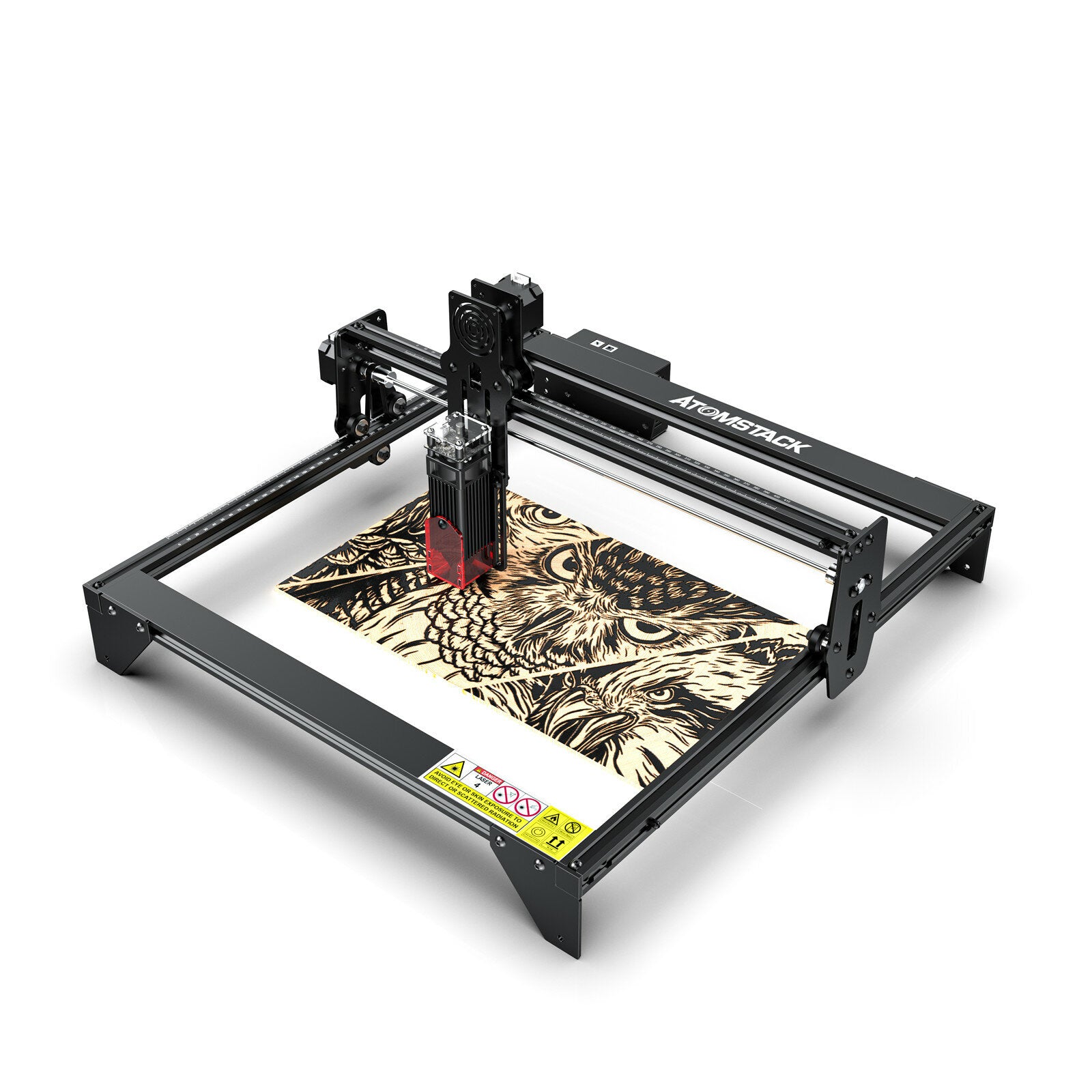

ATOMSTACK New A5 30W Laser Engraving Machine Wood Cutting Design Desktop DIY Laser Engraver New Eye Protection Design Support For Windows IOS Banggood World Exclusive Premiere
Specification: Model ATOMSTACK A5 30W Print Size Recommend Print Size 410*400mm Carving Objects All Wood, Bamboo, Paper, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective Plating and Lacquered Metal Cutting Objects...
🟢 In Stock
✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT
Specification:
| Model |
ATOMSTACK A5 30W |
| Print Size |
Recommend Print Size 410*400mm |
| Carving Objects |
All Wood, Bamboo, Paper, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective Plating and Lacquered Metal |
| Cutting Objects |
Cardboard, Non-woven Fabric, Light Wood, Acrylic Material, Thin Plastic Board |
| Laser Power |
30W |
| Laser Output Power |
5.5-6W |
| Wave Length |
445 ± 5nm |
| Engraving Accuracy |
0.01mm |
| Focusing Method |
Fixed focus laser, no need to focus |
| Laser Protective Cover |
Protect the user's eyes and prevent pets from grabbing the laser spot. |
| Operating Software |
LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. |
| Input Format |
NC, BMP, JPG, PNG, DXF, etc. |
| Data Transmission Method |
USB Connection |
| Input Voltage |
AC100-240V, 50/60Hz |
| Output Voltage |
DC12V, 5A |
| Equipment Net Weight |
4.0kg |
| Package Weight |
5.6kg |
| Equipment Size |
570*600*270mm |
| Packing Size |
620*345*130mm |
| Certification |
CE FCC RoHS FDA |
|
Features |
1. New Eye Protection Design: The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.
2. Solid and Easy Installation Structure Design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. Upgraded High-performance Fixed-focus Laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide Compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support IOS system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5. Precise Scale Lines Axis : There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
6. Integrated stepper motor and shaft: The machine uses an integral screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the laser movement more precise and the coupling more durable.
|
|
Note |
â— When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles. â— Please do not touch the laser emitter with your hand, or it may burn your hand. â— Please avoid strong impact on the machine. â— Children under 14 are not allowed to use this product and children over 14 need adult supervision. â— The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser. |
Recommendation:
| Product Name | Product ID(Click it) |
| AtomStack Control Board |
1818088 |
|
AtomStack 20W Laser Module |
1817317 |
|
AtomStack 30W Laser Module |
1817314 |
|
AtomStack 40W Laser Module |
1817312 |
ATOMSTACK R3 24W Automatic Rotary Roller |
|
| ATOMSTACK Laser Cutting Honeycomb Working Table Board |
1915994 |
Package Included:
| 1x |
Engraving Machine |
| 1x | 30W Laser Module |
| 1x | Goggles |
| 1x | 24V2A Power Adapter |
| 1x | Power Switch Line |
| 1x | USB Cable |
Step 1~5 Installation Package:
| 1 x | M5 Wrench |
| 10 x | Rolled Belts |
| 3 x | Small Wood Chips |
| 1 x | Focal Length Film |
| 1 x | M3 Wrench |
| 1 x |
Marker |
| 1 x |
Brush |
| 3 x | Small Acrylic |
