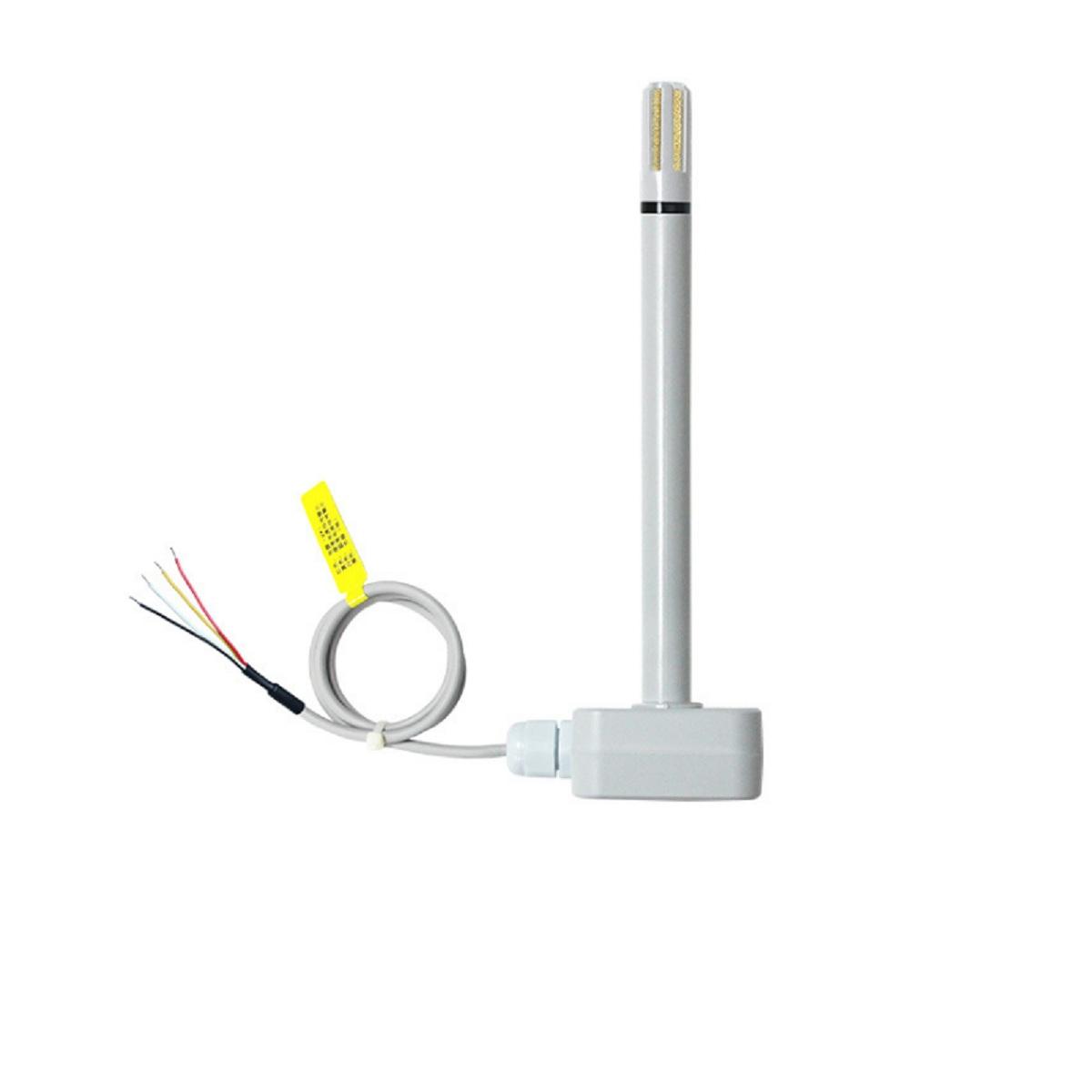

AF1010 Pipe-type Voltage-type Temperature and Humidity Transmitter Anti-chemical Pollution of Dust-proof Probe Humidity Sensor

AF1010 Pipe-type Voltage-type Temperature and Humidity Transmitter Anti-chemical Pollution of Dust-proof Probe Humidity Sensor

$111.99 $94.99

Specification:Product size:  (L) 70mm * (W) 60mm * (H) 240.28mmVoltage output:  0-10VWorking Voltage:  15-36V DCMeasurement Limit:  Temperature: - 40 ~+80 ℃;  Humidity: 0 ~99.9% RHMeasurement accuracy:  temperature: soil 0.5 ℃;...

🟢 In Stock

✔️ WORLDWIDE SHIPPING
✔️ 30 DAYS RETURN GUARANTEE
✔️ SECURE CHECKOUT

visamasteramerican expressgoogle paypaypal
Tags: shop
Description
Specification:
Product size:  (L) 70mm * (W) 60mm * (H) 240.28mm
Voltage output:  0-10V
Working Voltage:  15-36V DC
Measurement Limit:  Temperature: - 40 ~+80 ℃;  Humidity: 0 ~99.9% RH
Measurement accuracy:  temperature: soil 0.5 ℃;  Humidity: +3% RH (25 ℃)
Resolution: Temperature:  0.1℃;  Humidity: 0.1% RH
Attenuation value: temperature: <0.1℃/year;  Humidity: <0.5% RH/year
Response time: 8s
Storage Range: Temperature: 0-60 ℃ ;Humidity: <90% RH
Product power consumption: <20mA
Weight: 110.3g

Description:
AF1010 pipeline voltage temperature and humidity transmitter uses capacitive digital temperature and humidity sensor as humidity measuring component, with stable and reliable signal processing circuit, converts temperature and humidity in the environment into corresponding standard signals, and chooses high-quality integrated digital temperature and humidity sensor to ensure the excellent transmitter. Long-term stability, low delay, and strong resistance to chemical pollution, the transmitter has excellent repeatability.

Package Includes:
1 X AF1010 pipe type current type temperature and humidity transmitter
1 X Product outer packing box
1 X Black flange
1 X Fixed screws with two screws
1 X Sealing ring
1 X Product specification
